Vehicle Specs
|

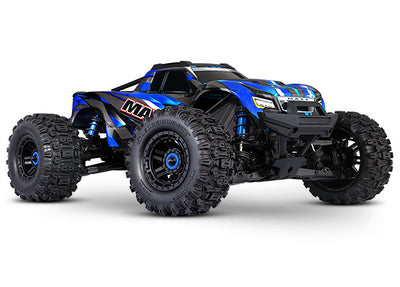

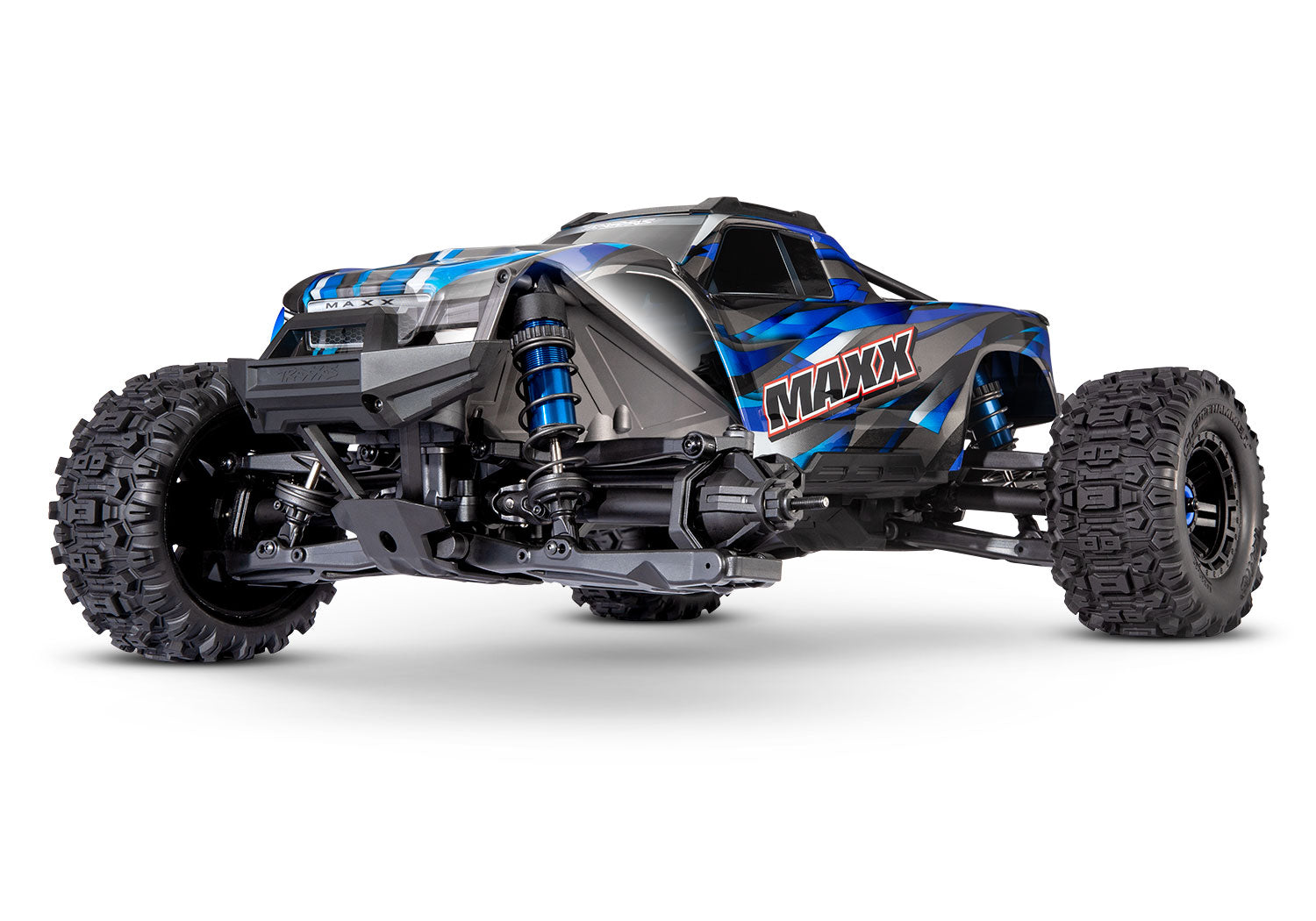

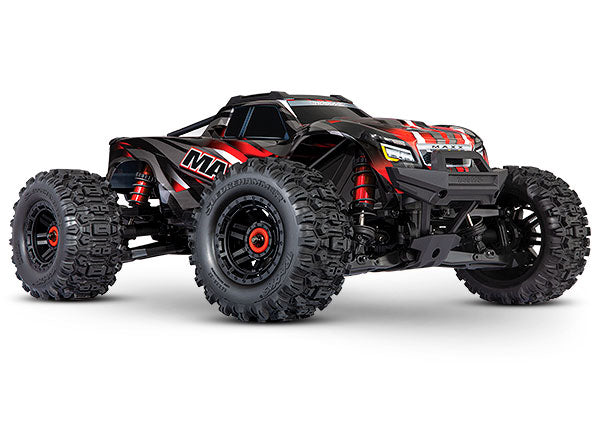

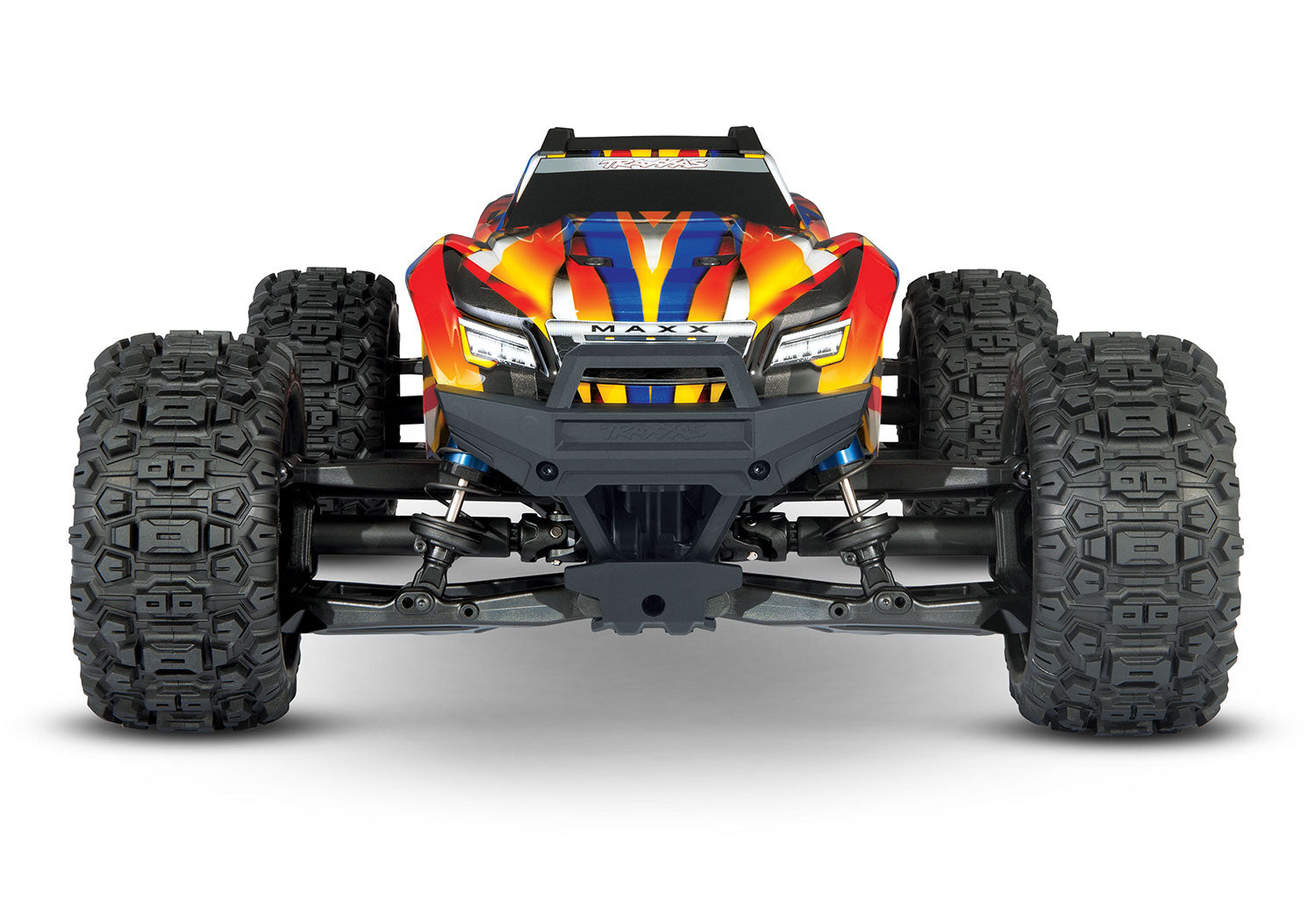

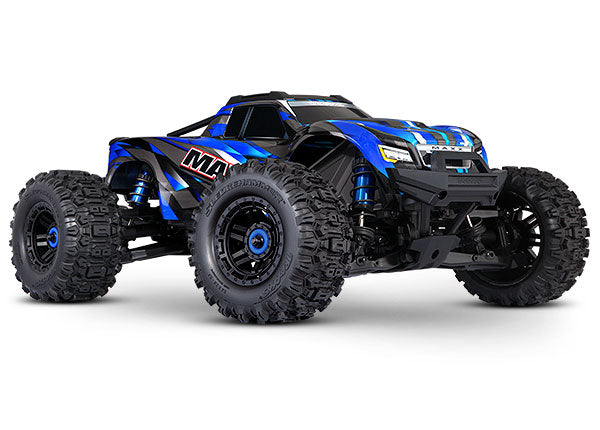

Traxxas Maxx® 1/10 Scale 4WD Brushless Electric Monster Truck With WIDEMAXX 89086-4 |
||||||||||||||||||
|
Product Description
MEET THE NEWEST MAXX® NOW WITH WIDEMAXX®
The Traxxas X-Maxx® is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 Traxxas Maxx expertly packages X-Maxx’s innovative design elements and jaw-dropping strength into a lighter, more compact, more ferocious beast. Now the newest Maxx is even bigger, with a longer wheelbase, beefier Sledgehammer tires, and that incredible WideMaxx stance for more intense action. Let the fun begin!

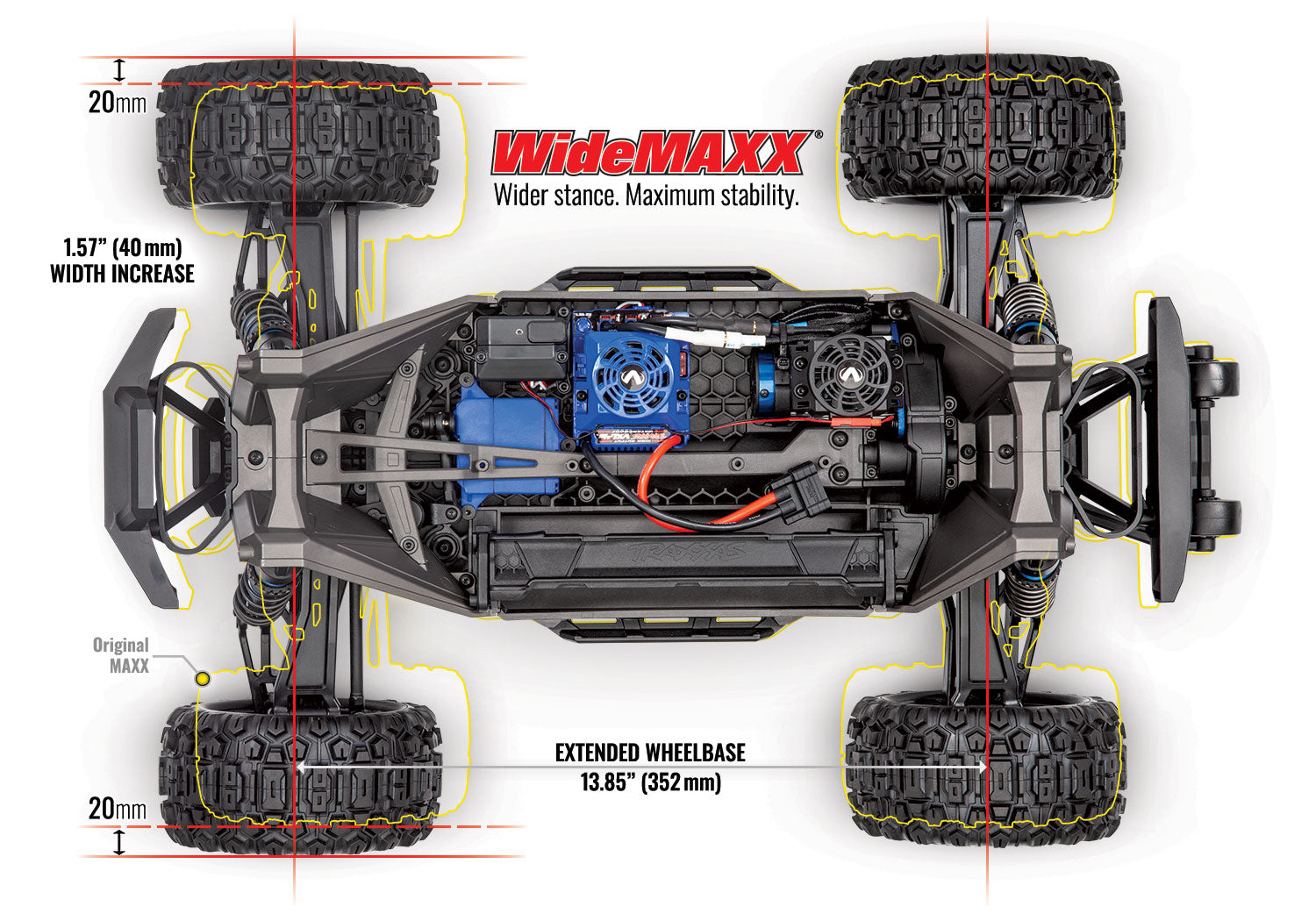

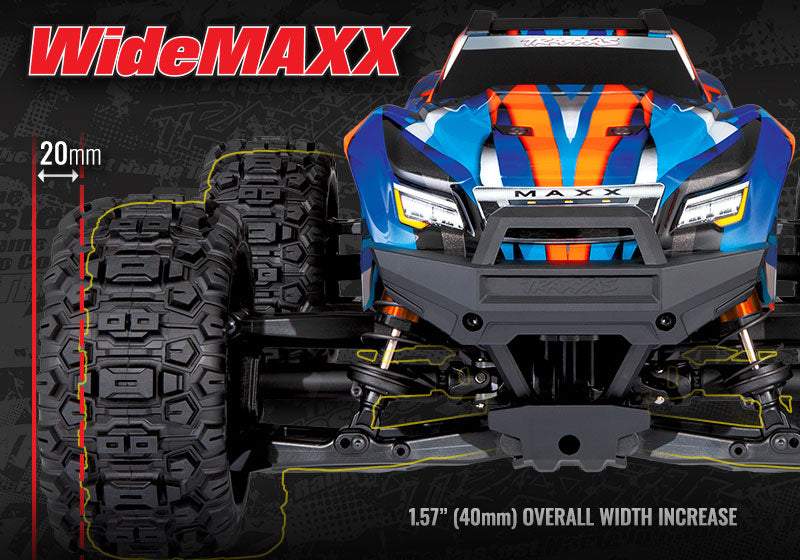

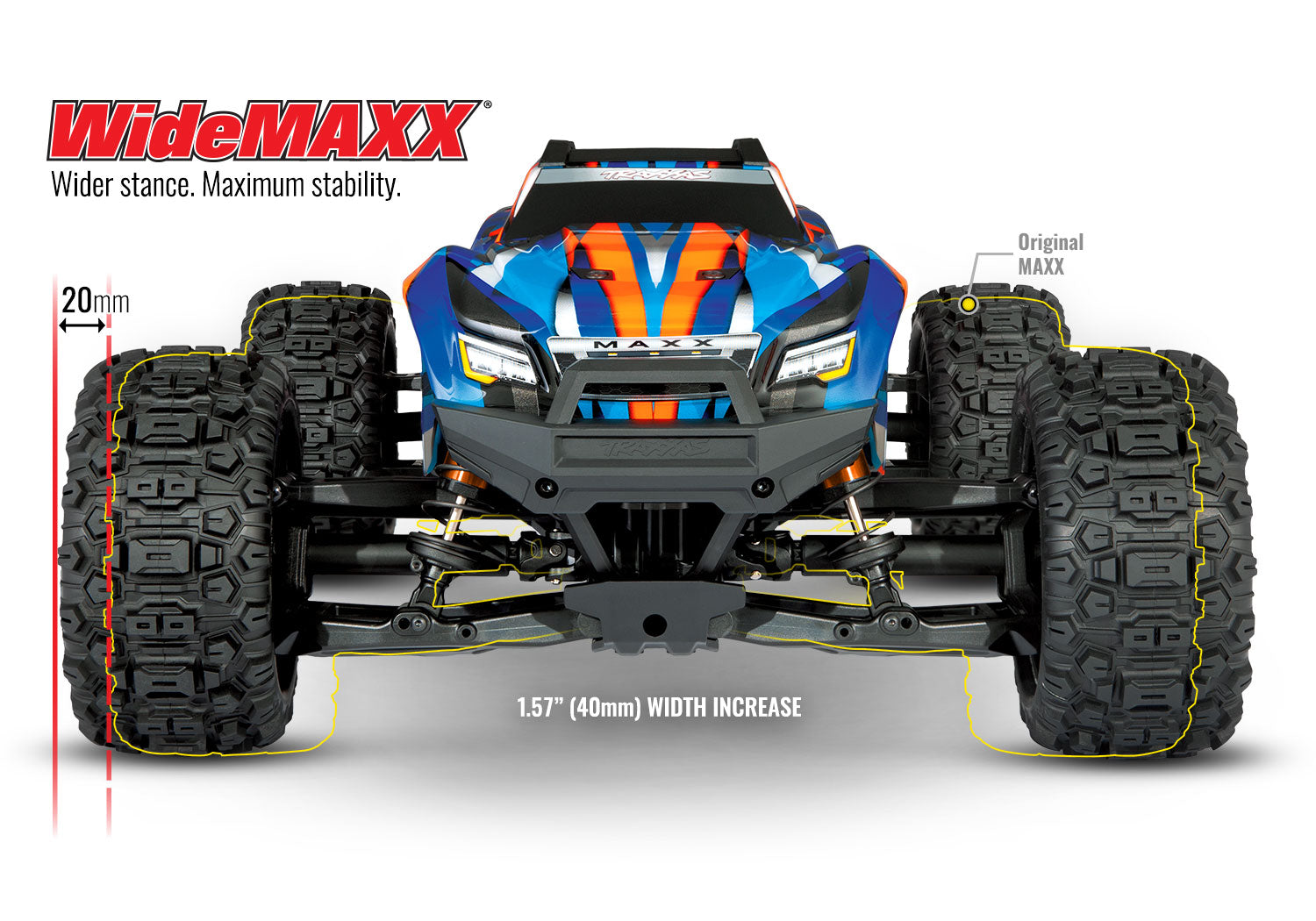

WIDEMAXX® FROM THE START
LONGER CHASSIS

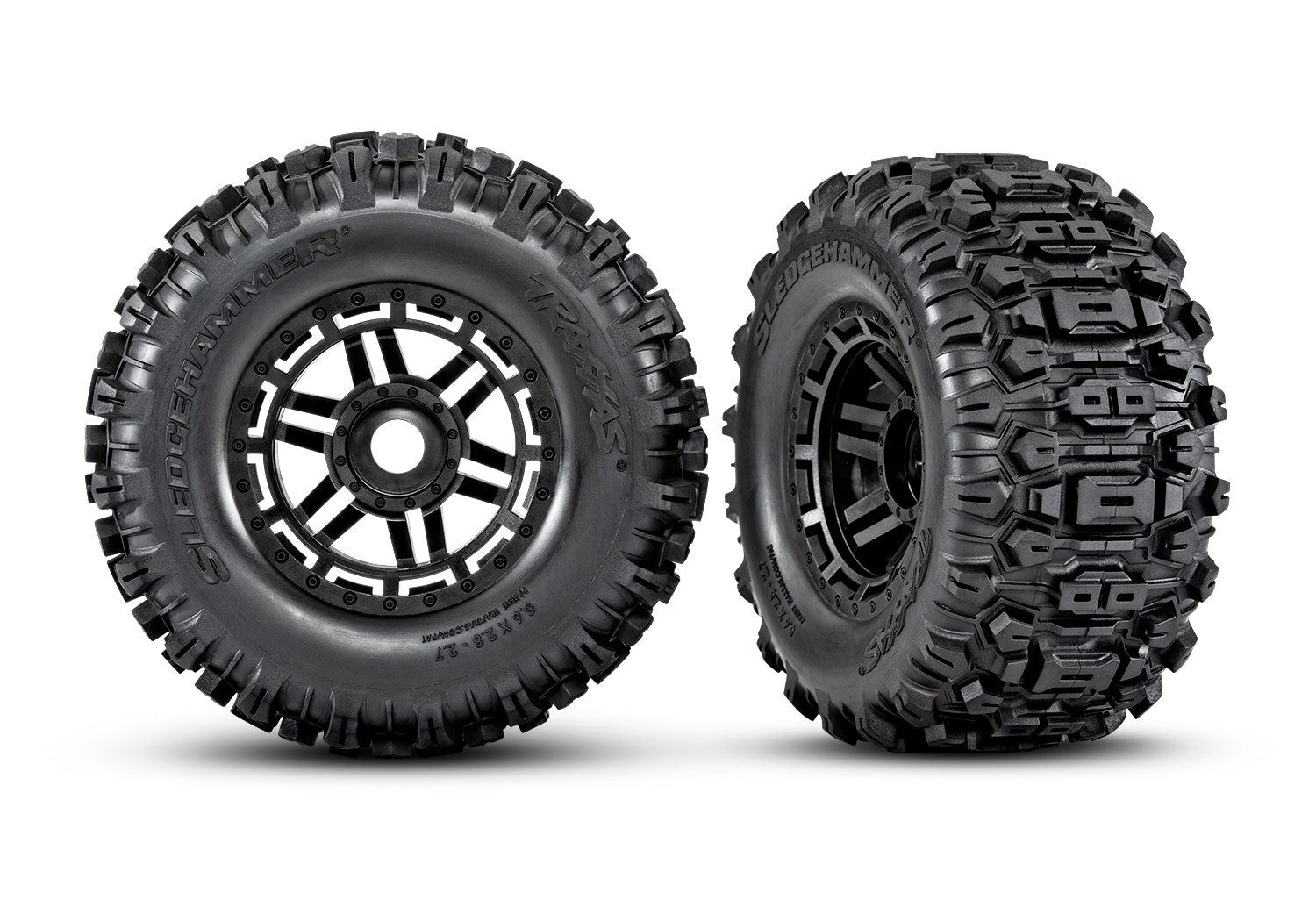

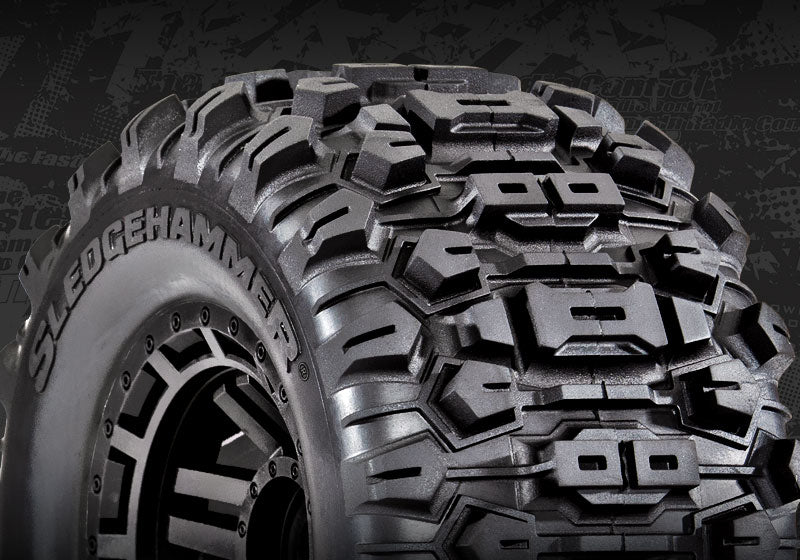

SLEDGEHAMMER® TIRES

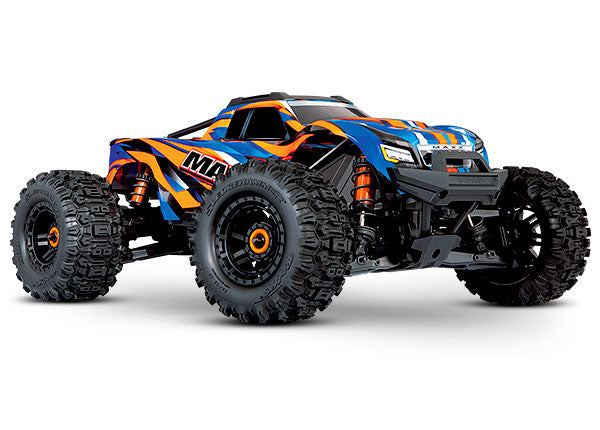

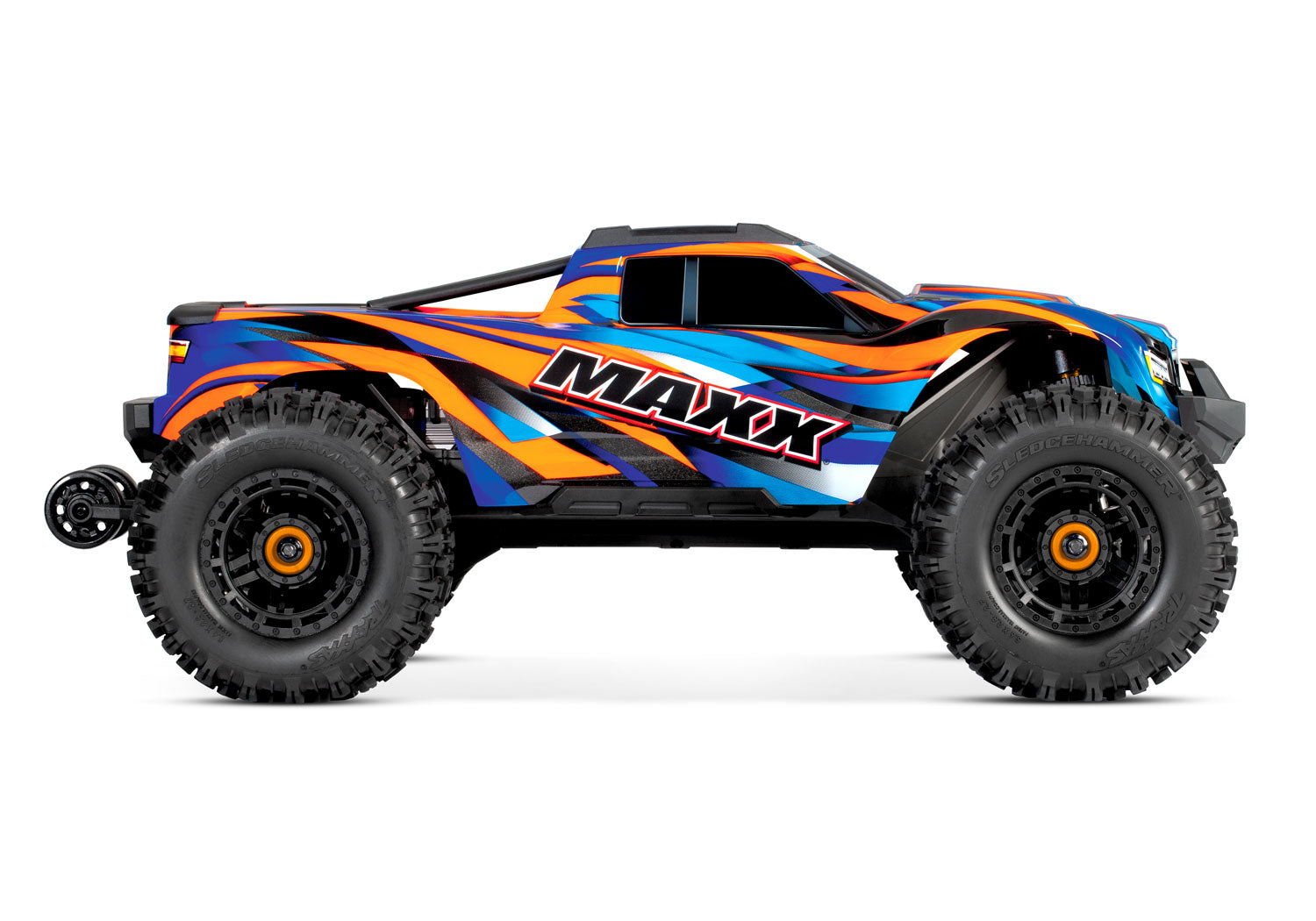

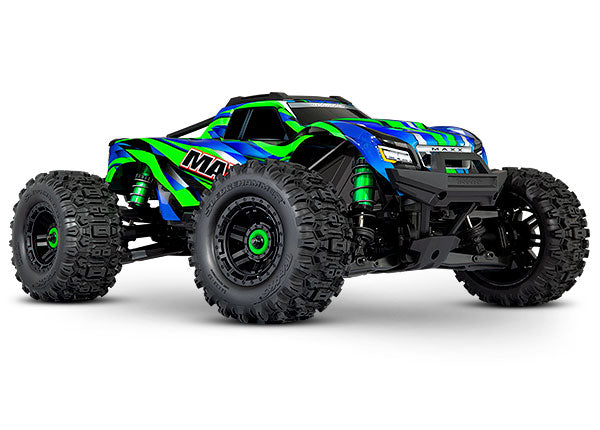

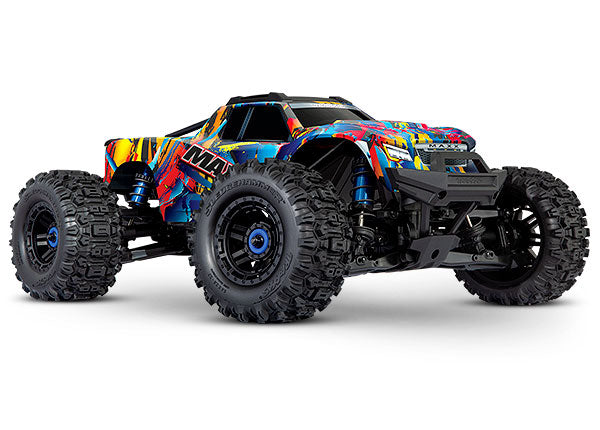

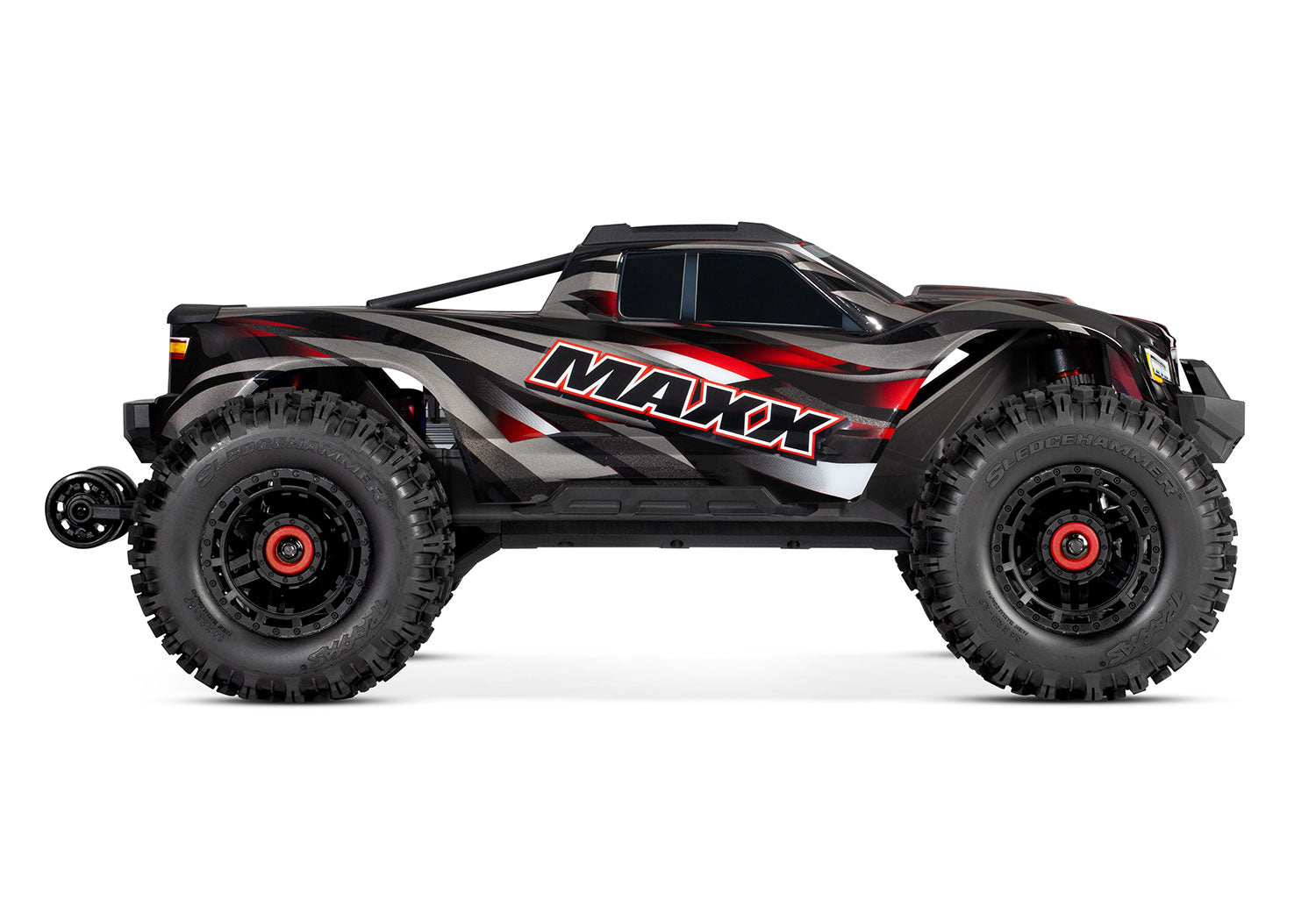

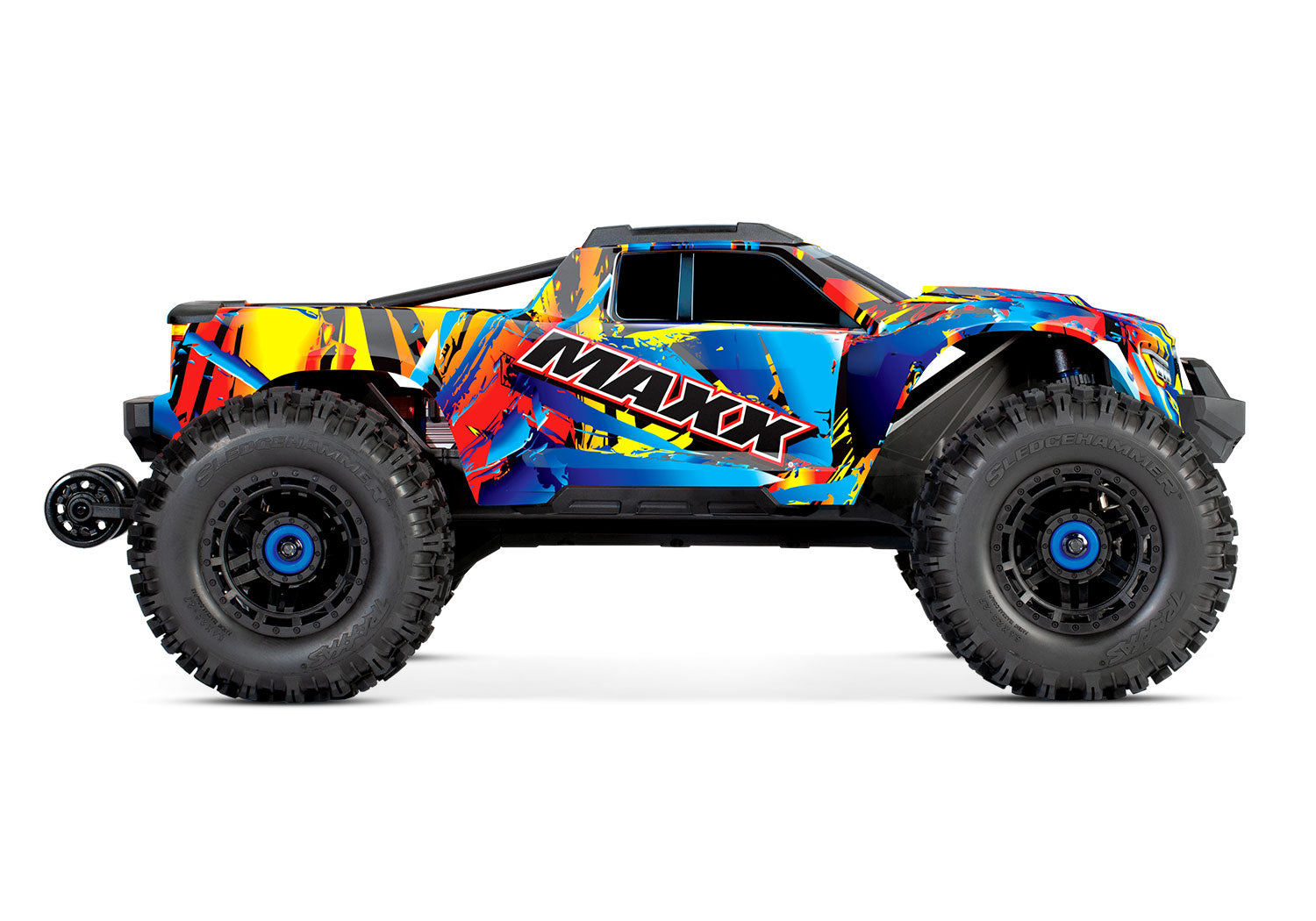

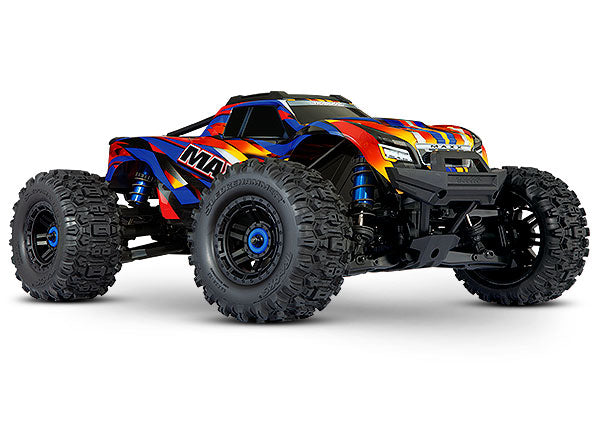

SIX NEW COLORS
| Length: | 22.50 inches (572mm) |
|---|---|
| Front Track: | 15.95 inches (405mm) |
| Rear Track: | 15.95 inches (405mm) |
| Ground Clearance (lowest skid): | 1.90 inches (49mm) |
| Ground Clearance (center skid): | 2.6 inches (67mm) |
| Weight: | 10.40 lbs (4.7kg) |
| Height (ride): | 9.12 inches (232mm) |
| Wheelbase: | 13.85 inches (352mm) |
| Shock Length: | 4.90 inches (124mm) |
| Tire Diameter: | 5.64 inches (143mm) |
| Wheel Diameter: | 2.8 / 3.6 inches (70 / 92mm) |
| Speed Control: | Velineon VXL-4s |
| Motor (electric): | 540XL (2400 kV) |
| Transmission: | Single-Speed |
| Overall Drive Ratio: | 12.37 (23/50 motor pinion and spur gear) |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
|---|---|
| Gear Pitch: | Module 1.0 |
| Chassis Structure/Material: | Composite Modular Tub |
| Brake Type: | Electronic |
| Drive System: | Shaft-driven 4WD |
| Steering: | Double-shear bellcrank |
| Wheels & Tires: | 2.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 5.6x2.8–3.6 |
| Radio System: | 2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver |
| Servo: | Torque: 285oz-in. |
| Top Speed: | 60+ MPH with 4S LiPo battery and optional gearing (sold separately) |
| Skill Level: | 4 |
| Battery Tray: | 186mm L x 48mm W x 43mm H |
| Required Batteries: | 4 “AA” (transmitter) |
What’s In The Box:
- Maxx, Ready-To-Race® model with Traxxas 540XL brushless motor
- VXL-4s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi™ 2.4GHz radio system
- High quality maintenance tools
What You’ll Need:
- LiPo Battery
Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- LiPo Balance Charger with iD™
Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
