MPN: 107154-1-BLUE
UPC:
EAN:
Current stock is being delivered by air freight and are costing more. Traxxas has authorized a temporary price hike for the Mini Maxx.

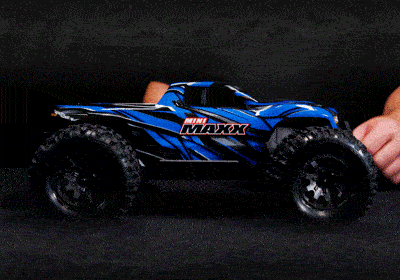

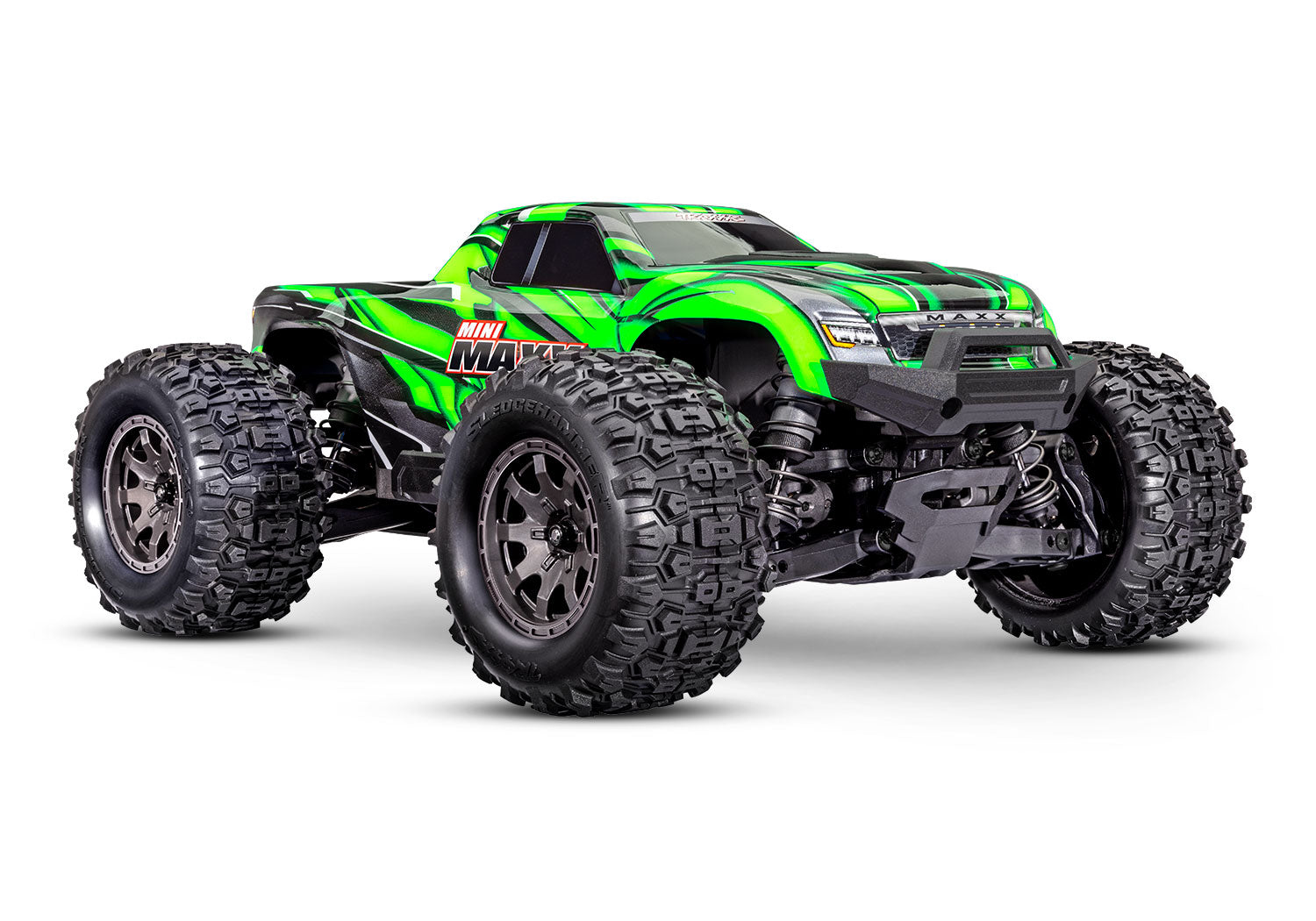

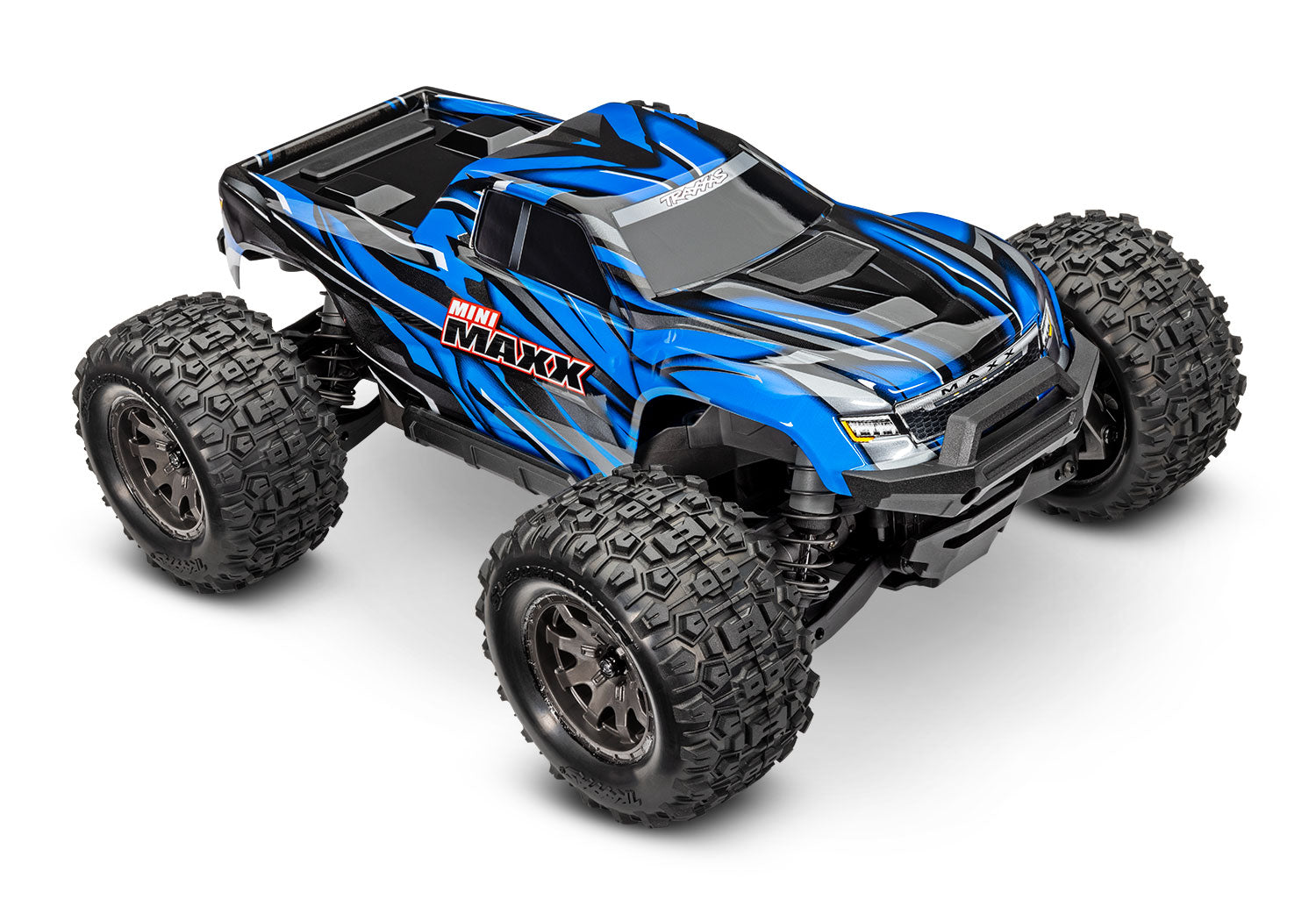

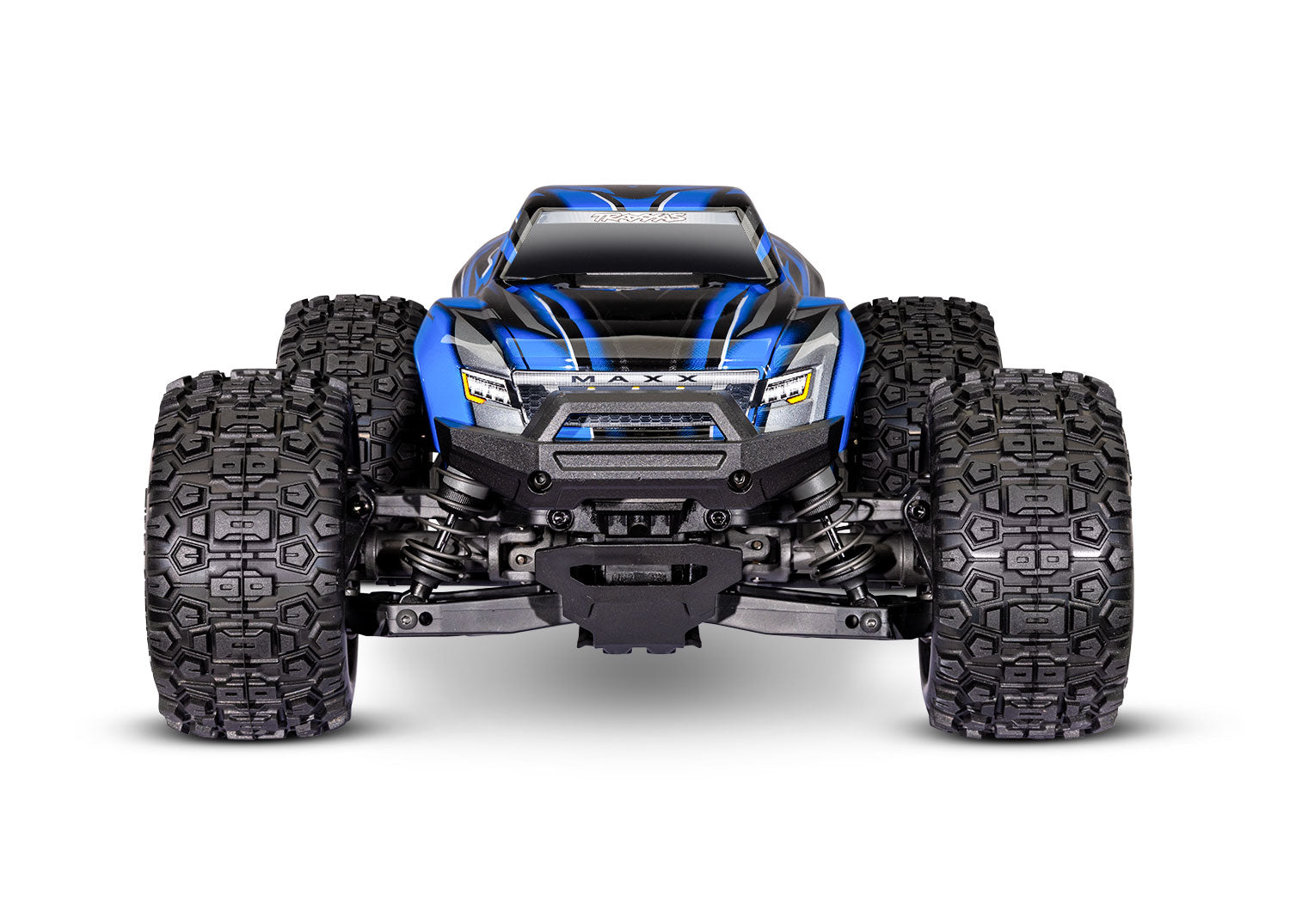

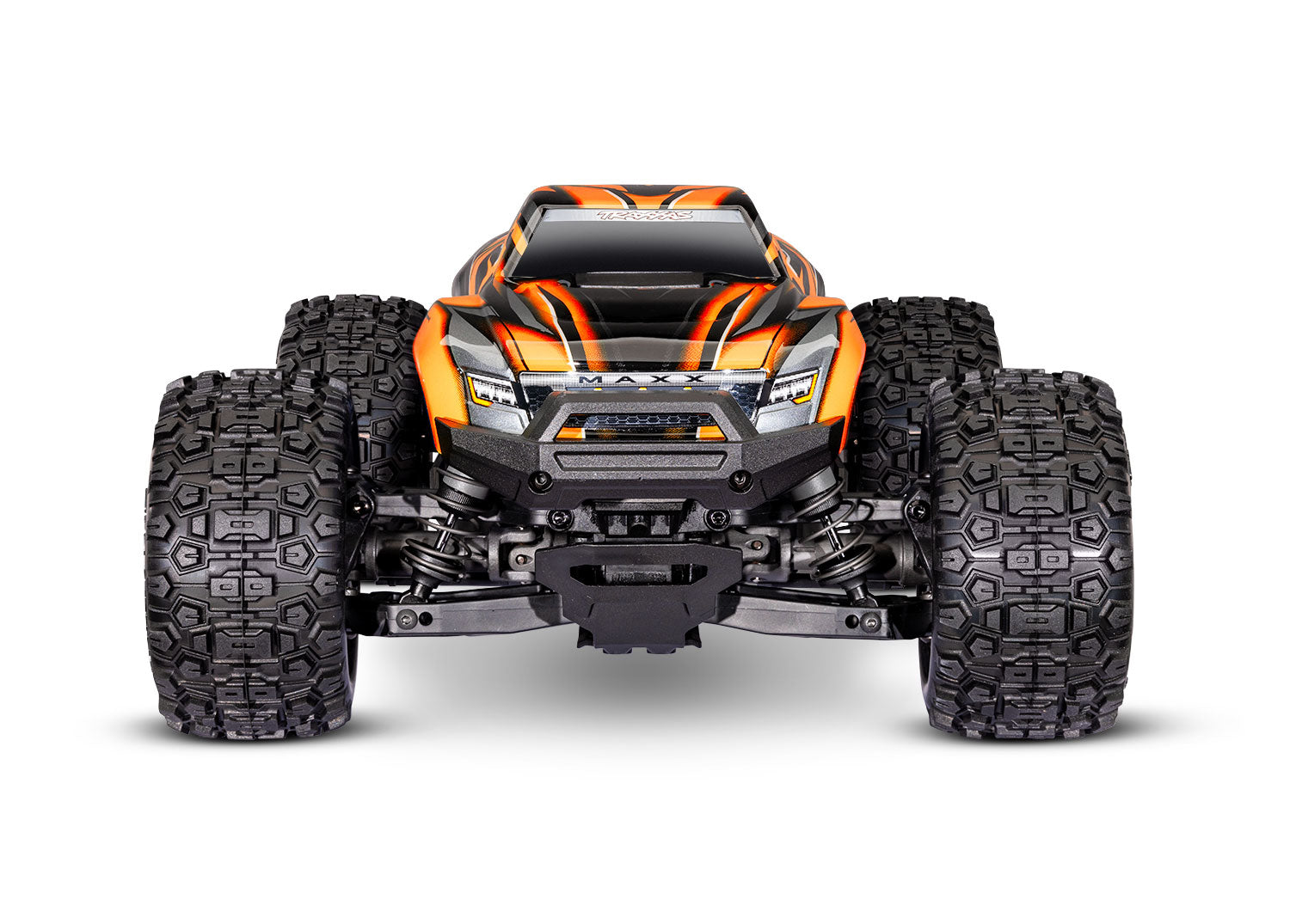

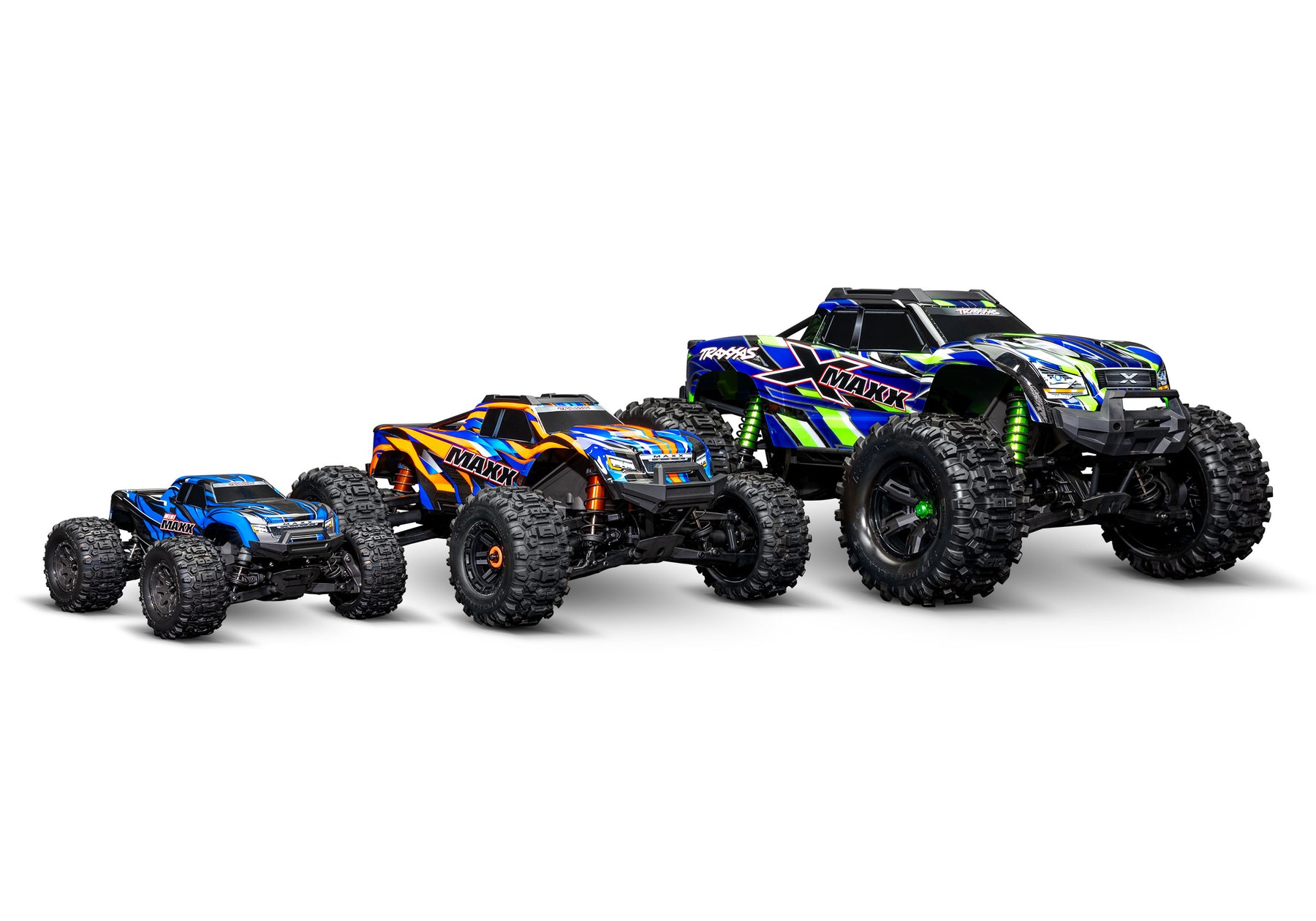

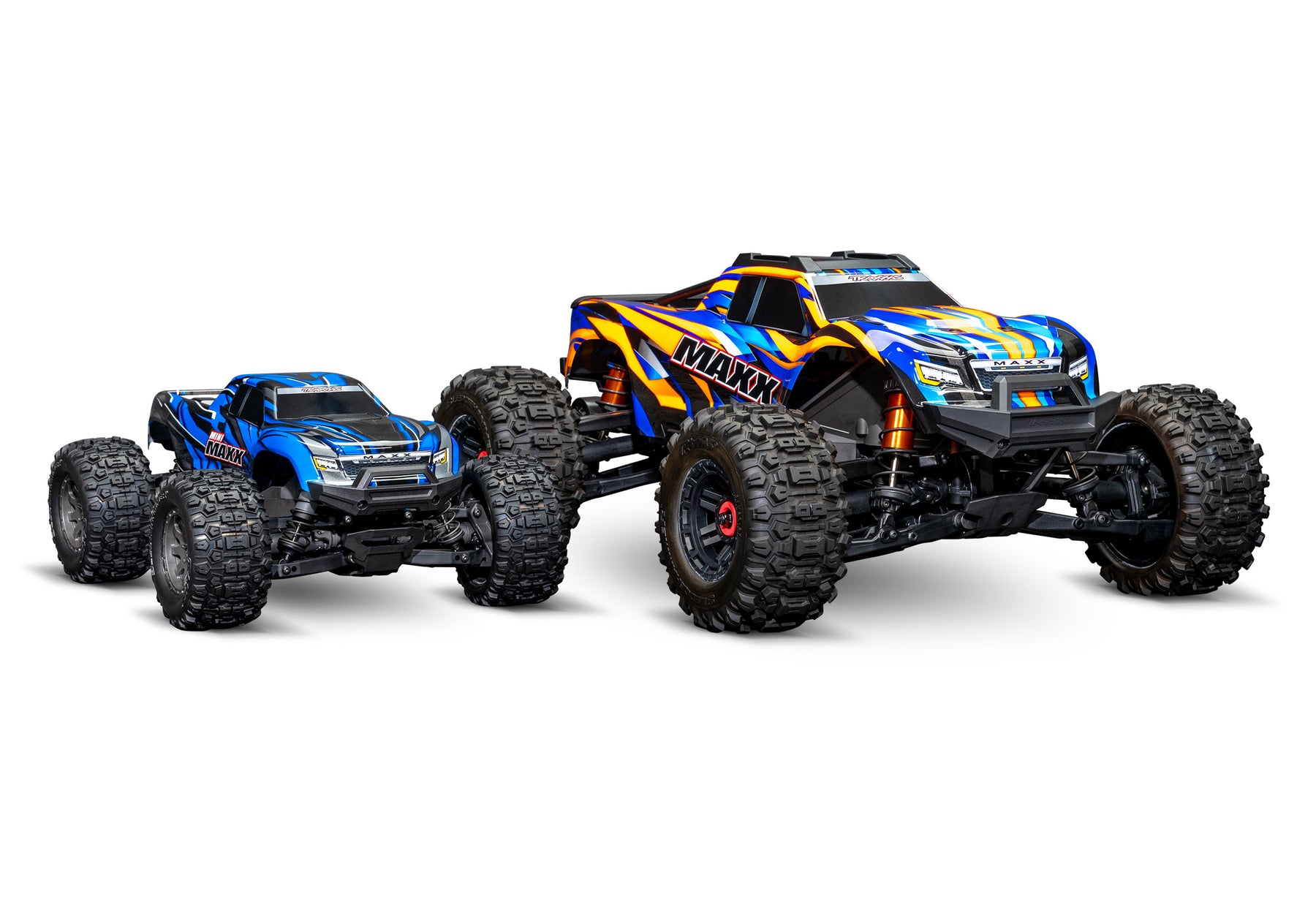

A New Way to Experience Maxx Fun

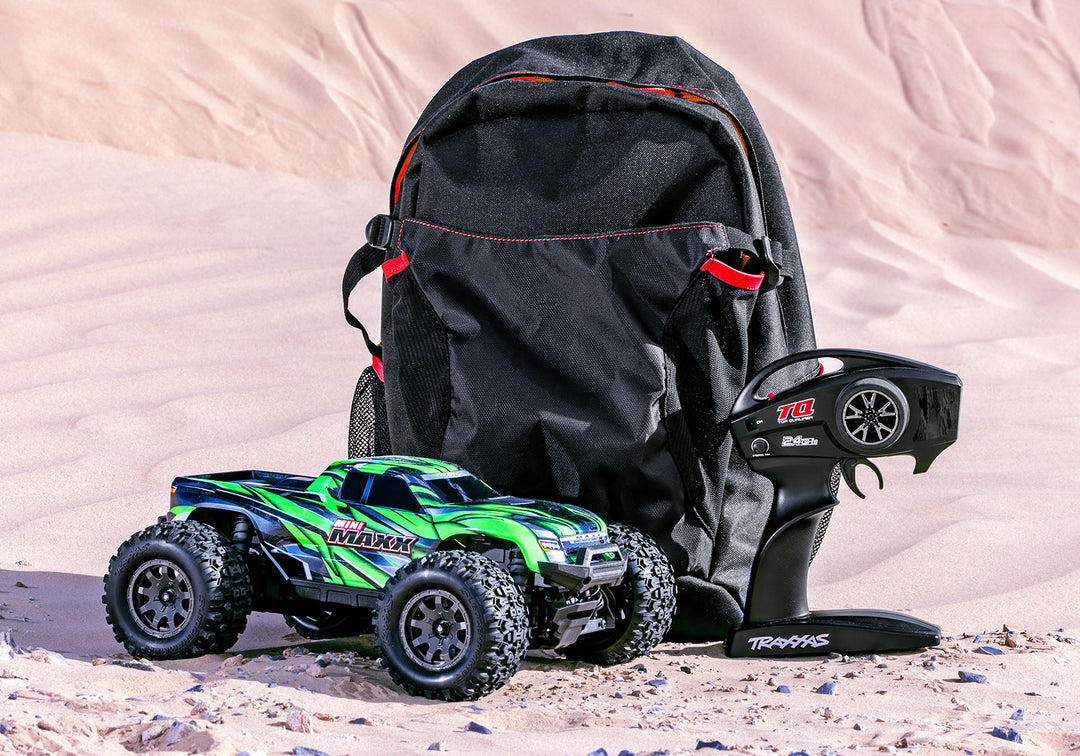

Overbuilt and over-the-top, the all-new Mini Maxx® captures the engineering, unmatched power, and extreme durability that defines Traxxas Maxx® performance. Mini Maxx is the perfect, take-anywhere size, delivering 30+mph brushless speed and legendary Maxx toughness that slides easily into a backpack.

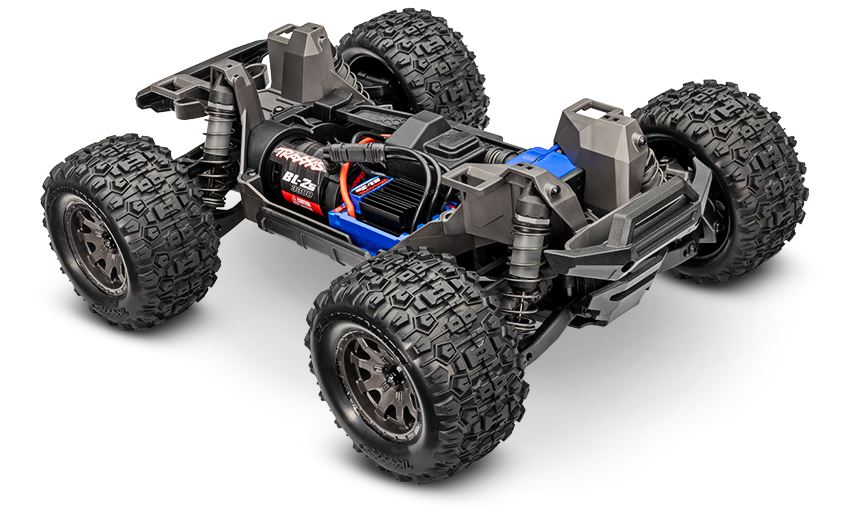

Proven-Tough Maxx Chassis Platform
Maxx Performance

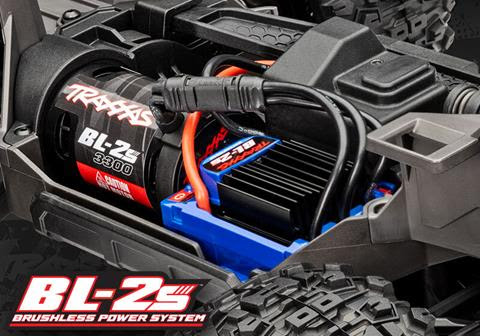

1/10 Scale Power System
1/10 Scale 4X4 Driveline

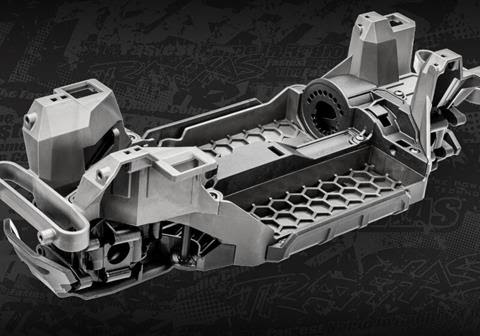

Maxx Chassis Technology
Clipless Body

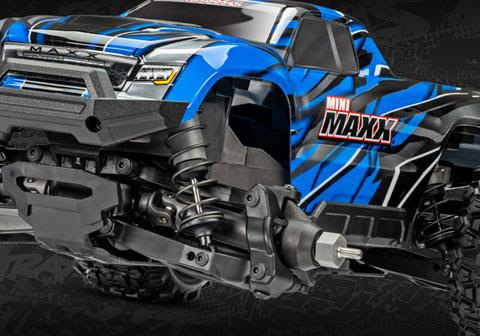

Long-Travel Suspension

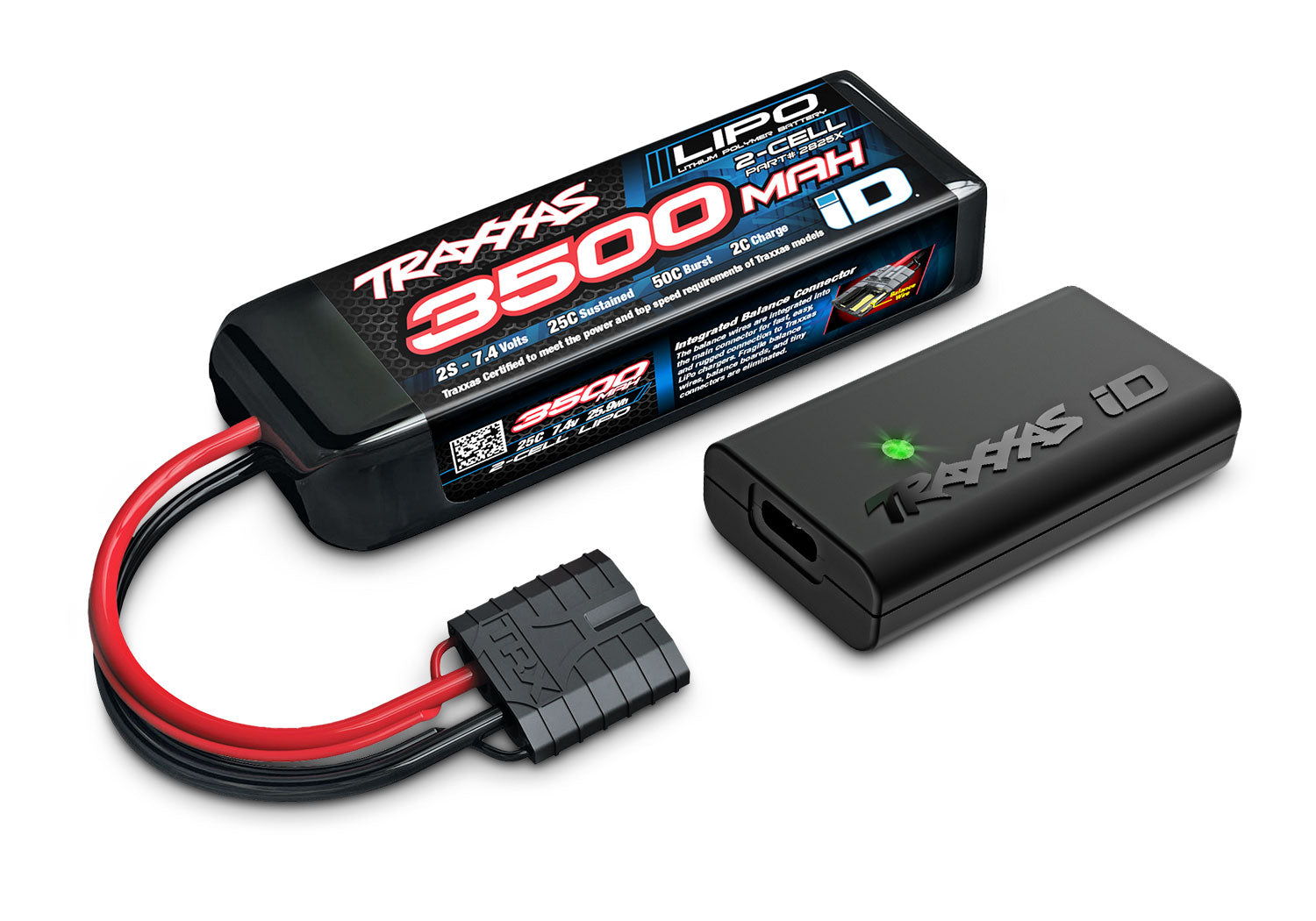

INCLUDED 2s LiPo Battery & USB-C Charger with iD®
Mini Maxx’s included 2-cell LiPo battery provides exceptional performance with Traxxas iD safety and simplicity.
• 2s 3500mAh LiPo Battery
• 2-amp USB-C LiPo Fast Charger

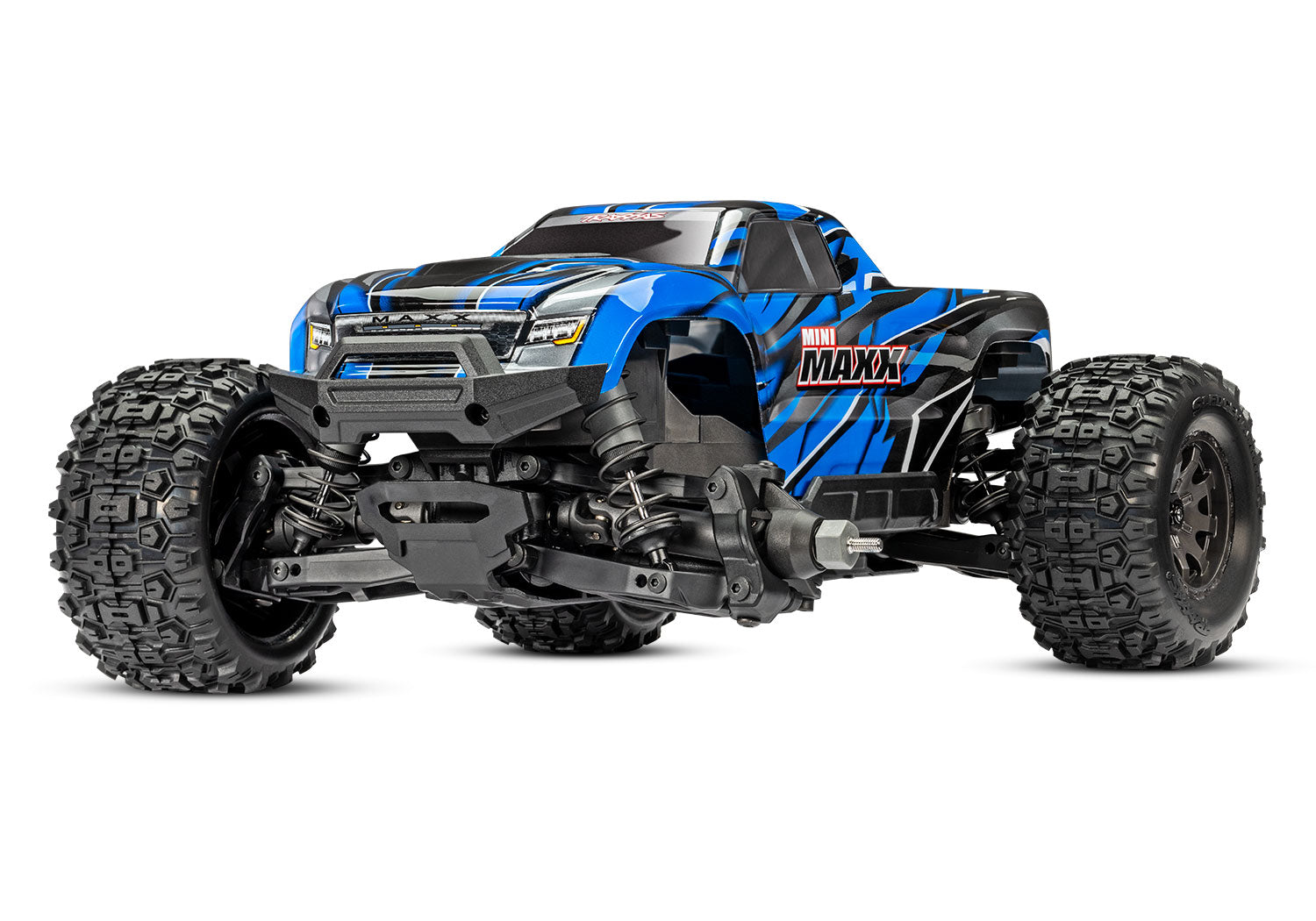

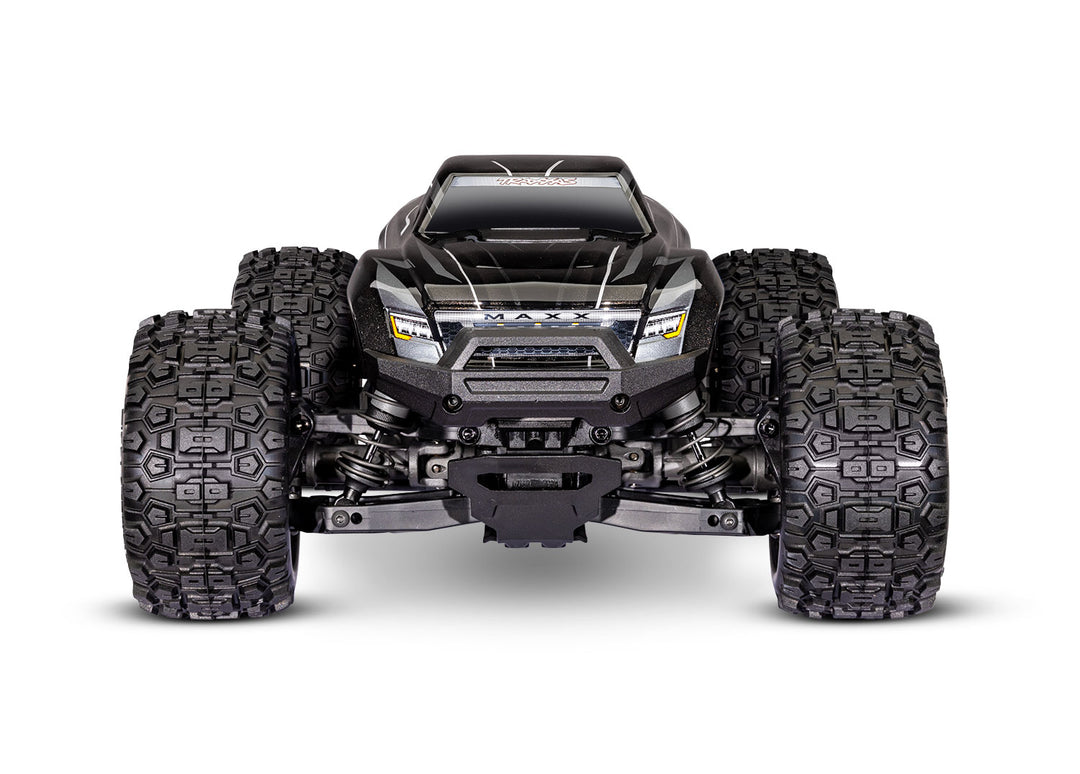

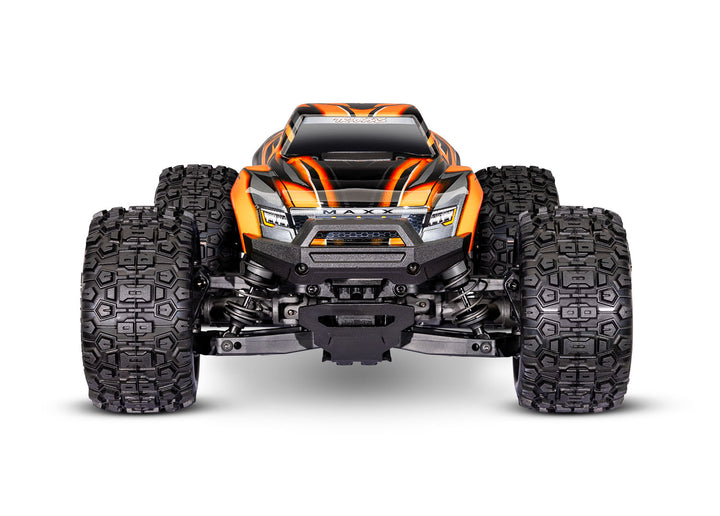

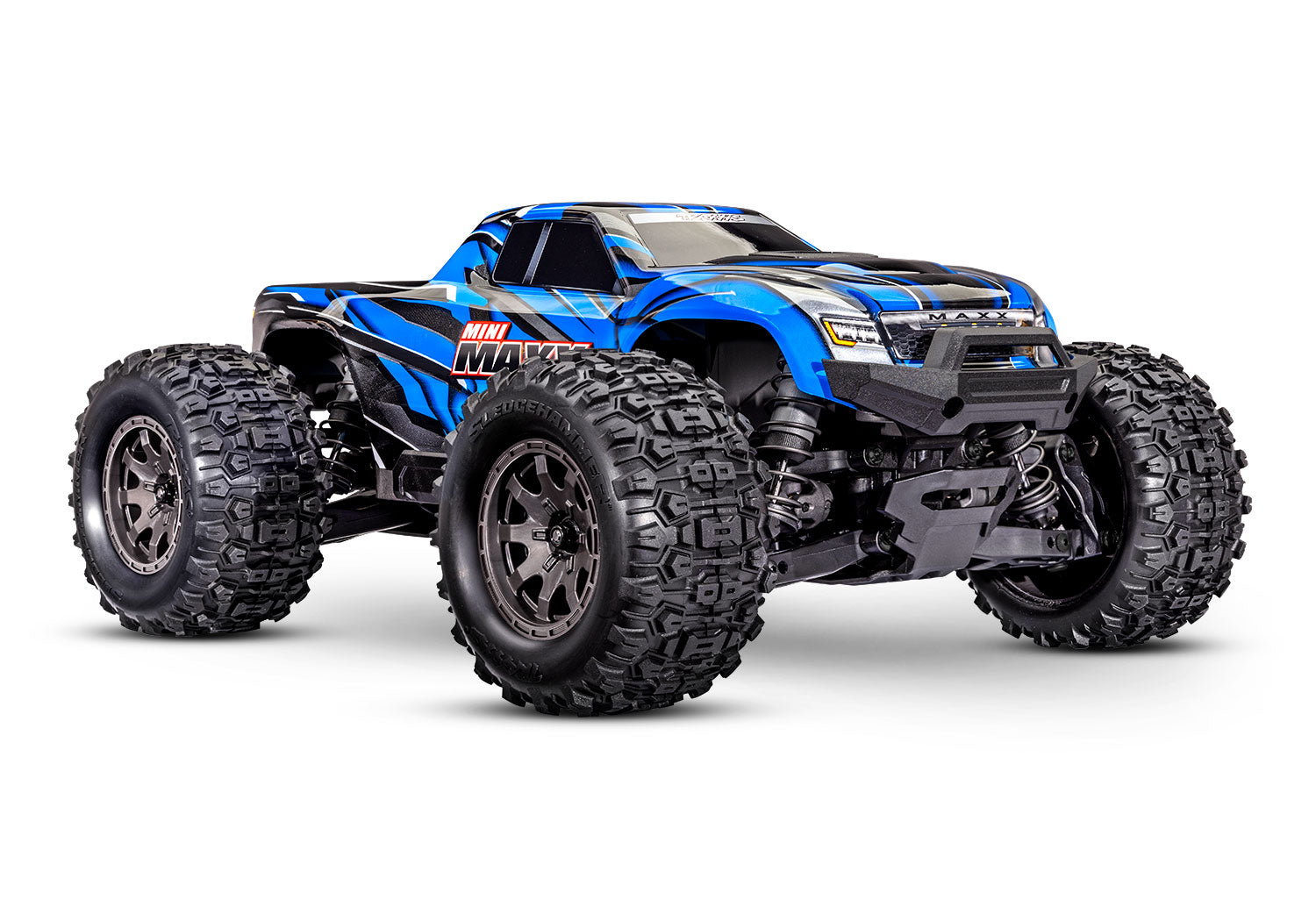

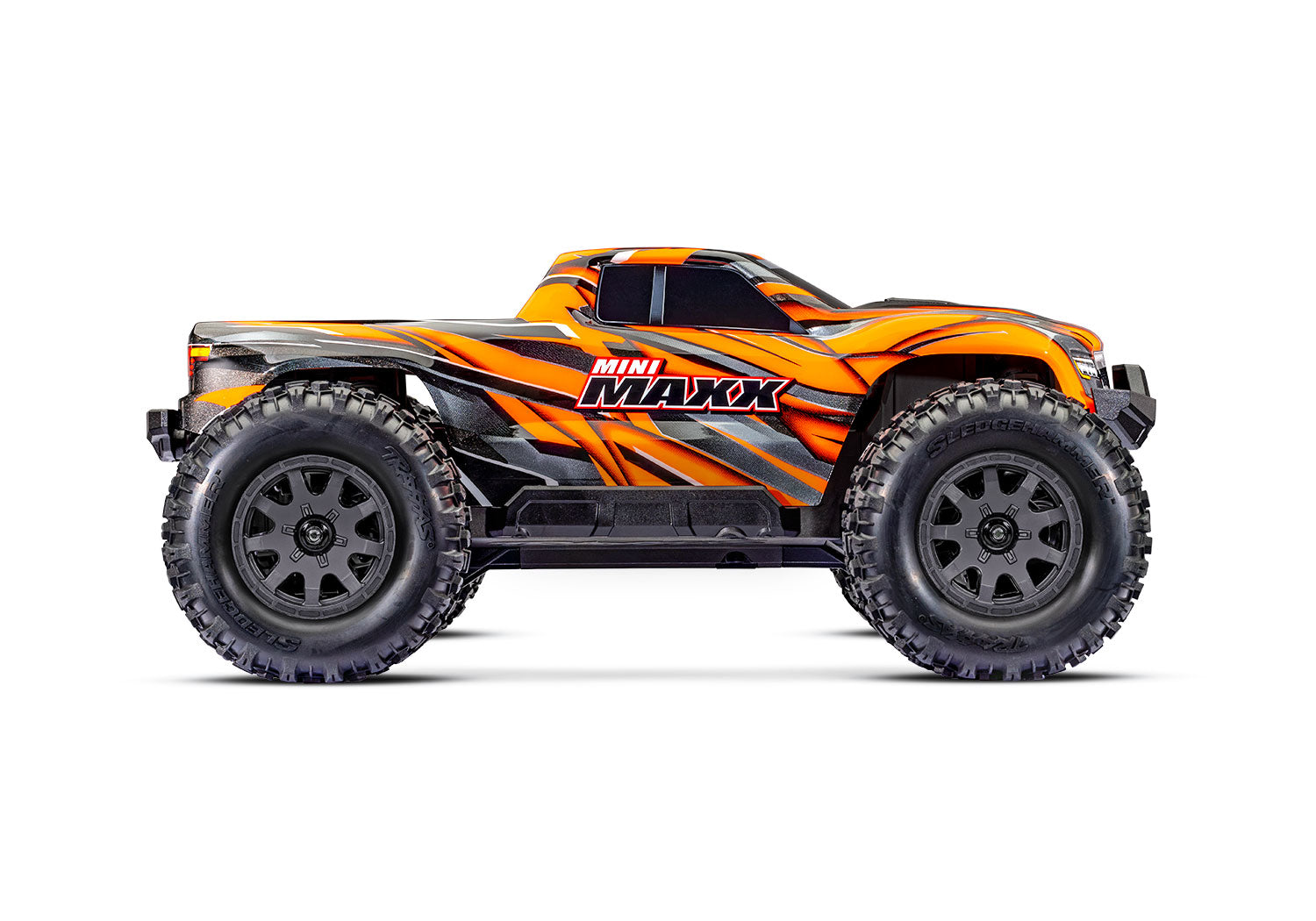

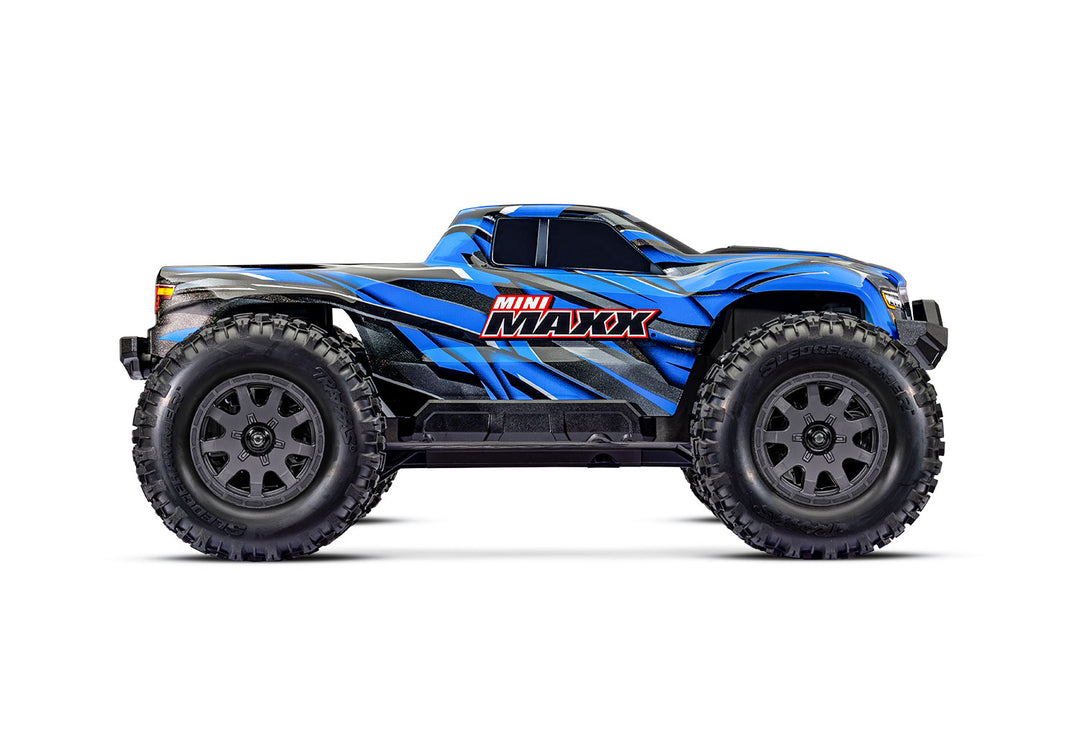

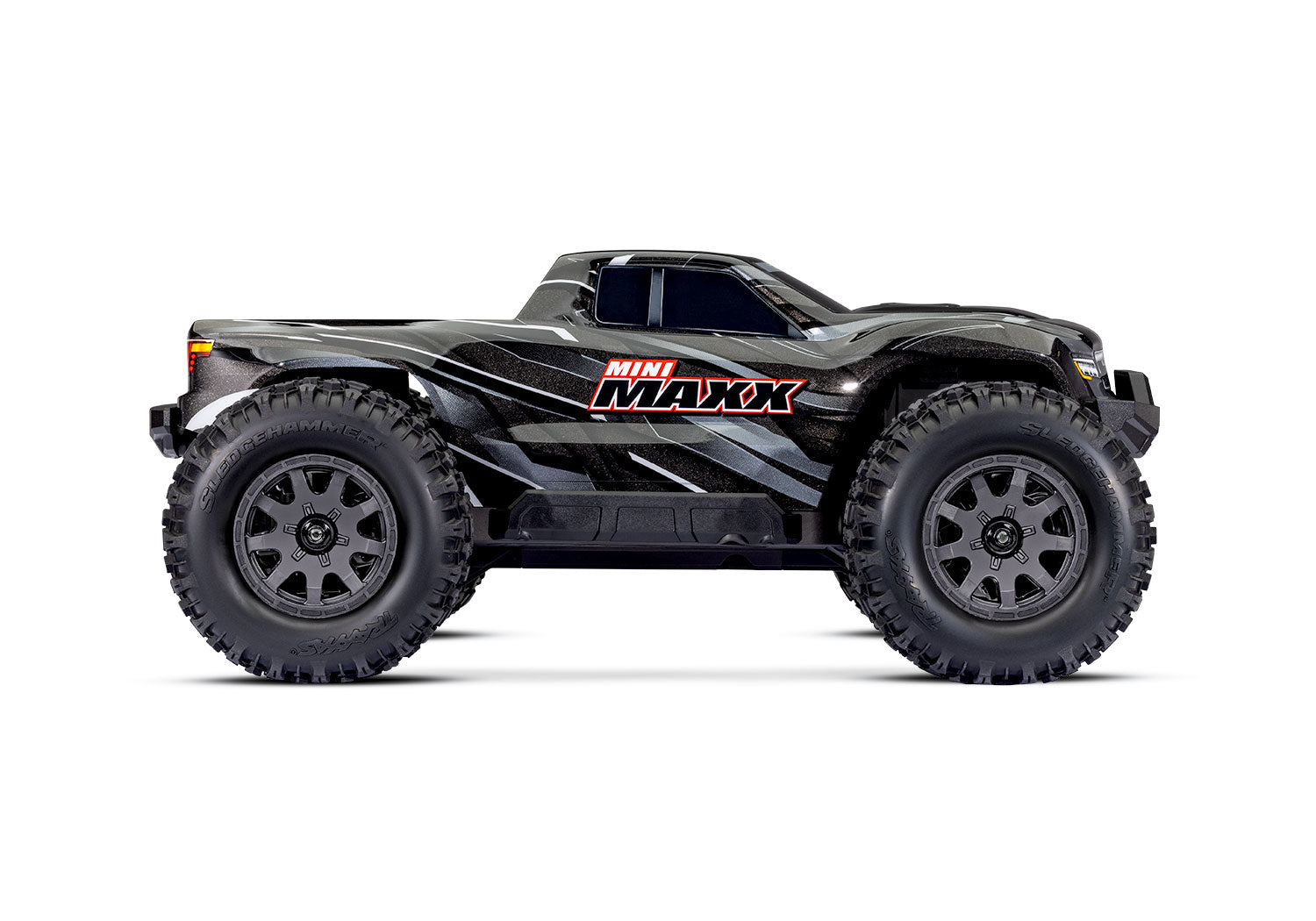

Mini Maxx BL-2s 4WD Monster Truck 107154-1
- 30+ mph Top Speed
- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection

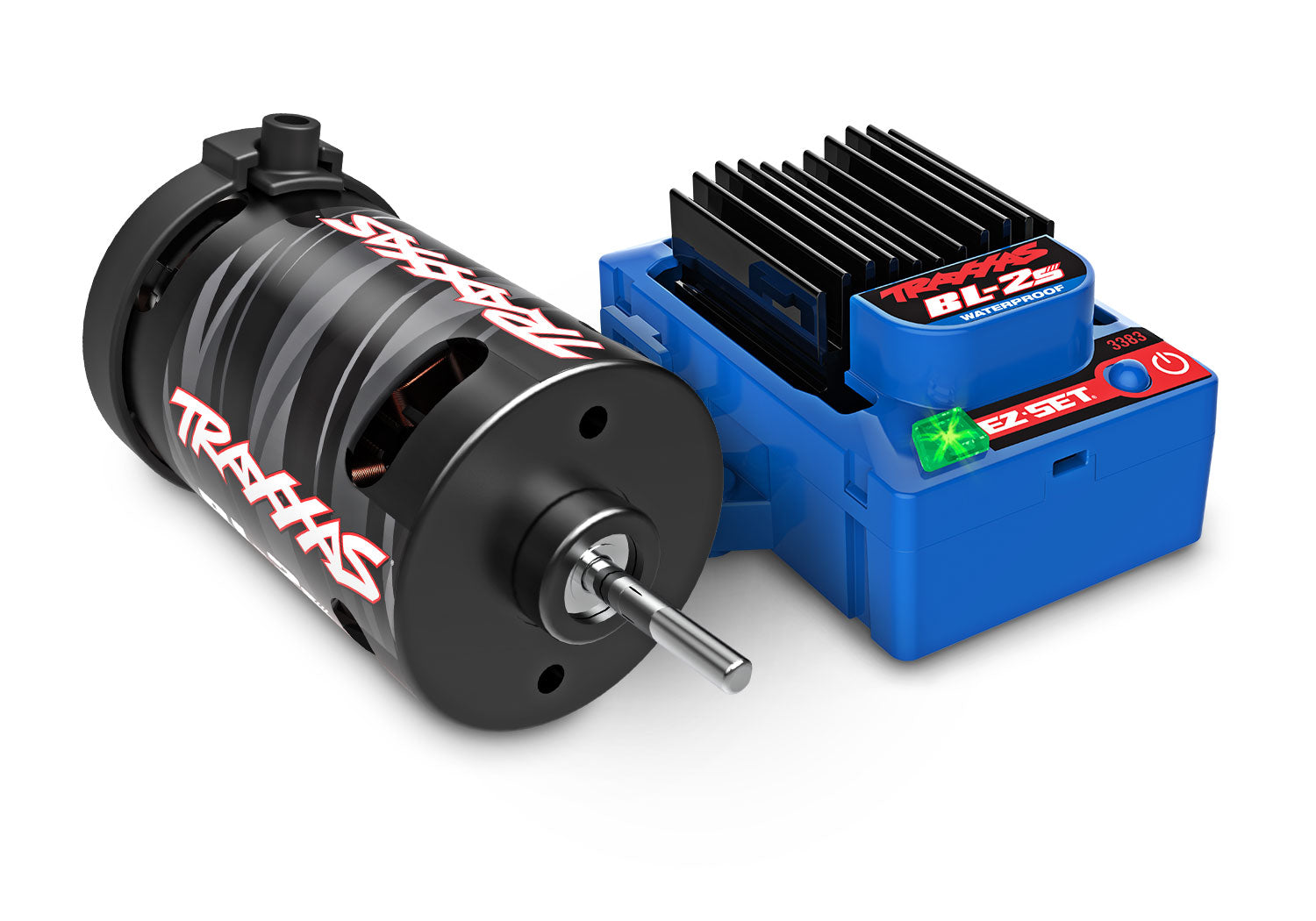

- BL-2s™ Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv
- Battery and Charger Included
- High-capacity 2-cell LiPo battery
- 7.4 volts
- 3500 mAh for extended run time
- 2-amp USB-C charger
- iD® technology for faster, safer charging
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control

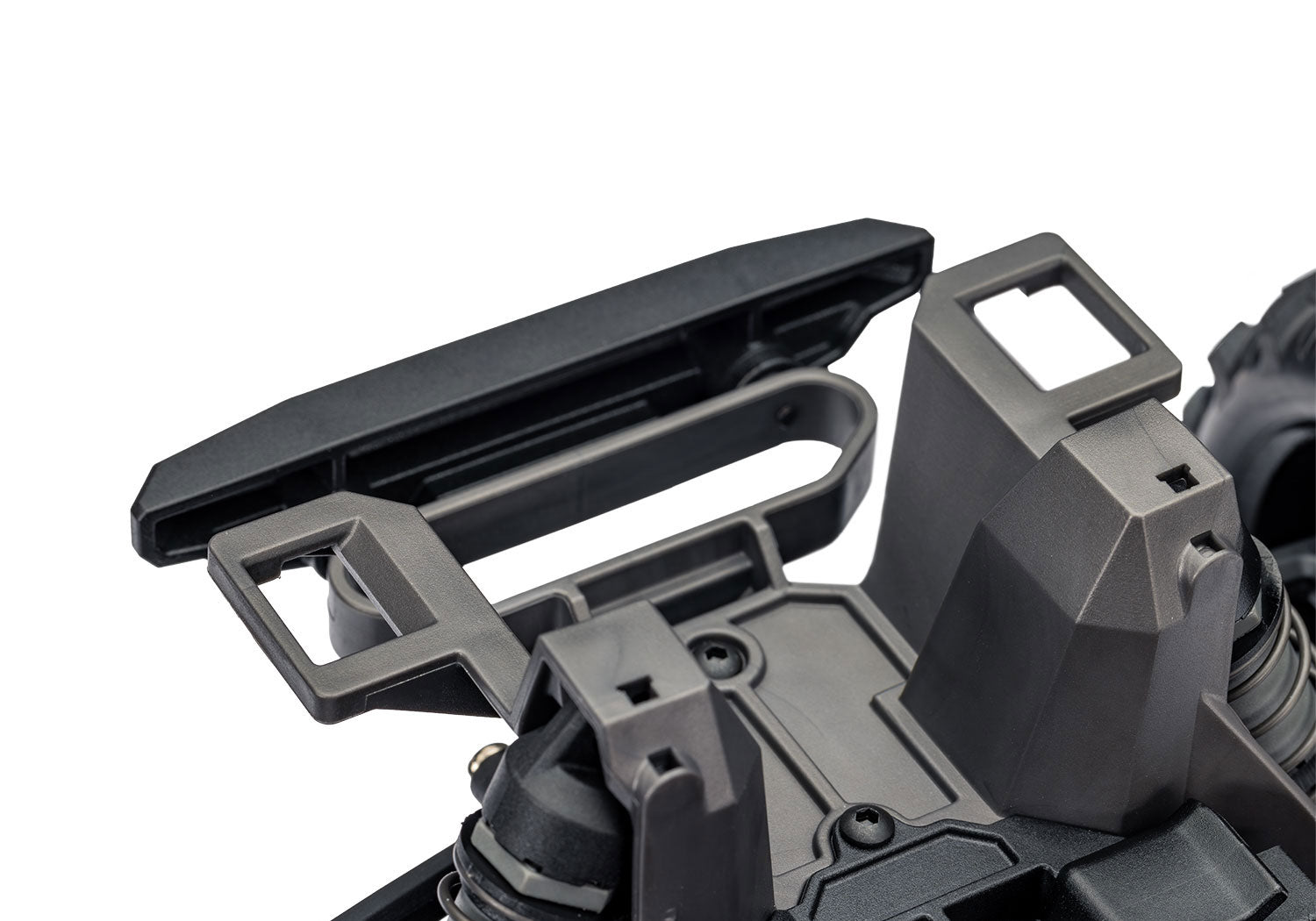

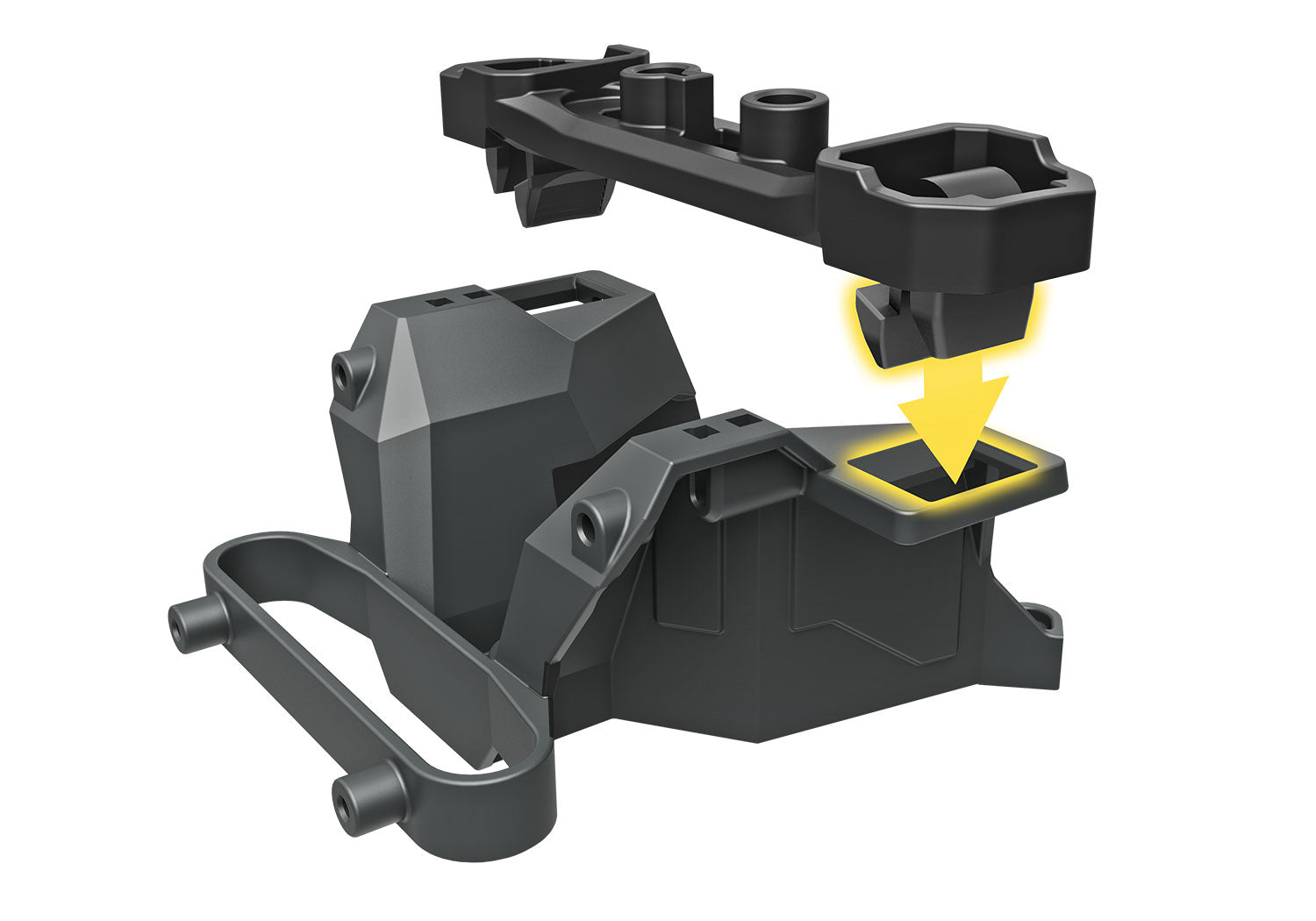

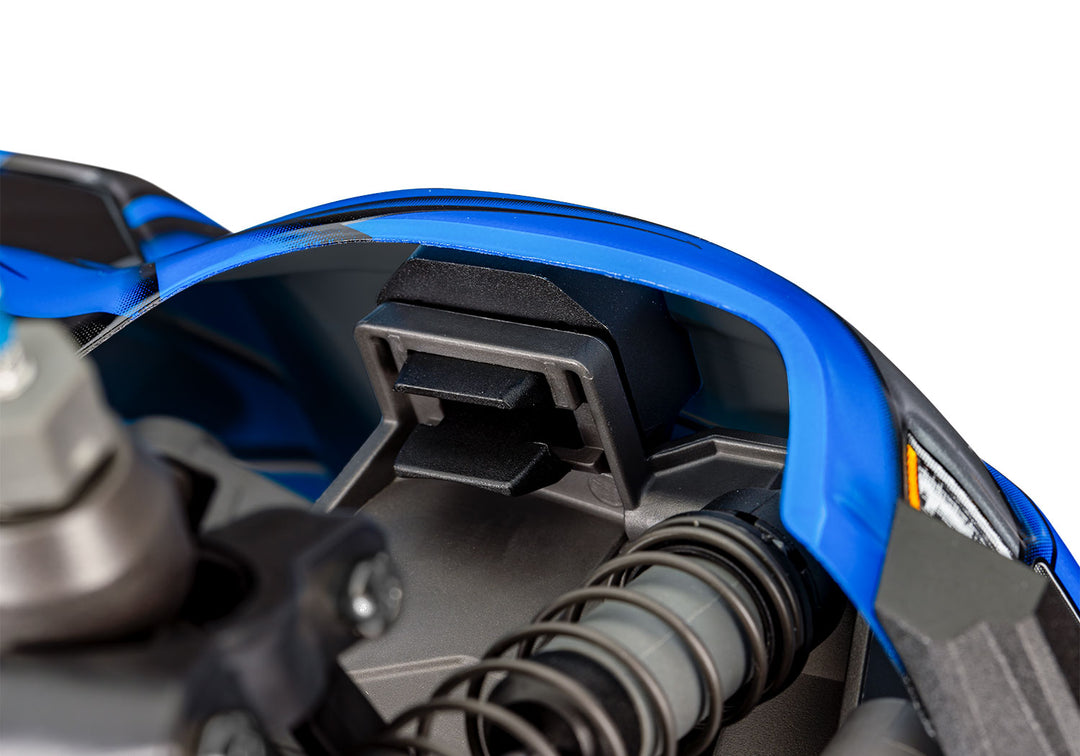

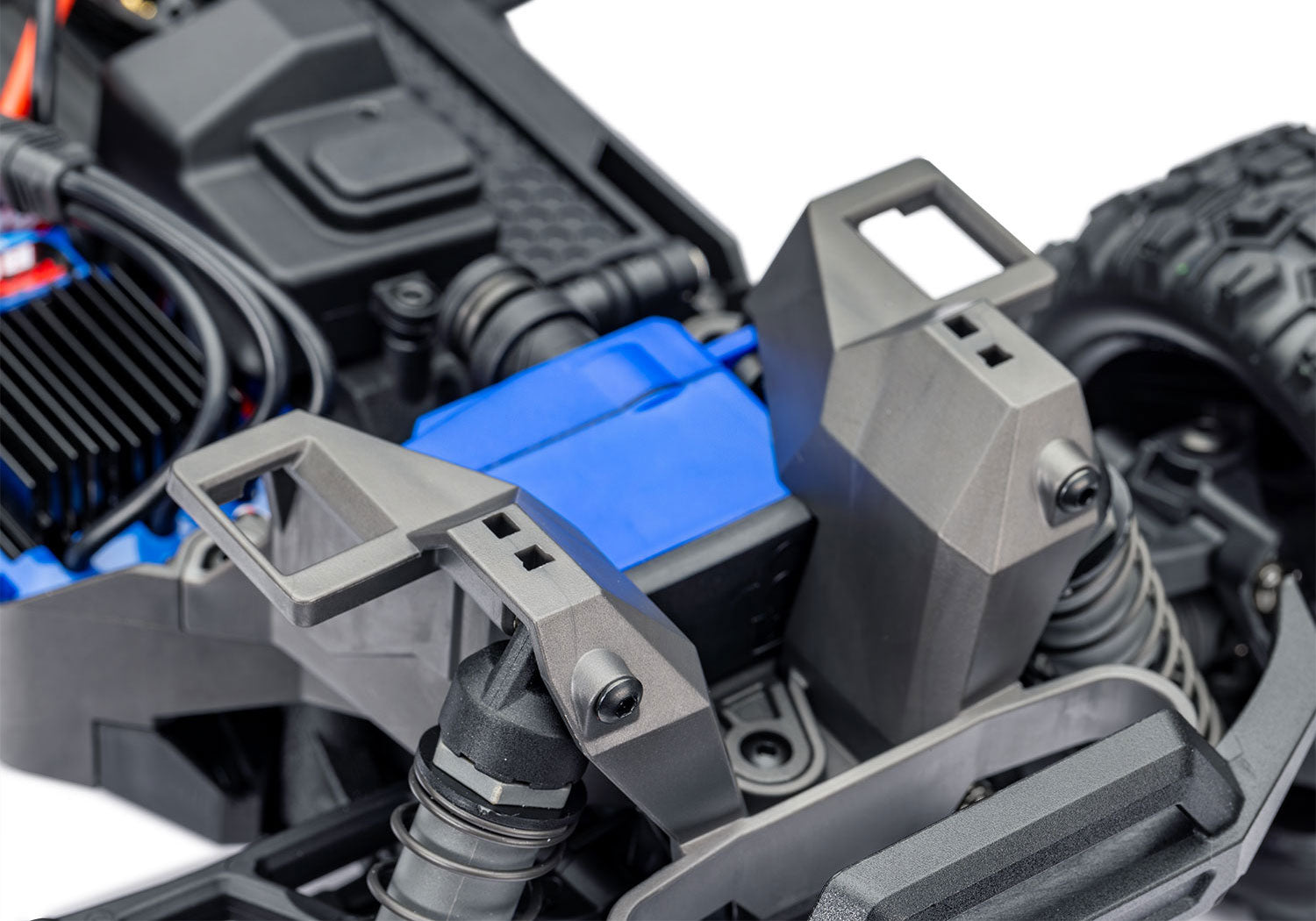

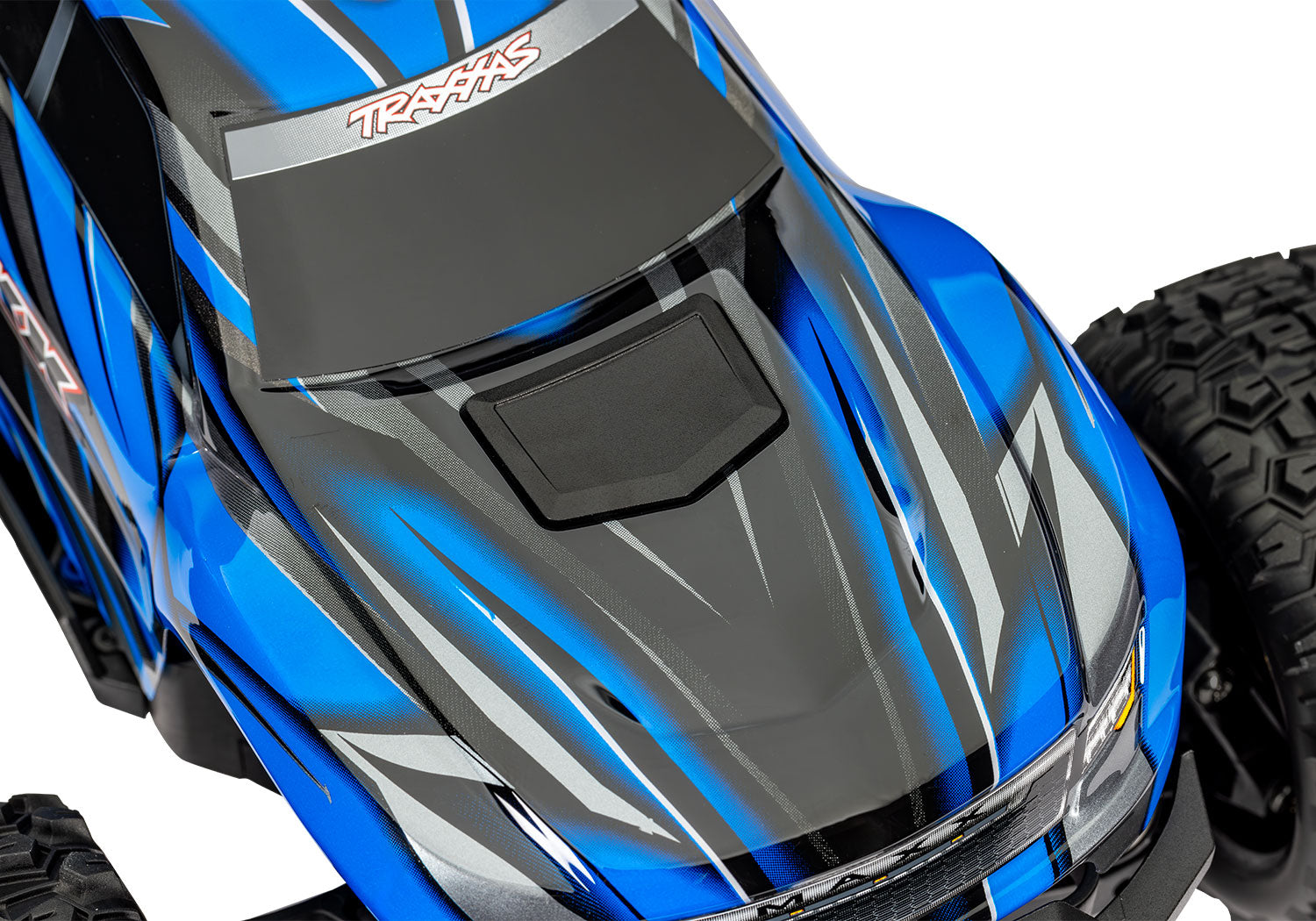

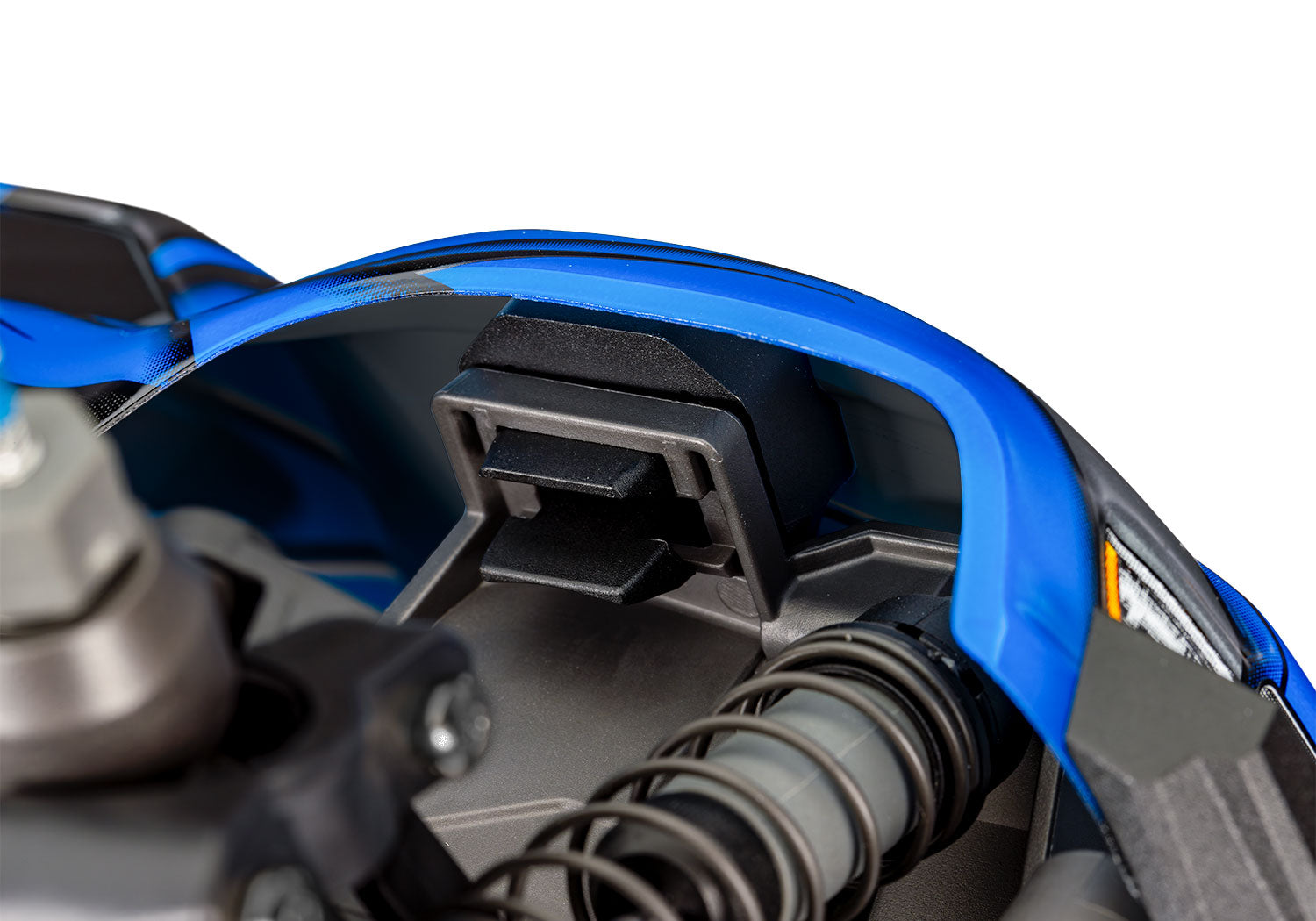

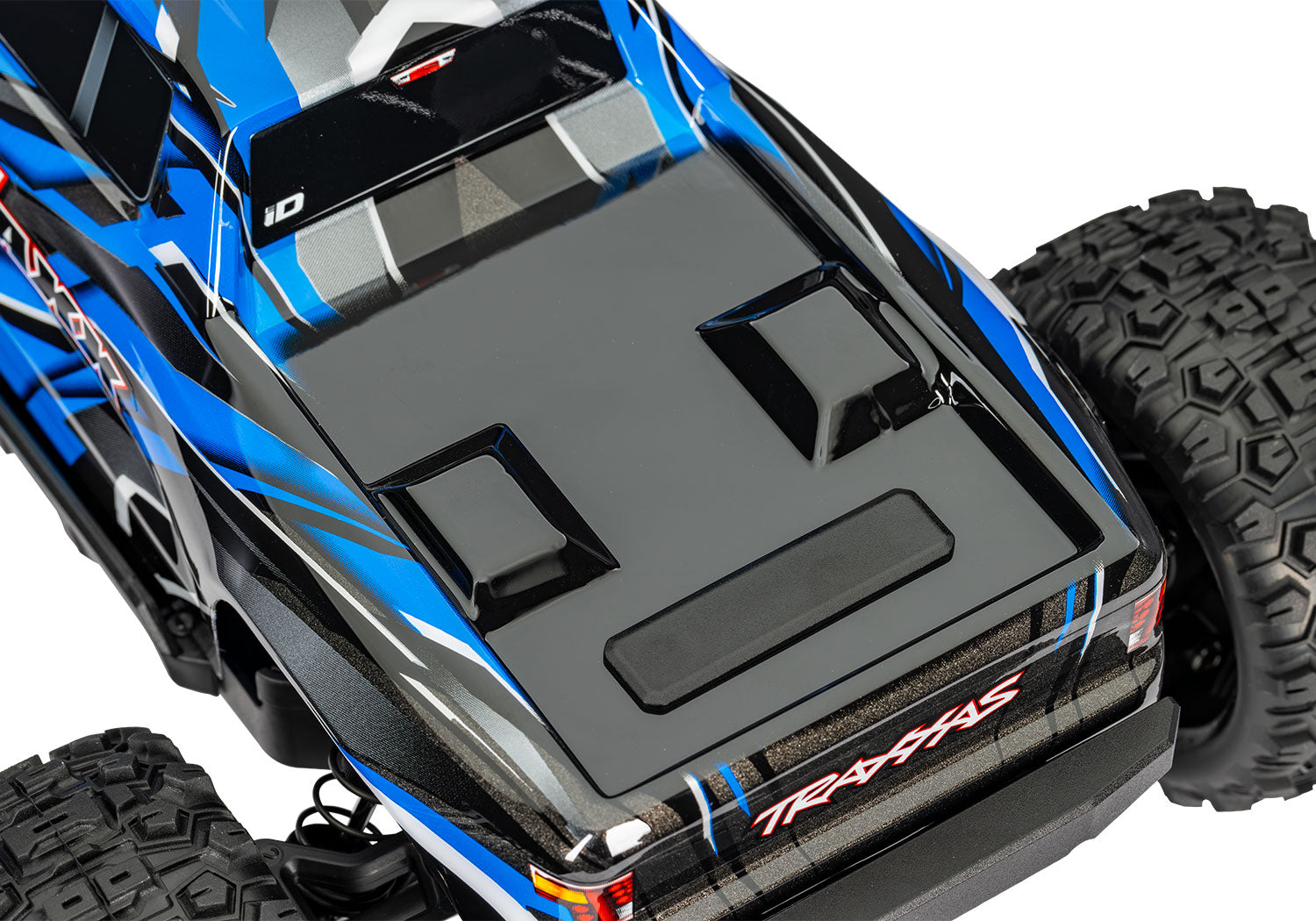

- Clipless Body Mount System
- Quick and easy installation and removal

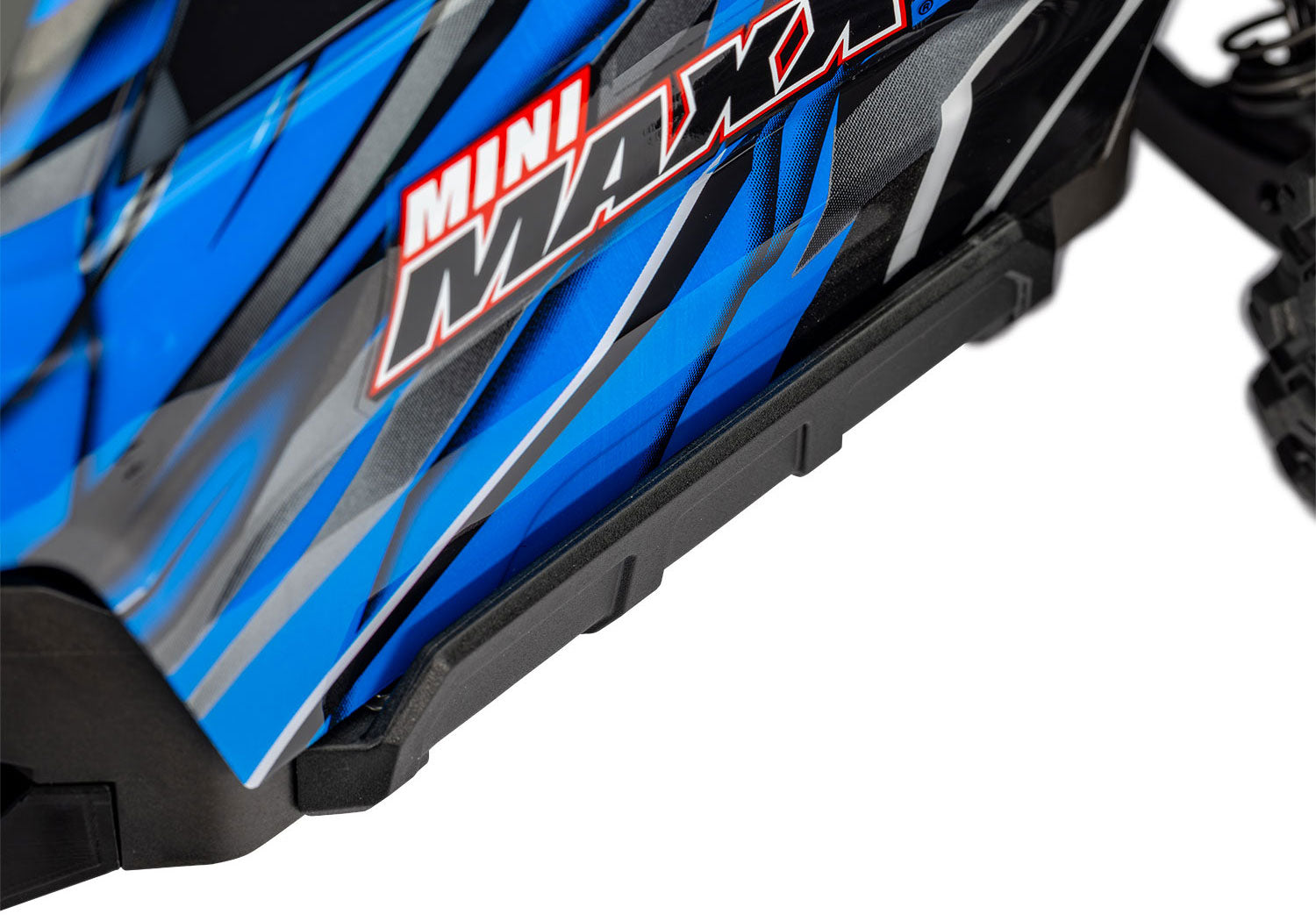

- Nerf bar channels for side body support
- Reinforced for extra protection against tearing

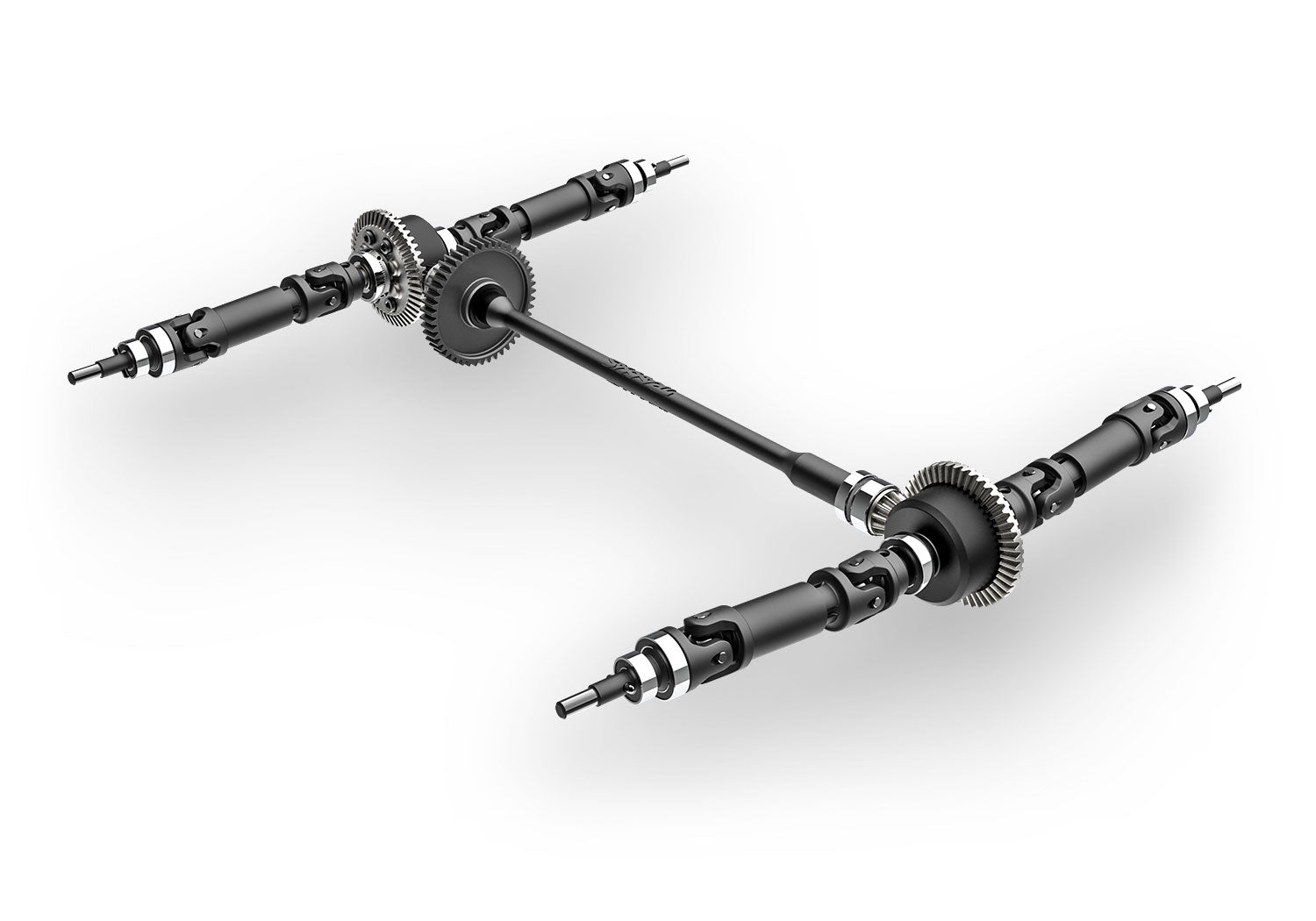

- 1/10 Scale 4X4 Drivetrain
- Full-time shaft-driven 4-wheel drive

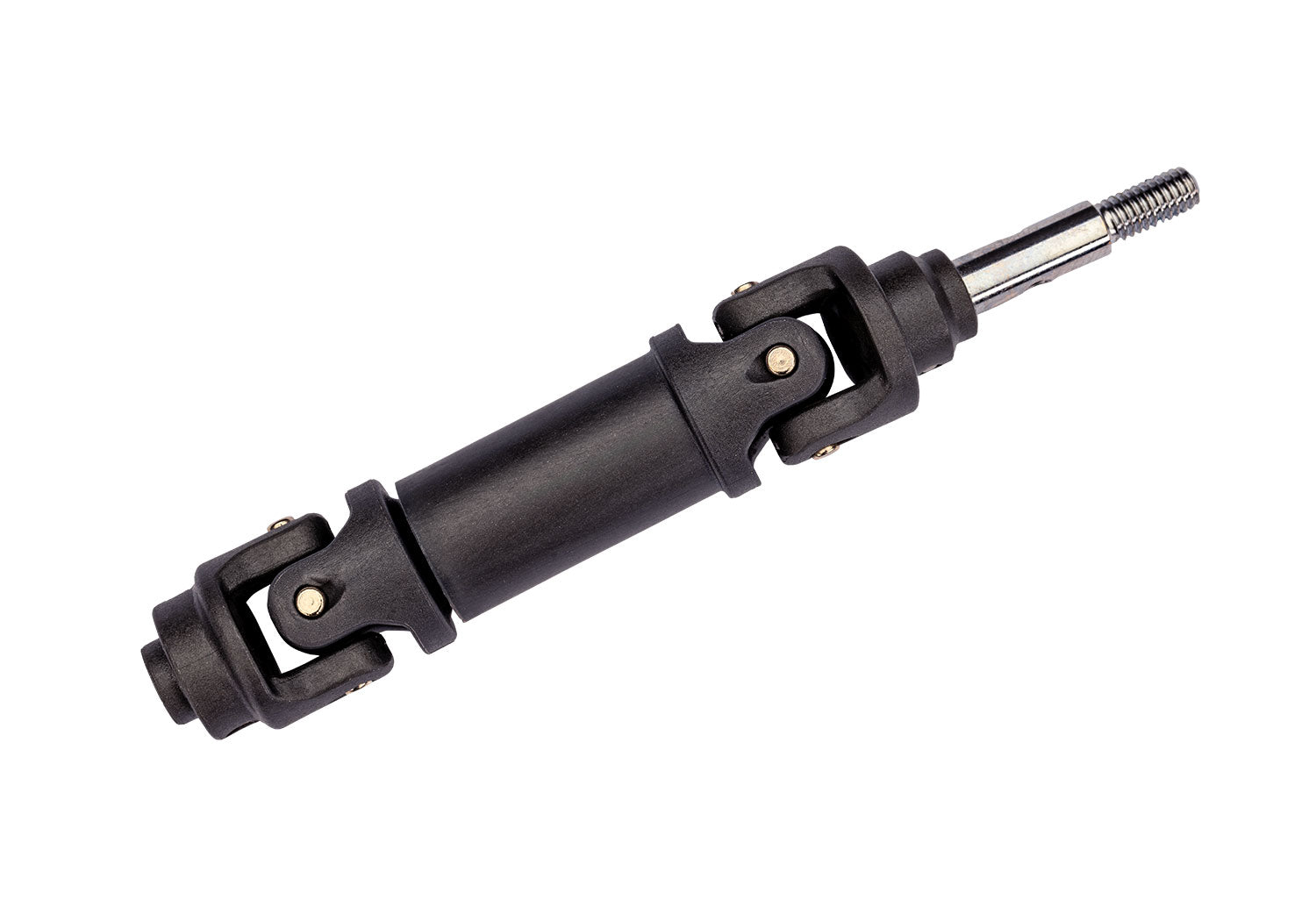

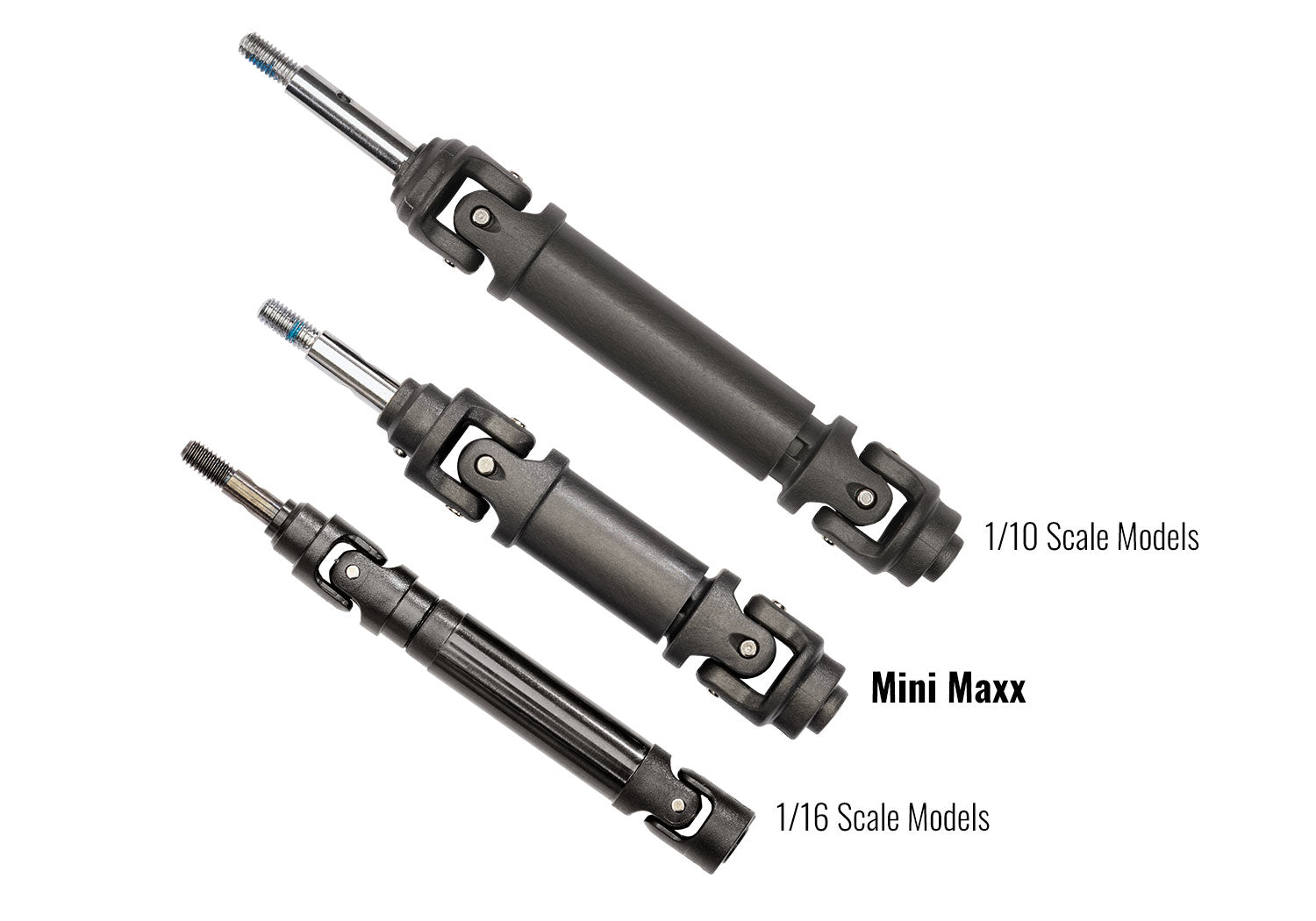

- 1/10 scale extreme-duty telescoping driveshafts
- Direct drive (no transmission)

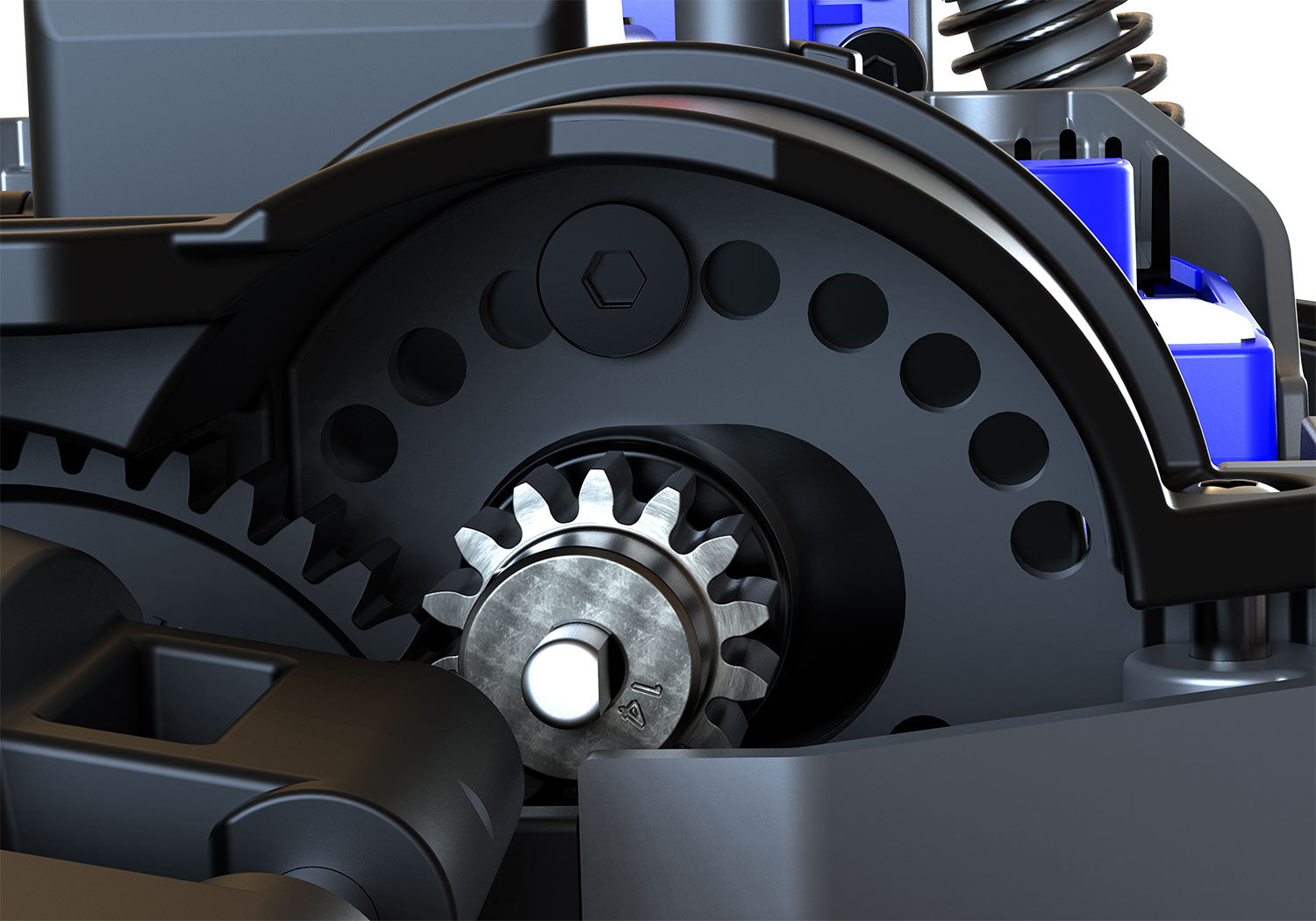

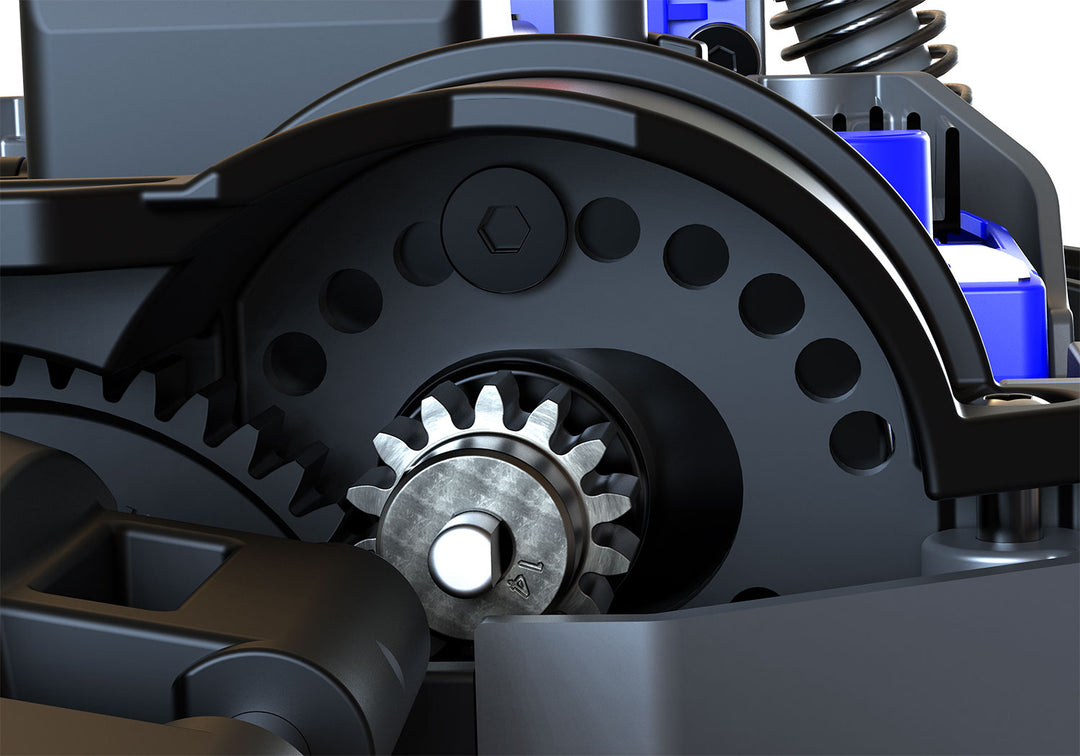

- Fixed gear mesh system

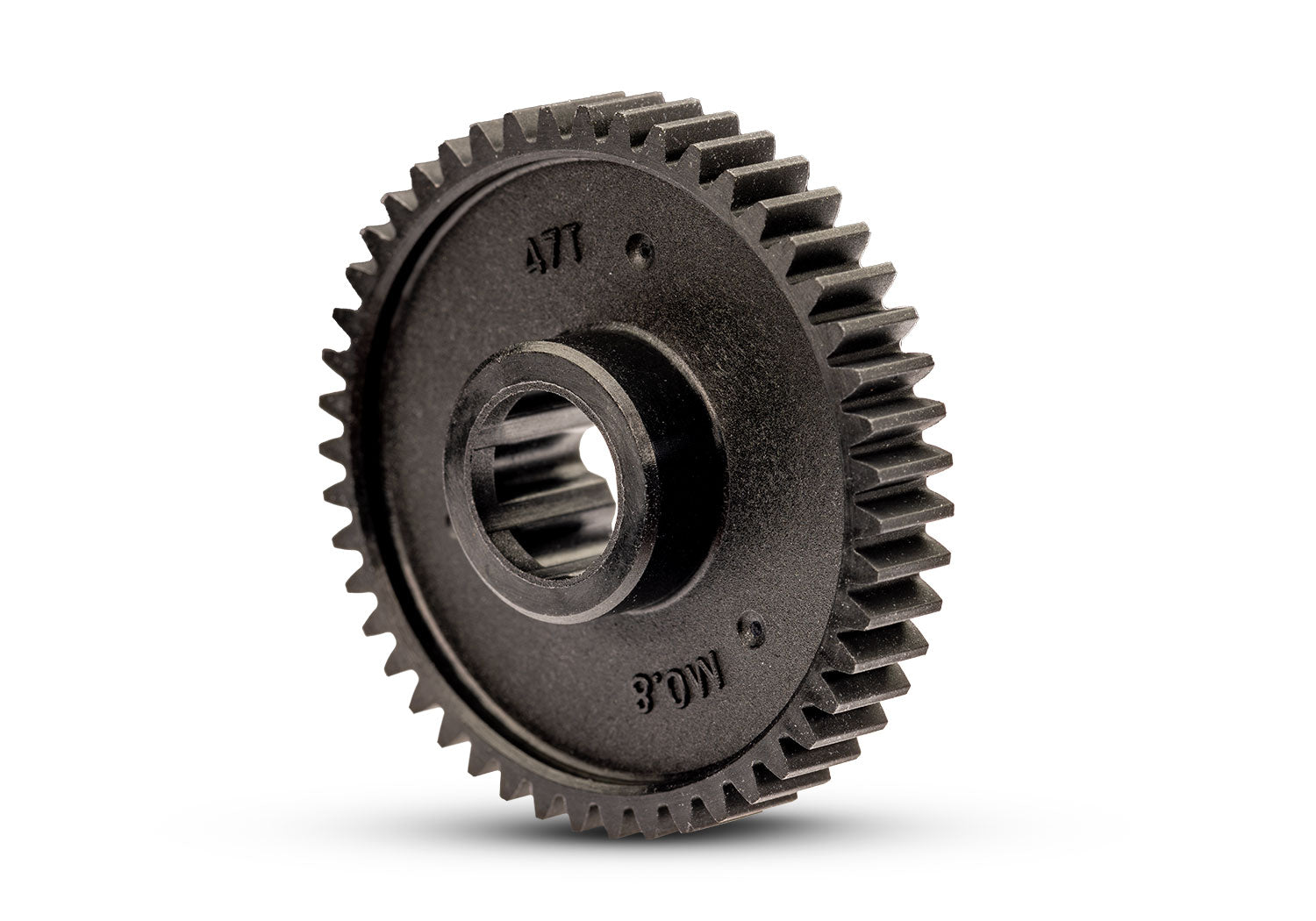

- Large 32-pitch gears

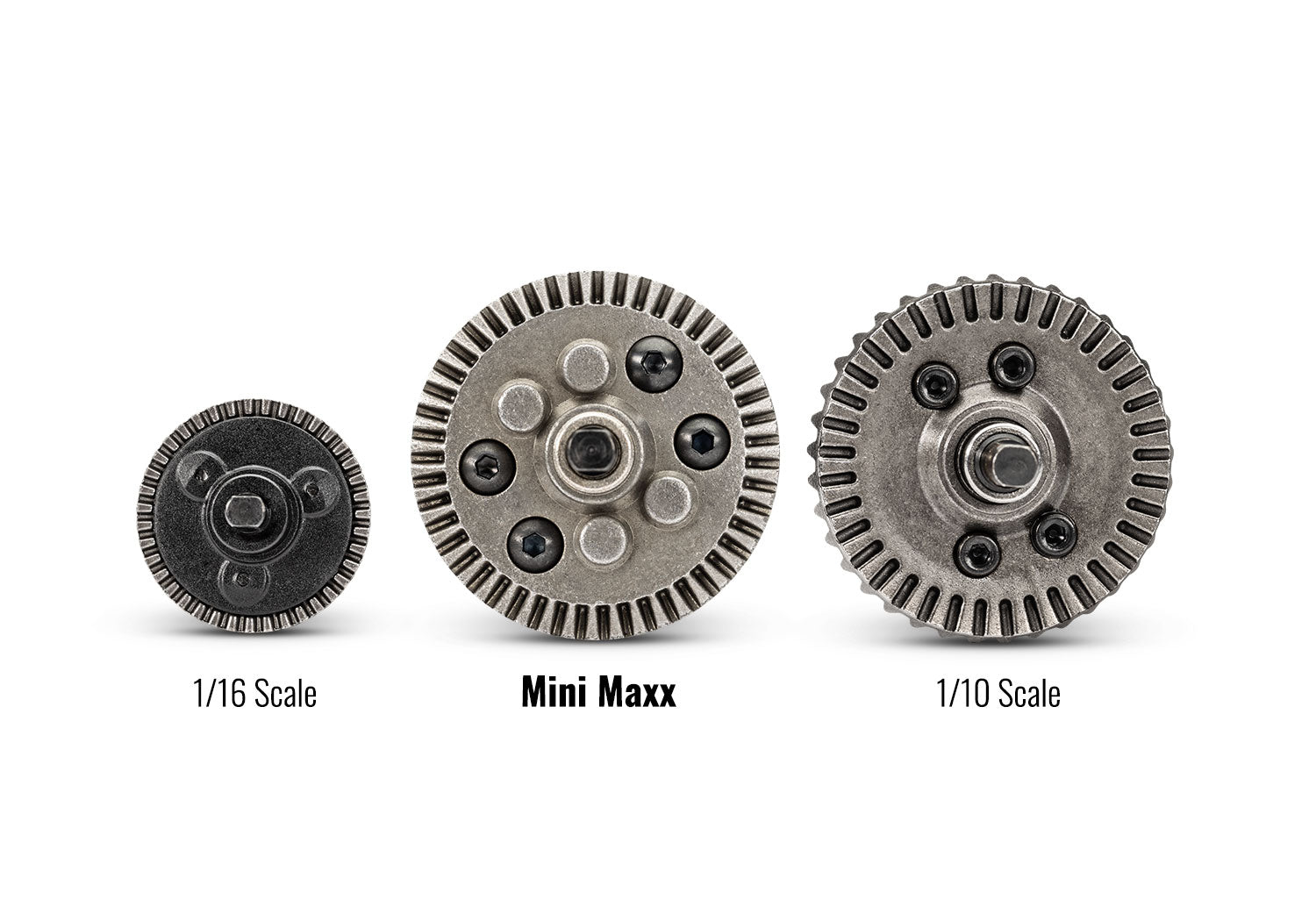

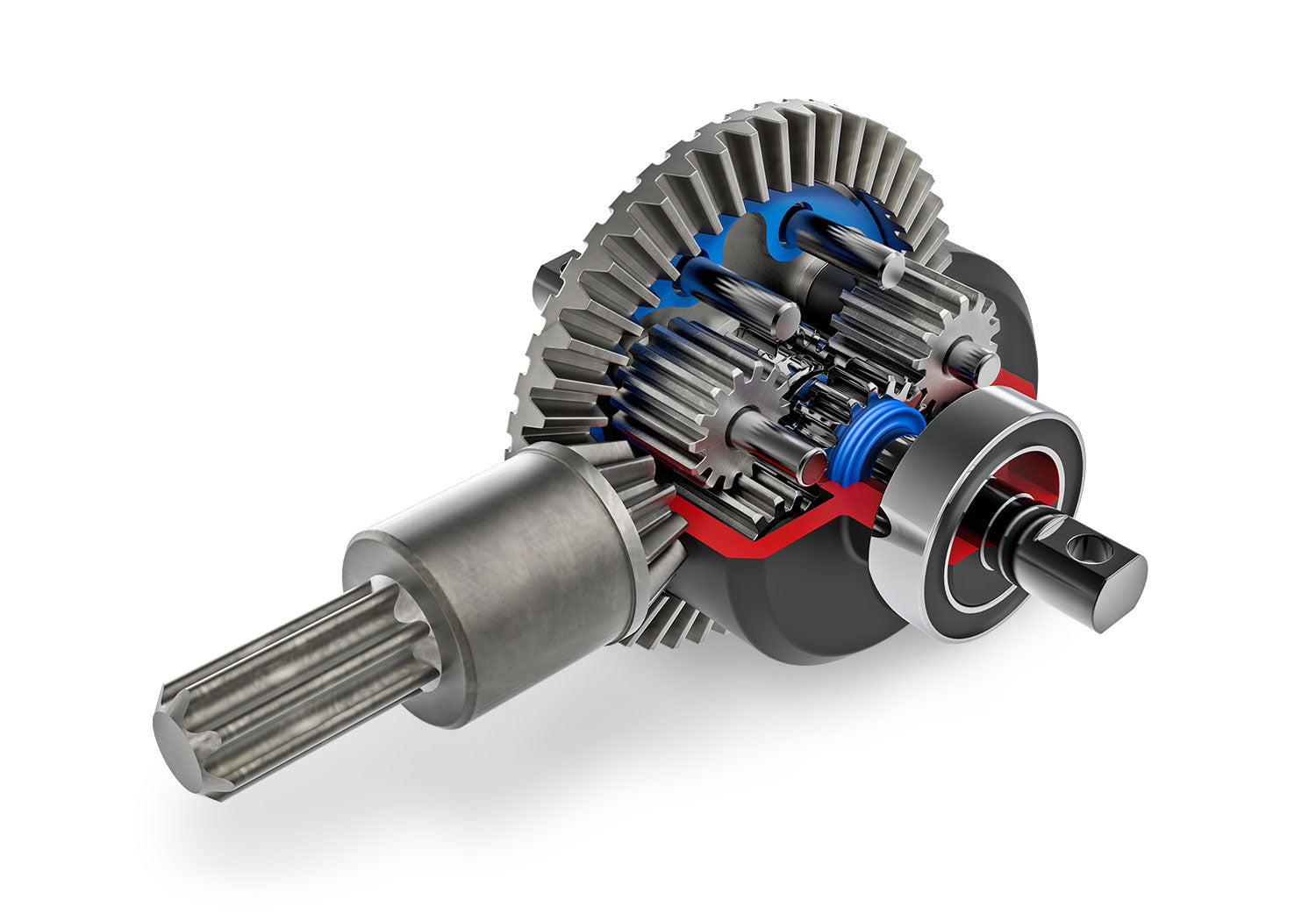

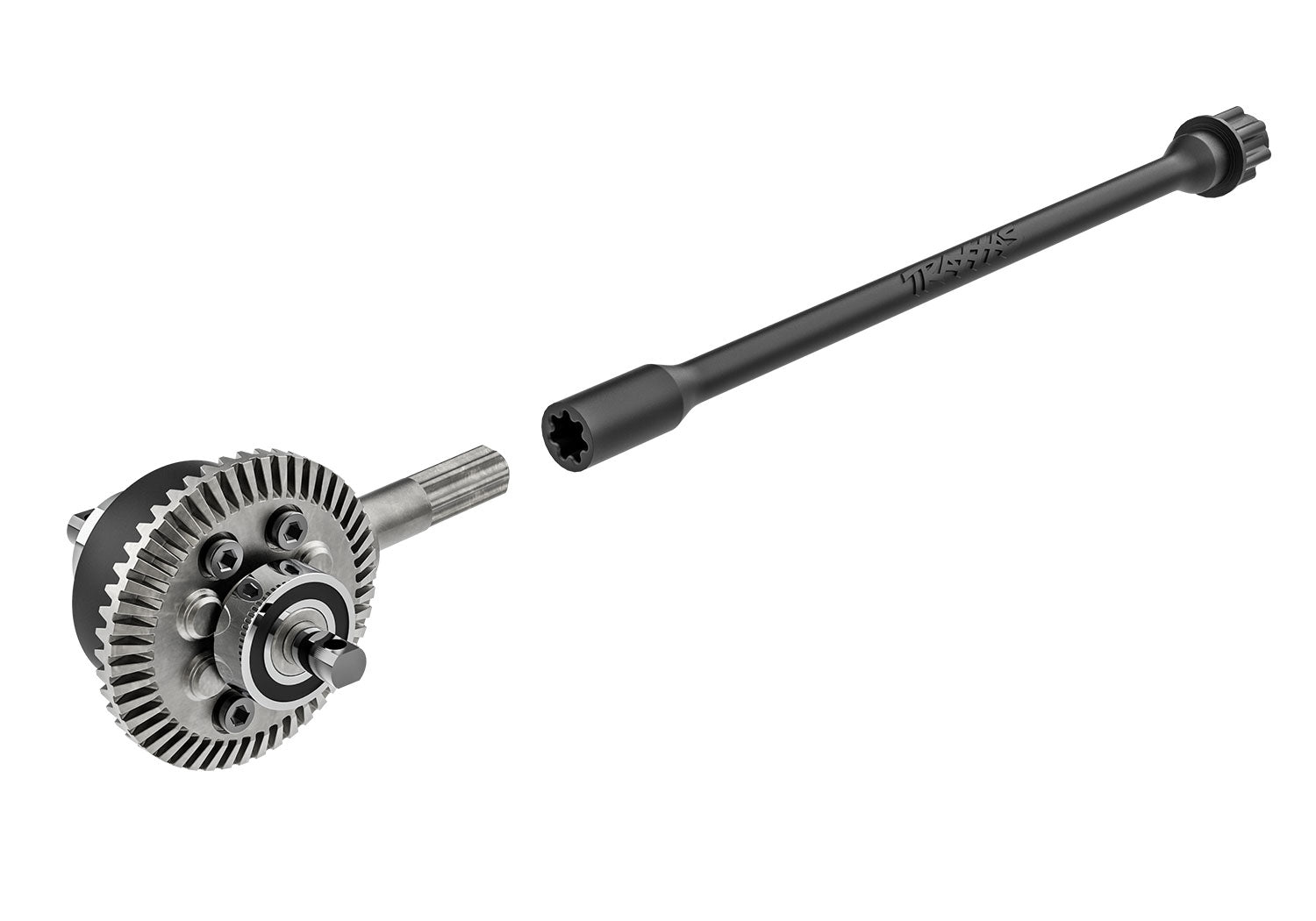

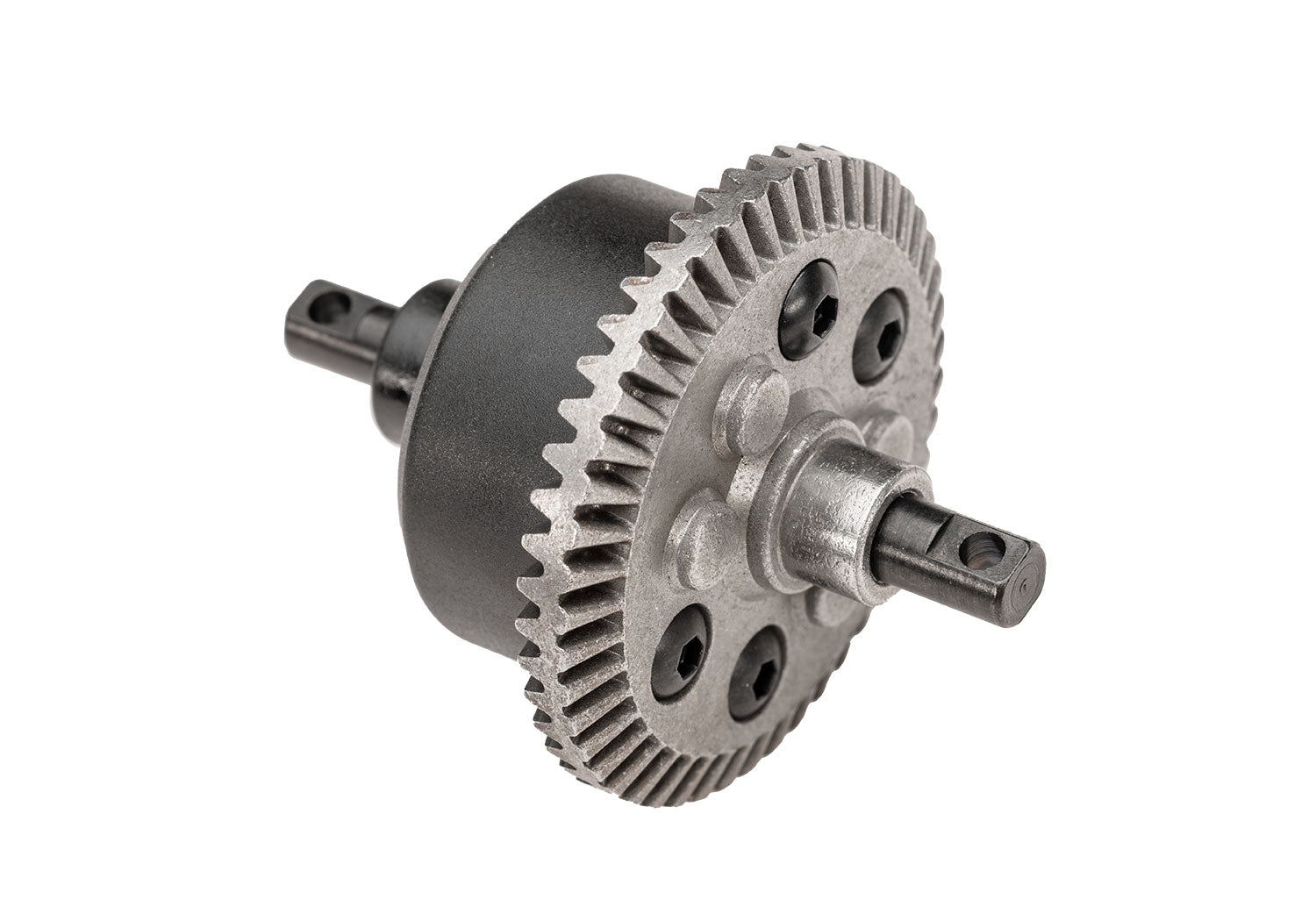

- Sealed planetary steel-gear differentials
- Fixed gear mesh system

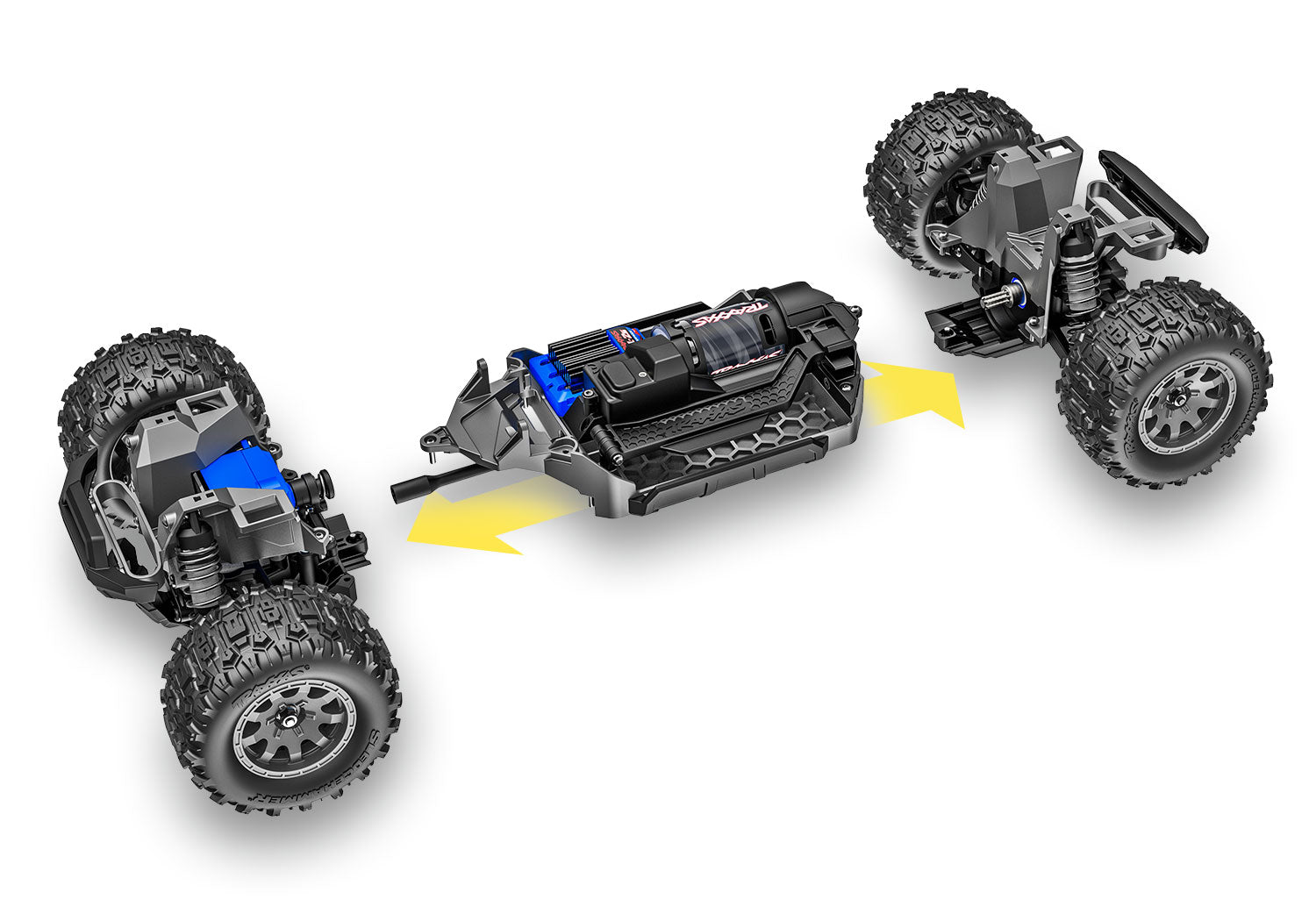

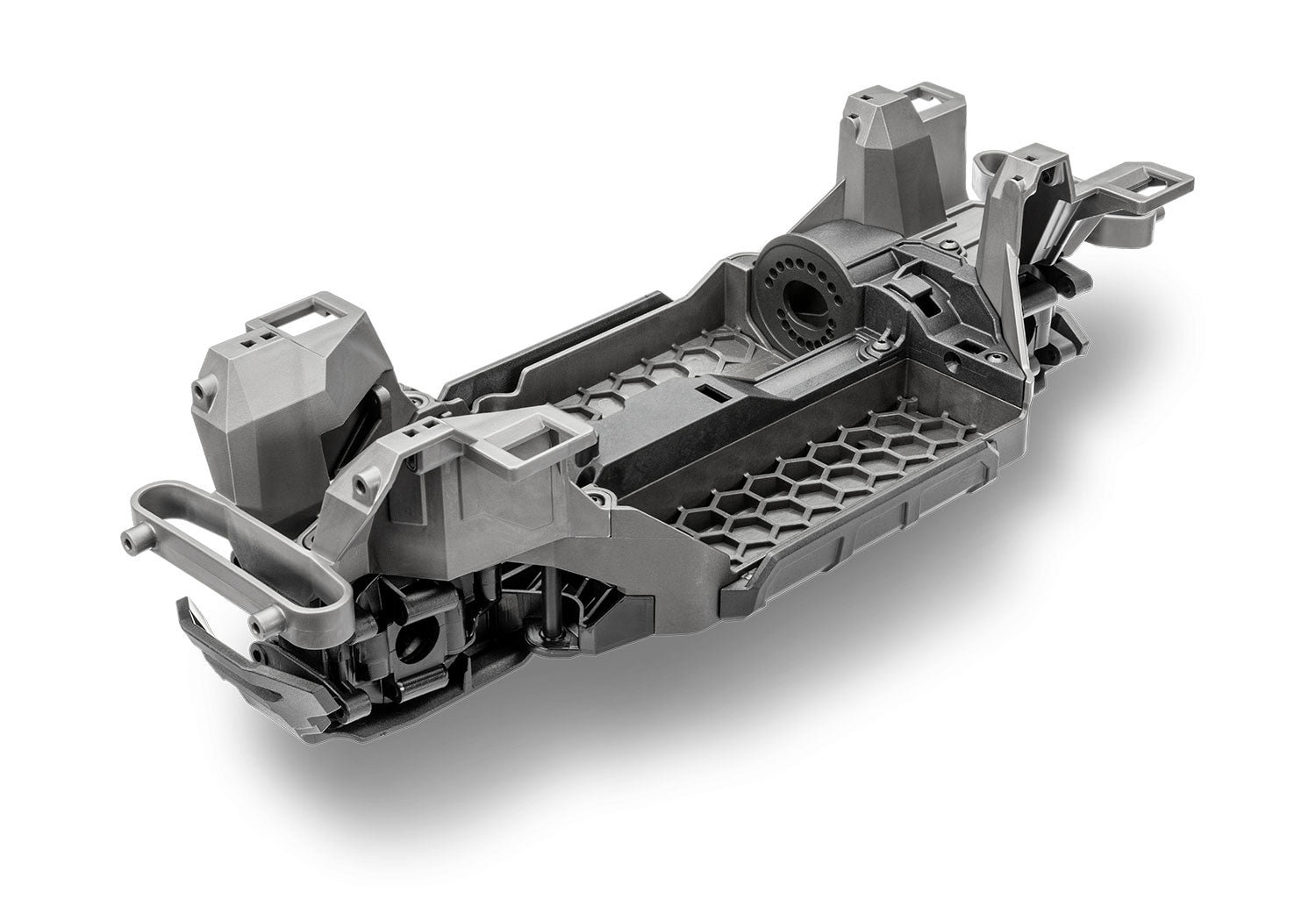

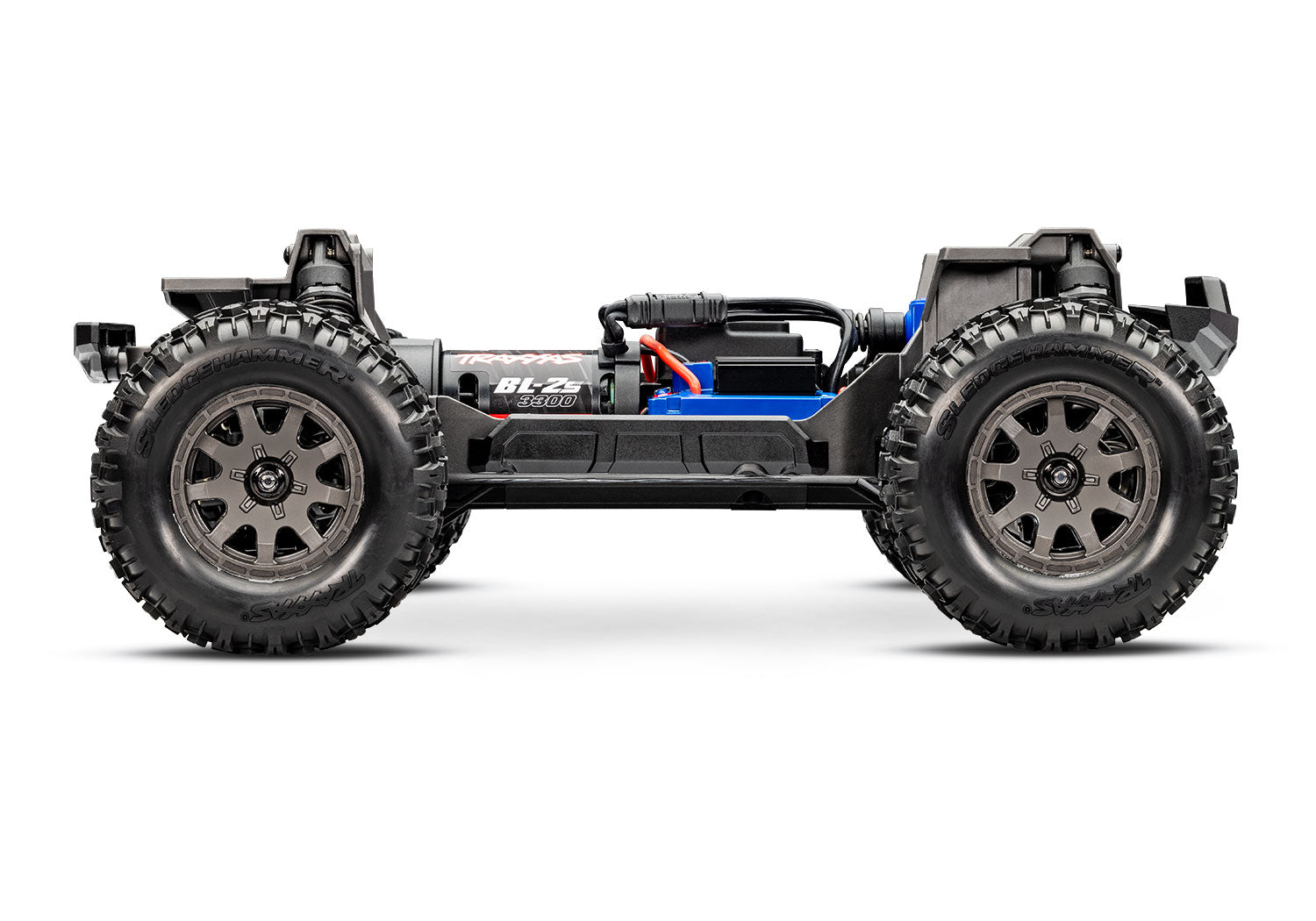

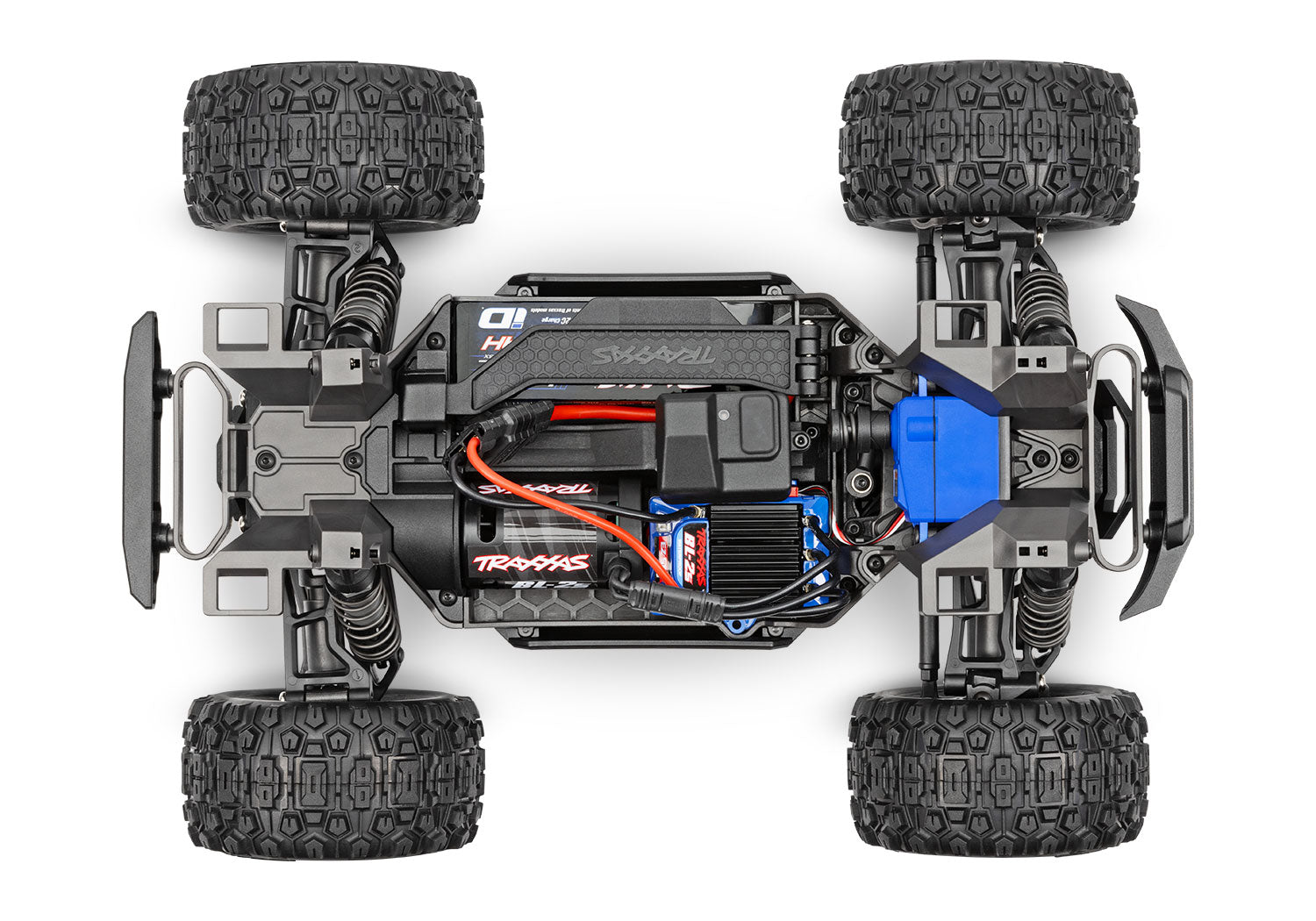

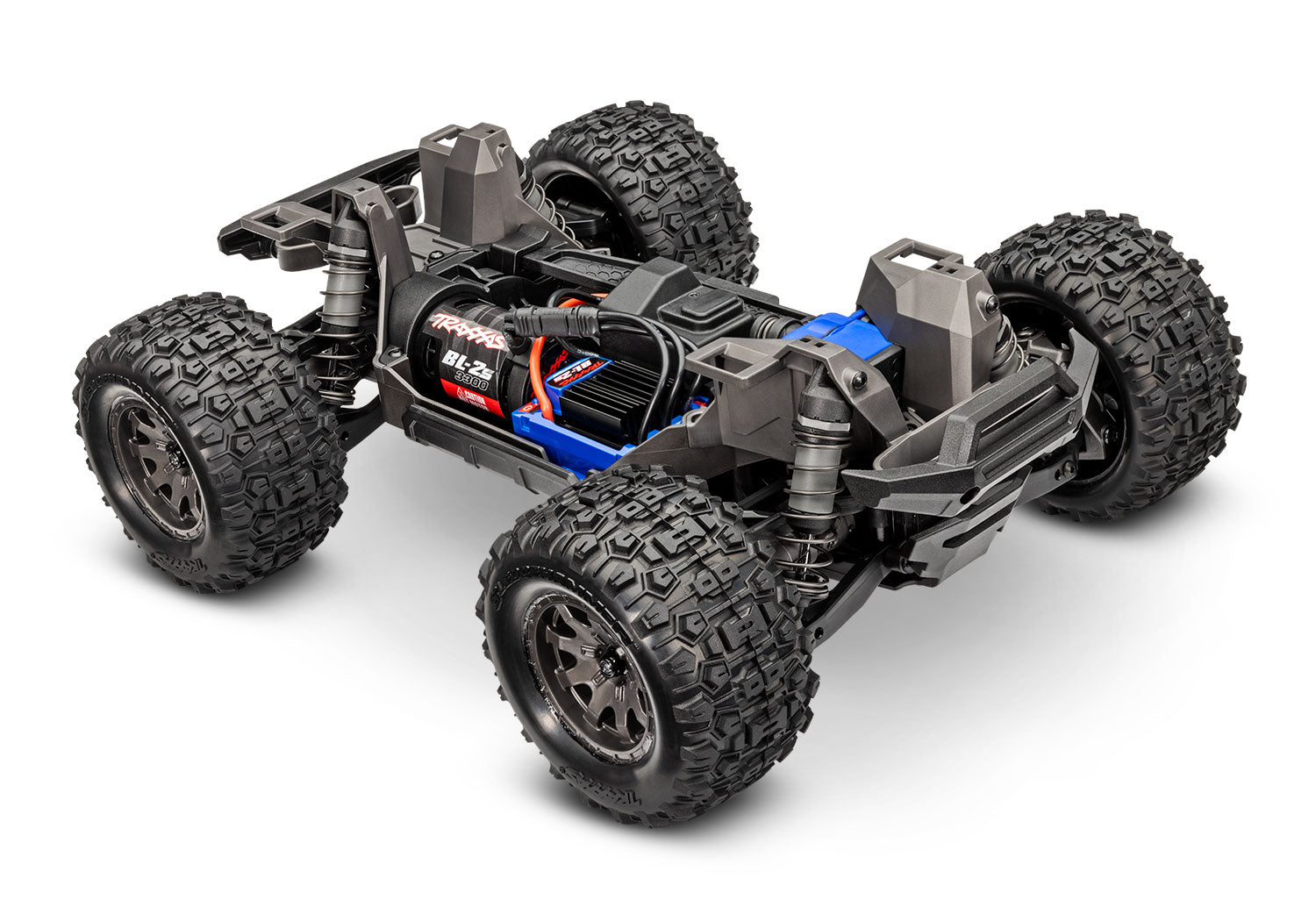

- Modular Composite Chassis
- Modular chassis with interlocking front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt

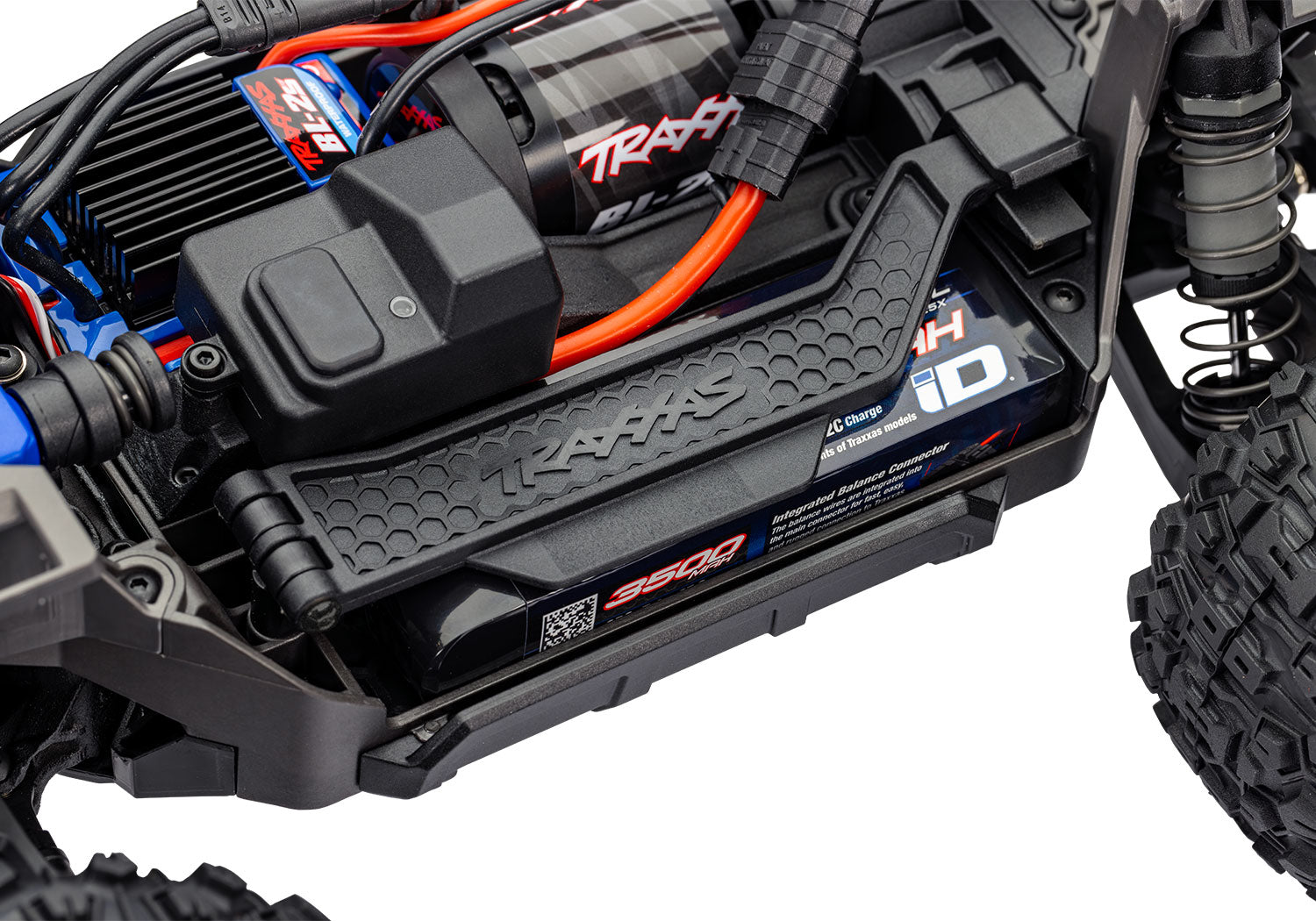

- Easy Battery Access
- Battery is protected deep in the chassis
- Battery hold-down pivots for easy access
- More secure than conventional retention systems

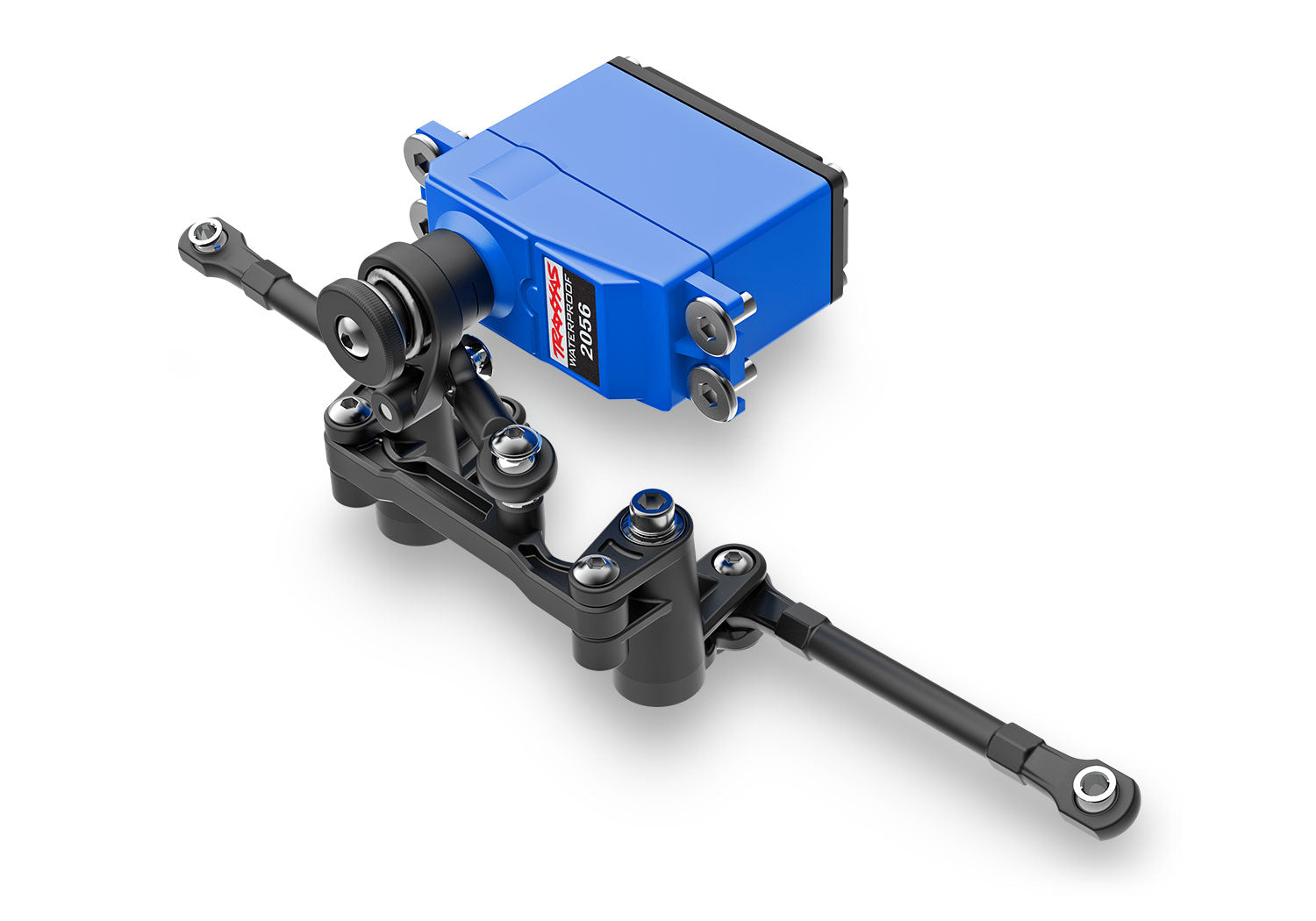

- Steering

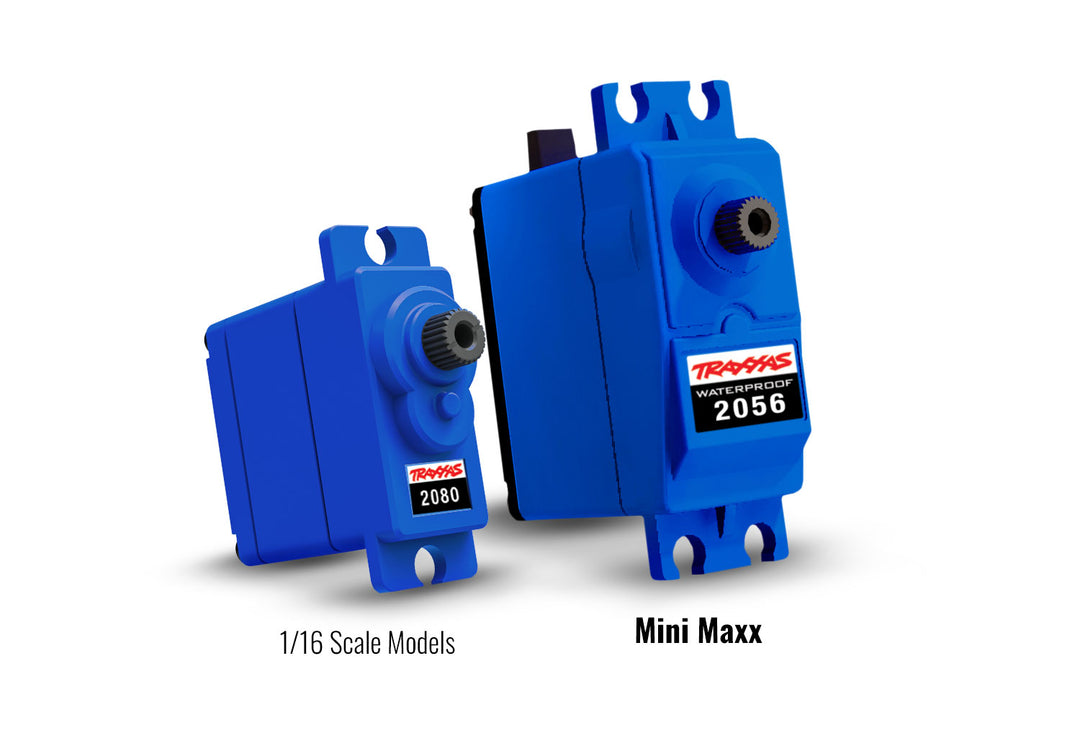

- 1/10 scale 2056 waterproof high-torque servo
- Heavy-duty double-shear bellcranks
- Cam-style servo saver

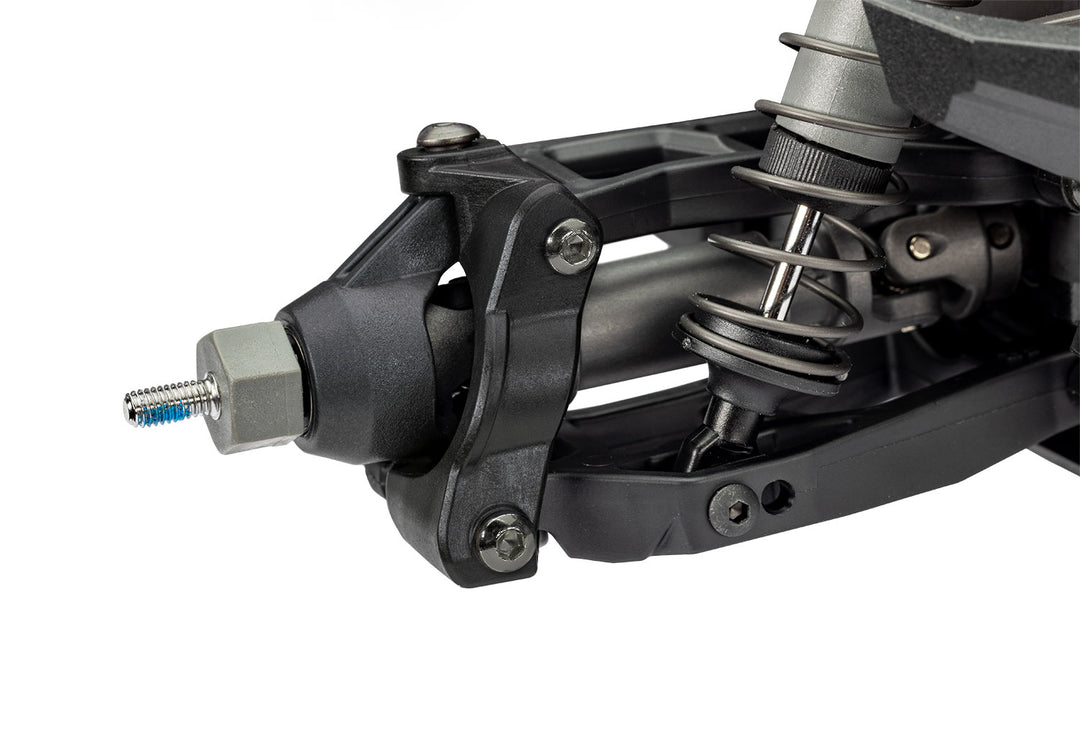

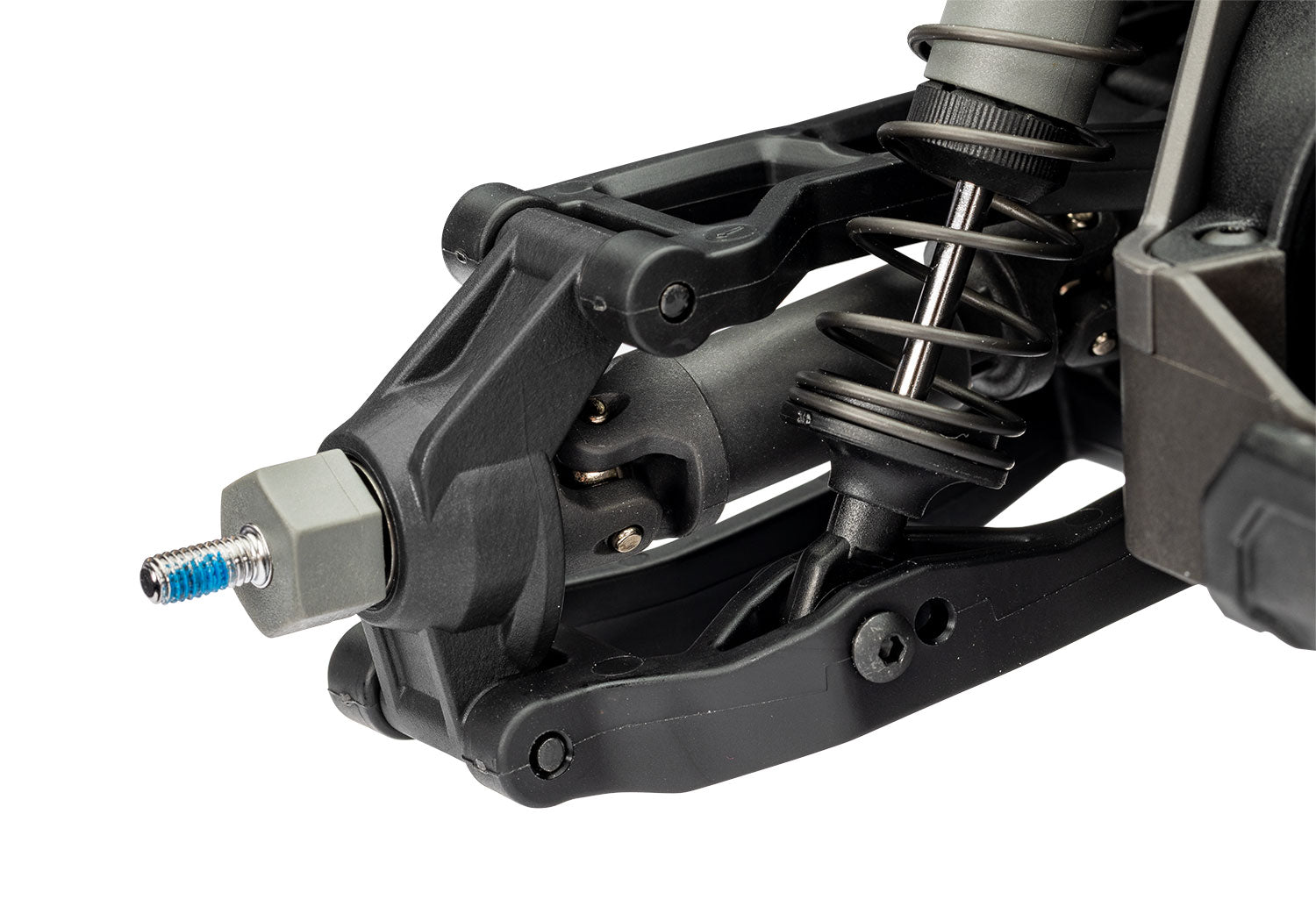

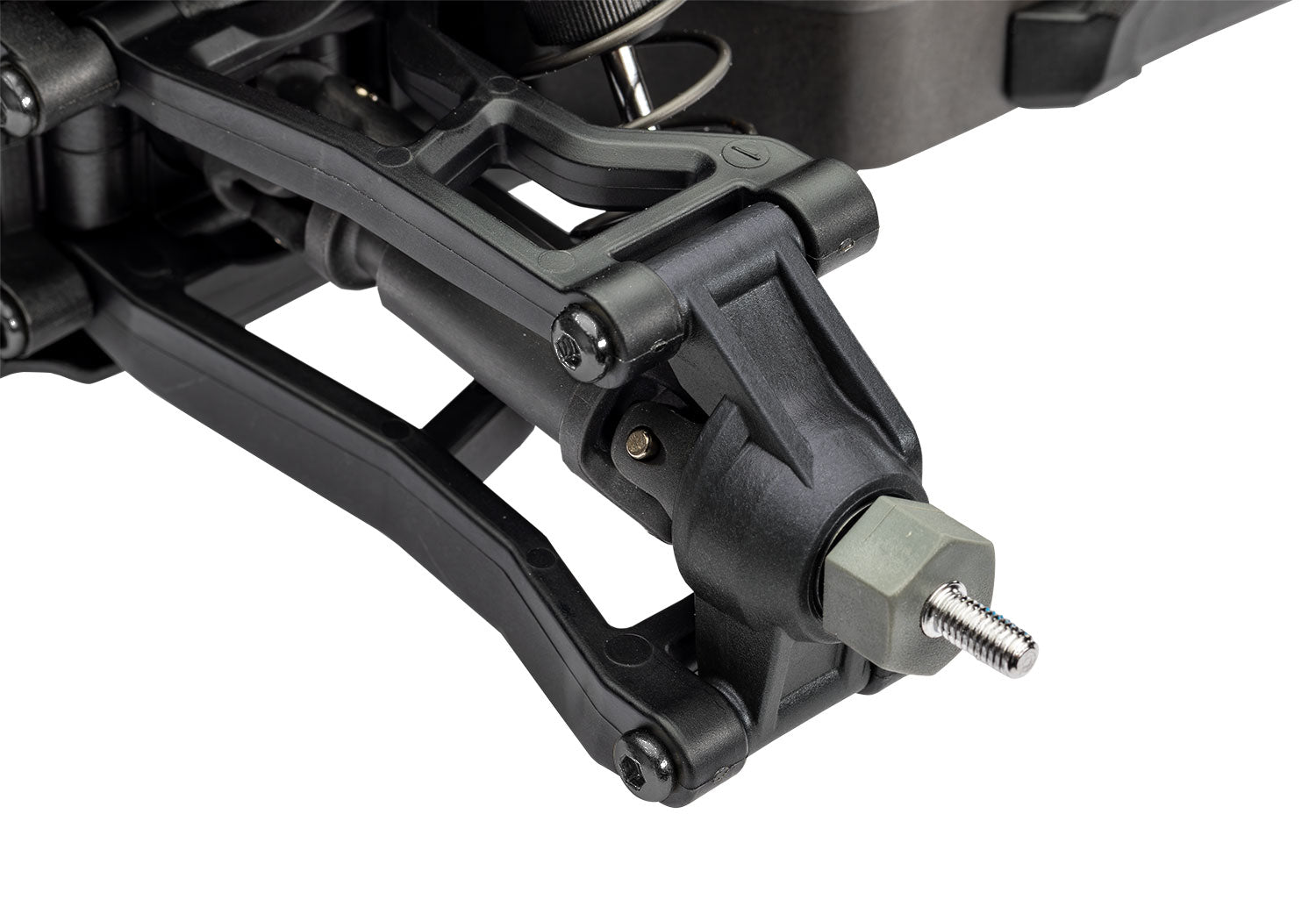

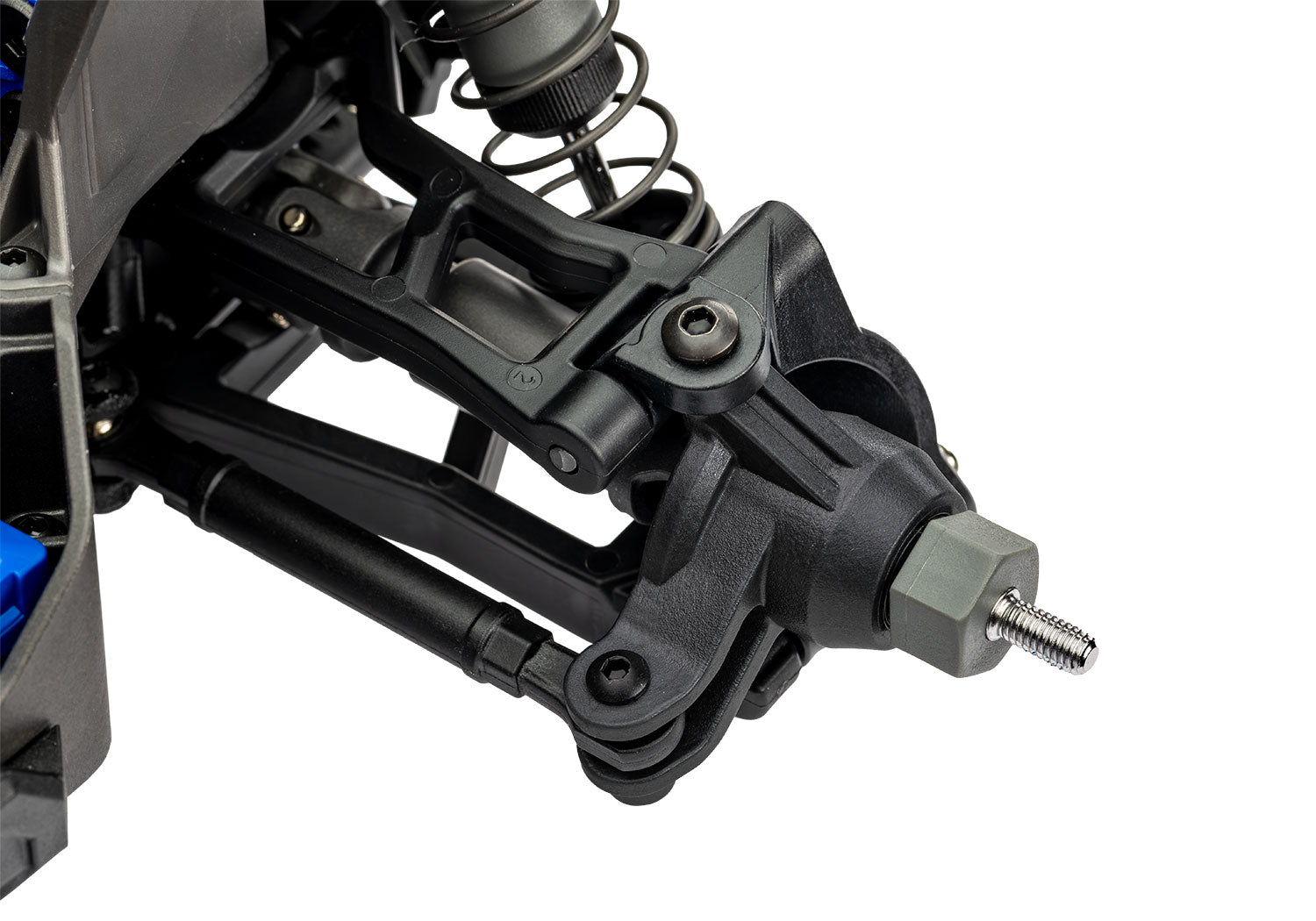

- Suspension

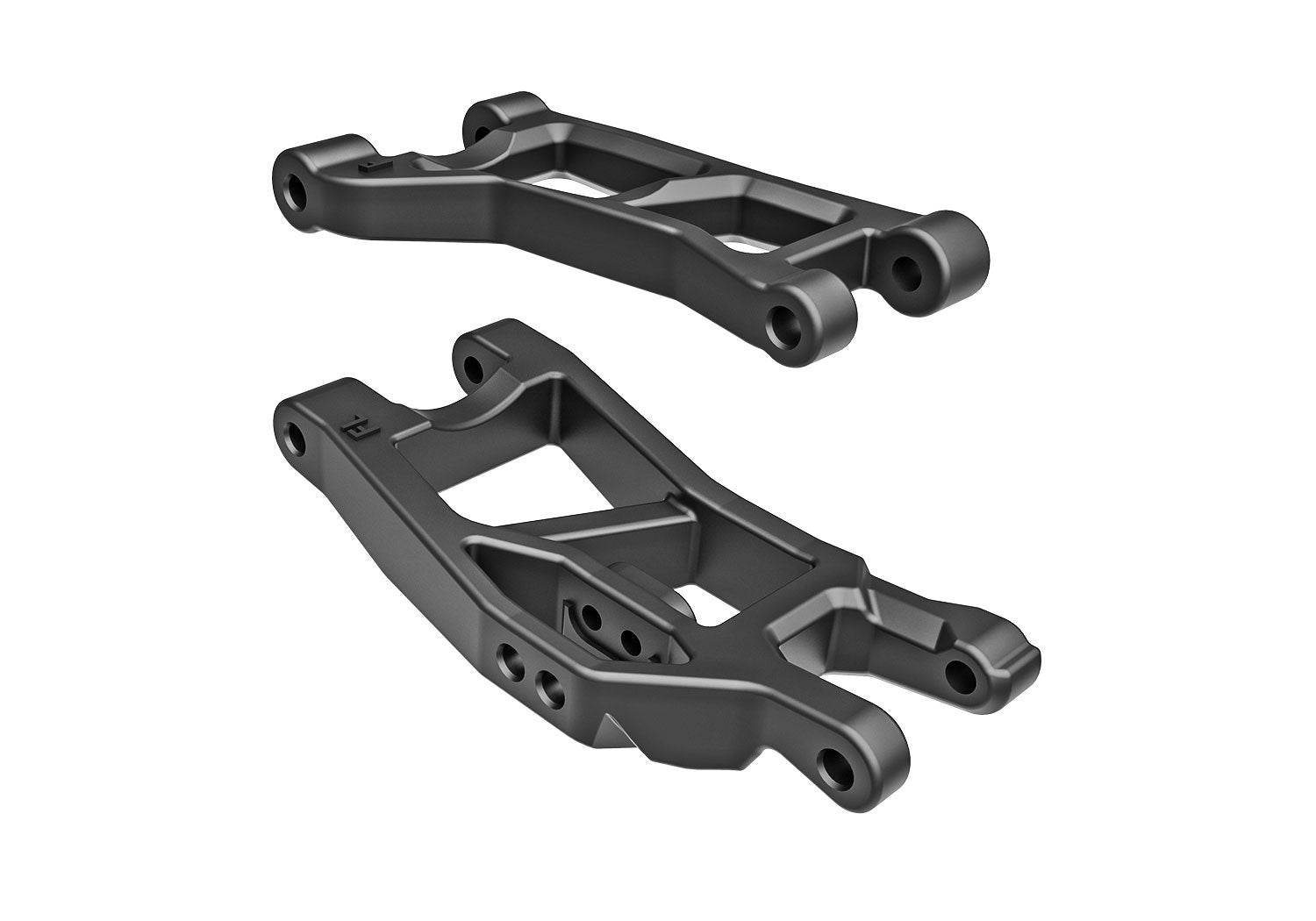

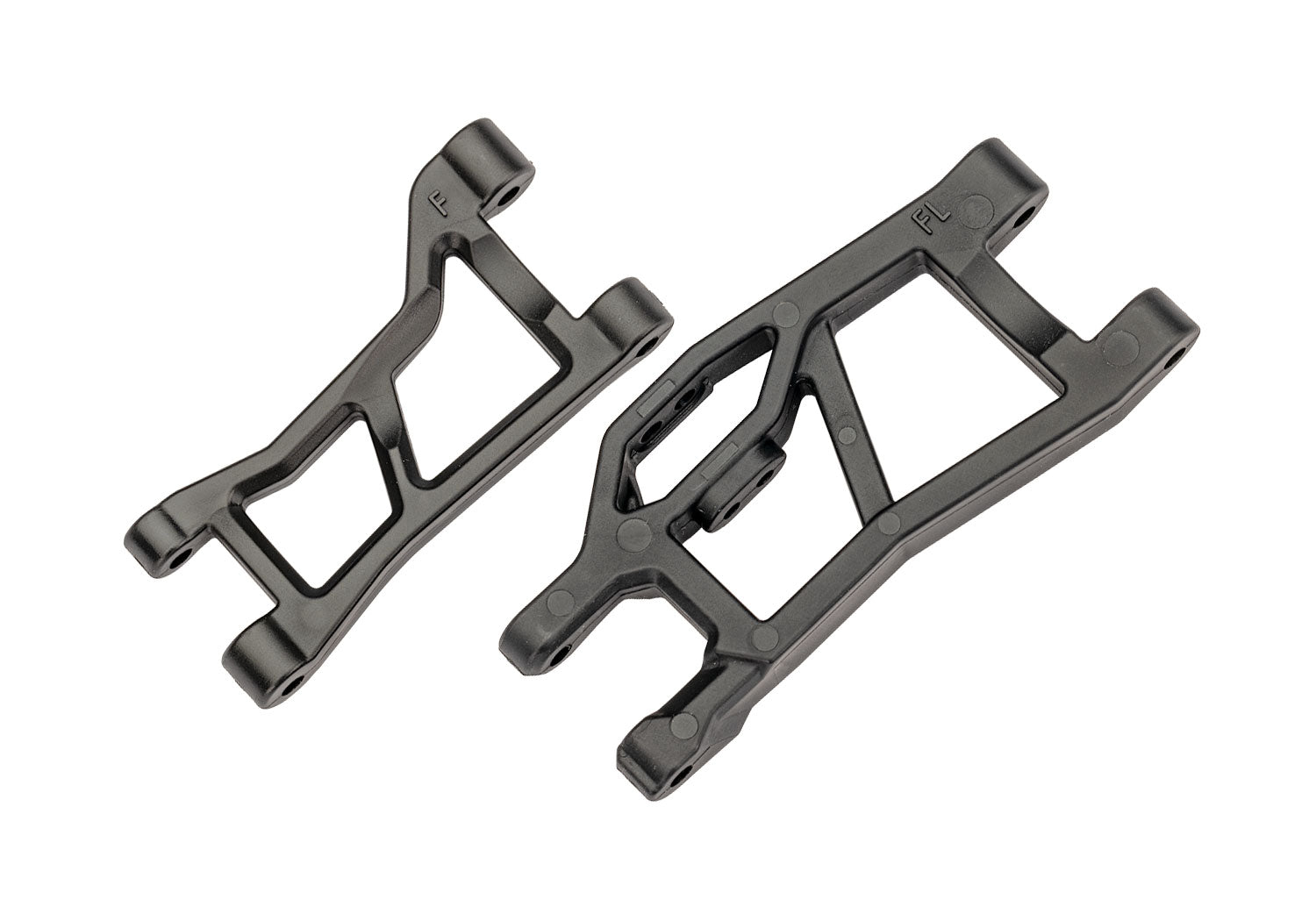

- Heavy duty, double-shear suspension arms
- Dual wishbone design
- Extra tough outer suspension components

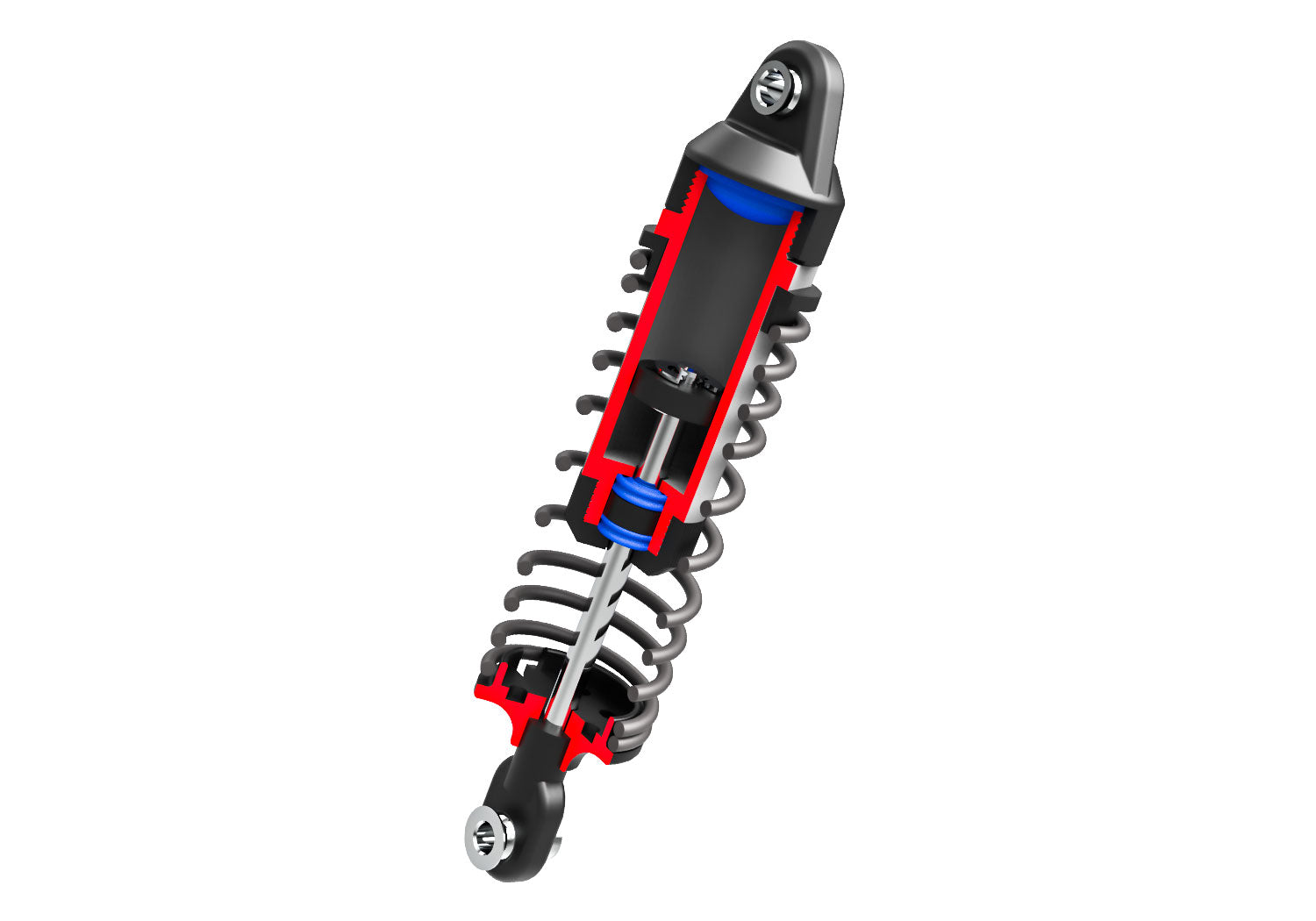

- Oil-Filled Ultra Shocks™
- Full size 1/10 scale shocks
- Large oil capacity
- Easy to tune

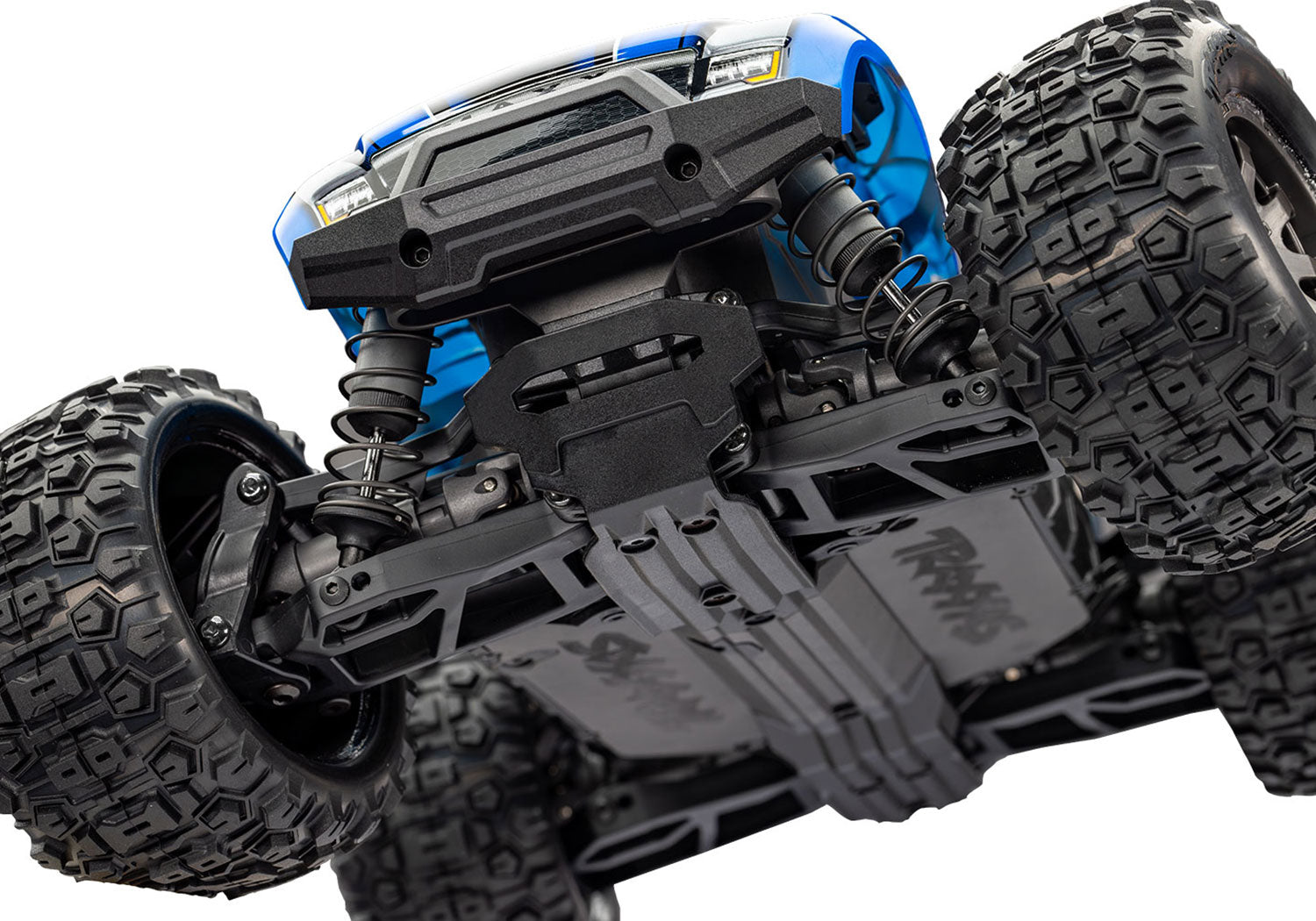

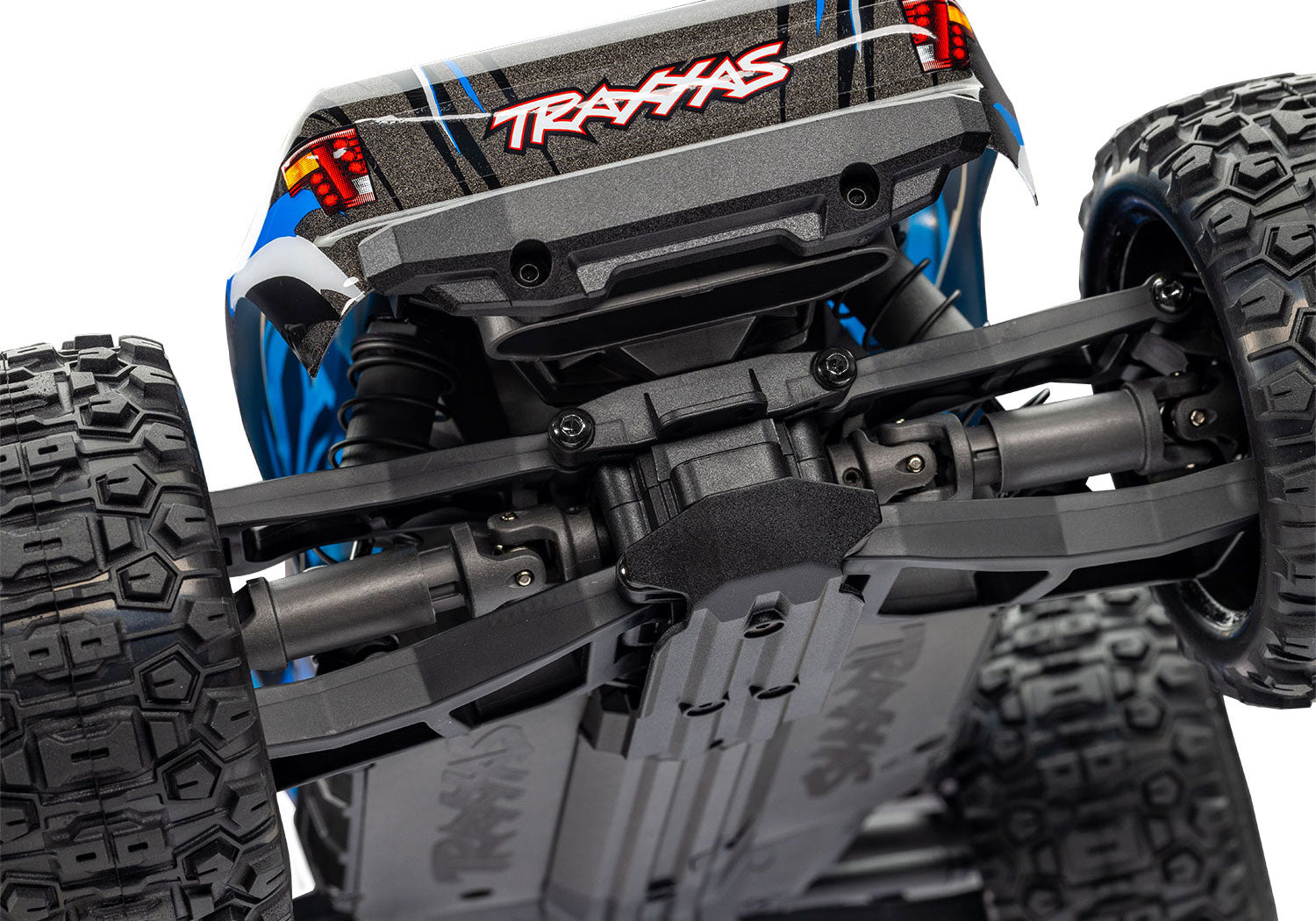

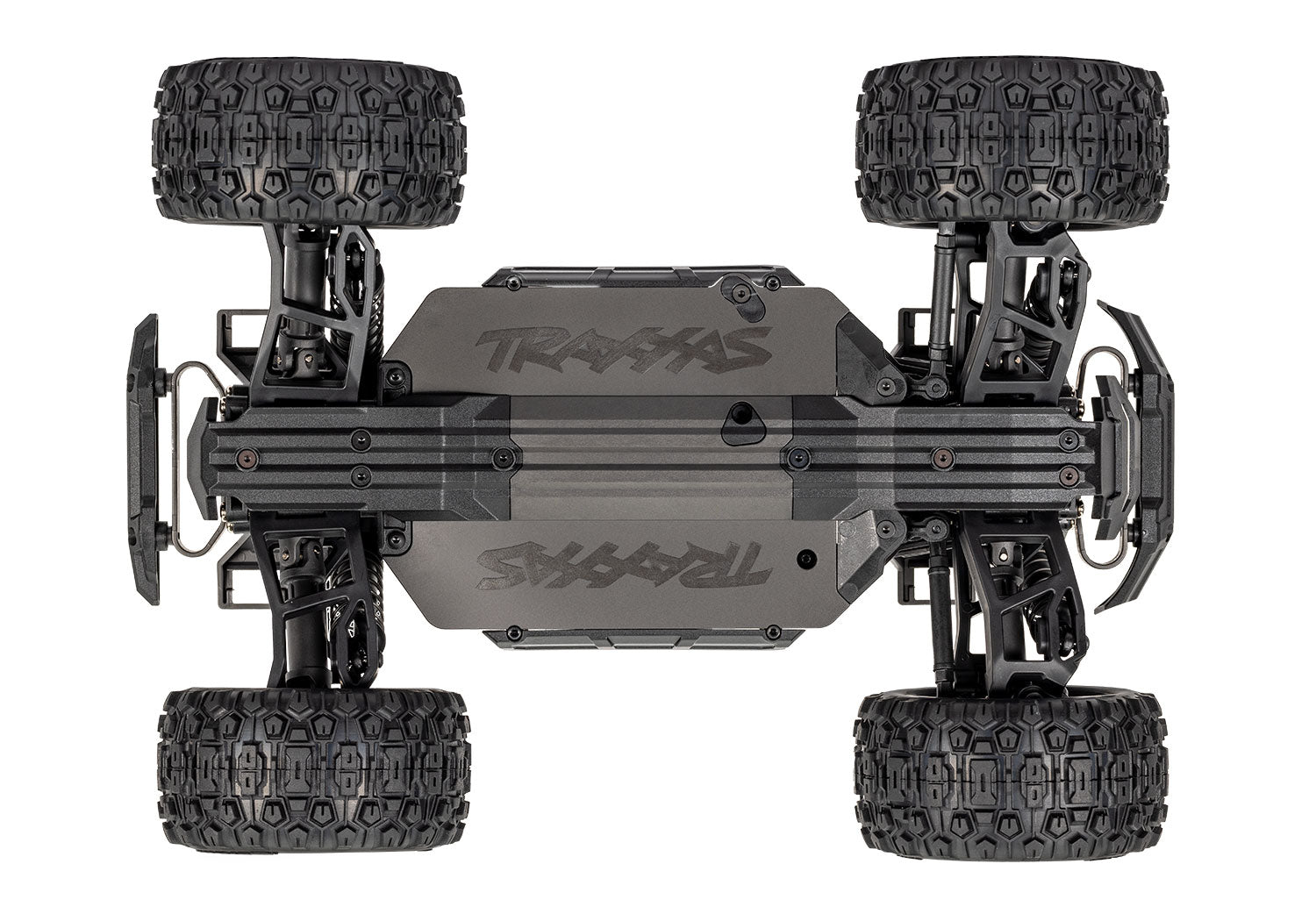

- Bumpers and Skid Plates
- Tough energy absorbing bumpers
- High-angle front skid plate
- Rugged interlocking skid plates
- Smooth undertray eliminates snags
- Integrated nerf bars for side impact resistance

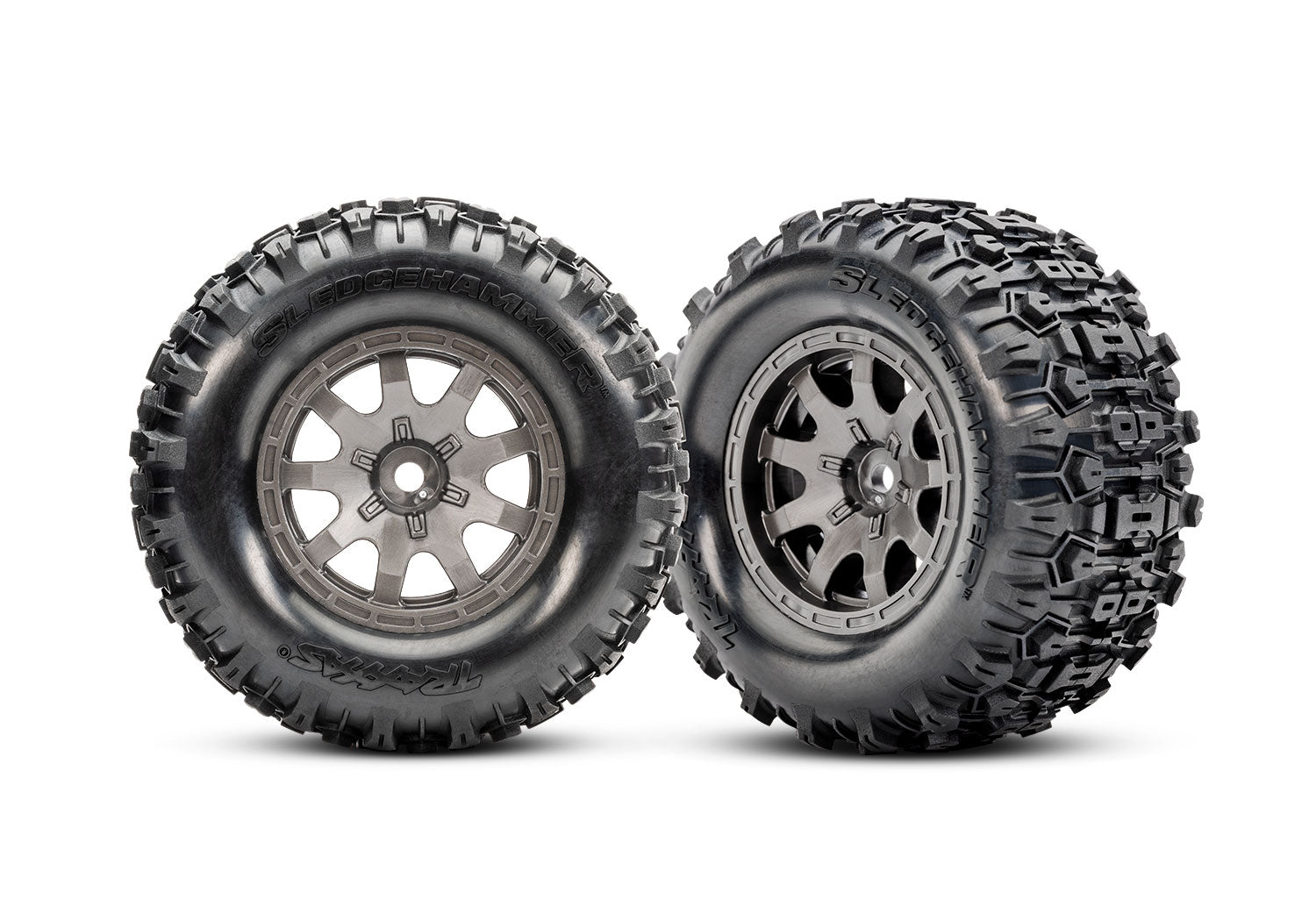

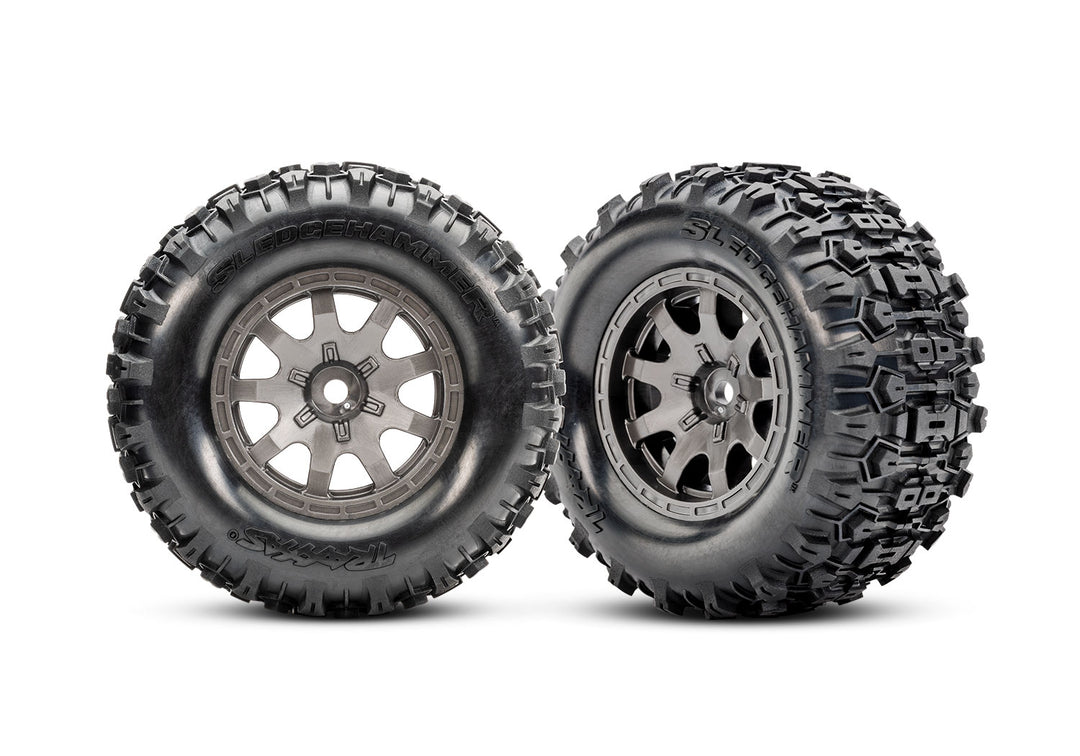

- Wheels and Tires
- Dual-profile black multi-spoke wheels
- 4″ Sledgehammer® tires with foam inserts
- Wide treadblock design
- Multiple layers of biting edges
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Sealed Ball Bearings
MODEL SPECS
| Model Name: | Mini Maxx |
|---|---|
| Model Type: | Monster Truck |
| Top Speed: | 30+ |
| Skill Level: | 1 |
| Scale: | Maxx |
| Length: | 13.58 inches (345 mm) |
| Width: | 9.94 inches (253 mm) |
| Height: | 5.39 inches (137 mm) |
| Weight: | 3.62 pounds (1.64 kg) |
| Front Track: | 9.94 inches (253 mm) |
| Rear Track: | 9.94 inches (253 mm) |
| Wheelbase: | 8.66 inches (220 mm) |
| Ground Clearance: | 1.06 inches (27 mm) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Direct drive |
| Differential Type: | Planetary, steel gear |
| Overall Drive Ratio: | 9.20:1 |
| Gear Pitch: | 32 |
| Servo: | 2056 |
| Radio System: | TQ 2.4 GHz (2-channel) |
| Battery Compartment Specs: | 113 mm L x 41 mm W x 22 mm H |
MOTOR SPECS
| Motor Name: | BL-2s 3300 kV |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 7.51 ounces (213 g) |
| Motor Length: | 3.15 inches (80 mm) |
| Motor Diameter: | 1.42 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Traxxas Quick Connect Motor Plug |
ESC SPECS
| ESC Name: | BL-2s Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| ESC Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6 volts |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
| Battery Connector: | Traxxas High-Current Connector |
