Name: Traxxas TRX-4 High Trail 1972 K5 Blazer 4WD w/ TQi 2.4GHz Radio 92086
Brand: Traxxas
SKU: 2991000063127
Price: 549.95 USD
Availability: InStock

Traxxas TRX-4 High Trail 1972 K5 Blazer 4WD w/ TQi 2.4GHz Radio 92086

Title

Blue

Red

Black

Price Save $0.04

Secure payments

Low stock - 1 item left
Inventory on the way

This product is available for pickup in store only. Due to manufacturer's restrictions, this item cannot be shipped

MPN: UPC: 020334992086 EAN:

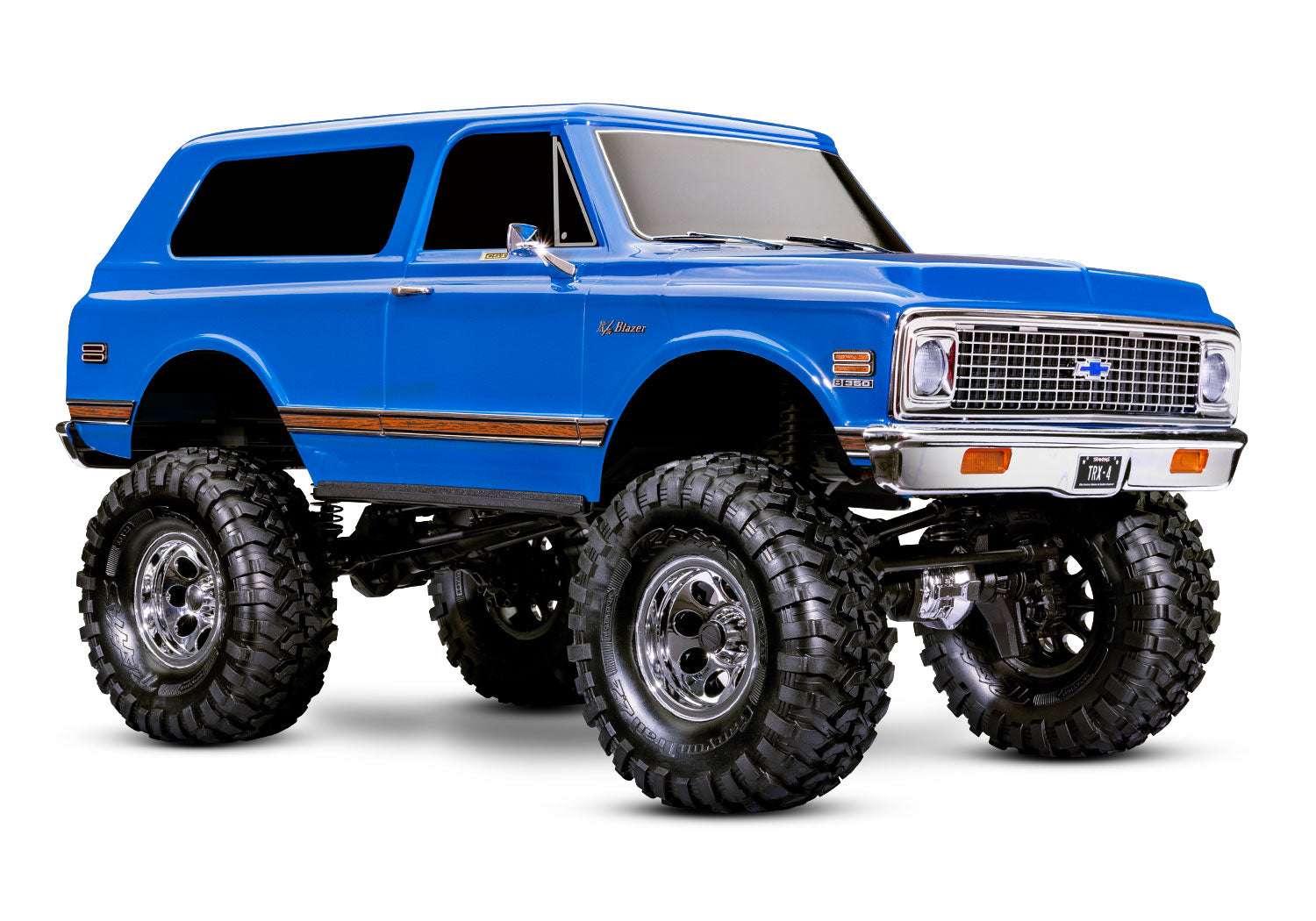

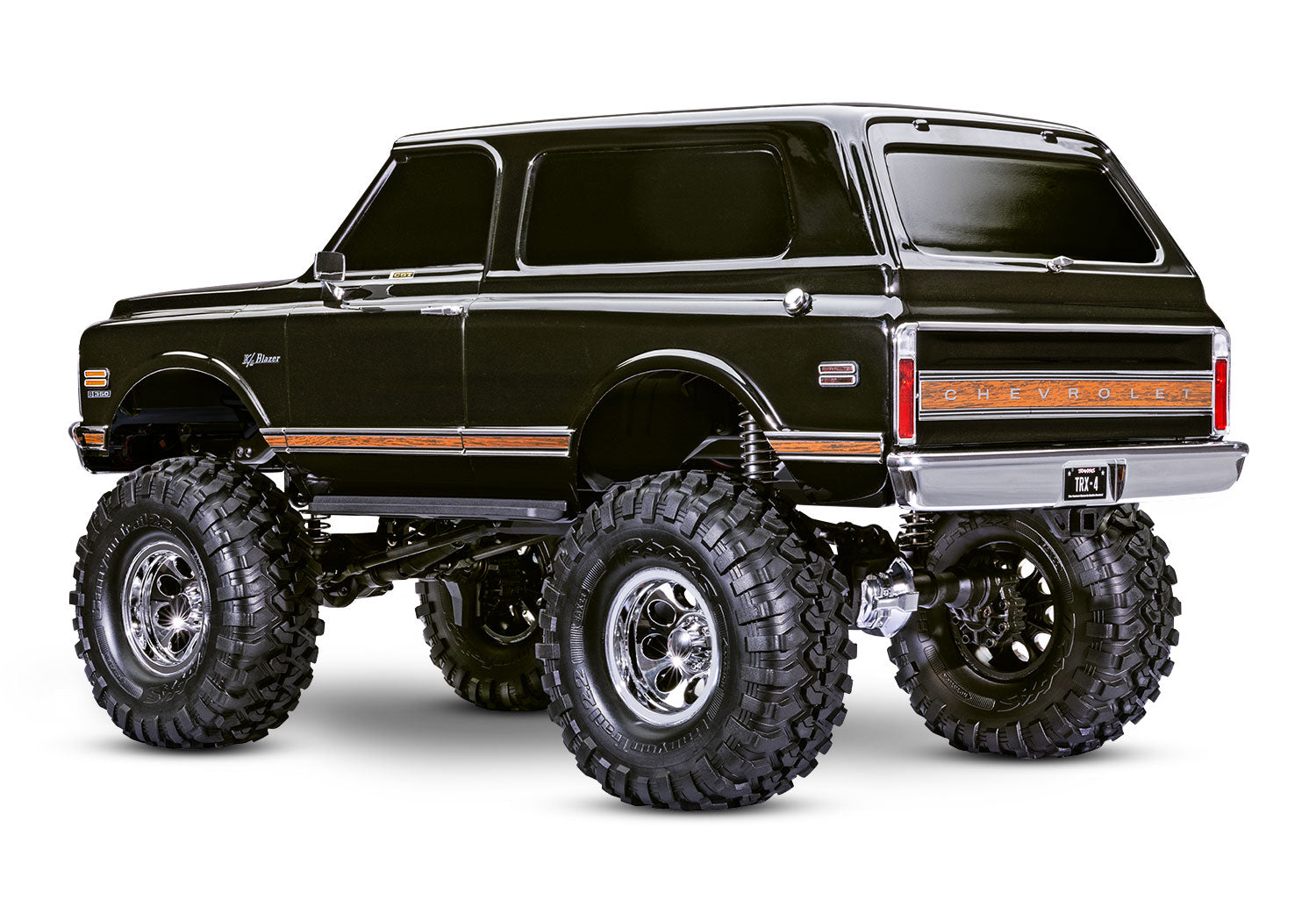

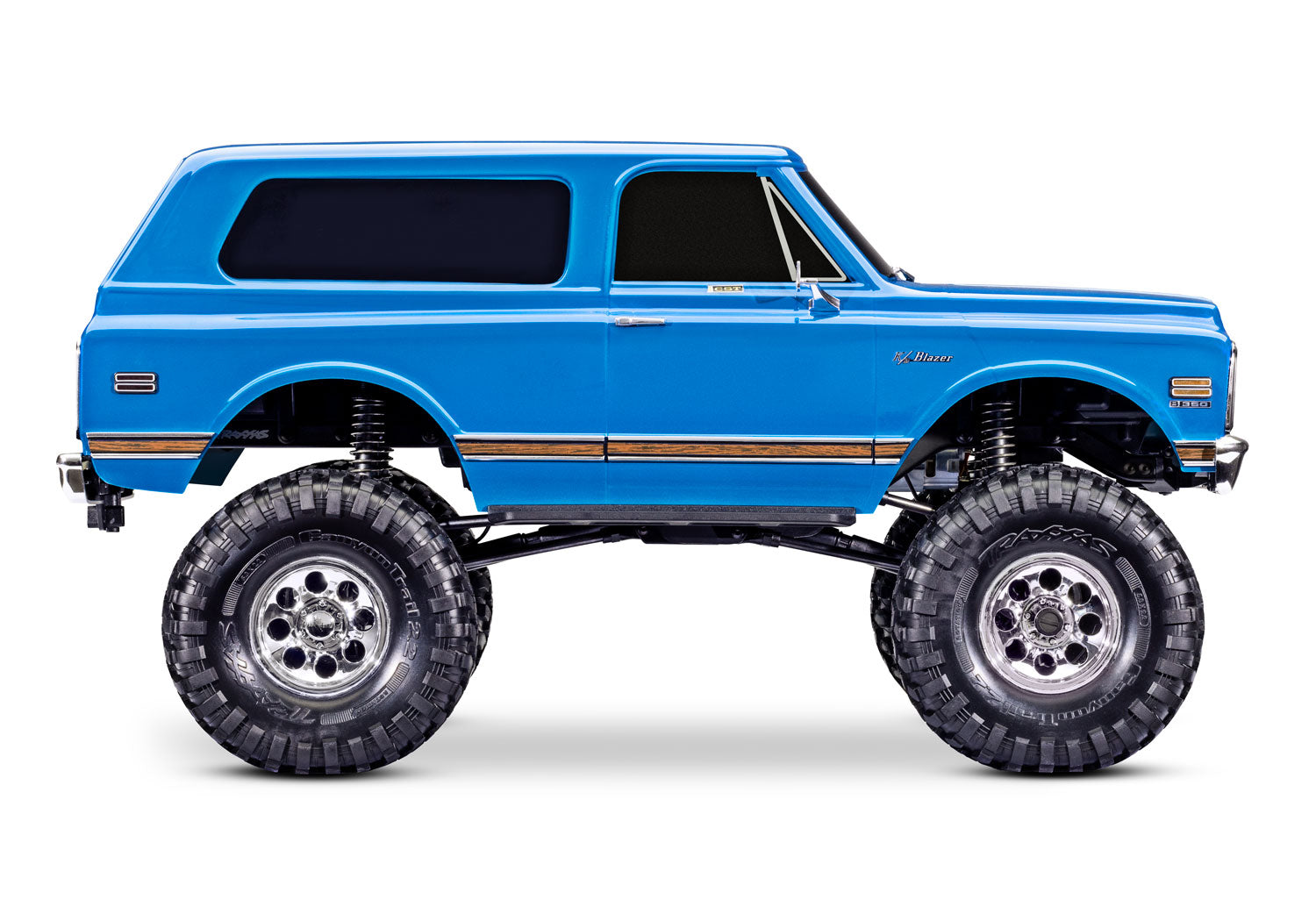

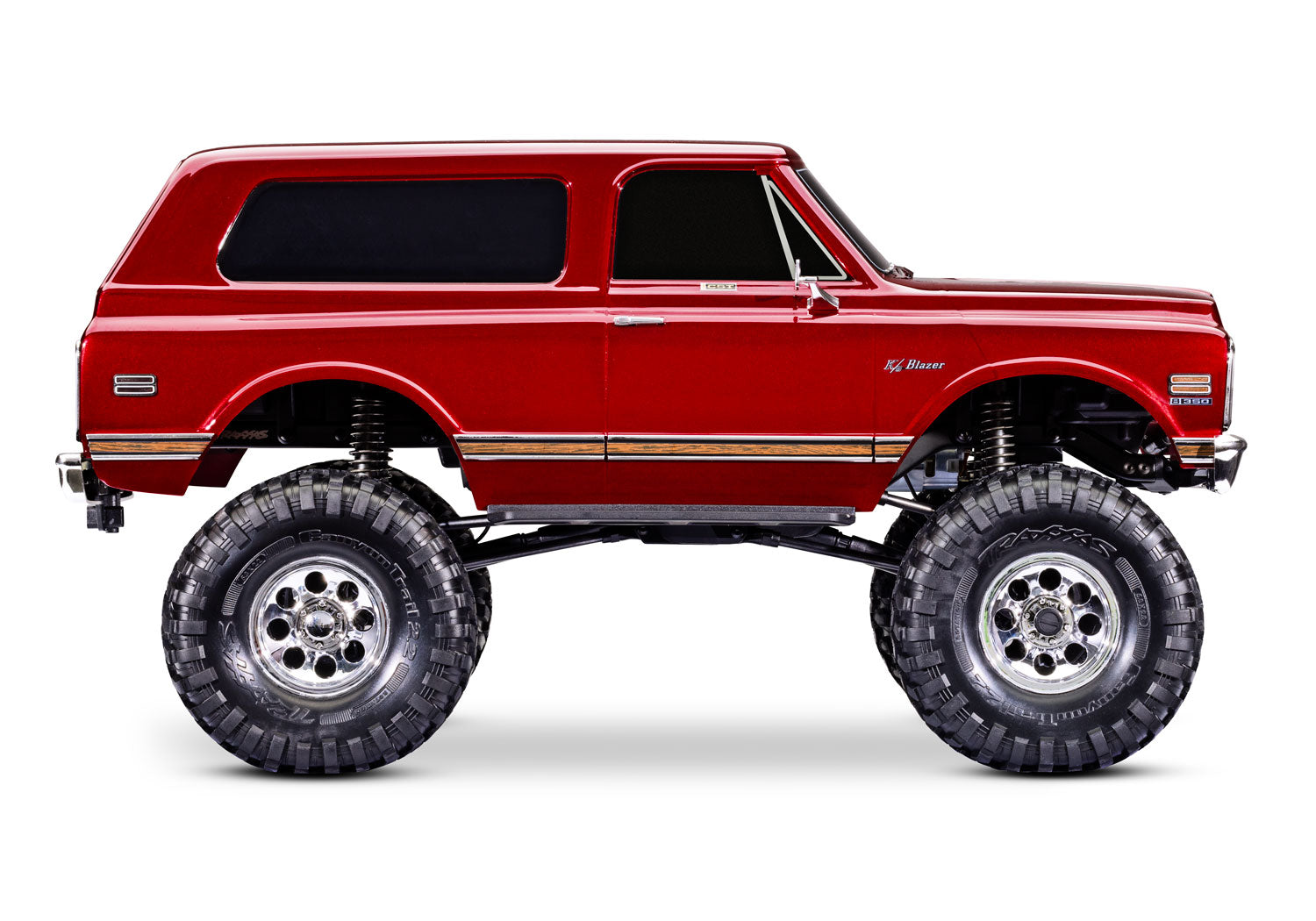

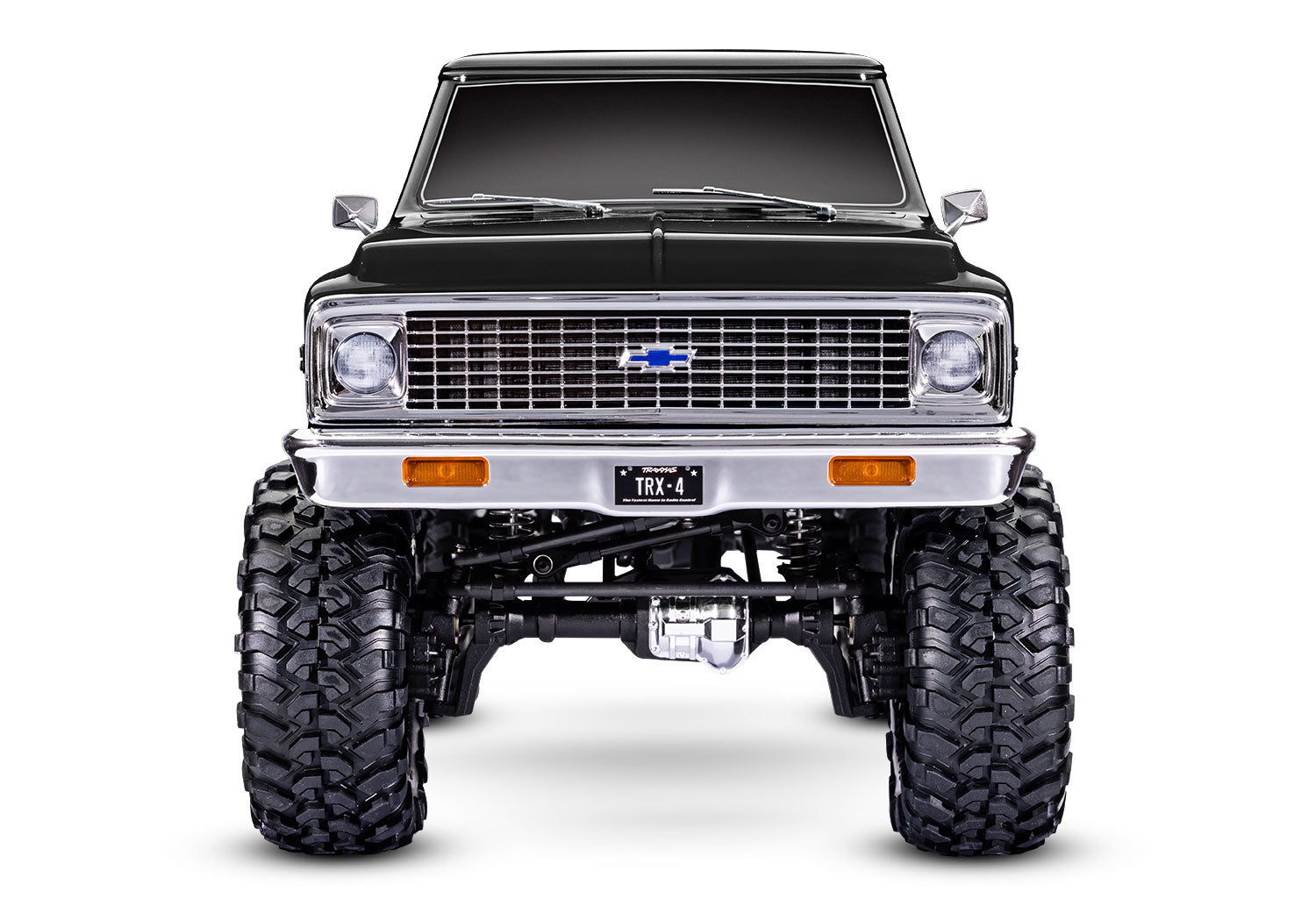

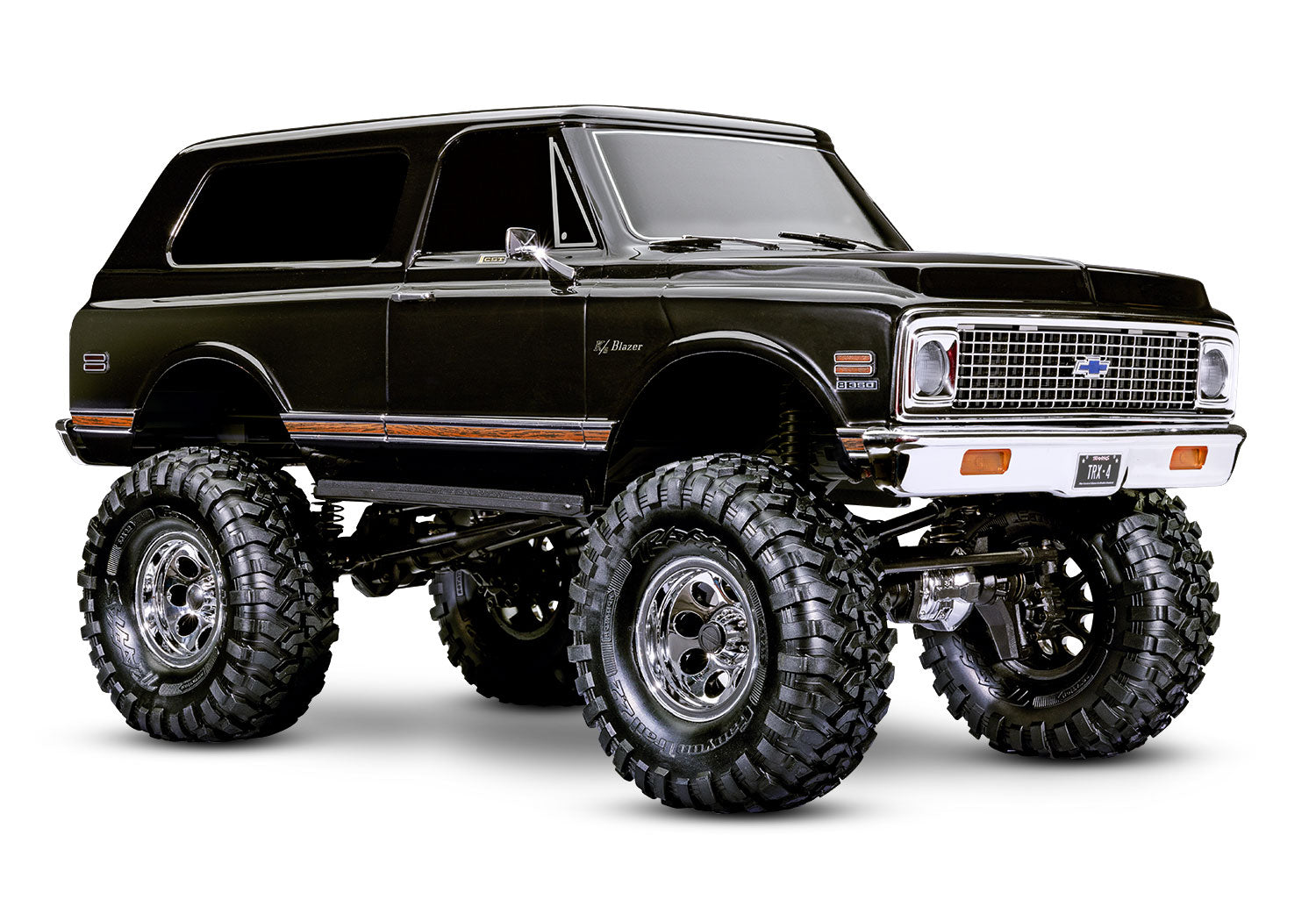

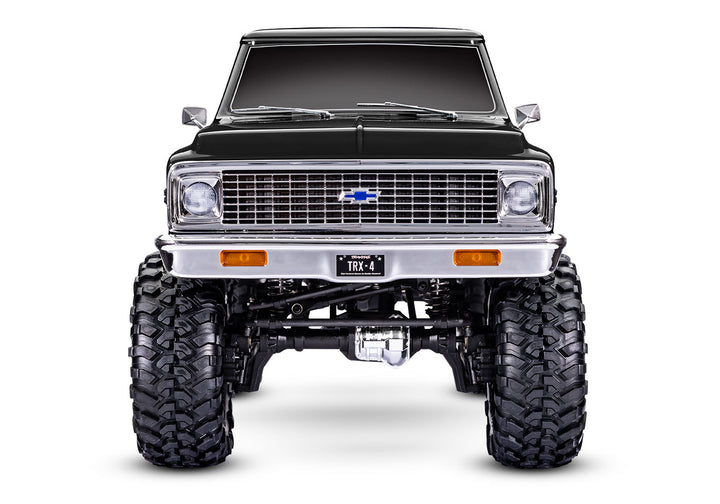

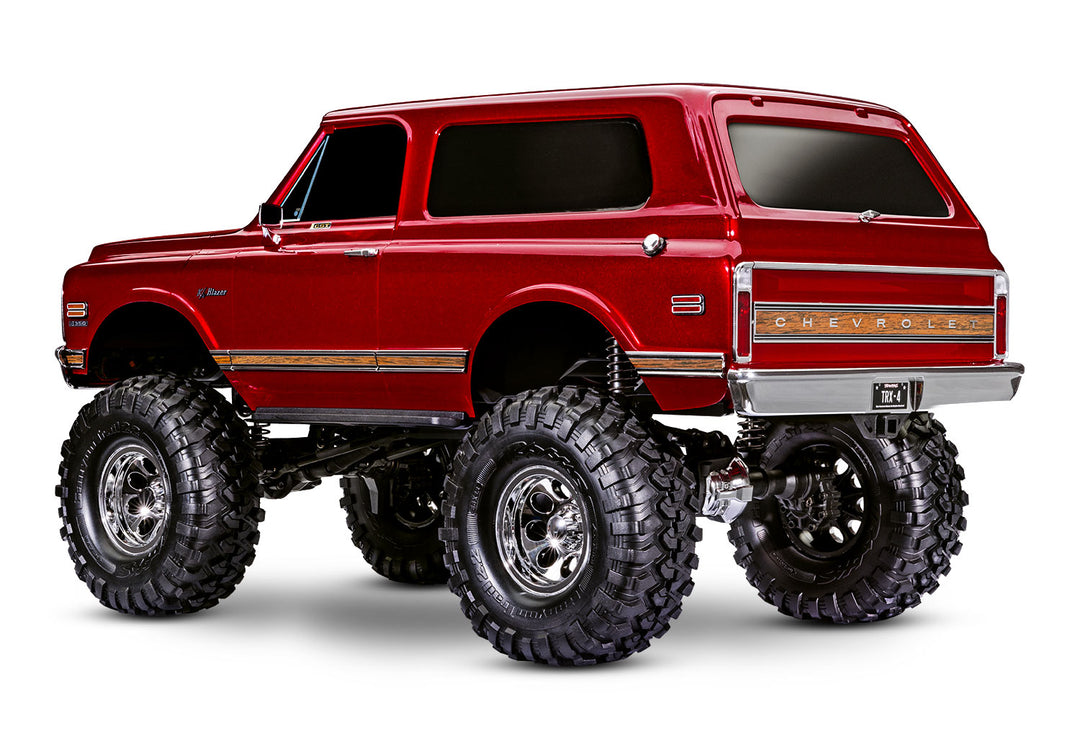

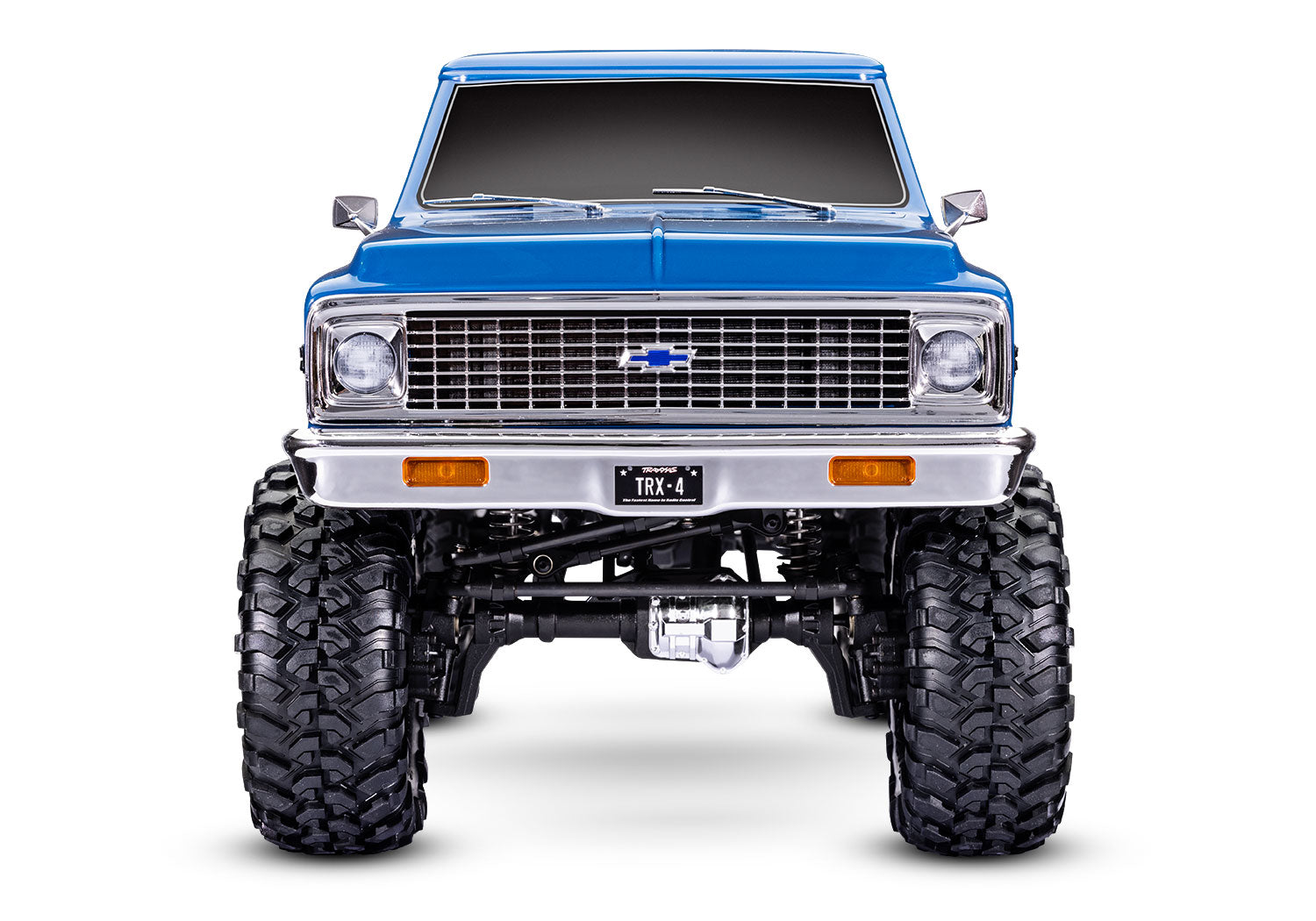

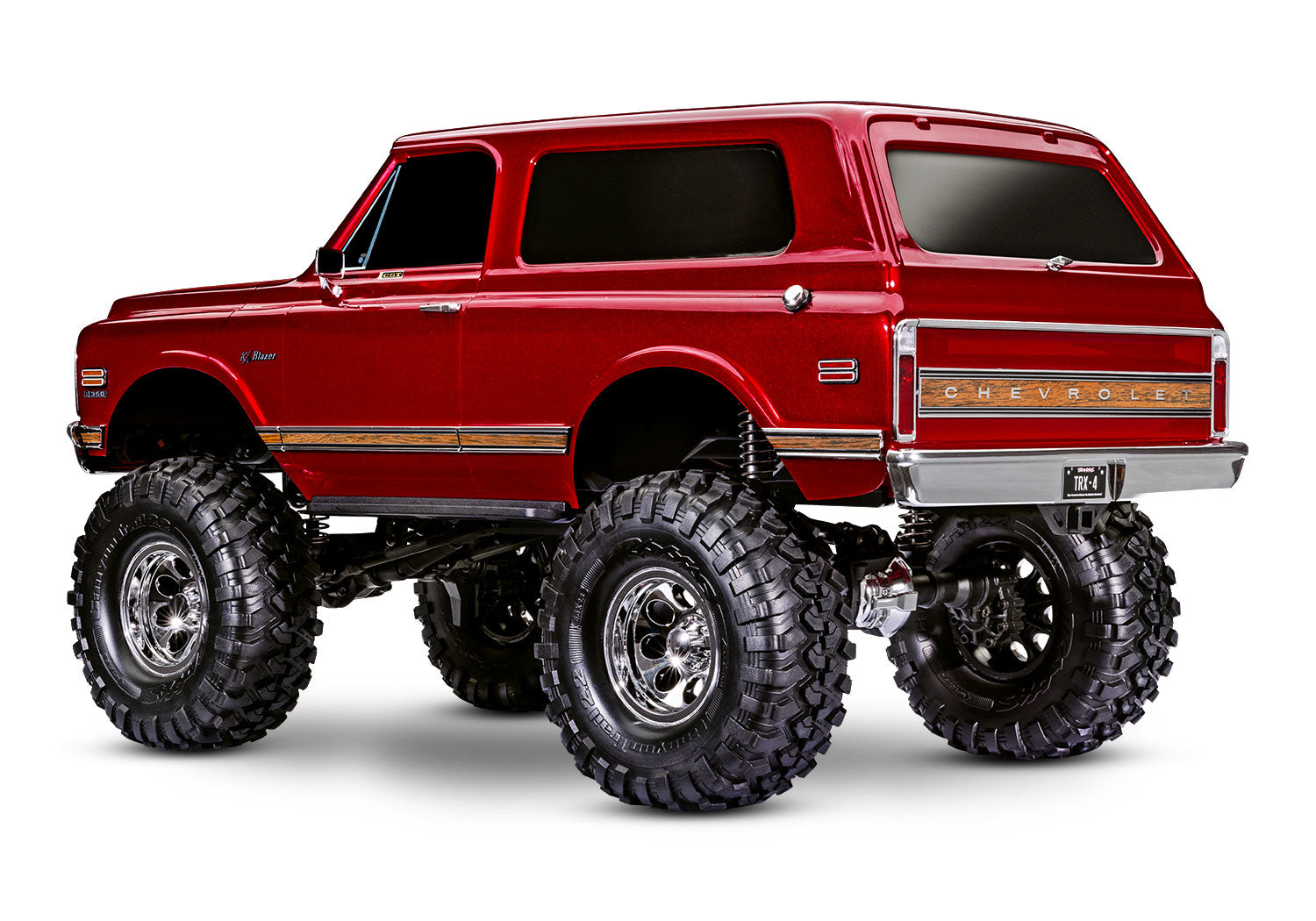

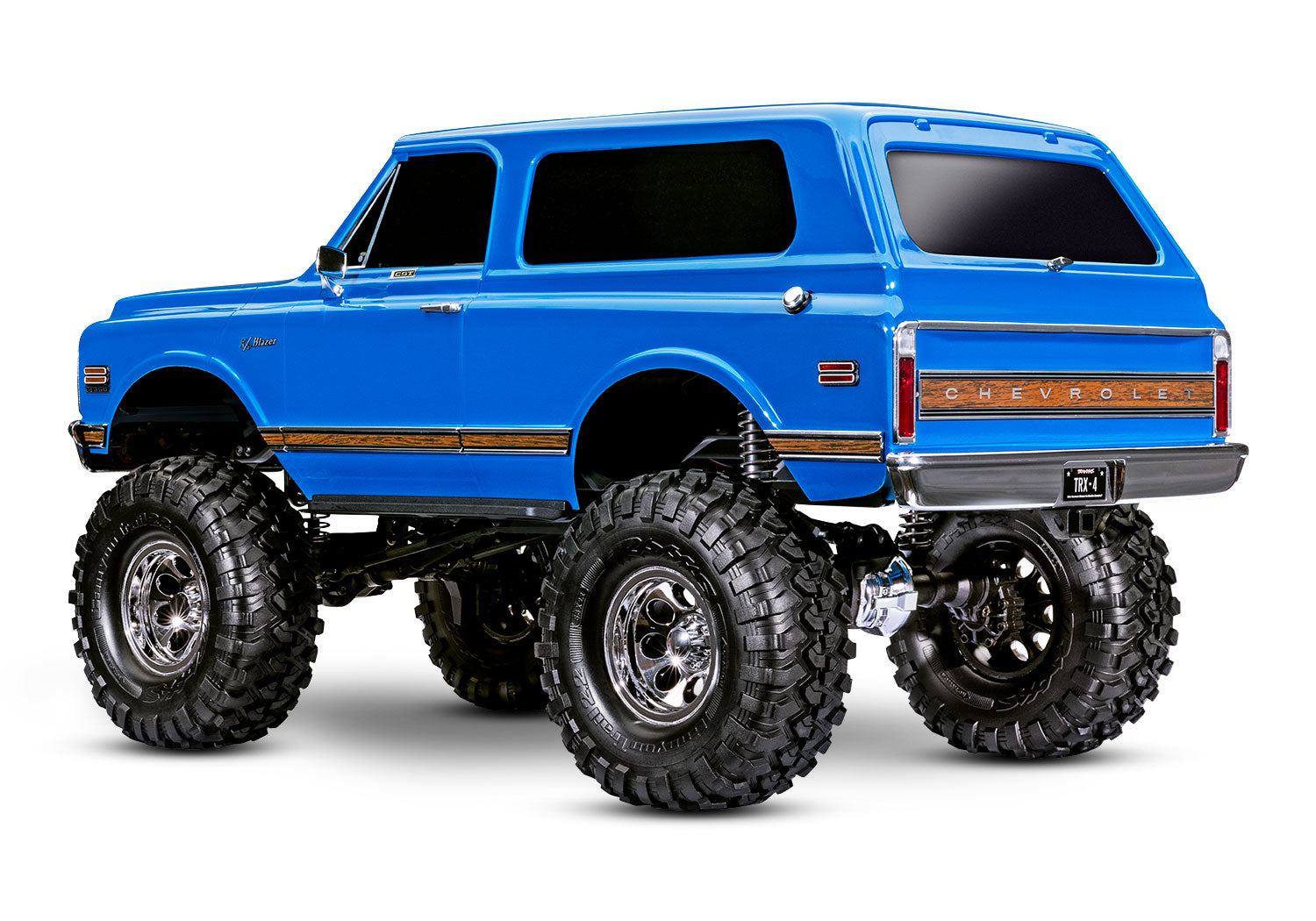

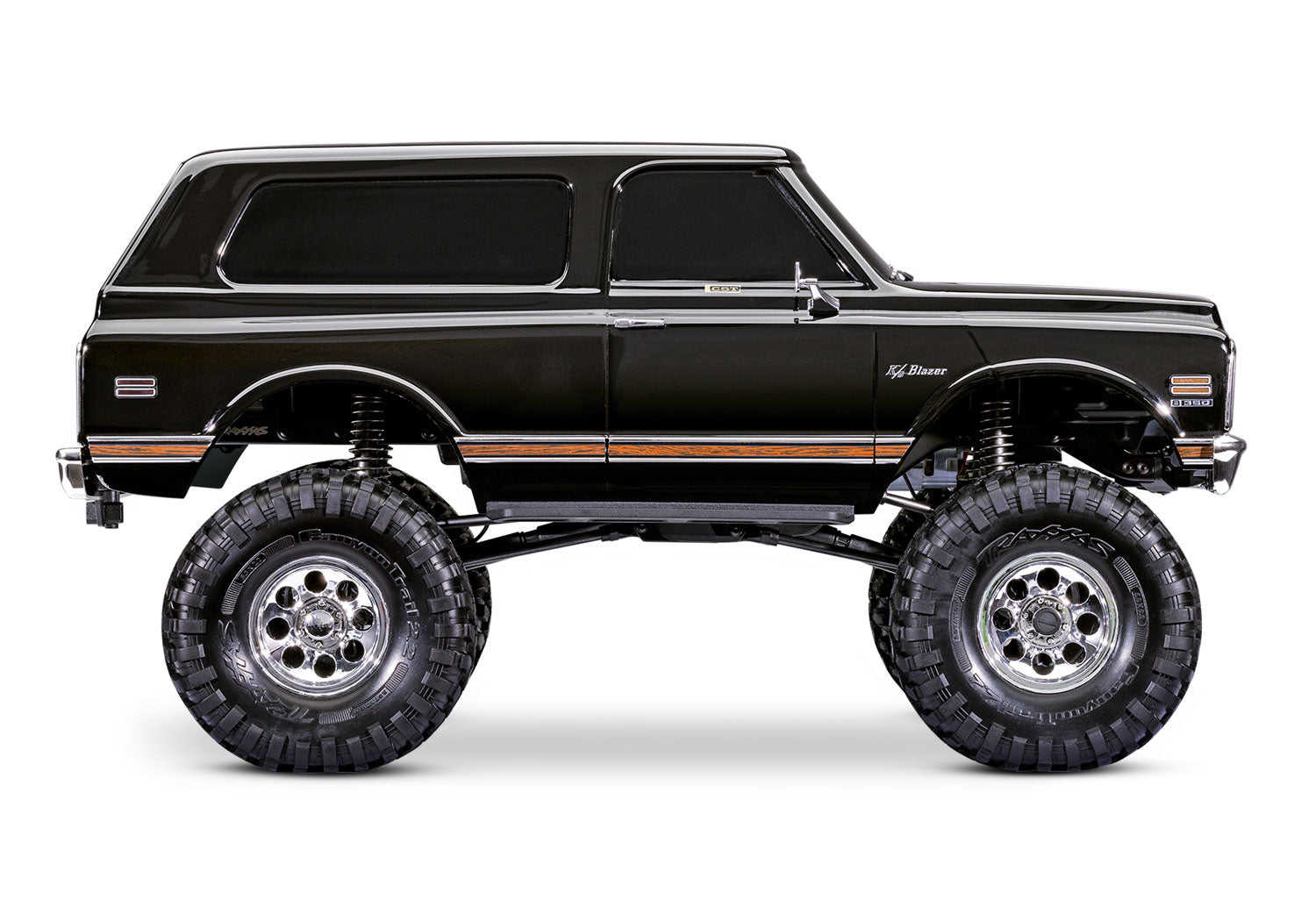

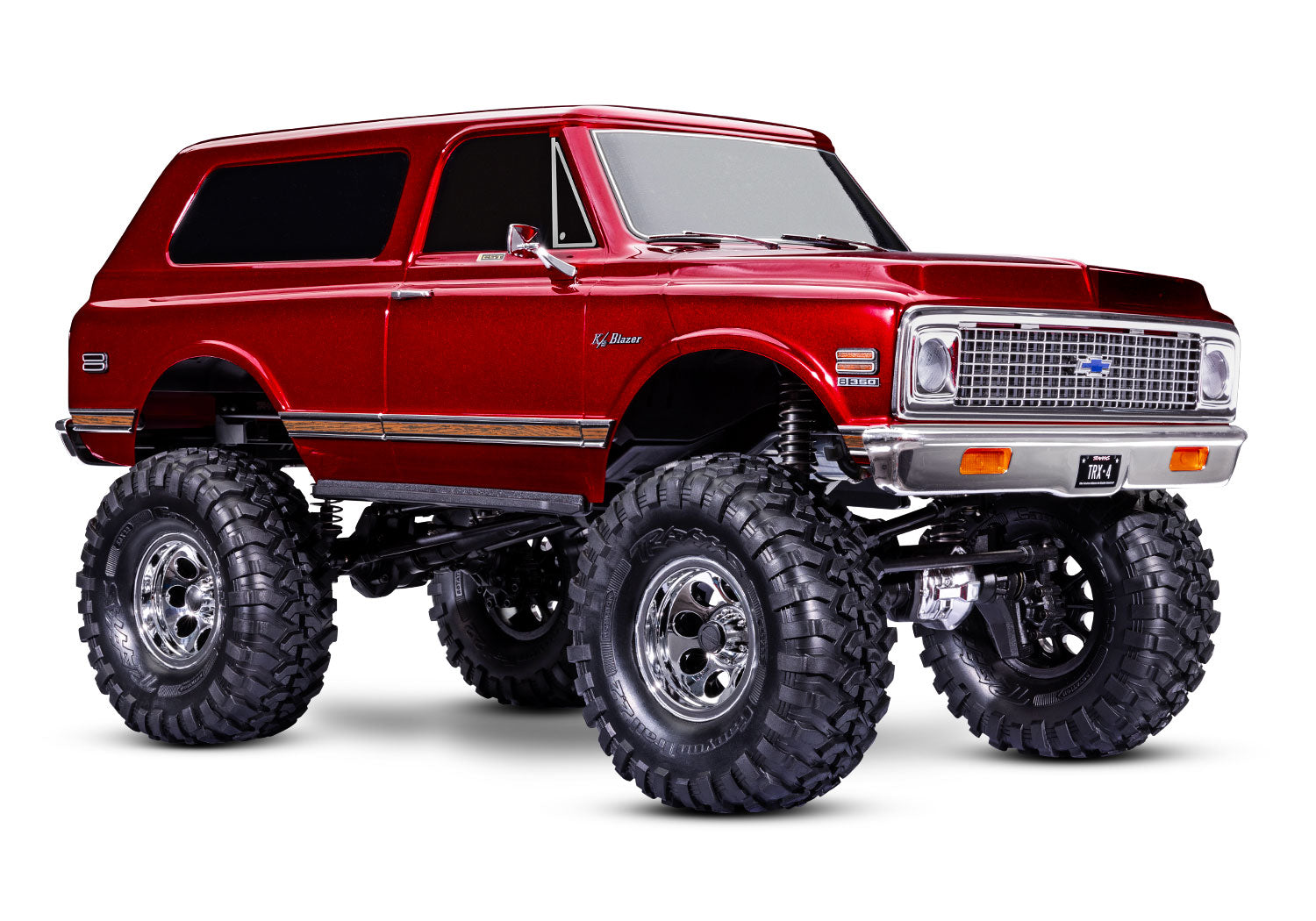

Officially Licensed 1979 Chevrolet^® K5 Blazer Body
- Scale details: deep-inset front grille, chrome bumpers, side mirrors, door handles, side trim and wipers
- LED-ready headlights, tail lights, and side markers
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
  - Sport Mode — forward / brake / reverse
  - Race Mode — forward / brake / no reverse
  - Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
  - Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  - Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set^® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
Titan^® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts

Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
Factory-Installed Long Arm Lift Kit
- Increases ground clearance over 1″
- Maintains precise steering geometry
- Accommodates oversize 2.2″ wheels and tires
TQi™ 2.4 GHz Radio System
- 4-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box with easy-access plug

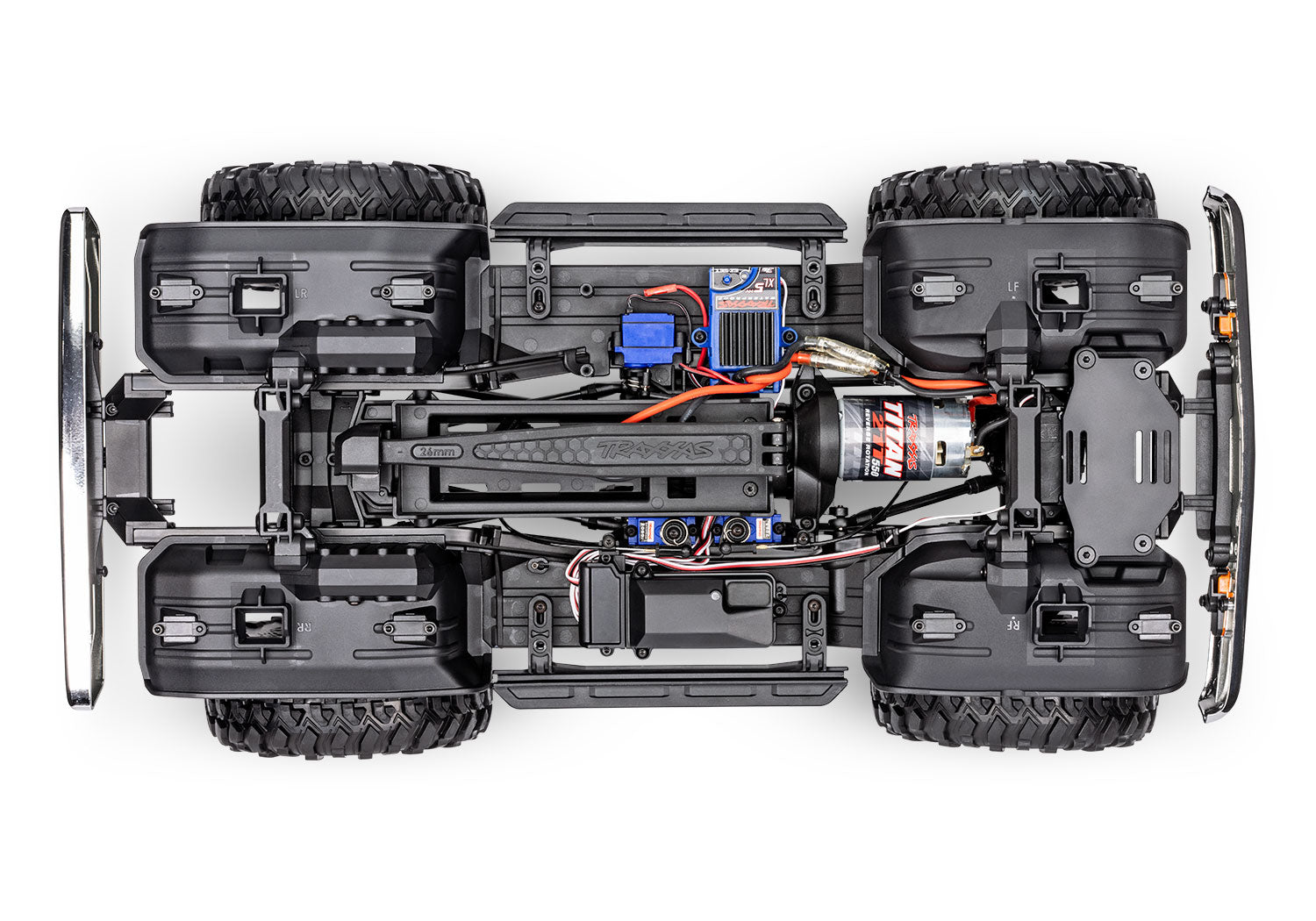

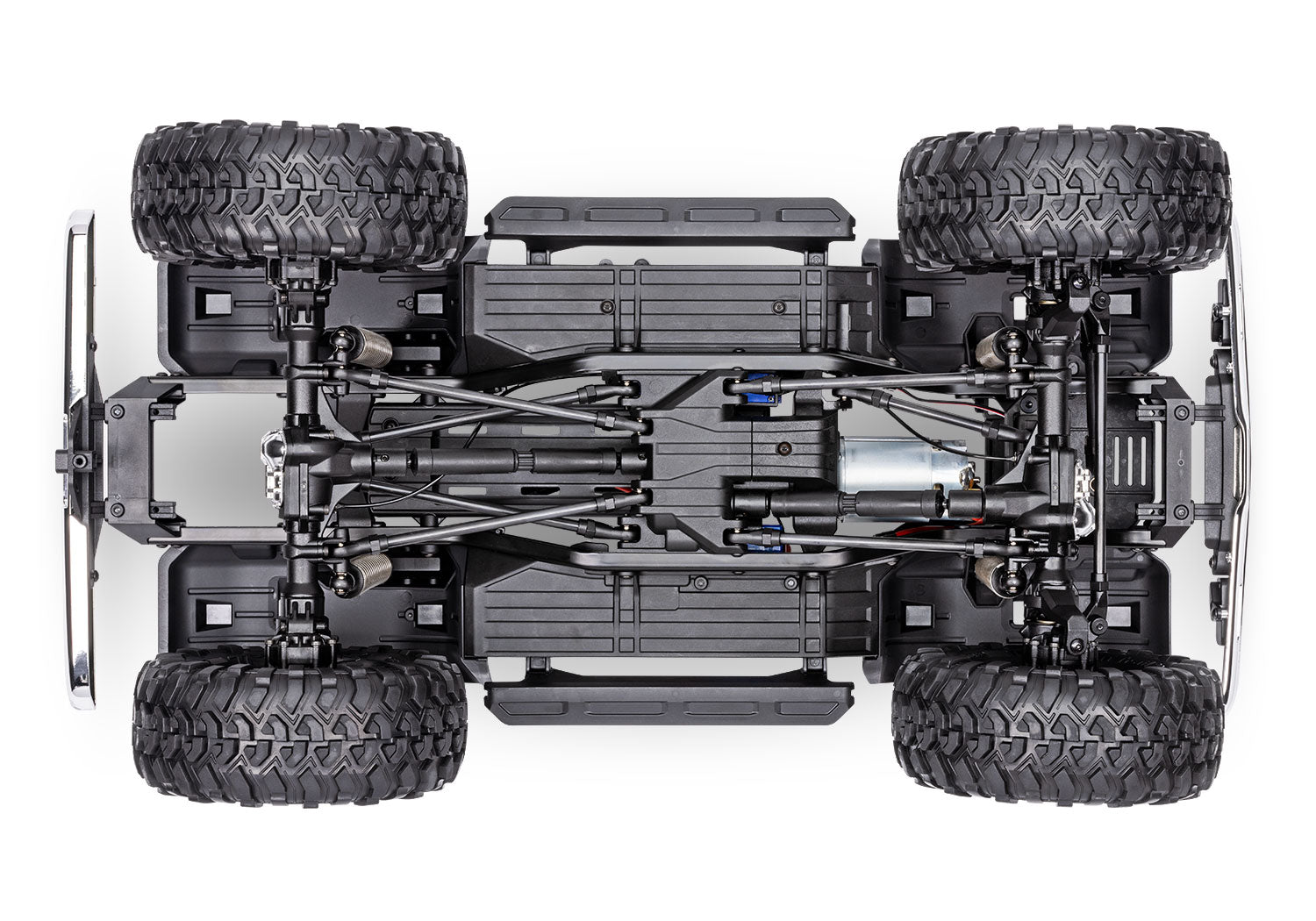

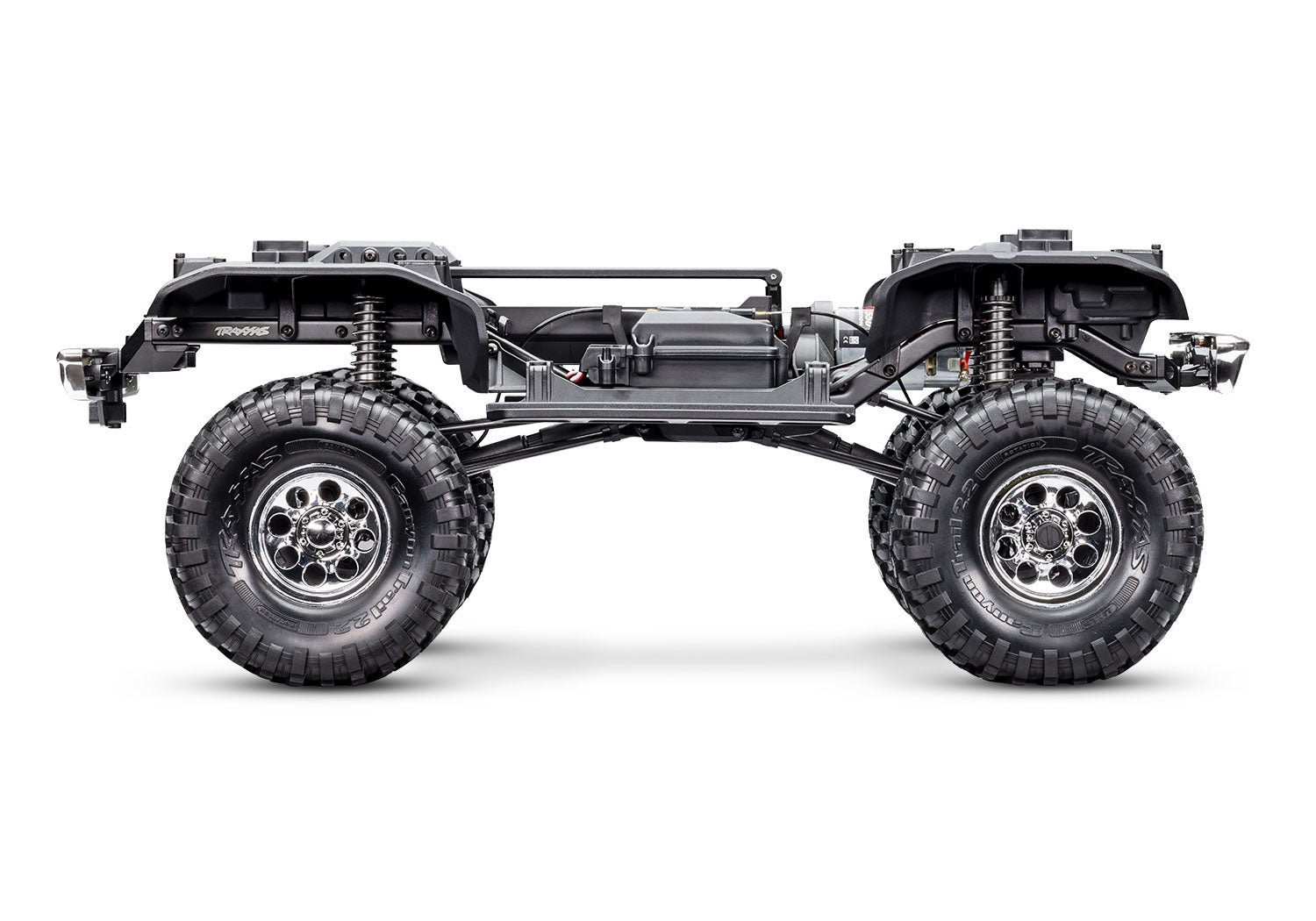

Reinforced Steel Ladder Frame
- Full-length 1.5 mm thick steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
Extended Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Extra-long aluminum bodies for greater articulation
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
Oversize Wheels and Tires
- 2.2″ chrome mag wheels wheels with hub inserts
- Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating
Requires Battery and Charger (Sold Separately)

Model Specs

Model Name:	TRX-4 Chevrolet K5 Blazer High Trail Edition
Model Type:	Trail / Crawler
Model Skill Level:	1
Chassis:	Steel Ladder Frame
Scale:	1/10
Weight:	7.26 lbs (3.30 kg)
Length:	20.67 inches (525 mm)
Width:	10.63 inches (270 mm)
Front Track:	10.63 inches (270 mm)
Rear Track:	10.63 inches (270 mm)

Height:	11.22 inches (285 mm)
Wheelbase:	12.28 inches (312 mm)
Center Ground Clearance:	4 inches (99 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	2-speed high/low, remote shifting
Differential Type:	4 gear, remote locking
Gear Pitch:	32 pitch
Servo(s):	2075X metal gear, digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
Battery Compartment Specs:	159 mm X 47 mm X 23 mm, 26 mm

Motor Specs

Motor Name:	Titan® 550 21T reverse rotation
Motor Type:	High-torque brushed motor
Motor Weight:	390 g (13.76 oz)
Motor Length:	3.071” (78 mm) overall length, 2.25” (57 mm) can length
Motor Diameter:	1.532” (39 mm diameter)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

ESC Specs

ESC Name:	XL-5™ HV
ESC Type:	Brushed
ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:	2.6 ounces (74 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	14 gauge
