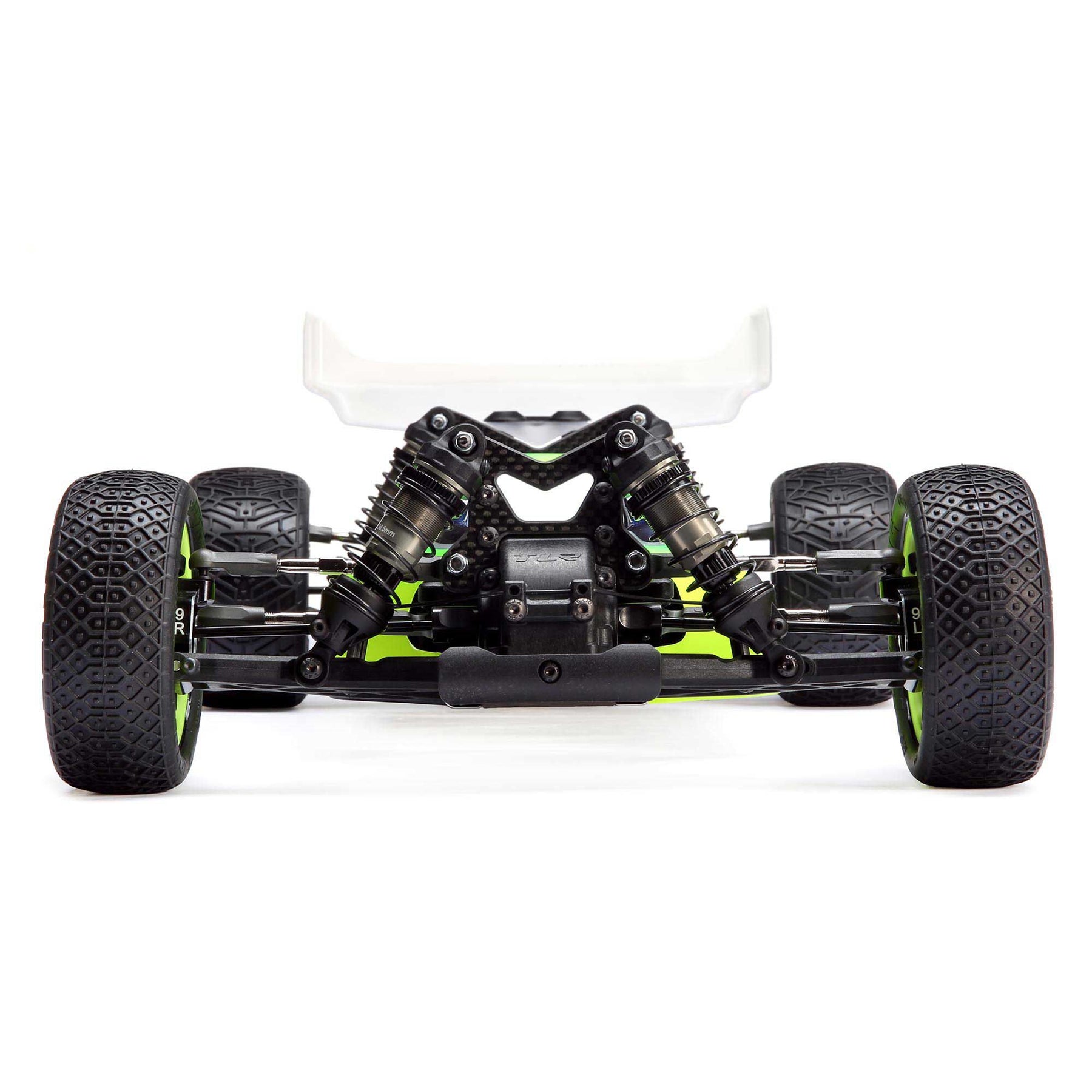

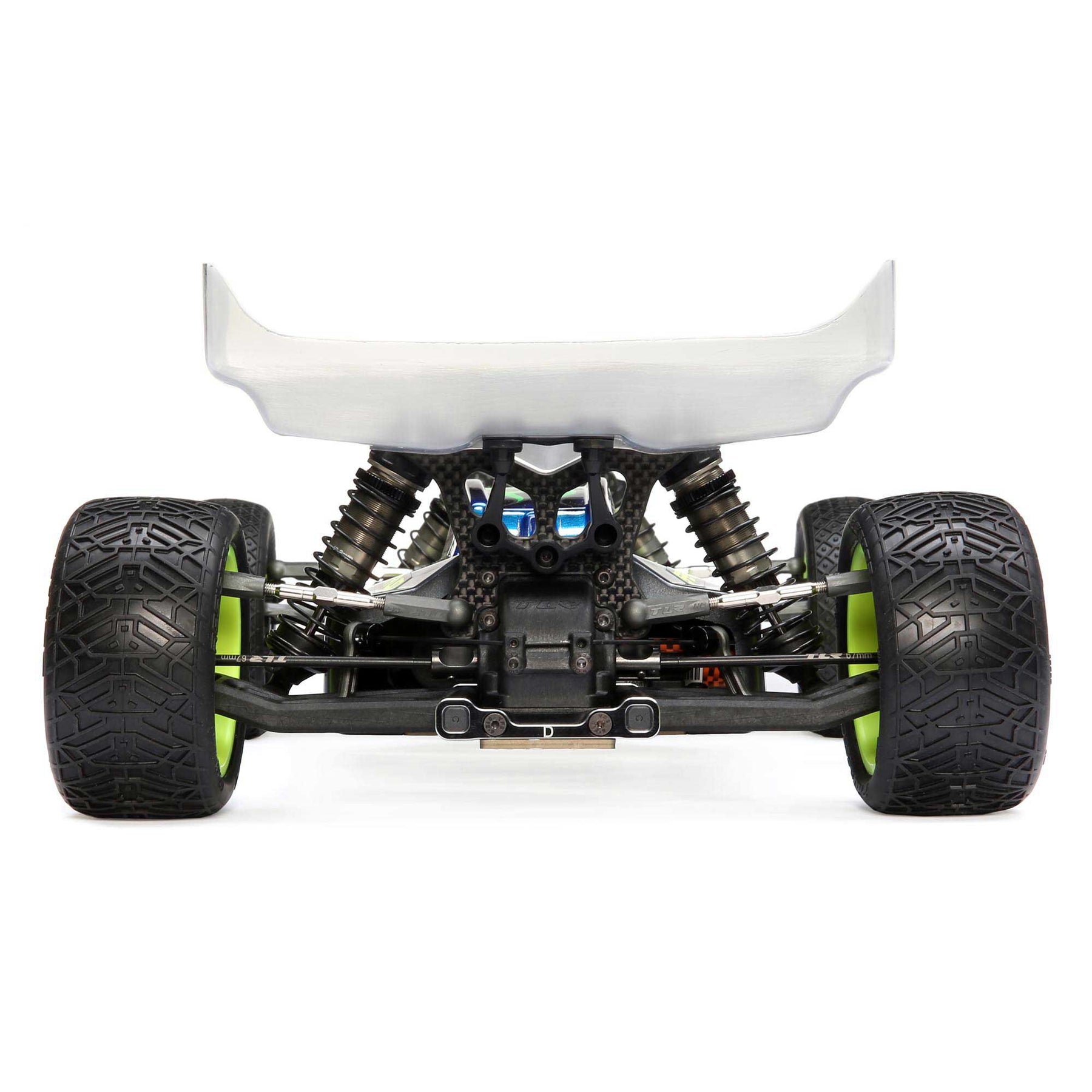

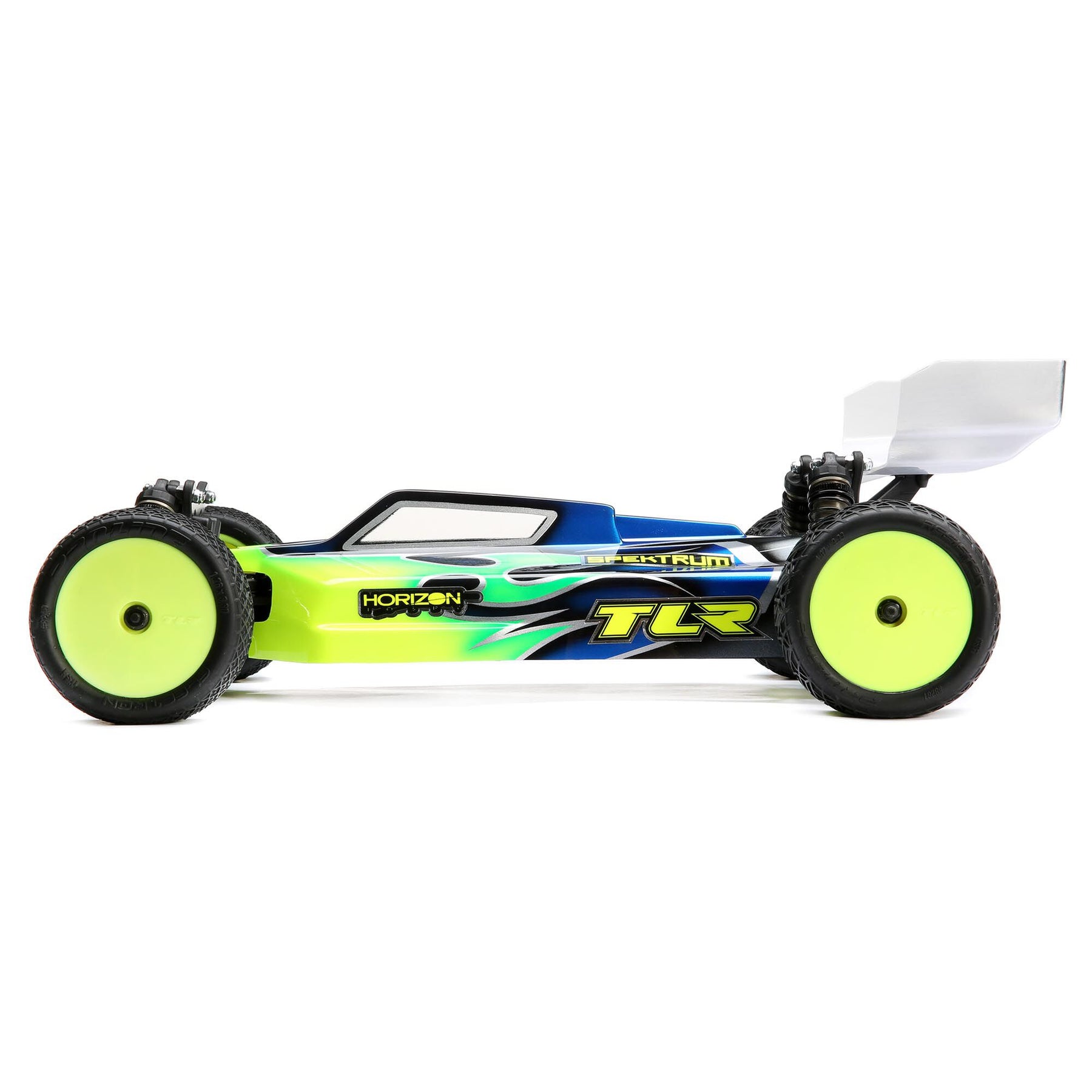

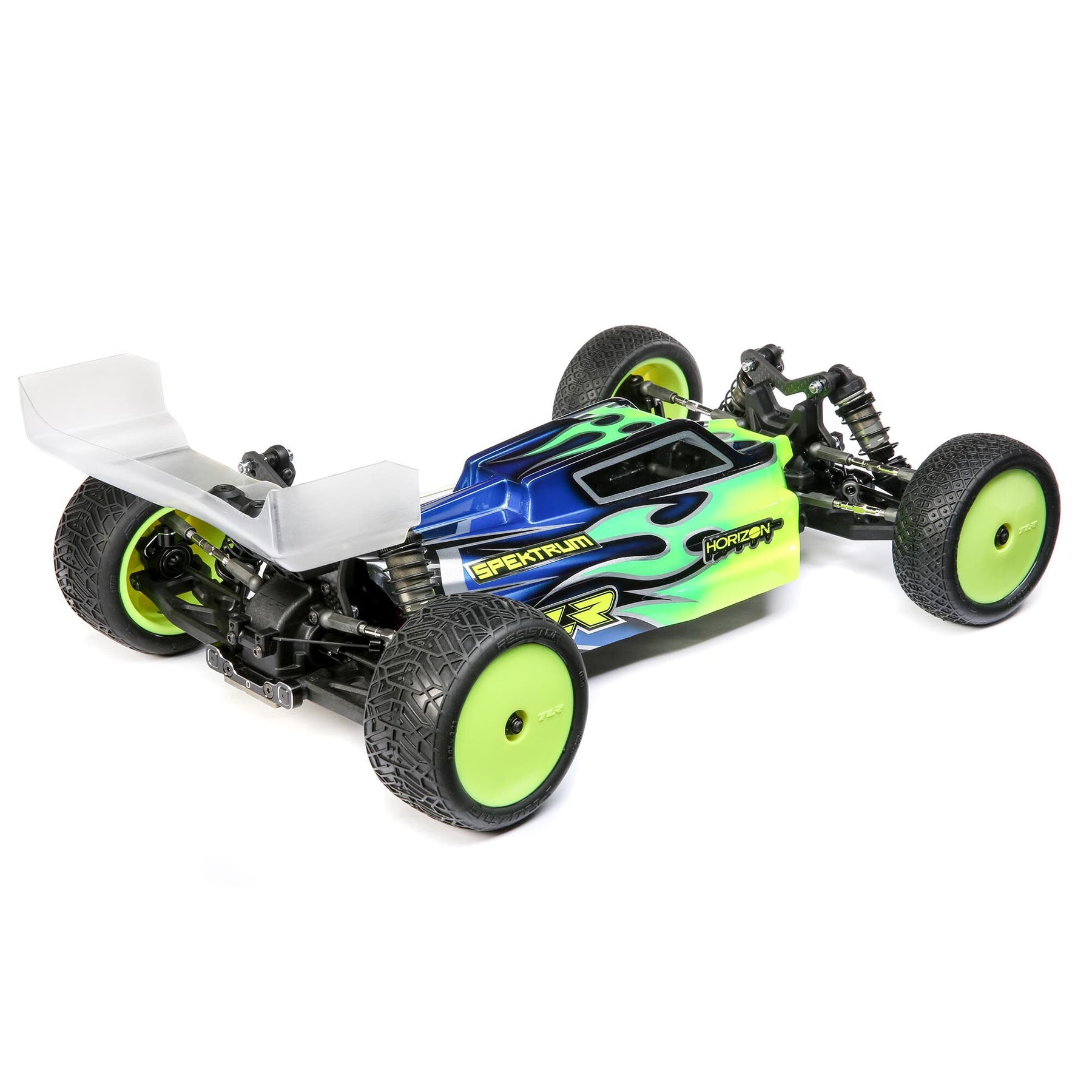

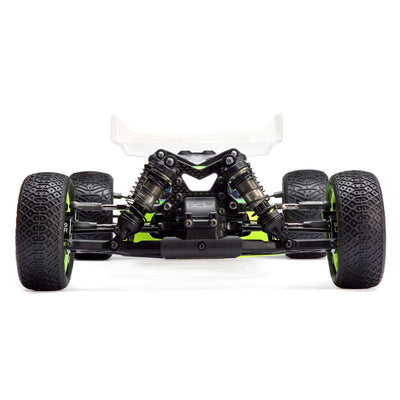

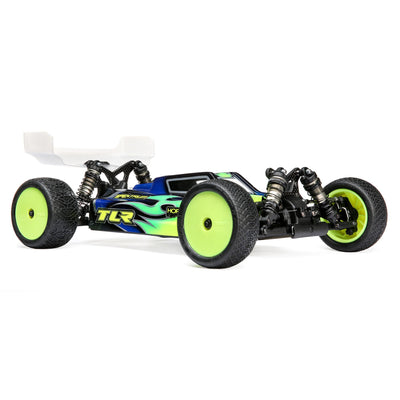

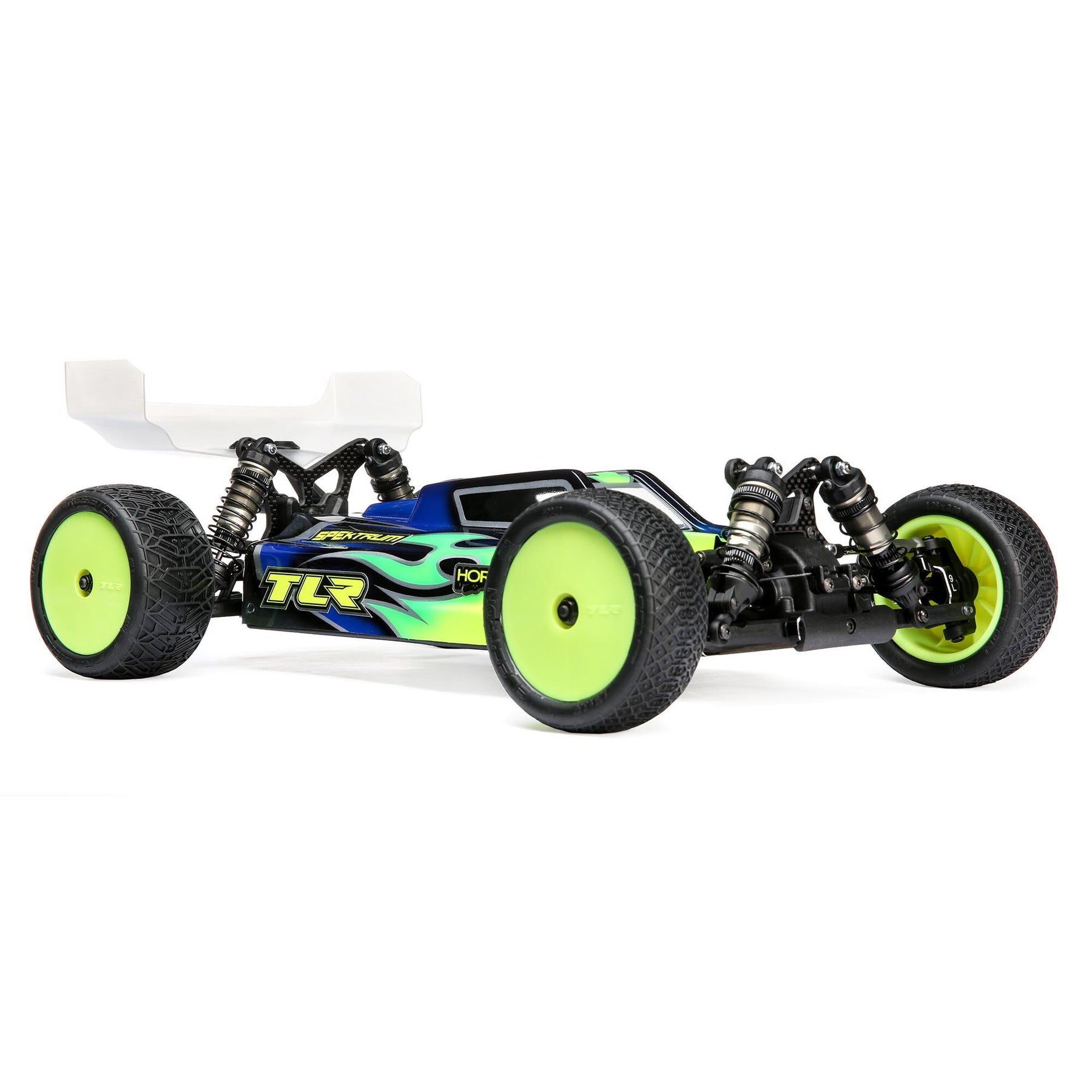

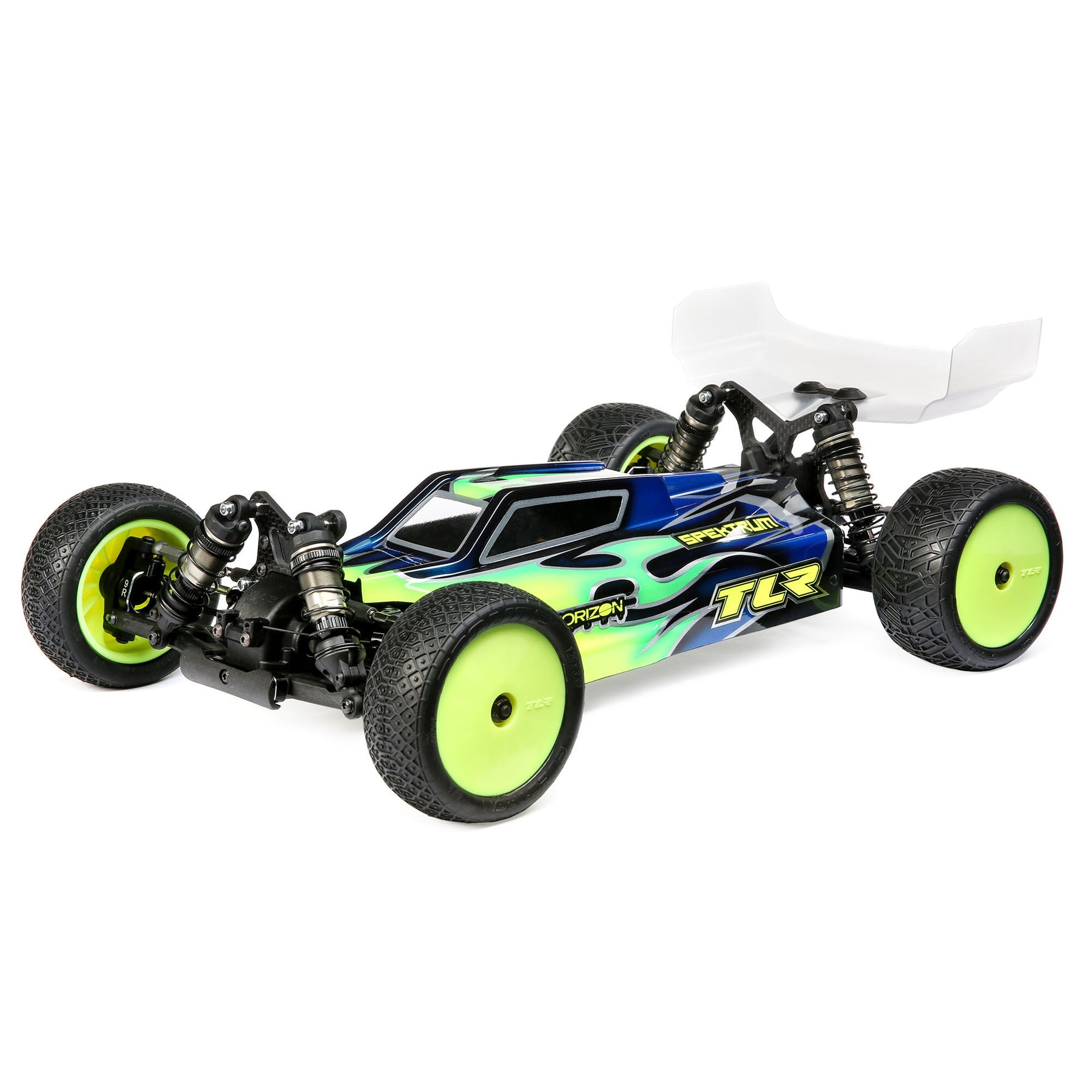

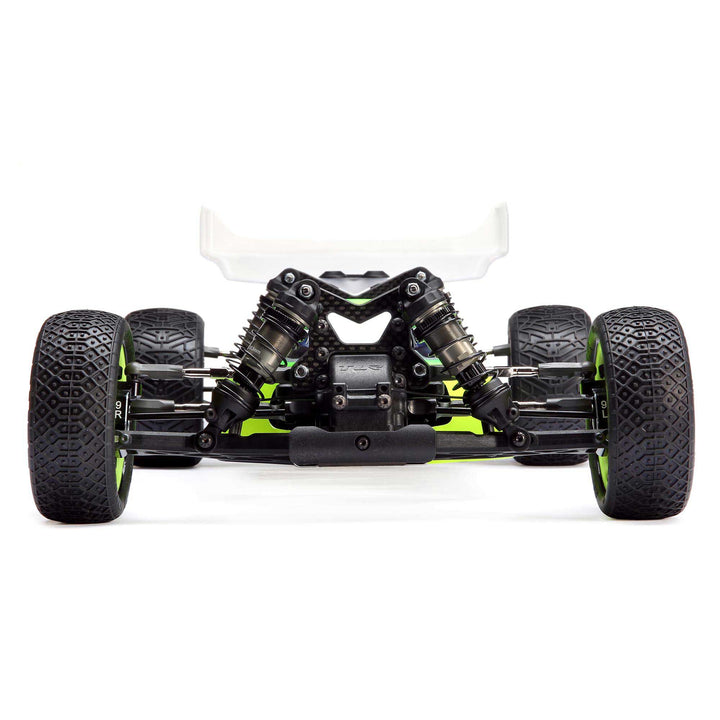

Team Losi 22X-4 Race Kit: 1/10 4WD Buggy
Team Losi Racing
SKU: 2990000157089
MPN: TLR03020
UPC:
EAN:
Product Details
In The Box
- (1) TLR® 1/10 22X-4 Race Buggy Kit
- (1) Product Manual
Needed to Complete
- Motor
- Electronic Speed Control
- Servo
- Radio System
- Charger
- Battery
- Paint
- Tools
- Tires
- Pinion Gear
- CA Glue
Features
- Shaft Drive Platform
- Fully Adjustable Suspension
- Premium Parts Included
- 2.5 Milled Aluminum Chassis
- G3 12mm Big Bore Shocks
- All New Gear Diffs
- Adjustable Inner Pivots
- Optimized Suspension Composites
- Elastomer Battery Mounting
- Floating Servo Mount
- Adjustable Motor and Battery Position
- Fresh 22X-4 Body Design
- Carbon Fiber Optimized
- All Metric Hardware
- TLR 6.5" Rear Wing
- Easy Access Diffs
- Built-In Motor Fan Mount
Overview
TLR® customers have been asking for it and now it's finally here! 40 years in the making, the all-new Team Losi Racing® 22X-4™ Race Kit is the shaft driven 4WD buggy racers have dreamt about. Taking a completely different approach to a TLR 4WD buggy, the R&D team has developed an all-new platform from the ground up. Switching to the more reliable and versatile shaft drive design, the 22X-4 is much lighter and has improved driving characteristics while also being significantly easier to build and maintain. The 22X-4 has a combination of features second-to-none including full adjustable suspension, 2.5 milled aluminum chassis, floating servo mount, adjustable motor and battery position, carbon fiber throughout, and so much more. Designed to dominate right out of the box, the 22X-4 Race Kit is performance-oriented and podium ready.
Product Specifications
| Approximate Assembly Time | 3-5 Hours |
| Ball Bearings | Full set, rubber sealed |
| Body | 22X-4, 0.7mm thick lightweight |
| Brakes | Integral with ESC |
| Bushing Material | Metal |
| Charger | Sold Separately |
| Chassis | 0.098" (2.5mm) thick 7075-T6 milled aluminum plate |
| Completion Level | Kit |
| Differential | Large volume bevel gear diffs |
| Drivetrain | 4WD |
| Front Track | 9.8 in (250mm) |
| Power Type | Electric |
| Gear Pitch | 48-Pitch |
| Internal Gear Ratio | 2.5:1 |
| Max Battery Dimensions | 3.78 x 1.85 x 0.87" (96 x 47 x 22mm) |
| Motor Size | 36mm brushless (sold separately) |
| Motor Type | Brushless |
| Pinion | 16T |
| Product Height | 5.8" (148mm) |
| Product Length | 14" (356mm) |
| Product Width | 9.8" (250mm) |
| Rear Track | 9.8 in (250mm) |
| Receiver | Sold Separately |
| Scale | 1/10 |
| Shock Type | Oil-filled 12mm Big Bore |
| Speed Control | Sold Separately |
| Suspension | Lower A-arm, upper adjustable link, Stiffezel front and rear arms |
| Vehicle Type | Buggy |
| Water-Resistant | Yes |
| Wheelbase | 11.2" (283.5mm) |
| Wheel Type | 22 Dish |
