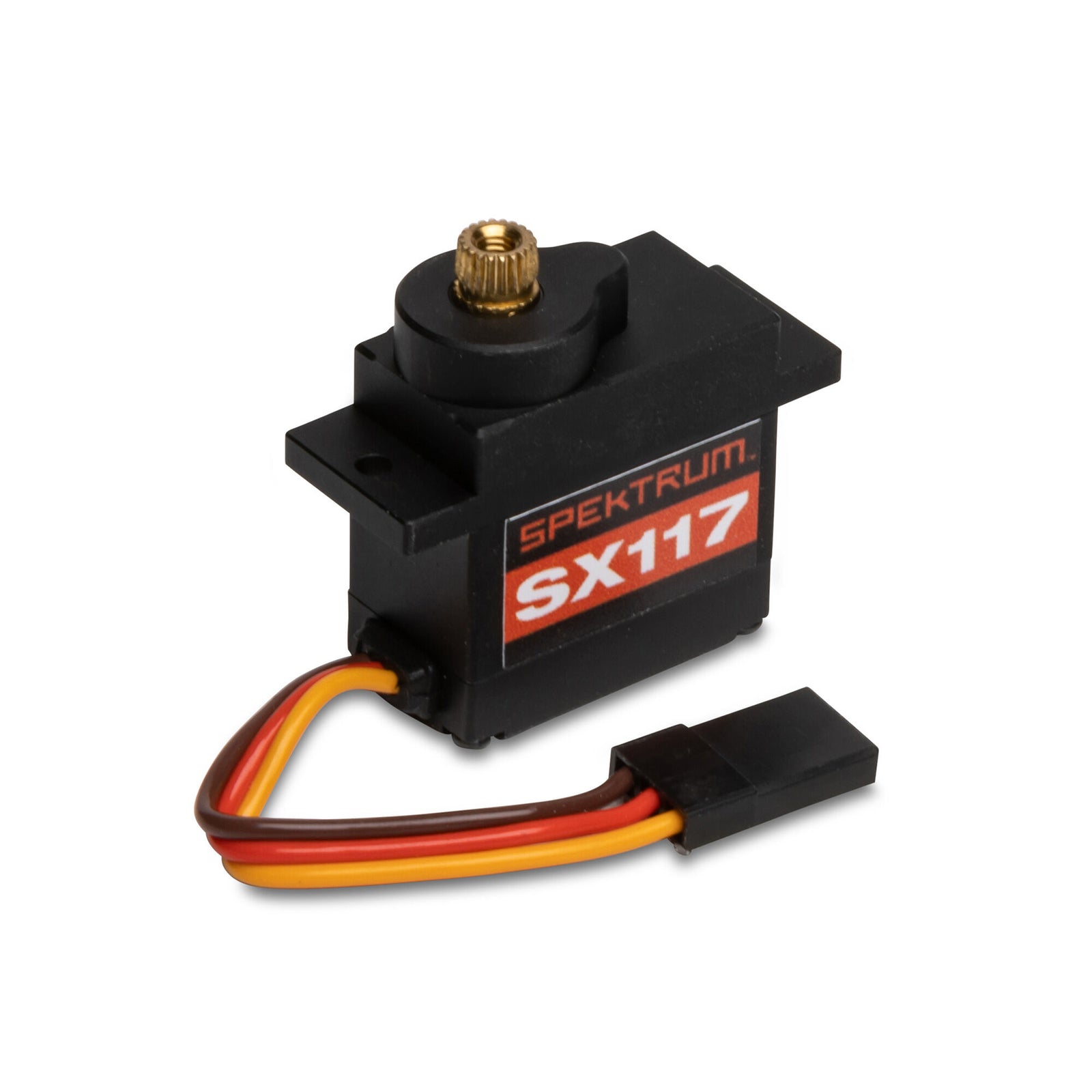

MPN: SPMSSX117
UPC:
EAN:
Product Specifications
| Product Width | 0.49" (12 mm) |
| Torque | 30oz @ 4.8v, 41oz @ 6.0v, 55oz @ 8.4v |
| Gear Type | Metal |
| Product Height | 1.06" (27 mm) |
| Programmable | No |
| Servo Size Category | Mini |
| Application | Surface |
| Product Weight | 0.7 oz |
| Spline Count | 20 - Tooth |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Connector Type | Servo |
| Maximum Servo Speed | 0.09 @ 4.8v, 0.07 @ 6.0v, 0.05 @ 8.4v |
| Product Length | 0.9" (23 mm) |
| Maximum Servo Torque | 55oz @ 8.4v |
| Servo | Digital Response |
