MPN: SPMXC1060
UPC:
EAN:
Features
- Small size and low weight makes it easy to take anywhere
- Six independent charge output ports can be used simultaneously
- Operates from a wall outlet or standard USB port
- Convenient voltage-check function
- Digital LED displays Port and Voltage information
- (6) Charging status lights (Red: Charging/Green: Full)
- Charging current: 350mA (4), 500mA (2)
- Works with a variety of 1S battery connector types
Overview

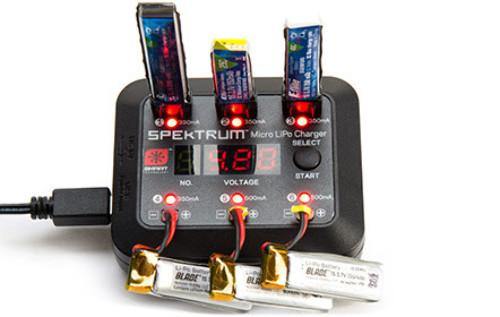

The Spektrum? S63 DC/USB 1S LiPo Smart Charger is a portable 6-port device no RC pilot of ultra-micro aircraft should be without. Featuring Spektrum Smart? Charger technology, the digital LED status screen keeps you in control of your ultra-micro 1S LiPo battery fleet by instantly displaying voltage no matter which of the six ports a battery is connected into.
Simply connect a 1S LiPo battery into one of the ports, and press Start?the Spektrum S63 LiPo Charger features integrated circuitry and six totally independent output charge ports dedicated to the 1S-type LiPo battery. For batteries with a 350mAh capacity or less, use ports 1-4; ports 5 and 6 have a higher charge rate for 1S batteries up to 750mAh.
Load up all six ports and fly practically as long as you like.
Specifications
Ampere MeterYes - on main LCD display
Battery Type1S LiPo, LiPo (3.7V per cell)
DisplayLED
Height0.9 in (23 mm)
Input Voltage5 VDC via USB charge port
Length3.0 in (76 mm)
Maximum Charge Rate500mAh
Output ConnectorPH1.25
Selectable Charge Rate Yes - Incremental (0.1A Increments)
Voltage MeterYes - on main LCD display
Weight1.9 oz (54 g)
Width2.5 in (63 mm)
