MPN: SPMXSEM1040A
UPC:
EAN:
Product Details

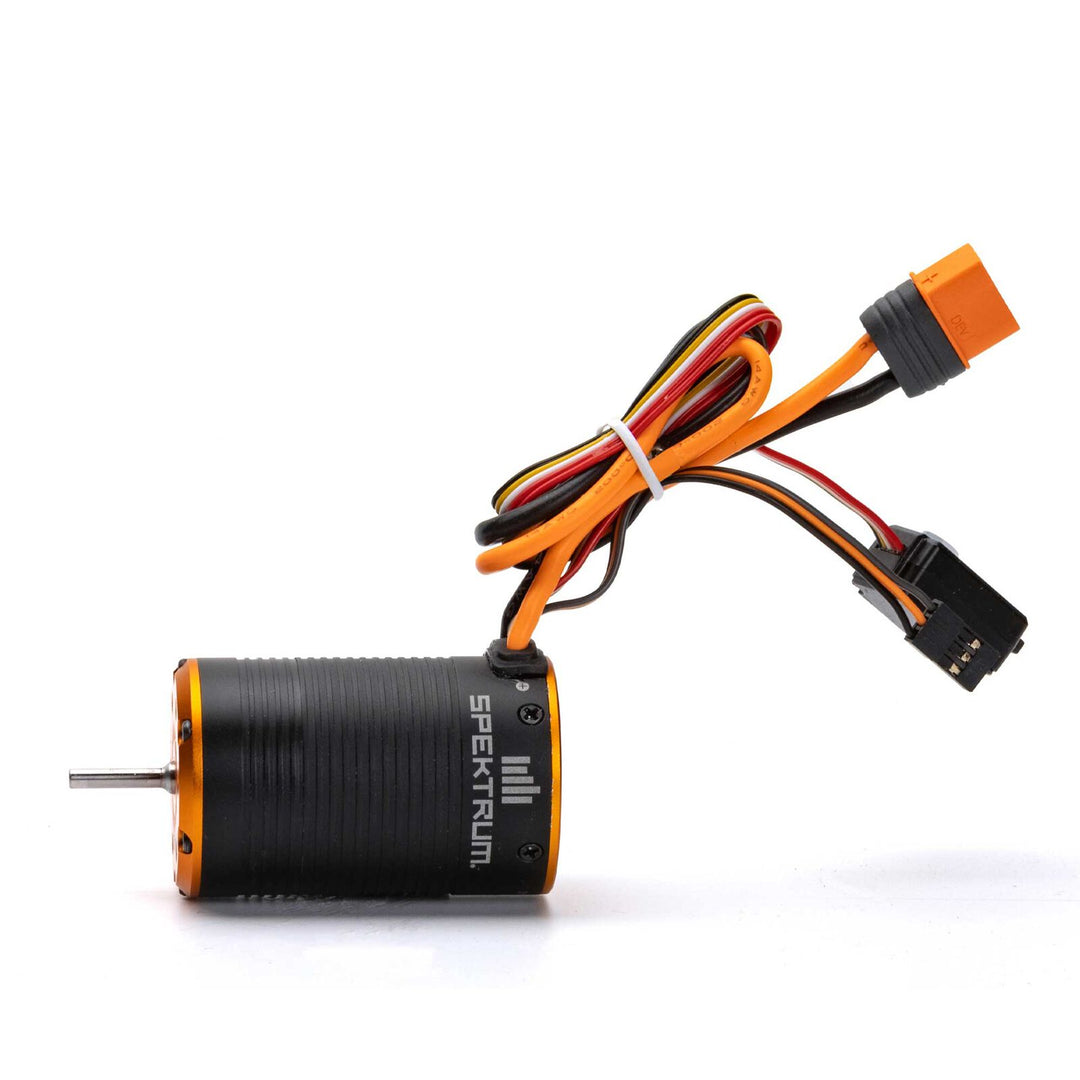

The Spektrum Firma Sensored 2-in-1 System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Field-orientated Control (FOC) and professional drag brake performance and torque control, all while being fully waterproof.Key Features
- Pro-level Drag Brake performance and adjustability
- IP-67 Rated Waterproof System
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Integrated 40A / 160 A ESC
In The Box

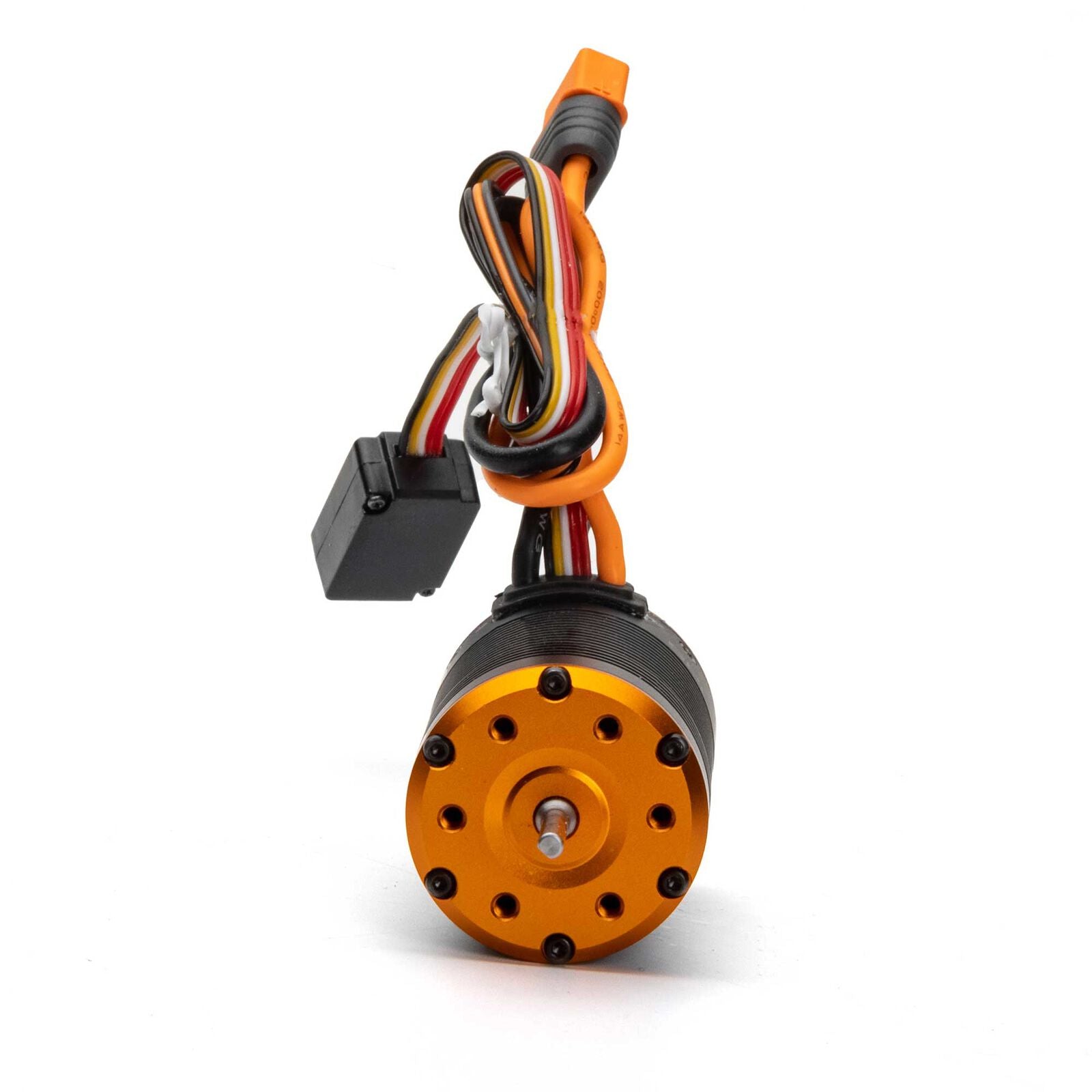

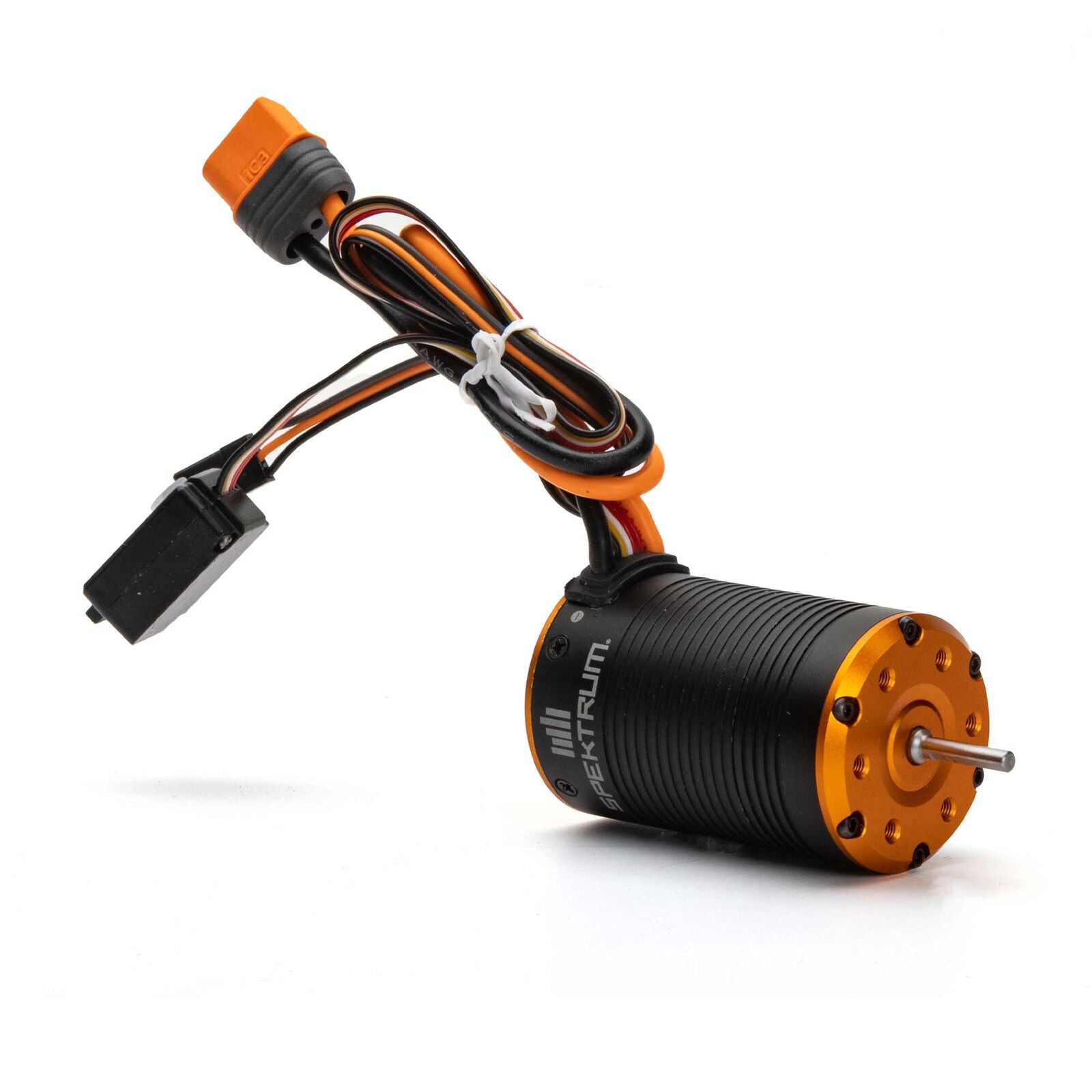

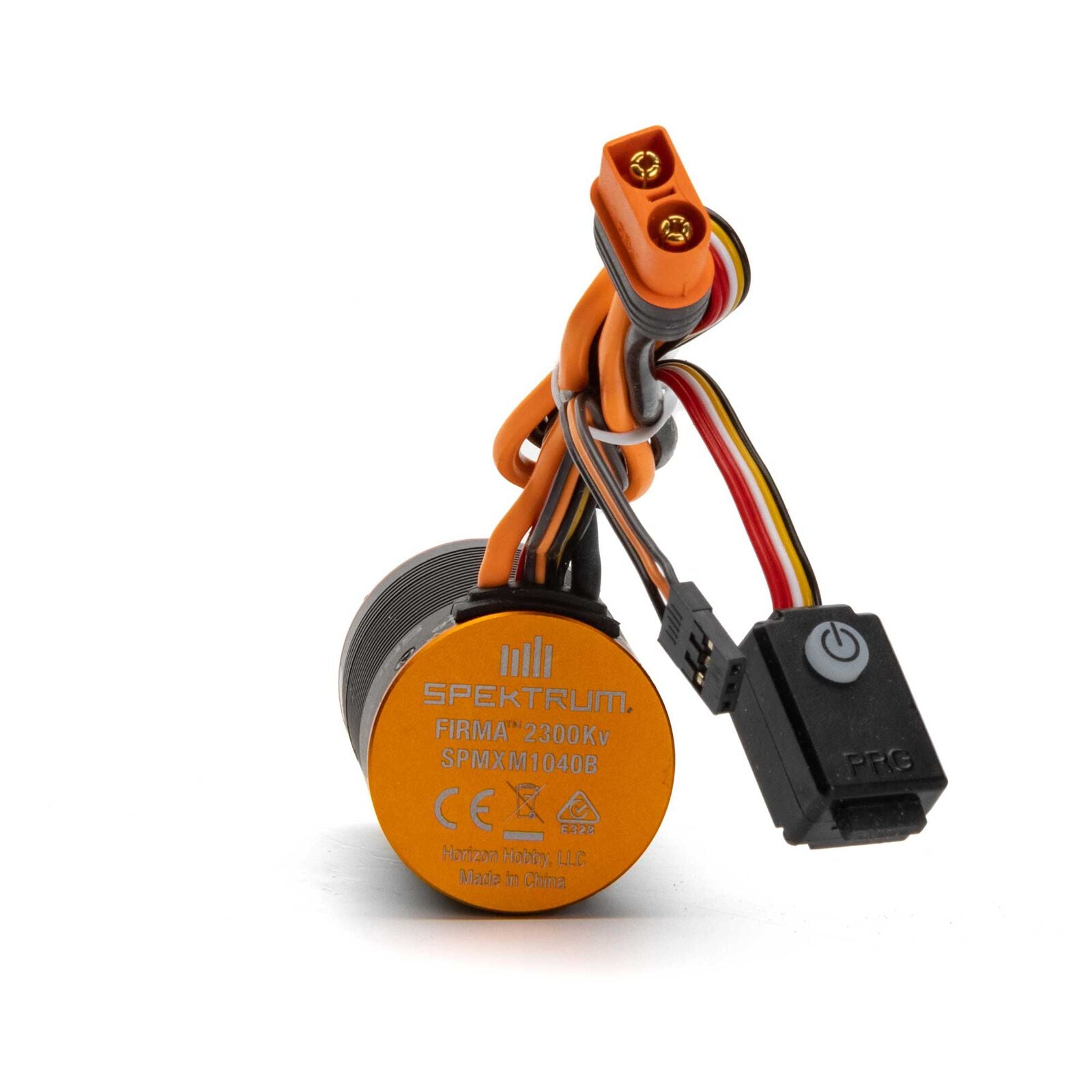

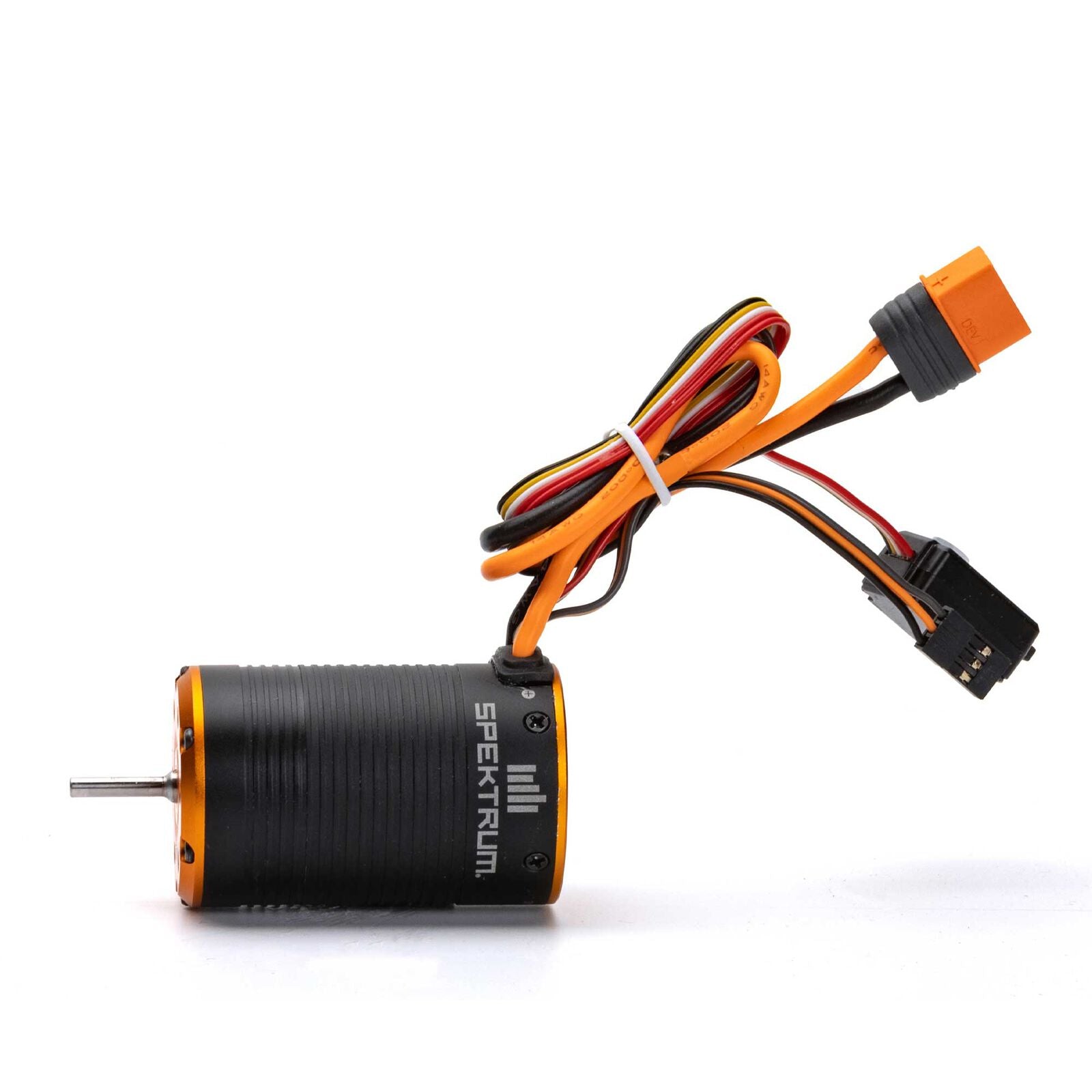

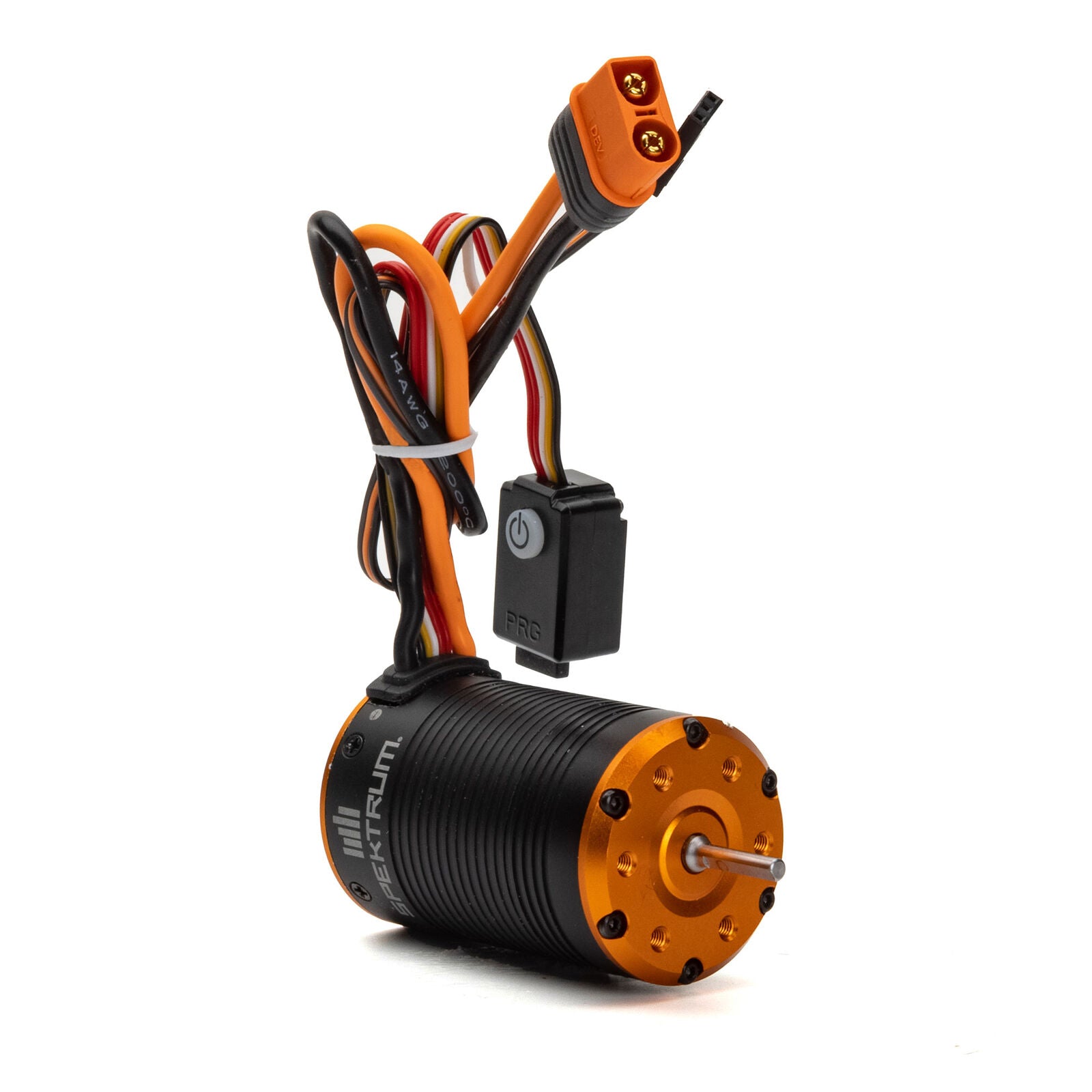

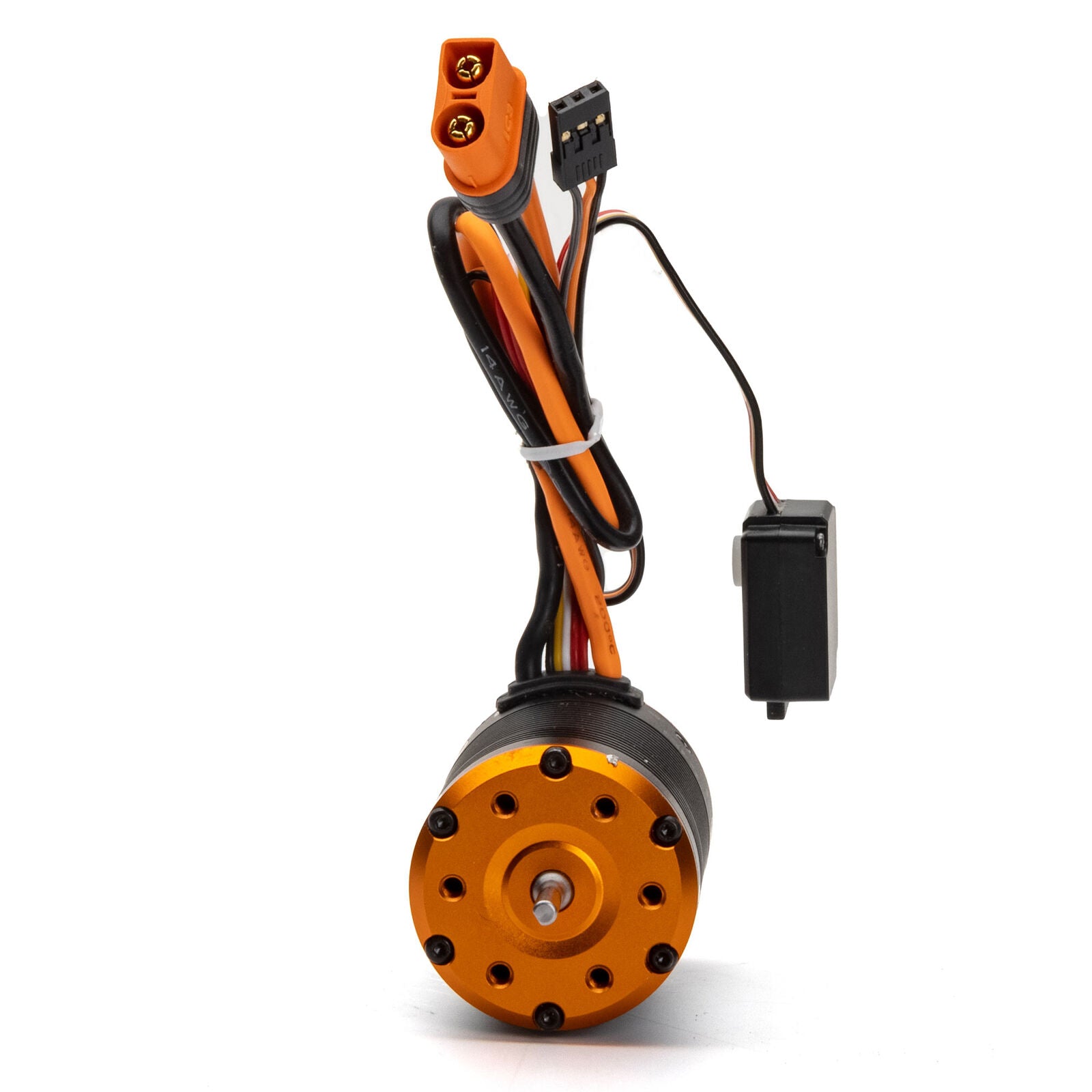

- (1) Spektrum Firma Brushless Sensored 2-in-1 System 2300Kv
- (1) Product Manual
Needed to Complete
- (1) 2S or 3S LiPo Battery with EC3 or IC3 Connector
- (1) Spektrum Transmitter
Key Benefits
2-in-1 ESC Motor Combo: Compact option for detailed scale builds where space is limited
Advanced Sensored Motor Control: Great for slow speed driving and next level drag brake performance
IP-67 Waterproof Design: The IP-67 waterproof system provides industry leading waterproof and dustproof operation for worry-free driving in mud, sand, snow and water
Multi-point Protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
Features
- Pro-level Drag Brake performance and adjustability
- RPM/Throttle Matching enabled
- FOC (Field-Oriented Control) equipped
- Integrated 40-amp ESC (160amp burst)
- 2-3S LiPo/6-9 Cell NiMH input voltage range
- IP-67 rated waterproof system
- Fully programmable with optional Spektrum ESC Programmer Box (not included)
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC and Brushless Motor manufacturer
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Adjustable high-power BEC (6V or 7.4V)
- Firmware updatable through the Spektrum ESC Programming Box
- High heat resistant IC3 connectors, backwards compatible with EC3 connectors
- Limited 1-year warranty
Product Specifications
| Application | 1/10 Rock Crawler |
| Auto Cutoff | Yes |
| BEC Voltage | 6V/7.4V Adjustable, Continuous Current 4A (Switch Mode) |
| Connector Type | IC3 |
| Forward | Yes |
| Input Voltage | 2-3S LiPo, 6-9 Cells NiMH |
| Maximum Burst Current | 160A |
| Maximum Continuous Current | 40A |
| Motor Size | 550-Size |
| Motor Type | Brushless - Sensored |
| Number of Poles | 4 |
| Outer Diameter | 1.46" (37 mm) |
| Overload Protection | Yes |
| Product Length | 2.28" (58 mm) |
| Product Weight | 201g (including wire plug) |
| Programmable | Yes |
| Reverse | Yes |
| RPM/Volt (Kv) | 2300Kv |
| Shaft Diameter | 0.125" (3 mm) |
| Shaft Length | 0.63" (16 mm) |
| Water-Resistant | Yes |
