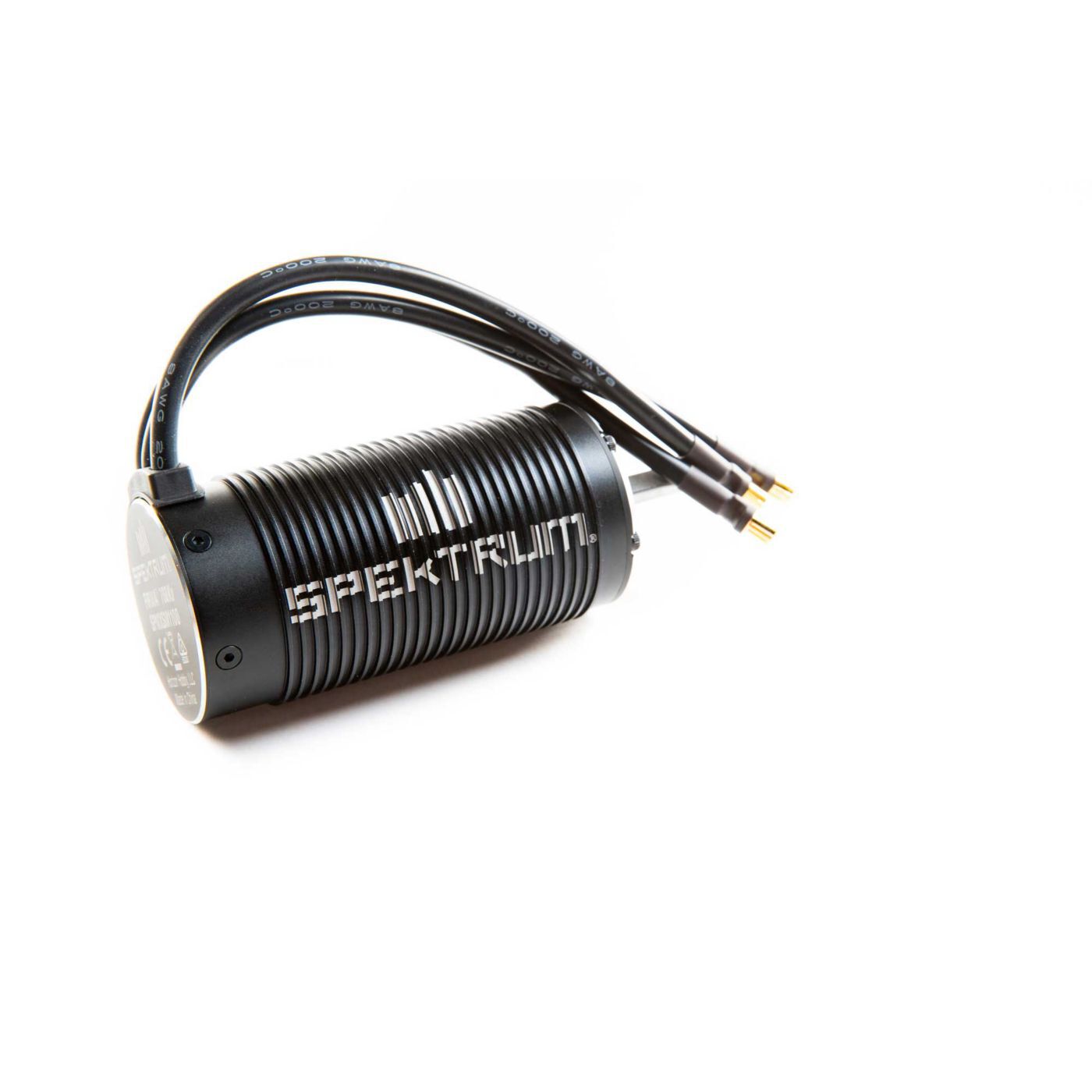

Spektrum Firma 2050Kv Brushless Motor SPMXSM1700
Spektrum
SKU: 2990000167781
MPN: SPMXSM1700
UPC:
EAN:
Product Details
Overview
The Firma 2050Kv brushless motor is a perfect option for 1/7 and 1/8 scale buggy, truggy or monster trucks with a 3S-6S LiPo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.
Features
In The Box
- Firma 2050Kv Brushless Motor
Needed to Complete
- 150A ESC
Product Specifications
| Motor Type | Brushless - Sensorless |
| Motor Design | Inrunner |
| Maximum Continuous Current | 62A |
| Connector Type | 4mm Bullet |
| Efficiency | 85% |
| Motor Size | 4074-2050Kv Brushless Inrunner |
| Product Length | 2.9" (74 mm) |
| Application | 1/8 scale buggy, truggy or monster trucks with 3S-6S LiPo setup |
| Number of Poles | 4 |
| Output | 5050W |
| Product Weight | 0.92lbs (415g) |
| Shaft Diameter | 0.196" (5 mm) |
| Size | 4074 |
| Outer Diameter | 1.57" (40 mm) |
| Input Voltage | 12 - 25.2V |
| RPM/Volt (Kv) | 1900Kv |
