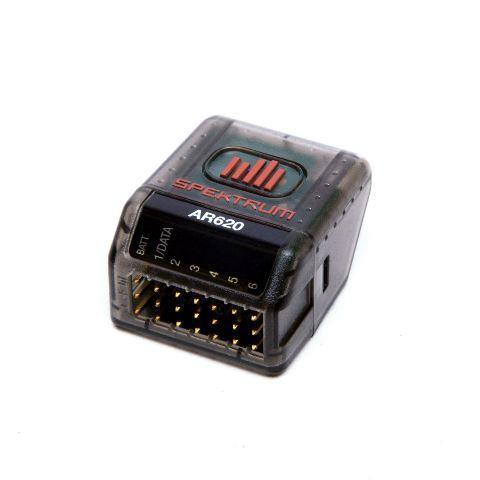

Spektrum AR620 DSMX 6-Channel Sport Receiver

• Compact low-cost, full-range DSMX receiver with telemetry
• Antenna-less design increases convenience, performance and durability
• Integrated flight log and receiver voltage telemetry with fly-by range
• Streamlined, end-pin design in a lightweight hard-case
• Large bind-button eliminates the need for the old bind plug
• Lightweight park flyer-size with full-range performance
• Ideal for most aircraft including indoor sport models
• Capable of low latency 11ms and standard 22ms Frame Rates.

The Spektrum AR620 air receiver is a full-range, 6-channel sport receiver with DSMX/DSM2 compatibility and a compact footprint that’s streamlined to fit in a wide range of models.

More than just a simple box that connects your servos, the AR620 features an internal antenna design that delivers a whole new world of installation ease that includes a higher-level of durability and convenience while maintaining superior full-range performance for your electric or engine powered aircraft.

In addition, the AR620 has been integrated with fly-by range telemetry that includes flight log and receiver battery pack voltage data. Access to telemetry is automatic when used with telemetry-capable Spektrum transmitters.* There’s nothing to do in order to enjoy the peace-of-mind instantly knowing receiver battery voltage offers.

No more bind plugs! Instead, a large bind button is used to enter the bind mode. All combined Spektrum gives you more in a basic receiver, like the AR620, so that you can fly with the highest sense of confidence possible and have more fun.

*Not compatible with the TM1000 and TM1100 external telemetry modules

Antenna Length

Internal

Band

2.4GHz

Bind Method

Bind Button

Channels

6

Data Port

No

Failsafe

Yes

Flight Log Compatible

No

Height

0.71 in (17.9mm)

Input Voltage

3.5-9V

Length

1.26 in (32.1mm)

Modulation

DSMX

Number of Receivers

1

Programmable

No

Range

Full

Resolution

2048

Rev Limiter

No

Technology

Smart Technology

Telemetry

Integrated

Water-Resistant

No

Weight

0.28 oz (8g)

Width

1.04 in (26.4mm)
