This is the

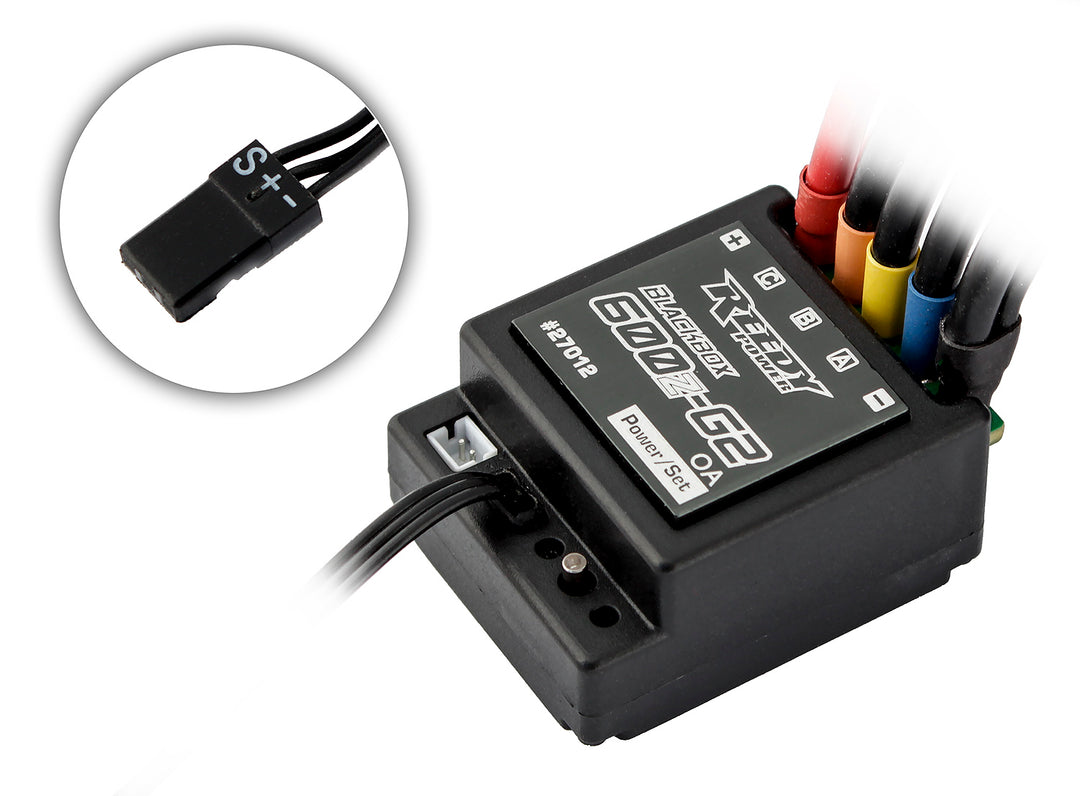

Reedy Blackbox 600Z-G2 Zero-Timing Competition ESC 27012 | ASC27012
The Reedy Blackbox 600Z-G2 Zero-Timing Competition ESC is an excellent option for entry-level racers thanks to its economical price, versatility, race-proven performance, and improved durability. Excellent throttle and brake feel, a wide range of adjustability, and upgraded hardware make the Blackbox 600Z-G2 suitable for a variety of racing applications, including entry level and cost-controlled “spec” race programs that mandate a specific ESC.
When combined with Sonic 540-FT motors, the pairing also offers the perfect solution for clubs and tracks that are striving to improve entry-level participation or introduce cost-controlled classes for racers of all skill levels.
Features:
- Lightweight plastic case with compact footprint
- Low-profile heat sink
- Fully adjustable brake and throttle functions
- On-board, single-button programming
- Optional Programmer2 programming
- Zero-timing R.O.A.R.-approved software (pending)
- Low-resistance circuitry
- Precision throttle and brake control
- Solder tabs for easy wire placement
- Silicone power wires
- Compact external capacitor
- Firmware updateable
- Competition proven
Adjustable Settings
- Operation Mode – Select Forward/Brake (F/B) or Forward/Brake/Reverse (F/B/R) operation.
- Drag Brake – Adjust automatic braking strength when the throttle trigger is returned to neutral.
- Power Profile – Increase or decreases punch.
- Drive Frequency – Adjust to create a smoother or more aggressive throttle feel.
- Brake Frequency – Adjust to create a smoother or more aggressive brake feel.
- Restore Default – Restore the factory default settings.
Specifications:
- Voltage Input: 2S LiPo
- On Resistance: 0.0018
- Continuous Current: 60
- Dimensions: 40.2x31.0x18.8mm
- Weight w/o Wires: 37g
- Motor Limit: 13.5T
