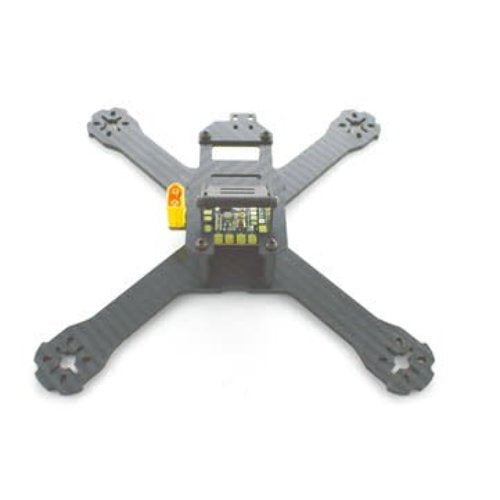

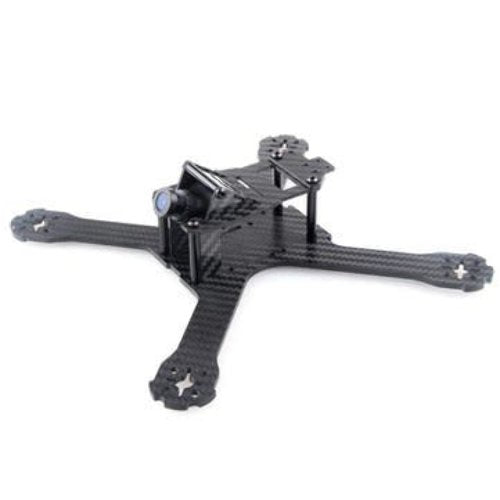

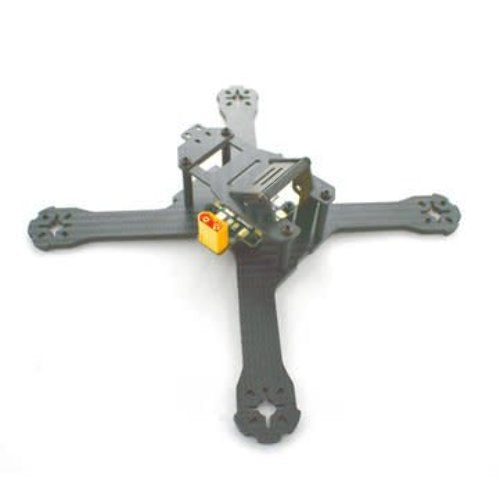

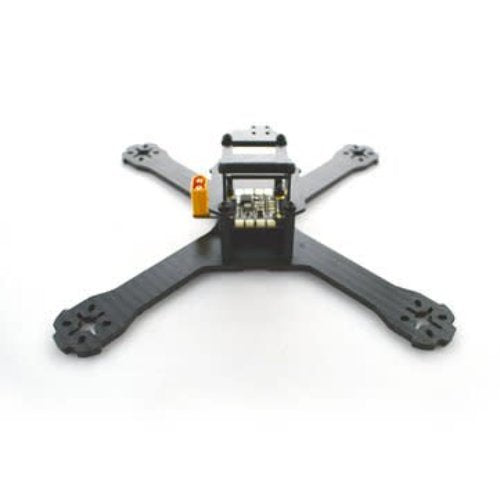

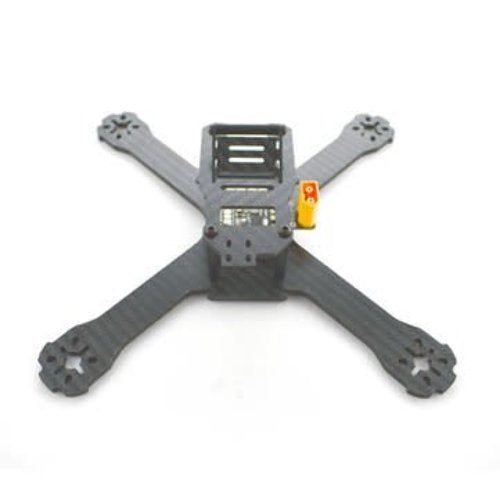

Realacc X210 214mm 4mm Carbon Fiber FPV Racing Frame w/ Matek PDB-XT60 5V & 12V



The Realacc X210 is built for racing and features a light-weight, symmetrical carbon fiber body. A symmetrical X, light weight, super stiff, finely tuned frame designed for high performance FPV Drone Racing.



Brand: Realacc

Item name: X210 FPV Racing Frame

Wheelbase: 214mm

Material: carbon fiber

Weight:

3mm frame arm version: 72g (frame + hardware), 77g (with battery protector plate)

4mm frame arm version: 88g (frame + hardware), 93g (with battery protector plate)



Full 3K Carbon Fiber frame.

Optional 3mm or 4mm frame arms.

Dual purpose FPV and HD camera mounting solution.

Compact size for 5" propellers, 214mm motor to motor.

Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns).

"Bumpers" on the end of the arms to protect the motor during a crash, just like the QAV250.

Included power distribution board and XT-60 Pig-Tail to power ESCs and FPV flight electronics.

LiPo battery protection plate included.

Support to carry HD camera at 35 degree angle(such as the GoPro 4, Mobius, etc).

Lightweight and rigid
Note: camera not included

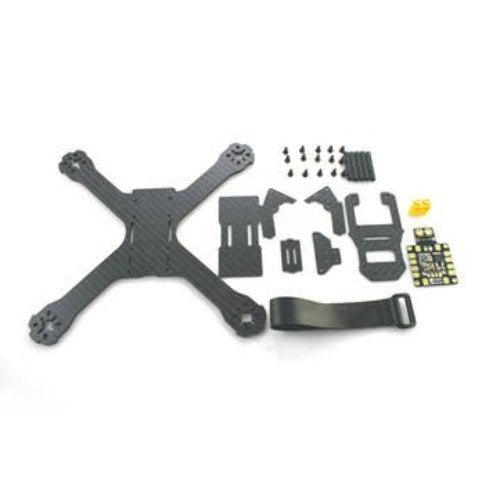

Package included:

1 x Realacc X210 carbon fiber frame kit

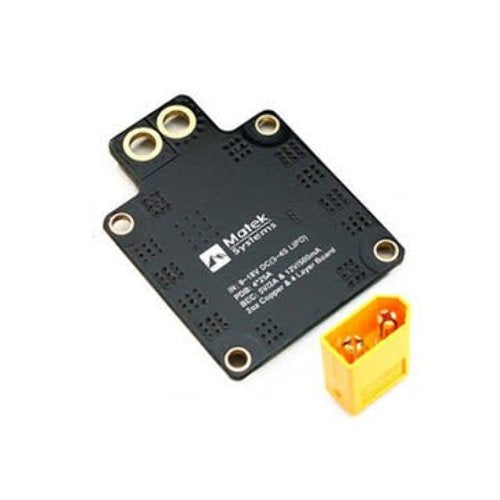

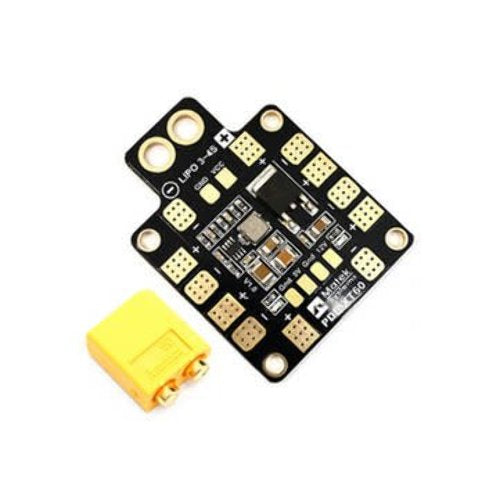

1 x Matek PDB-XT60 5V & 12V
