ER5C V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5C V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is designed for all types of surface & marine R/C applications.

Features

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast response speed and ultra-long range
• Support 5 PWM Channels
• Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
• Optimized ground up PCB design
• Supports Wi-Fi updates and WEBUI configuration
• Compact size, easy to install. Perfect for surface & marine R/C applications
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specifications

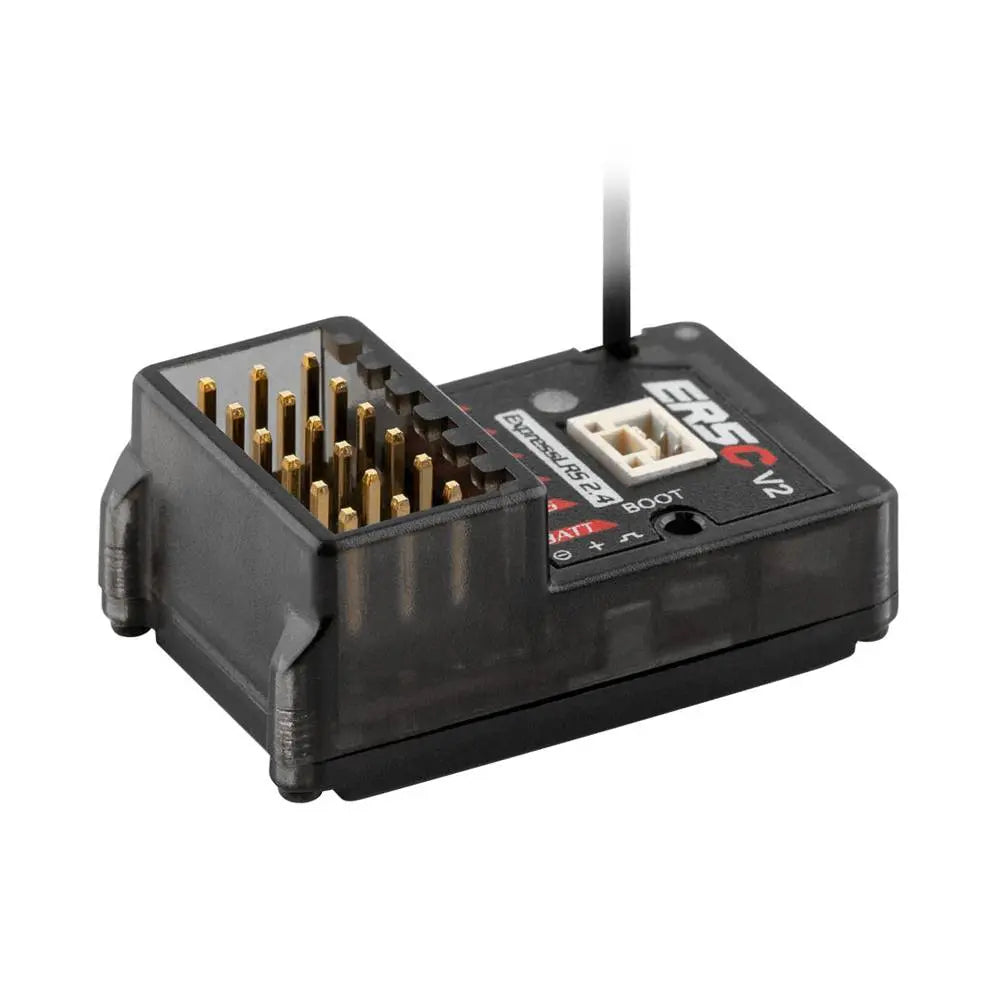

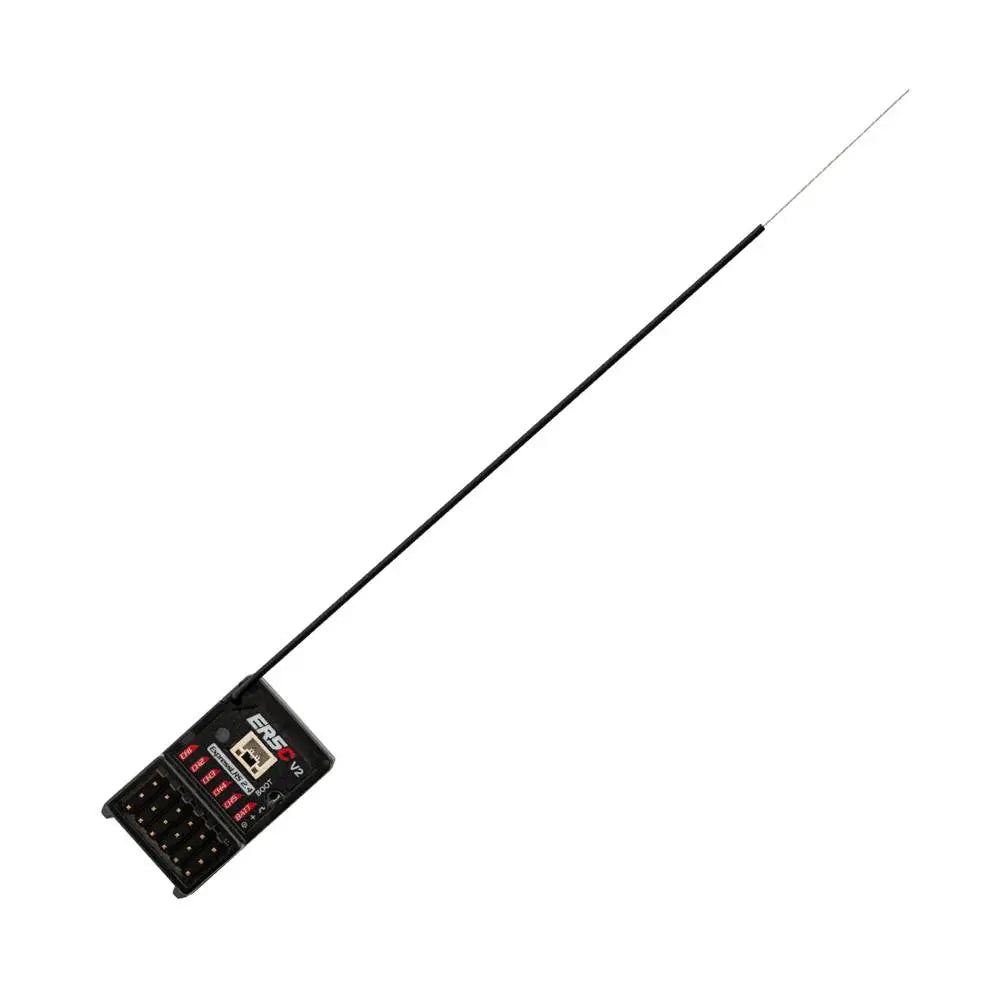

• Item: ER5C V2 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5-8.4V
• Antenna type: High-sensitivity antenna
• Wireless Protocol: ELRS 3.3.0 pre-installed
• Channels: 5
• Telemetry Voltage Detection Range: DC 4.0 - 35V
• RF Telemetry: Yes
• Telemetry Power: 10mw
• Weight: 5.7 grams
• Size: 30.0 * 18.5 * 13.0mm
• Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5C 2.4GHz PWM RX

Size

Associated Products

• MT12 Surface Radio

Package Includes

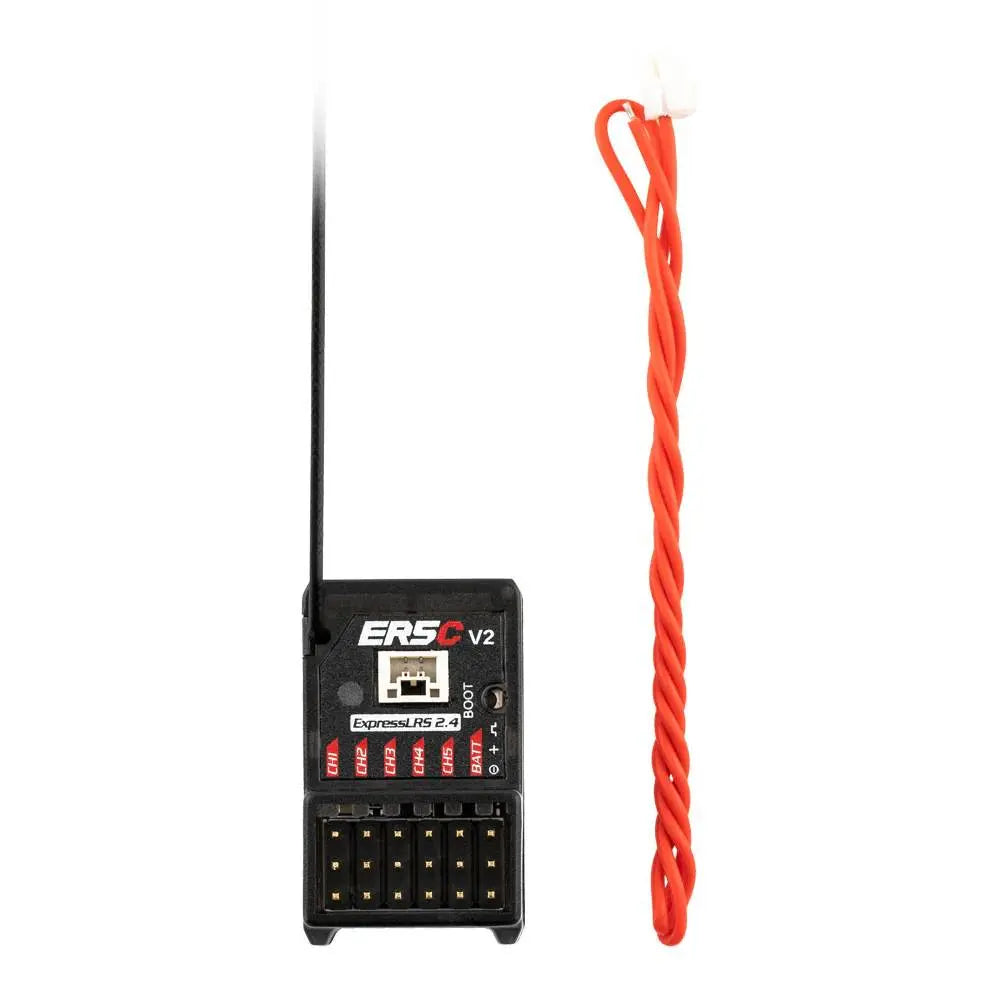

• 1 * ER5C V2 2.4GHz ELRS PWM Receiver
• 1 * Voltage telemetry wire
• 1 * User Card
