Pixhawk PX4 Autopilot PIX 2.4.8 Flight Controller 32 bit ARM Set w/ Case Buzzer I2C / Cables for RC Multicopter
Specification:
The board integrates with PX4FMU+PX4IO
Pixhawk is with new 32 bit chip and sensor technology
Processor:
32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
Main frequency: 256K, 168MHZ RAM
32 bit STM32F103 backup co processor
Sensor:
L3GD20 3 axis digital 16 bit gyroscope
LSM303D 3 axis 14 bit accelerometer /magnetometer
MPU6000 6 axis accelerometer / magnetometer
MS5611 high precision barometer
Interface:
5* UART,1*compatible high voltage,2*hardware flow control
2*CAN
For Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
Futaba SBUS compatible input and output
PPM signal input
RSSI (PWM or voltage) input
I2C
SPI
3.3 and 6.6VADC input
External USB MICRO interface
Features:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide redundant power input and fault transfer function;

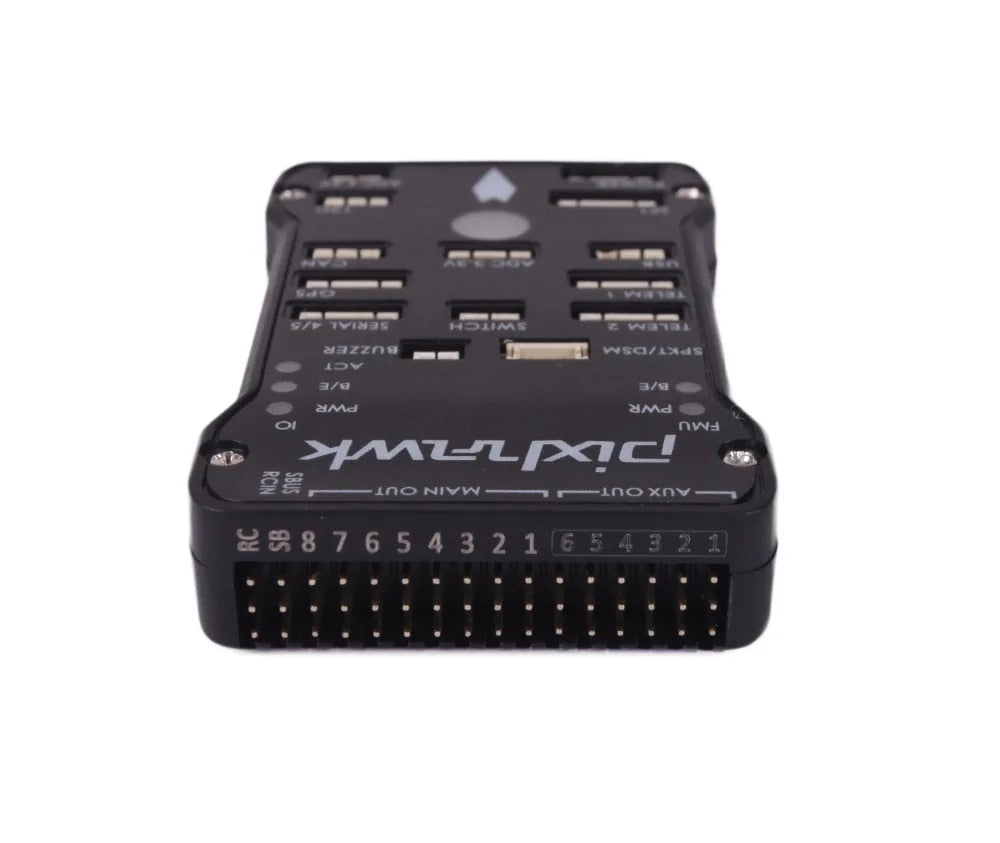

- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Provide automatic and manual mode;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;

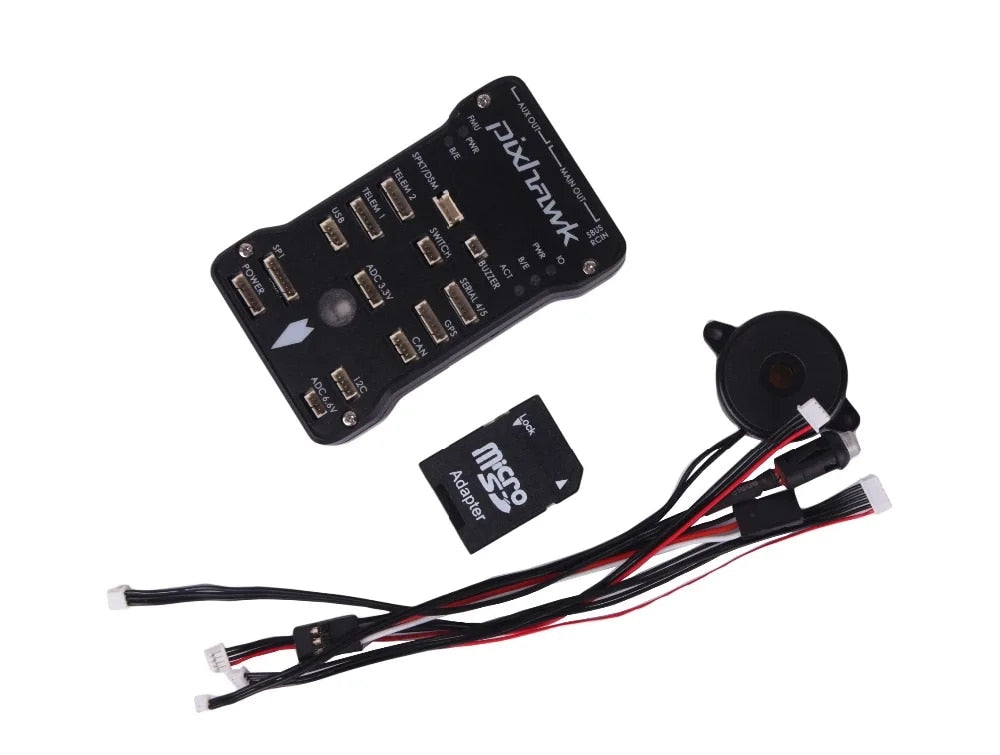

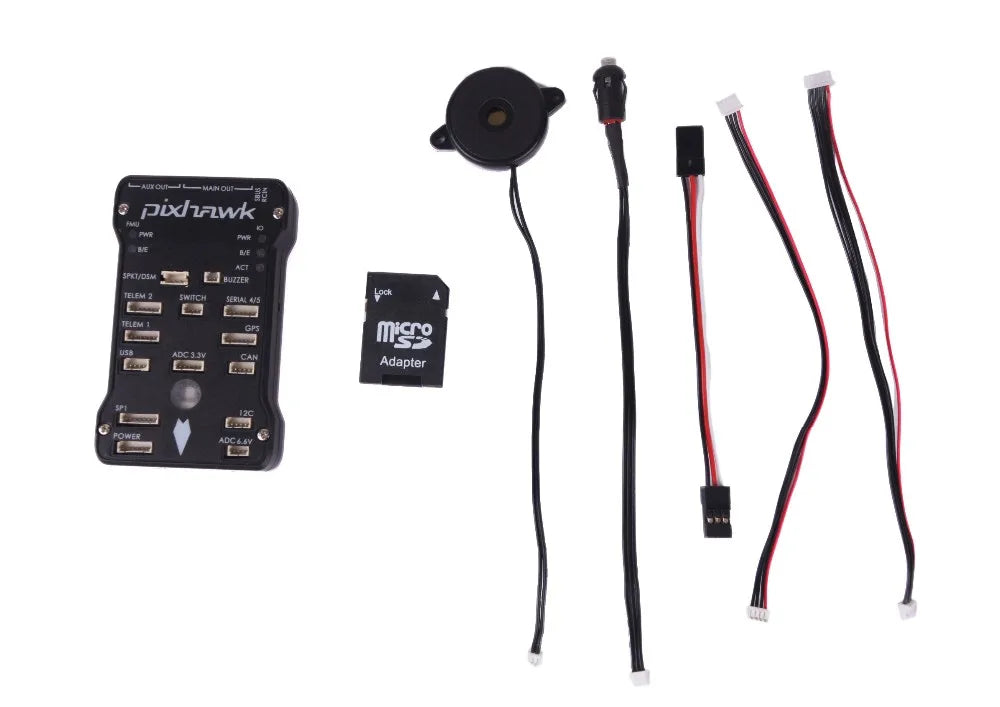

Package included:

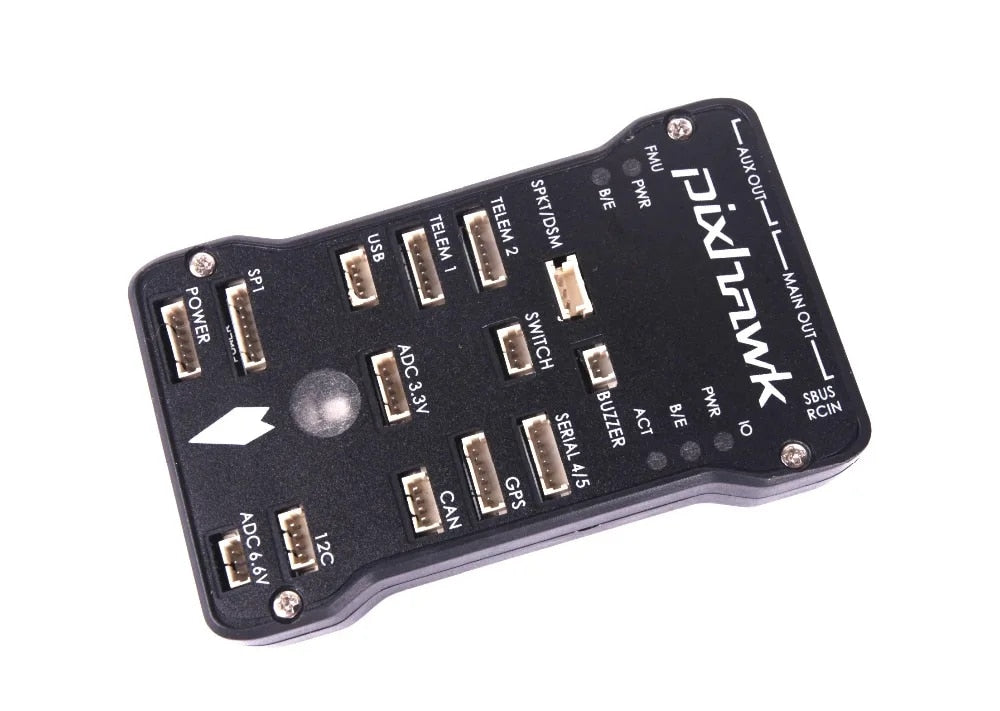

1 x 2.4.8 Pixhawk main control

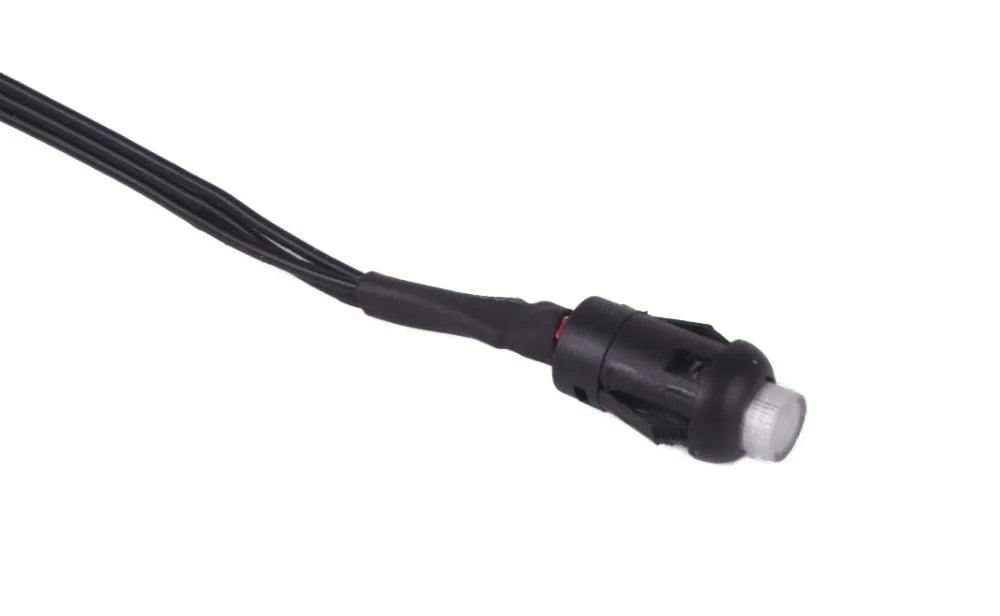

1 x Safety switch
1 x Flight control shell

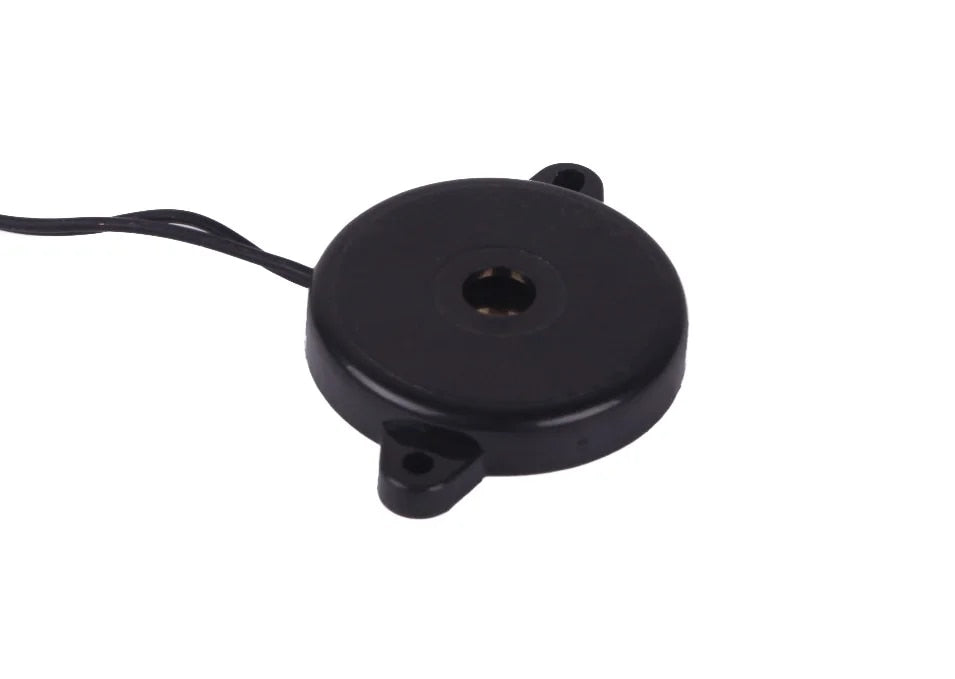

1 x Buzzer
1 x 6pin to 6pin line
1 x 4Pin to 4Pin line
1 x 3pin DuPont line
