Features
- Multi-colored LED charge indicators indicate charge status
- Charges NiMH (6-8 cell), LiPo (2S-4S), LiFe (2S-4S and LiHV (2S-4S) batteries
- Includes (1) banana to EC3 adapter
- AC powered with detachable power cord<
- 5-Year Limited Warranty
- Integrated Li-Po/LiFe balance ports
- 1-button start/stop and amp select function
- 50W charge power provides quick charge times
- Space saving case design
- Heat dispersing case design keeps temperatures low even when charging at full power
- Built-in short circuit, over-current, reverse polarity and over-temperature protection
Overview

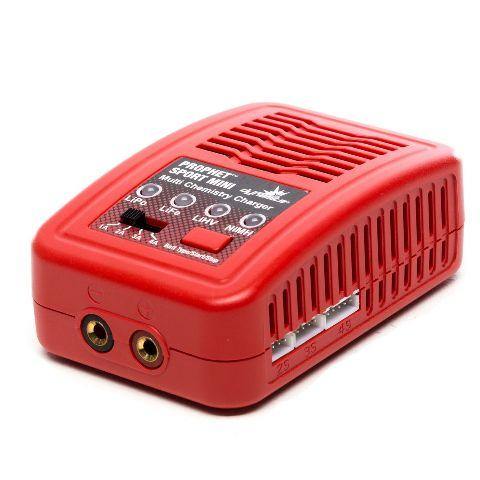

The Prophet Sport Mini charger is an affordable and versatile AC powered charger that can be used to charge car, truck, boat, aircraft and quad batteries. With the ability to charge 2S, 3S and 4S Li-Po batteries as well as 6-8 cell NI-MH batteries at selectable charge currents, the Prophet Sport Mini combines quality, value and performance to give you a convenient and easy tool to handle all of your charging needs. Built to last, the case is designed to disperse heat to keep the unit cool while the small footprint helps save space. LED indicators display charge status and easily selectable charge current and 1-button start/stop make operation a breeze. Don't let the Prophet Sport Mini's size fool you. With a built-in 50W charge circuit, the Prophet Sport Mini can cut your charge times in half if you're using an RTF/RTR overnight or wall charger. The Prophet Sport Mini also comes with a an industry best 5-year limited warranty.
Key Features
- 5-Year Limited Warranty
- AC powered with detachable power cord
- 50W charge power provides quick charge times
- Charges NiMH (6-8 cell), LiPo (2S-4S), LiFe (2S-4S and LiHV (2S-4S) batteries
- Space saving case design
- Includes (1) banana to EC3 adapter

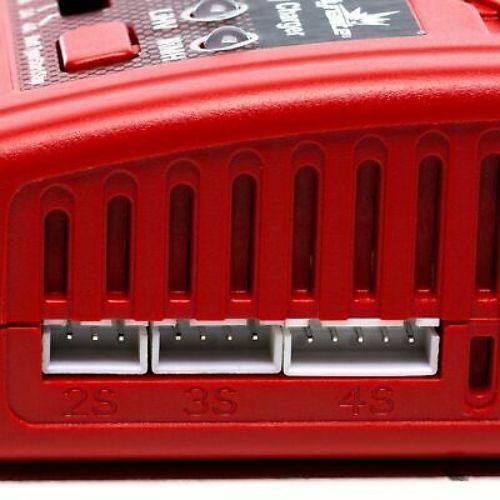

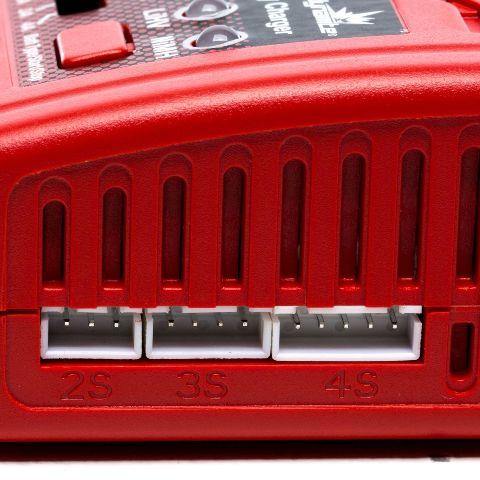

- Integrated Li-Po/LiFe balance ports

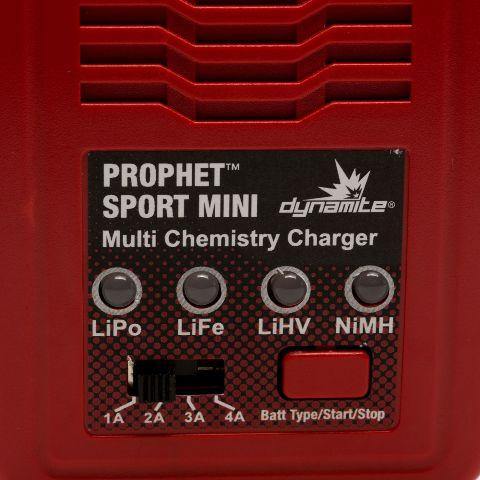

- Multi-colored LED charge indicators indicate charge status
- 1-button start/stop and amp select function
- Heat dispersing case design keeps temperatures low even when charging at full power
- Built-in short circuit, over-current, reverse polarity and over-temperature protection
- 100-240V AC Power Source
- (1) Dynamite® Prophet™ Sport Mini 50W Charger
- (1) Banana Plug to EC3™ Battery Connector
- (1) AC Power Cord
- (1) User Manual
Specifications
- Battery Balance Connector
- JST-XH
- Battery Type
- 2–4S LiFe, LiIon, LiPo, LiHV; 6-8C NiMH, LiFe (3.3V per cell), LiPo (3.7V per cell), NiMH (1.2V per cell)
- Connector Type
- EC3
- Cooling Method
- Convection Cooled
- Discharge
- No
- Display
- Simple 4-LED display to indicate battery type
- Height
- 1.6 in (4.05mm)
- Input Voltage
- 100–240V AC
- Integrated Balancing
- Yes - Internal Balancer & Internal Adapter
- Length
- 2.7 in (69.4mm)
- Normal/Standard Charge Rate
- 1A/2A/3A/4A
- Output Connector
- Banana Jack
- Programmable
- No
- Selectable Charge Rate
- Yes - Fixed Rate
- Width
- 4.3 in (110.7mm)
