MPN: 10R078
UPC:
EAN:

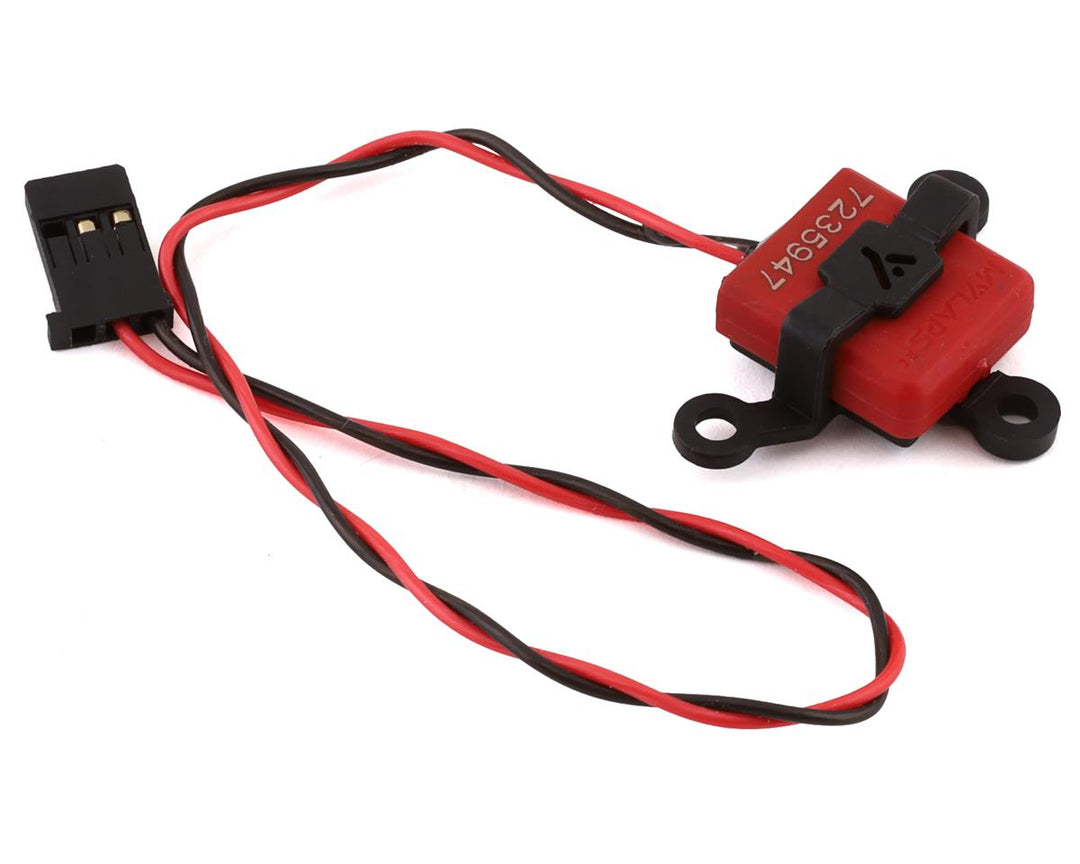

The Hybrid RC4 (2-wire) transponder is a bridge between tracks who run the latest RC4 and RC5 decoder boxes, along with tracks that still run the older RC2 and RC3 decoder boxes. This transponder is backwards compatible on the old decoders and features telemetry data such as voltage to the transponder and transponder temperature each time the loop is crossed, however it does not support the latest car ID numbers that can be used on RC4 and RC5 decoder boxes.
Features:
Features:
- Half the size, half the weight of the original
- Low voltage operation: 2.8-16 Volt compatible
- Transponder and transponder holder are individual parts, so you can easily switch transponders between different cars (extra holders sold separately).
- Better quality cable (PTFE) that is fuel resistant
- 1-4 cell LiPo compatible
- Fully hybrid:
- 100% compatible with RC2/RC3 Timing Systems (previously AMBrc)
- 100% compatible with RC4, and ready for the future
Specifications:
Dimensions (excluding holder) (WxLxH): 16x19x6mm
Weight: 4.7g (including holder)
Operating voltage: 2.8 - 16.0 V
Power consumption*: 19 mA
Wire isolation**: PTFE
Quick change holder: Yes
Connector: Generic receiver 3-pole
* Measured at 6.0 volt (receiver output)
** Gasoline/Nitro-methane resistant, no aging
