Matek Systems Systems HUBOSD8-SE 9-27V PDB W/ STOSD8-SE 5V&10V Dual BEC

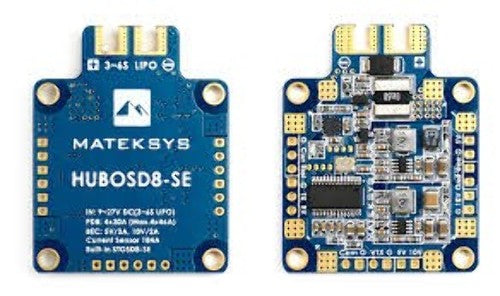

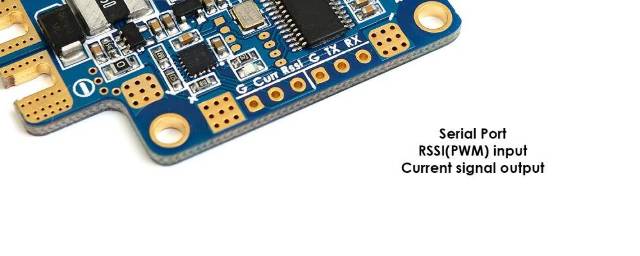

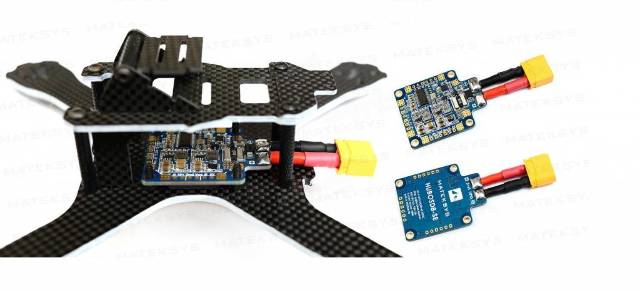

HUBOSD8-SE has been engineered to provide the highest possible performance and reliability in a 46*36mm & 4 layers PCB. It is a multifunctional HUB with PDB, BEC 5V/1.5A &10V/1.5A, Current sensor 184A, STOSD. It is specially made for the mini FPV Quad. Built-in STOSD8 can support Plug & Play, no complicated settings needed.

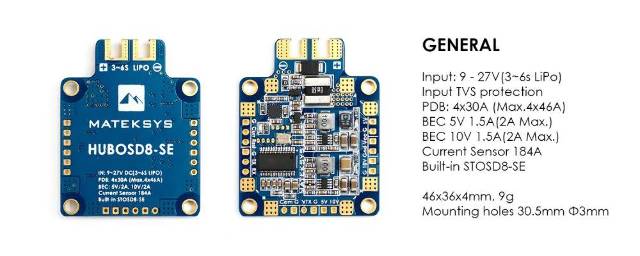

Specifications:

• Input: 9~27V (3-6S LiPo)
• Input TVS protection
• Current Rating: 4X30A (Max.4x46A)

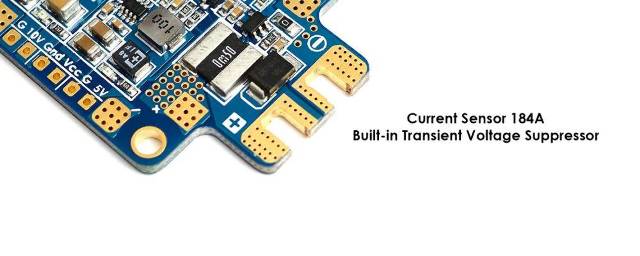

• Current sensor 184A
• Built-in STOSD8-SE

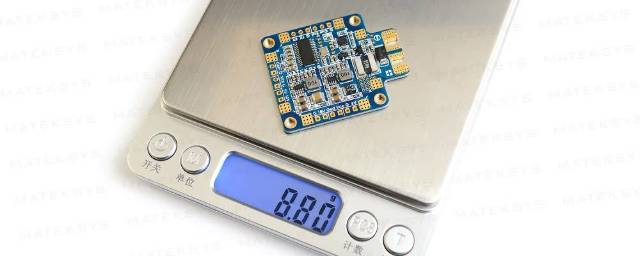

• 46x36x4mm, 9g

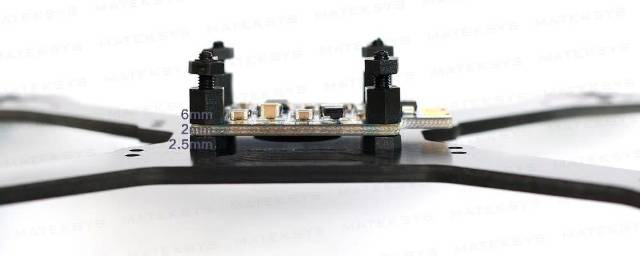

• Mounting holes 30.5mm Ø3mm

BEC 10V Outputs

• Designed for Video TX or FPV camera.
• Voltage: 10.0 +/- 0.2VDC
• Continuous current: 1.5 Amps (Max.2A 10s/minute)
• Output Ripple: 15mV (VIn=24V, VOut=10V@1.5A load)
• Short-circuit tolerant (2 seconds/minute)
• 10V can be used to power cameras labeled as 12V

BEC 5V Outputs

• Designed for RC Receivers, Flight controllers, OSD, and Servos.
• Voltage: 5.0 +/- 0.1VDC
• Continuous current: 1.5 Amps (Max.2A 10s/minute)
• Output Ripple: 23mV (VIn=24V, VOut=5V@1.5A load) Short-circuit tolerant (2 seconds/minute)

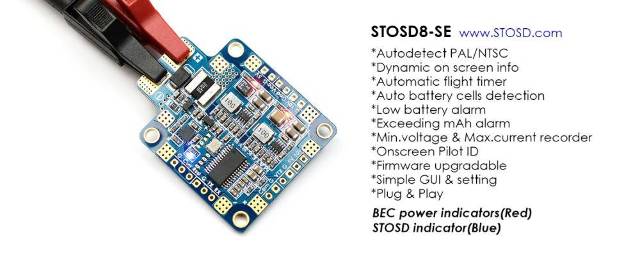

STOSD8 www.stosd.com

• Autodetect PAL/NTSC
• Dynamic on screen info
• Automatic flight timer
• Automatic cell detection
• Low battery alarm
• Exceeding mAh alarm
• Min.voltage & Max.current recorder
• Onscreen Pilot ID
• Firmware upgradable
• Simple GUI & setting
• Plug & Play
