Name: Matek RGB LED BOARD 5050 16V RGB5050-16
Brand: Matek
SKU: 2990000035196
Price: 1.15 USD
Availability: InStock

Price Save $3.54

Secure payments

In stock, ready to ship
Inventory on the way

Shipping calculated at checkout.

[{"id":37533921149115,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2990000035196","requires_shipping":true,"taxable":true,"featured_image":{"id":22774441640123,"product_id":6075418345659,"position":1,"created_at":"2020-11-13T20:46:25-05:00","updated_at":"2021-01-03T10:12:31-05:00","alt":null,"width":640,"height":391,"src":"\/\/excelrc.com\/cdn\/shop\/products\/2990000035196-matek-rgb-led-board-5050-16v-rgb5050-16-148599824.jpg?v=1609686751","variant_ids":[37533921149115]},"available":true,"name":"Matek RGB LED BOARD 5050 16V RGB5050-16","public_title":null,"options":["Default Title"],"price":115,"weight":54,"compare_at_price":469,"inventory_management":"shopify","barcode":"2990000035196","featured_media":{"alt":null,"id":14944883114171,"position":1,"preview_image":{"aspect_ratio":1.637,"height":391,"width":640,"src":"\/\/excelrc.com\/cdn\/shop\/products\/2990000035196-matek-rgb-led-board-5050-16v-rgb5050-16-148599824.jpg?v=1609686751"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

MPN: MATEK-RGB5050-16 UPC: EAN:

Matek RGB LED Board 5050/5V comes with three RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.

Specifications:

INPUT: 4~6V DC
Size: 42*10mm
Weight: 2g
Packing: LED BOARD 5V, 1pcs, Cable 0.3m

Notes:

Comes with a 0.3m long cable, users can cut it to a suitable length;
Be ware of the positive and negative poles, as well as the insulation;
Switch the related codes to ON, seven colors are selectable;
The input is in a range of 4~6V. Can be powered by RX, but please make sure the output current of BEC is enough.

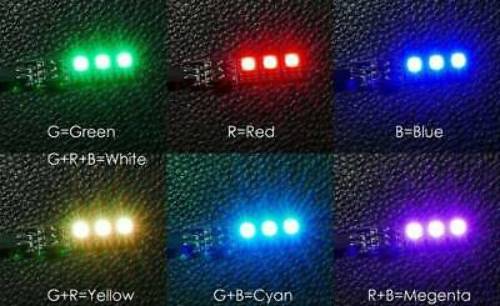

Selectable Colors & Power:

B ON =Blue, 0.35W, 0.03A
R ON =Red, 0.35W, 0.03A
G ON =Green, 0.35W, 0.03A
B+R =Megenta, 0.70W, 0.06A
B+G =Cyan, 0.70W, 0.06A
R+G =Yellow, 0.70W, 0.06A
B+R+G =White, 1.05W, 0.09A

Matek RGB LED Board 5050/12V comes with three RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.

Specifications:

INPUT: 10~13V DC
Size: 47*10mm
Weight: 2g
Packing: LED BOARD 12V, 1pc, Cable 0.3m

Notes:

Comes with a 0.3m long cable, users can cut it to a suitable length;
Be ware of the positive and negative poles, as well as the insulation;
Switch the related codes to ON, seven colors are selectable;
The input is in a range of 10~13V DC, can be powered by 3S Lipo or 12V BEC.

Selectable Colors & Power:

B ON =Blue, 0.35W, 0.03A
R ON =Red, 0.35W, 0.03A
G ON =Green, 0.35W, 0.03A
B+R =Megenta, 0.70W, 0.06A
B+G =Cyan, 0.70W, 0.06A
R+G =Yellow, 0.70W, 0.06A
B+R+G =White, 1.05W, 0.09A

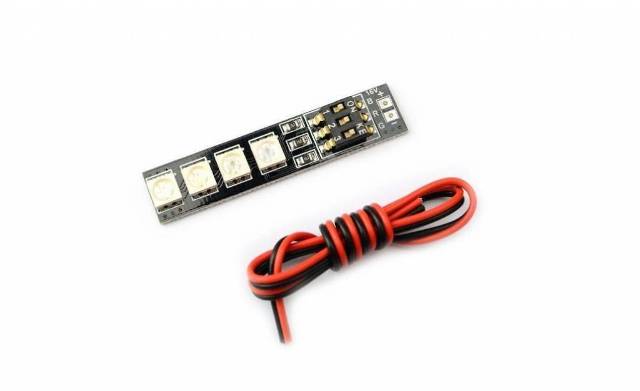

The RGB LED Board 5050/16V is designed for the Multi-rotors & FPV Quad-rotors with 4S LiPo power. It comes with four RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.

Specifications:

INPUT: 14~17V DC, 4Cells LiPo battery
Size: 47*10mm
Weight: 2g
Packing: LED BOARD 16V, 1pc, Cable 0.3m

Notes:

Comes with a 0.3m long cable, users can cut it to a suitable length;
Be ware of the positive and negative poles, as well as the insulation;
Switch the related codes to ON, seven colors are selectable;
The input is in a range of 14~17V DC, can be powered by 4S Lipo battery.

Selectable Colors & Power:

B ON =Blue, 0.4W, 25mA
R ON =Red, 0.4W, 25mA
G ON =Green, 0.4W, 25mA
B+R =Megenta, 0.8W, 50mA
B+G =Cyan, 0.8W, 50mA
R+G =Yellow, 0.8W, 50mA
B+R+G =White, 1.2W, 75mA
