Matek Systems RGB LED BOARD 5050 12V RGB5050-12
Matek Systems RGB LED BOARD 5050 12V RGB5050-12
Matek Systems RGB LED BOARD 5050 12V RGB5050-12
Matek Systems RGB LED BOARD 5050 12V RGB5050-12
Matek Systems RGB LED BOARD 5050 12V RGB5050-12
Matek Systems RGB LED BOARD 5050 12V RGB5050-12

Matek Systems RGB LED BOARD 5050 12V RGB5050-12

Price
Save $3.84
/
  • Secure payments
  • In stock, ready to ship
  • Backordered, shipping soon
MPN: MATEK-RGB5050-12 UPC: EAN:

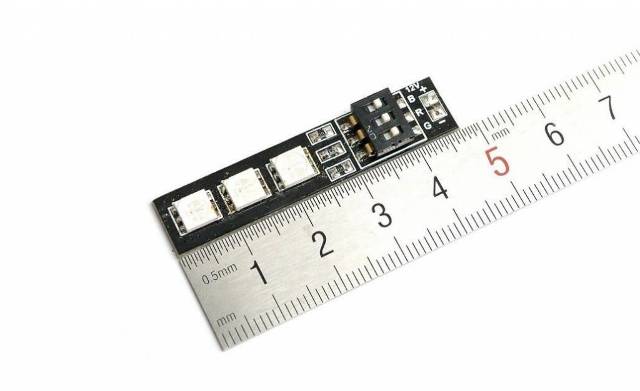

Matek RGB LED Board 5050/5V comes with three RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.

Specifications:

  • INPUT: 4~6V DC
  • Size: 42*10mm
  • Weight: 2g
  • Packing:  LED BOARD 5V, 1pcs,  Cable 0.3m
Notes:
  • Comes with a 0.3m long cable, users can cut it to a suitable length;
  • Be ware of the positive and negative poles, as well as the insulation;
  • Switch the related codes to ON, seven colors are selectable;
  • The input is in a range of 4~6V. Can be powered by RX, but please make sure the output current of BEC is enough.

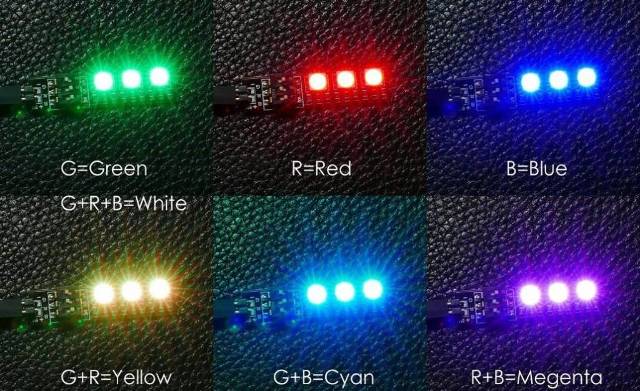

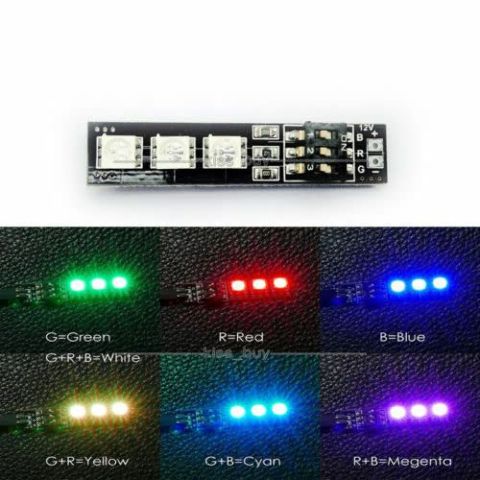

Selectable Colors & Power:
  • B ON =Blue, 0.35W, 0.03A
  • R ON =Red, 0.35W, 0.03A
  • G ON =Green, 0.35W, 0.03A
  • B+R =Megenta, 0.70W, 0.06A
  • B+G =Cyan, 0.70W, 0.06A
  • R+G =Yellow, 0.70W, 0.06A
  • B+R+G =White, 1.05W, 0.09A
