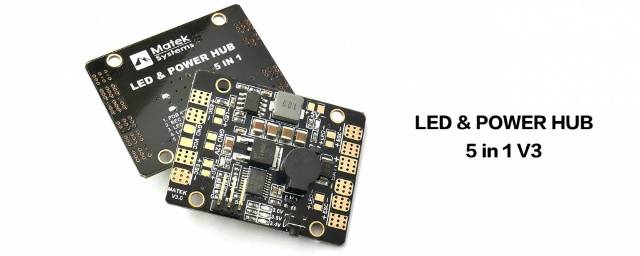

Input voltage range (3S-6S operation): 9 - 26VDC
1 Battery input & 4 ESC outputs
Regulated 5V and 12V outputs

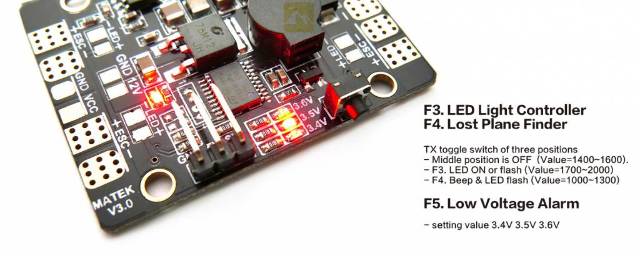

LED power indicators ( 5V & 12V outputs )
4 pairs 5V LED light pads
Low voltage setting value indicators

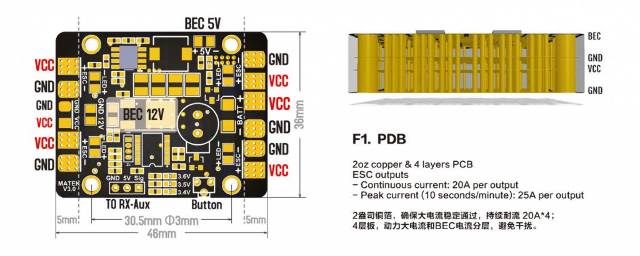

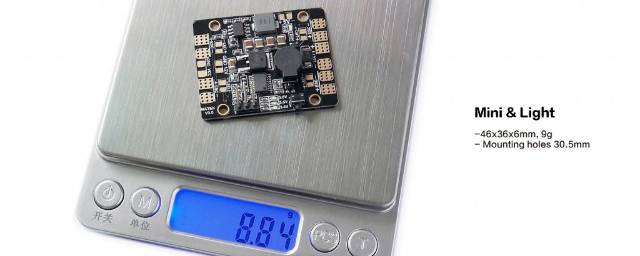

- Dimensions: 46x36x6mm, Weight: 9g

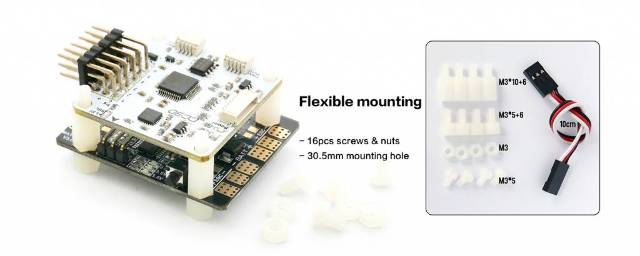

- Mounting holes 30.5mm square spacing
Continuous current: 20A per output
Peak current (10 seconds/minute): 25A per output

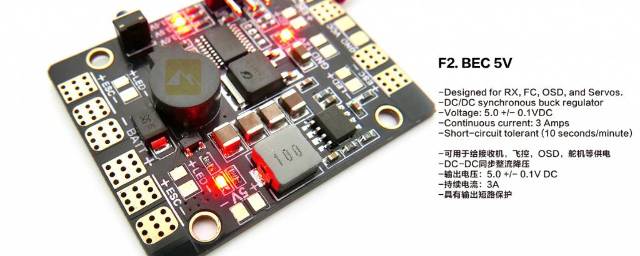

Designed for RC Receivers, Flight controllers, OSD, and Servos.
DC/DC synchronous buck regulator, Efficiency is up to 95%.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 3 Amps
Short-circuit tolerant (10 seconds/minute)
