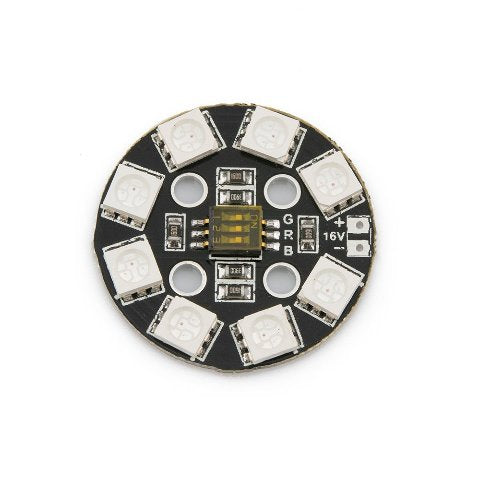

Matek RGB LED CIRCLE X8/16V comes with eight RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.
Specifications:
- INPUT: 14~16V DC? 4S LiPo
- Size: Circle Φ30mm (10mm /Φ3mm Mounting)
- Select the colors with 3pin 1.25mm Code switch
- Weight: 2.5g
- Packing: LED CIRCLE X8/16V, 1pc, Cable 0.3m
Notes:
- Comes with a 0.3m long cable, users can cut it to a suitable length;
- Be ware of the positive and negative poles, as well as the insulation;
- Switch the related codes to ON, seven colors are selectable;
- The input is in a range of 14~16V DC, can be powered by 4S Lipo.

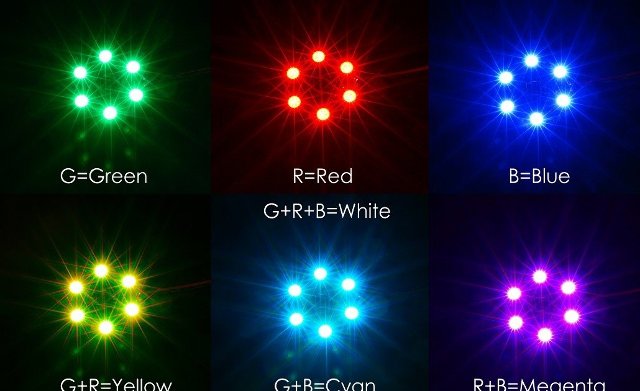

Selectable Colors & Power @12v:
- B ON =Blue, 0.64W, 0.04A
- R ON =Red, 0.64W, 0.04A
- G ON =Green, 0.64W, 0.04A
- B+R =Megenta, 1.28W, 0.08A
- B+G =Cyan, 1.28W, 0.08A
- R+G =Yellow, 1.28W, 0.08A
- B+R+G =White, 1.92W, 0.12A
