MPN: 30112609
UPC:
EAN:
ROAR approved for ROAR SPEC racing!
|

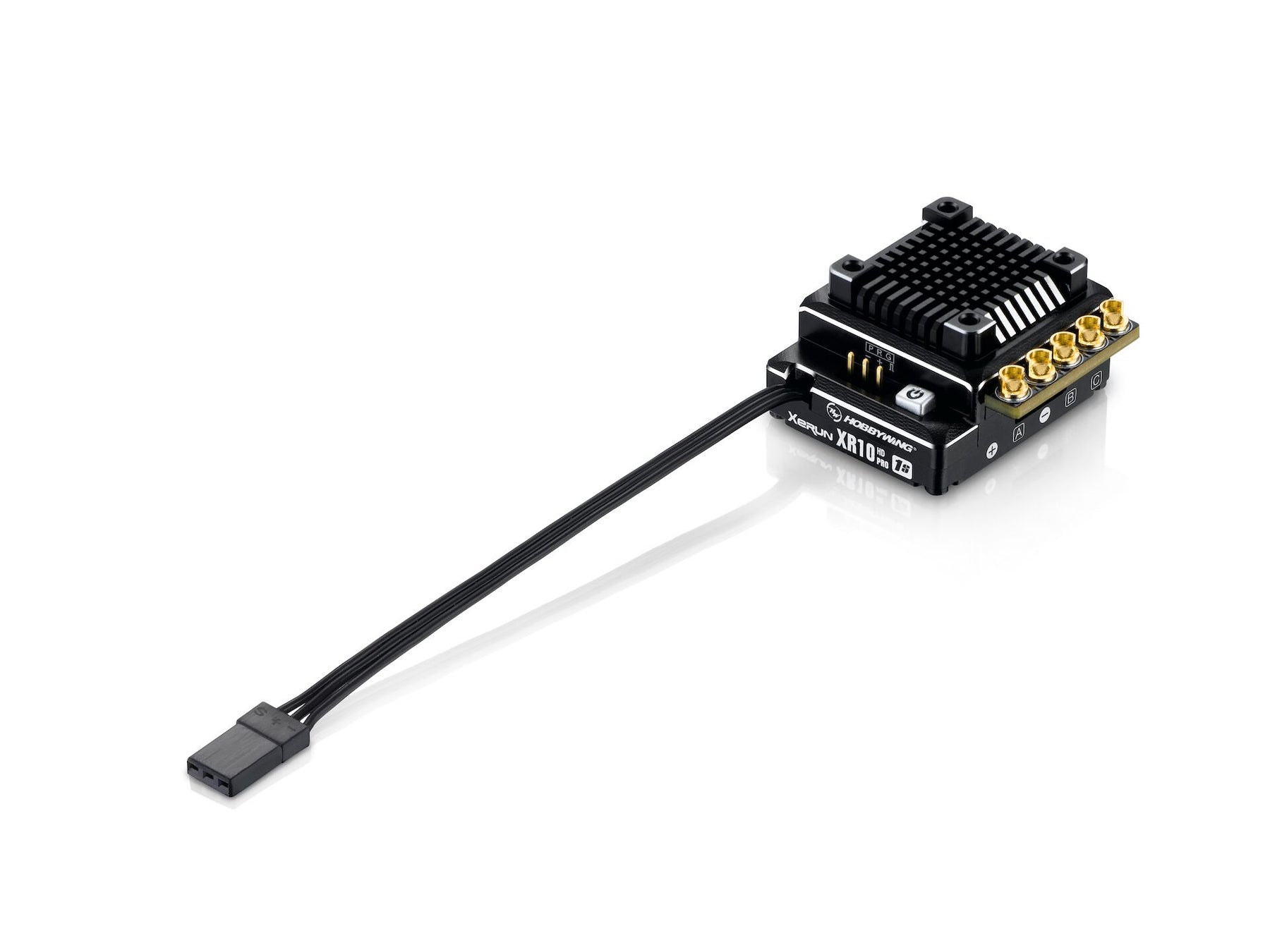

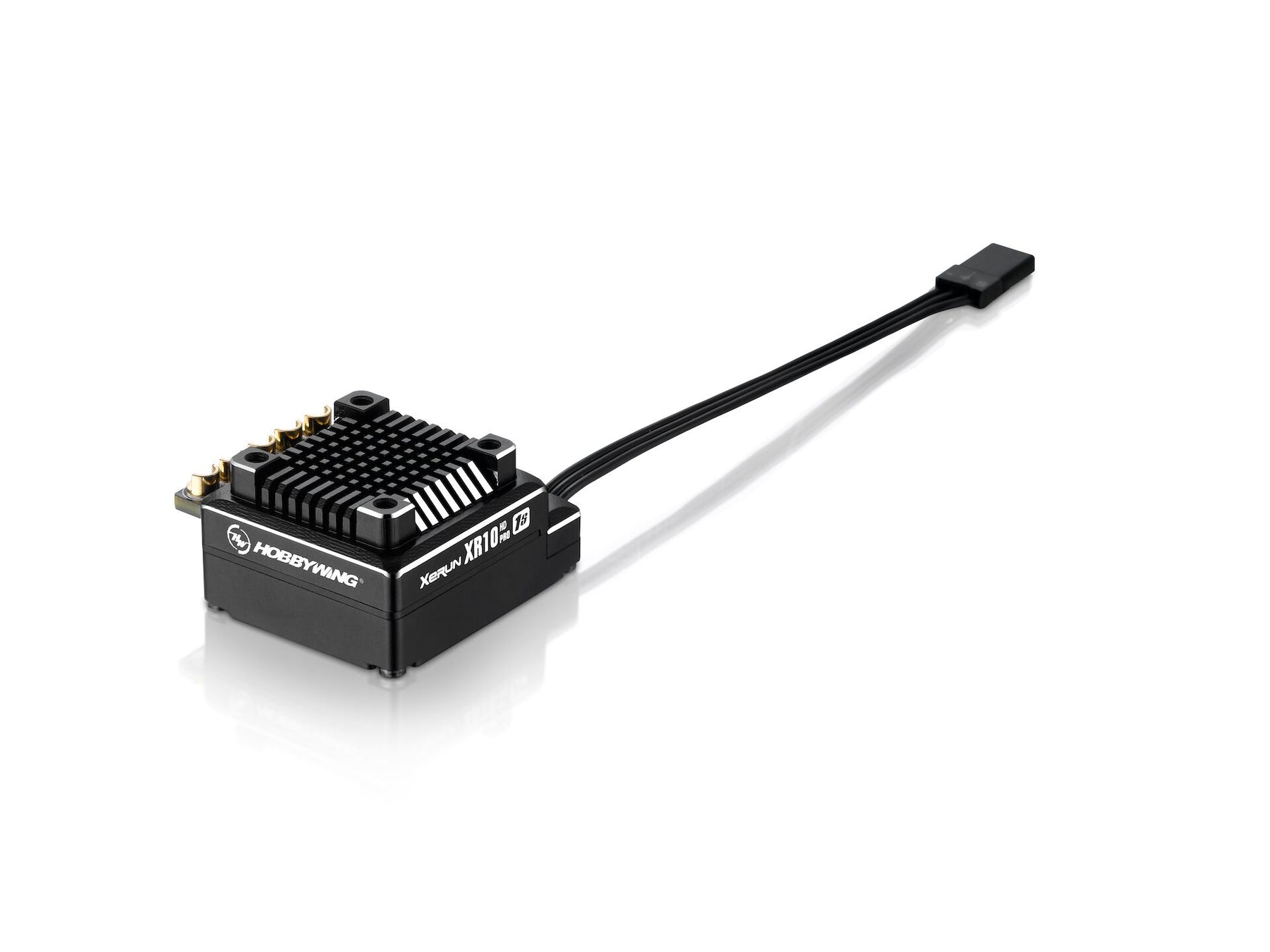

XR10 PRO 1S HD Modified
|
|
| p/n |
30112609
|
| Application |
1/12
Brushless sensored system Stock / Modified Racing |
| Cont. | 120A |
| Peak Current | 830A |
| Input | 1S LiPo/3-4 Cells NiMH |
| BEC output | Switch Mode:6V/3A |
| Programmable | Yes |
| Firmware update | Yes |
| WiFi Module | Enabled |
| Dim. | 37.5x31x31mm |
| Weight | 46.7g 1.65oz |
Bottomline
- ROAR | IFMAR approved
- 40% smaller in volume* (*6mm shorter, 6mm smaller in width)
- 24% lighter in weight (12g lighter than the previous generation)
- Premium MOSFETs (Toshiba MOSFETs)
- Super BEC. Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and power various servos without connecting any extra receiver battery.
- Built-in electronic switch (with a lifespan of over 50000 on/off cycles, dust-proof and shock-resistant design)
- Built-in capacitor module saves space and weight making the wiring simple and neat.
- PWM Frequency tuning - guarantees precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
-
Maximum Cooling performance - Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to an LCD program box or WiFi module for ESC programming.
