FXT FX806TC 5.8GHZ 40Ch Detached VTX and Camera Combo for FPV Racing

These super small FX806TC detached combos are extremely light weighing in at 4 grams without removing any extra wire length or connectors to solder.
This new design will allow you to place your camera in places you never could before.

Specifications:

Camera:

Model Number-V60T
Power supply 3.7-5V
Current consumption 60mA
Resolution 600TVL
FOV 120 degree
Video format NTSC
Mini illumination 1.0 lux
Dimension 14x14mm
Weight 2g

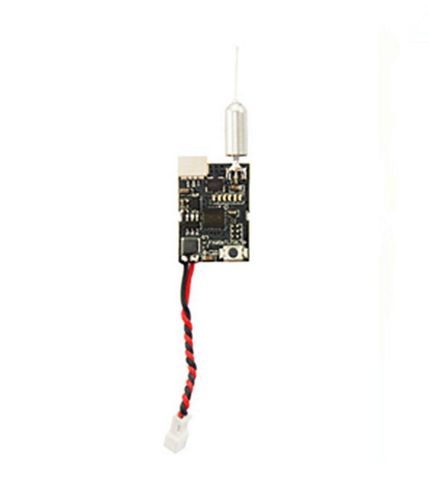

VTX:

Model number FX806T
Power supply 2.5-5V
150mA@3.7V,110mA@5V
Working frequency 5.8GHz
Output power 25mW
Channel 40 channels with Raceband
Video band width 6.0MHz
Antenna dipole whip antenna or other antenna
Dimension 19x14mm

Features:

1.Super small and lightweight
2.Detachable camera vtx design
3.Power by 1S lipo battery
4.With dipole whip antenna
5.Power off memory function: restart as the very last channel kept before power off
6.Button control instead of switch
7.Easy to install, plug and play

How to change channels:

First red LED for channel,other 5 blue LEDs for frequency band
1.Single press channel/band button to change channel,channel LED always keeps red for 1st channel of any band,for other channels,channel LED OFF.
2.Press and hold button for 2 seconds to change frequency band.

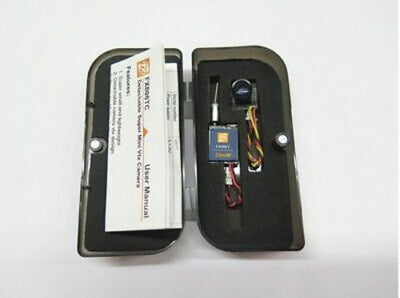

Package includes:


 1 x FXT FX806TC VTX
1 x FXT FX806TC Camera



US Customers:
This equipment is being sold under the FCC’s amateur radio rules. Operators must abide by all applicable laws and hold an amateur license to operate this equipment. Use of amateur equipment without a license or use of equipment on restricted frequencies could subject the operator to significant fines by the FCC. By purchasing this equipment, the user is agreeing that they understand these responsibilities and will operate the equipment legally. For information regarding obtaining an amateur radio license, please go to http://www.arrl.org/getting-licensed.

International Customers:
The use and operation of this product in your country may require an amateur radio license, and some countries may forbid its use entirely. It is the responsibility of the purchaser to ensure that the purchase and use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. Excel Drones, LLC cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations.
