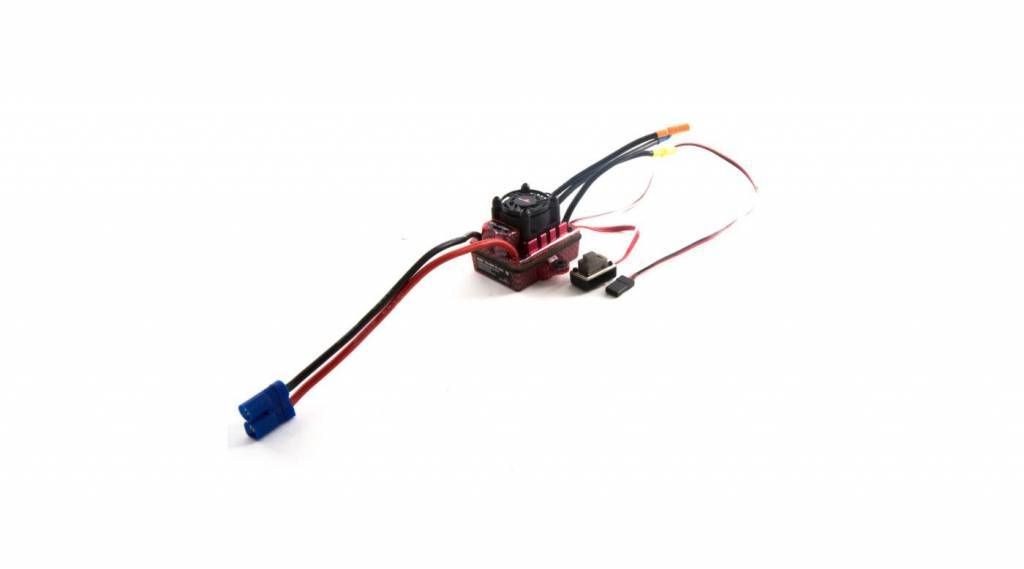

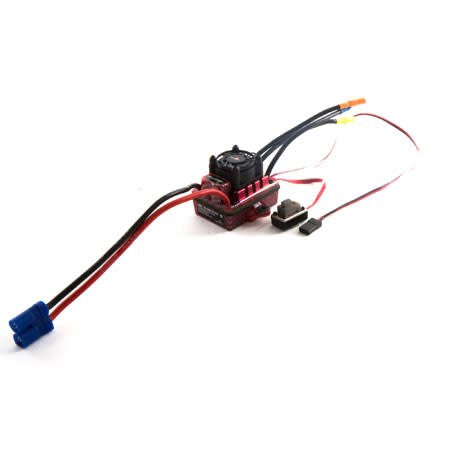

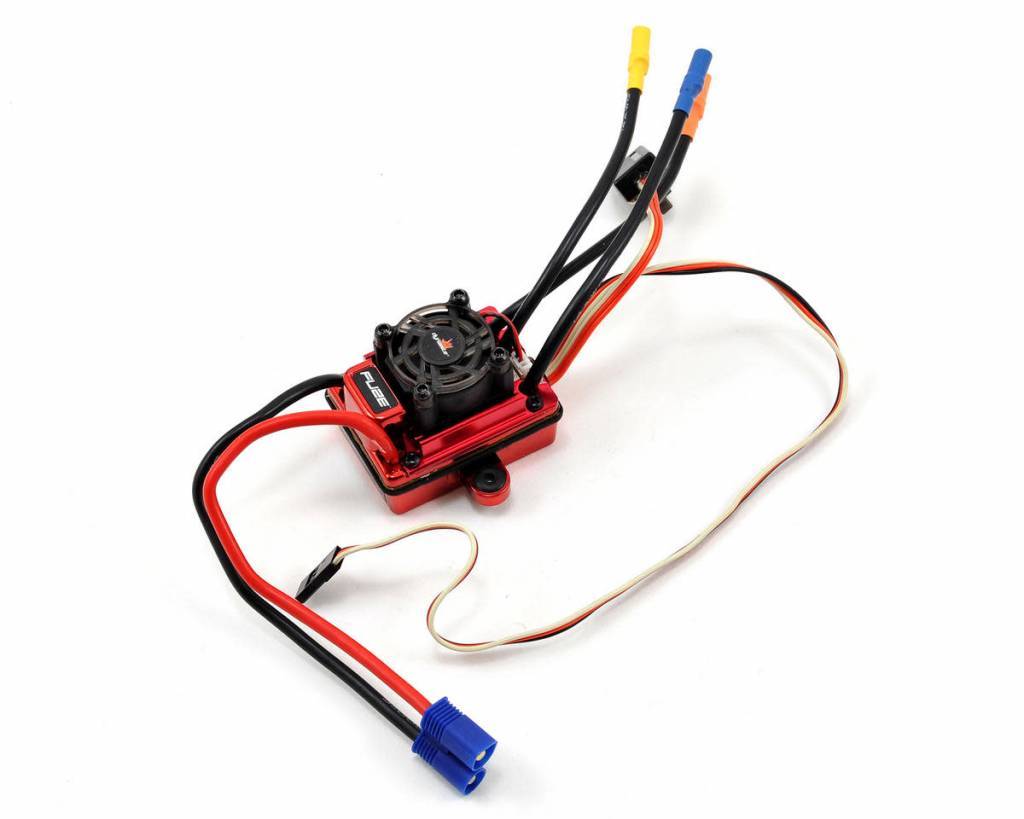

Fuze 70A Sensorless Brushless ESC Waterproof V2 (HOR-DYNS2600)

Easier than ever to toggle between battery chemistries Easy to program via your transmitter or compact program card. No need to haul around a PC Improved operation under heavy loads Allows a hard mount, with servo tape and/or velcro Waterproof he ESC is available by itself and as a combo with a 6-pole brushless motor. Specifications Back to Top ^ Forward: Yes Reverse: Yes Brake: Yes Time Delay Brake: Yes Continuous Maximum Current: 70A Input Voltage: 2-3S LiPo/LiFe, 4-9 cells NiMh/HiCd Input Connector Types: EC3 Output Connector Types: 3..5mm Bullet Motor Limit: 2S LiPo - up to 6000KV, 3S LiPo - up to 4000KV Length: 1.89 in (48mm) Width: 2.2 in (56.1mm) with mounting tabs, 1.46 in (37mm) without mounting tabs Height: 1.46 in (37mm) Weight: 2.82 oz (80 g) BEC Voltage: 6V Overload Protection: Yes Full On Resistance: .0012 ohm Wire Gauge: Battery 14AWG, 6 in/Motor 16 AWG, 4 in Manuals
