Vehicle Specs
|

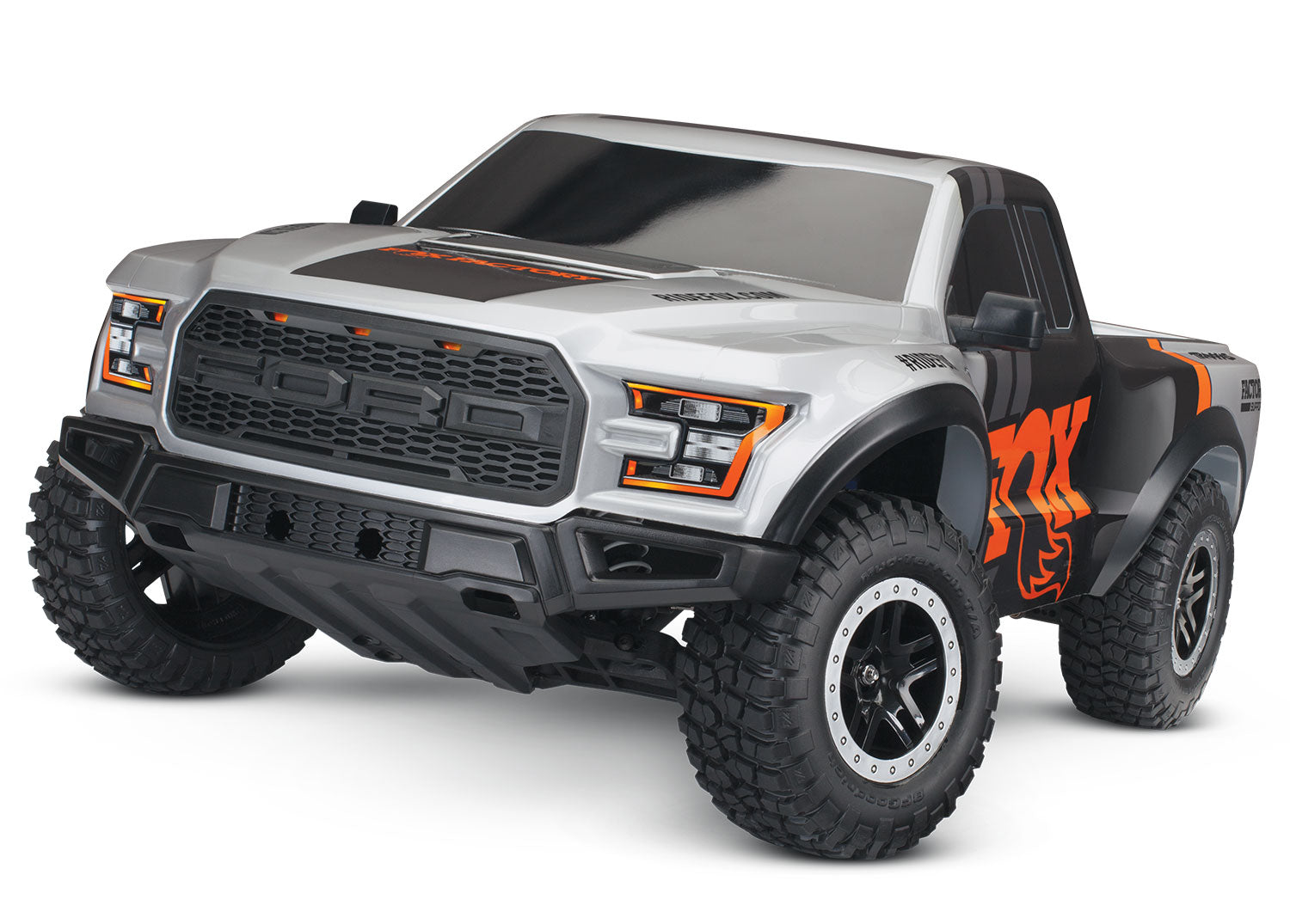

Ford Raptor 1/10 Scale 2WD Truck With Battery and Charger Included 58094-8 |
||||||||||||||||||
|
Product Description
The Ford Raptor replica is wrapped around the proven performance and unmatched durability of the Traxxas Slash. Torque flows from the powerful Titan 12-Turn motor and XL-5 electronic speed control for instant response off-road. Full-ball bearings enhance precision control. The electronics are all fully waterproof so your fun never gets sidelined by a little water along the way.
-

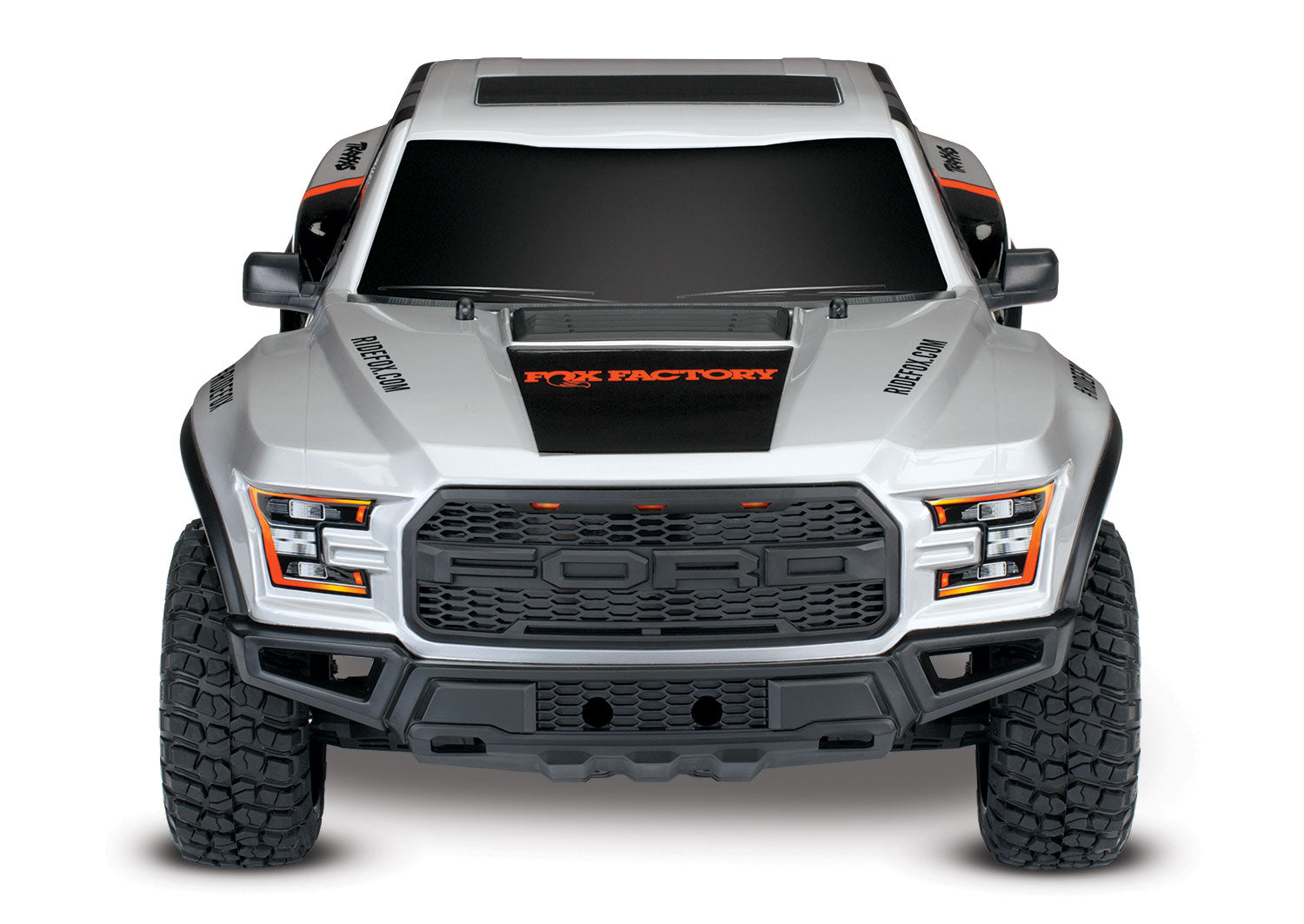

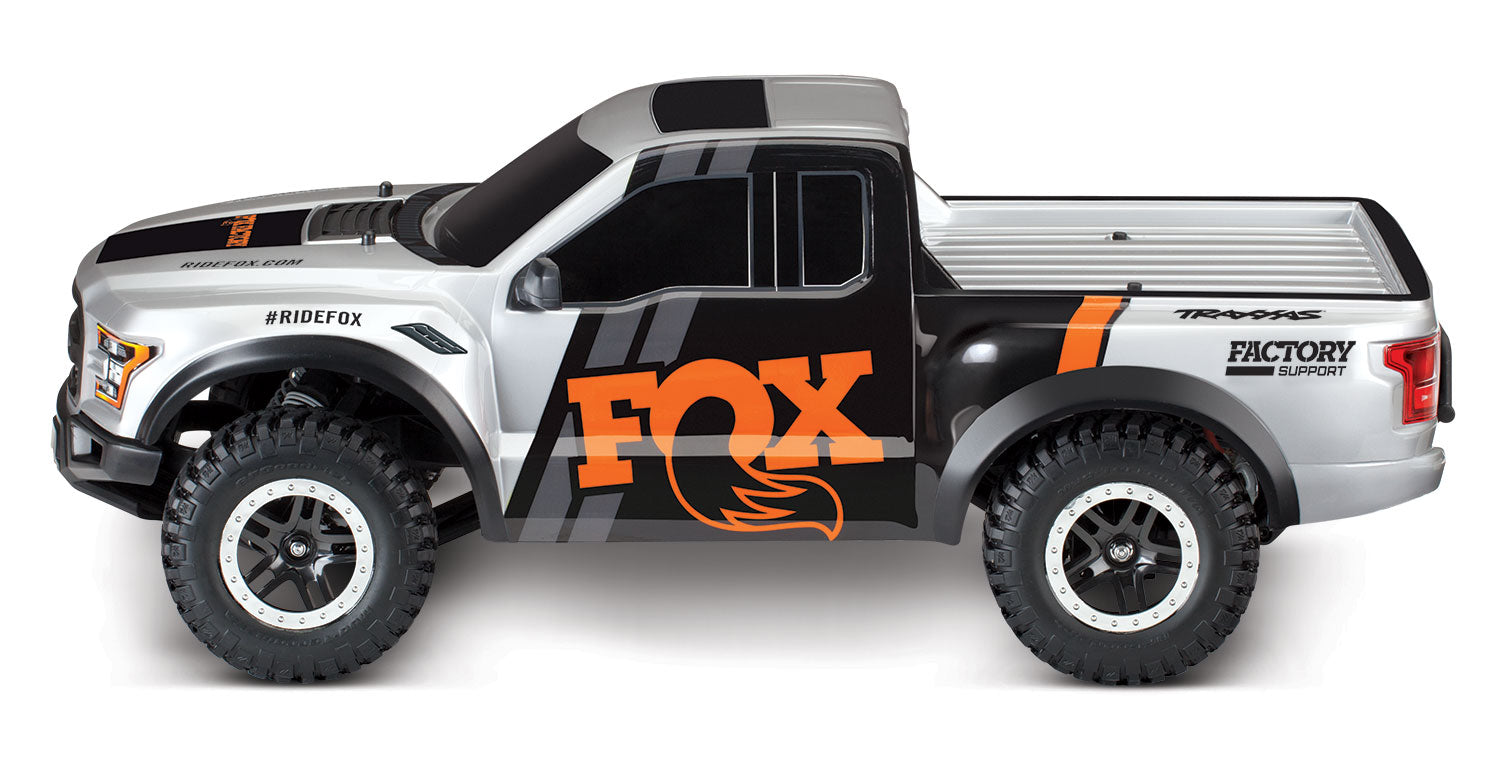

Officially Licensed Ford® F-150® Raptor® body and Graphics
- Injection molded grille, side mirrors, and hood vent
- Chassis nerf bars absorb impact and support the body
- Tough front and rear replica bumpers
-
High-Performance Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
-
Titan® 550 Motor
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
- Molded wire retainer keeps motor wires secure
-
TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
-
Includes Battery and USB-C Charger
- 4-amp USB-C fast charger
- 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®
-

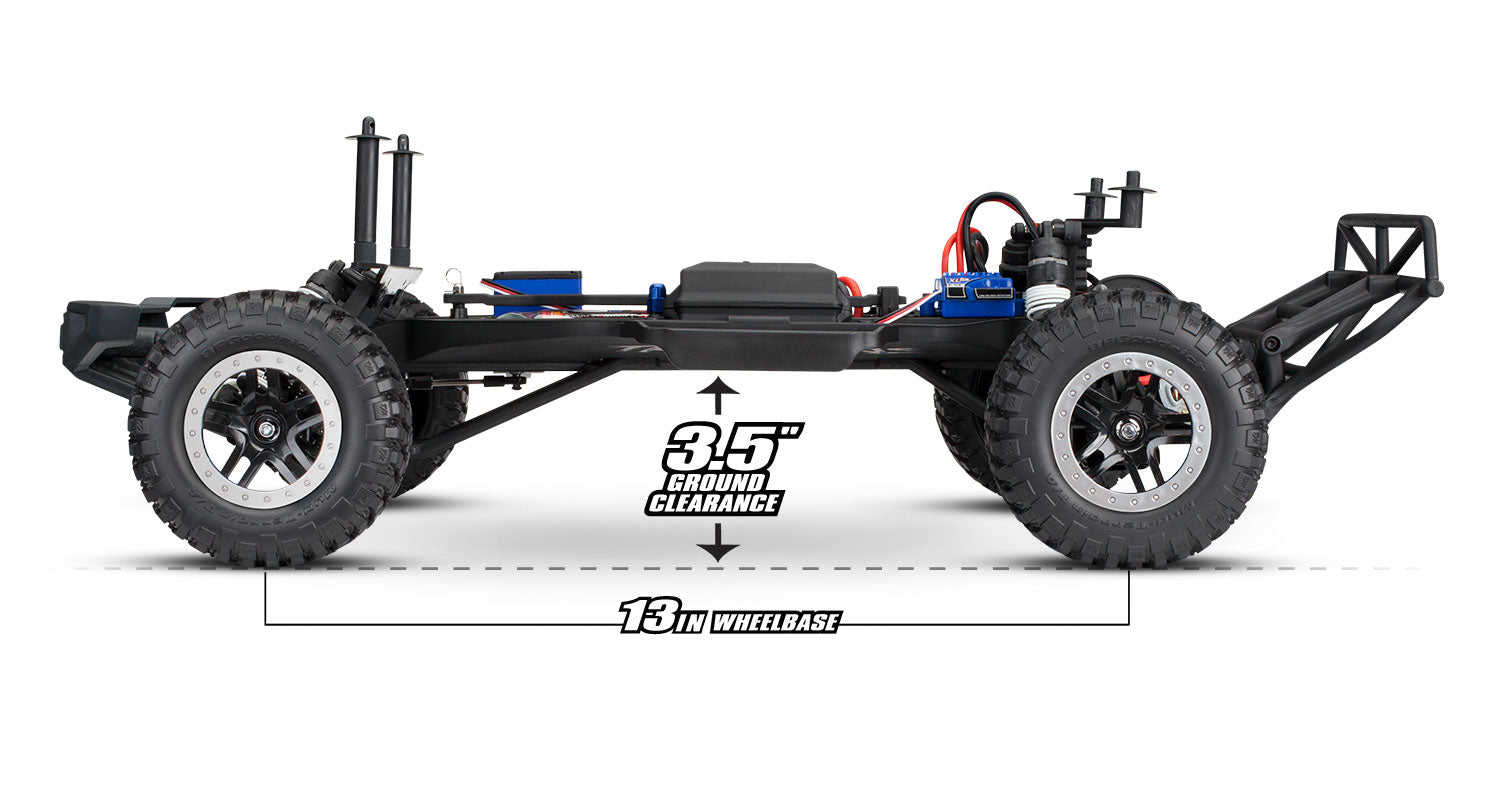

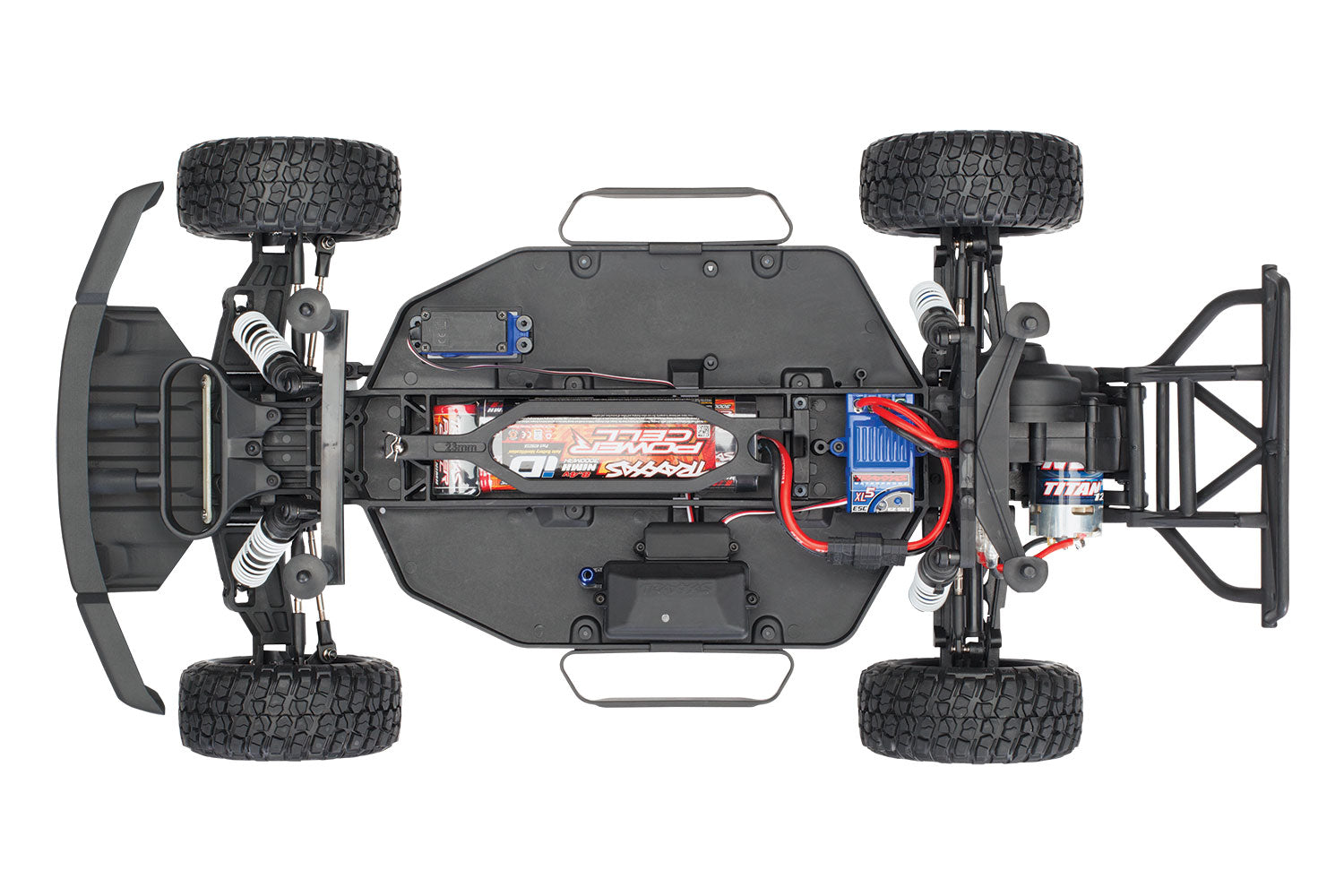

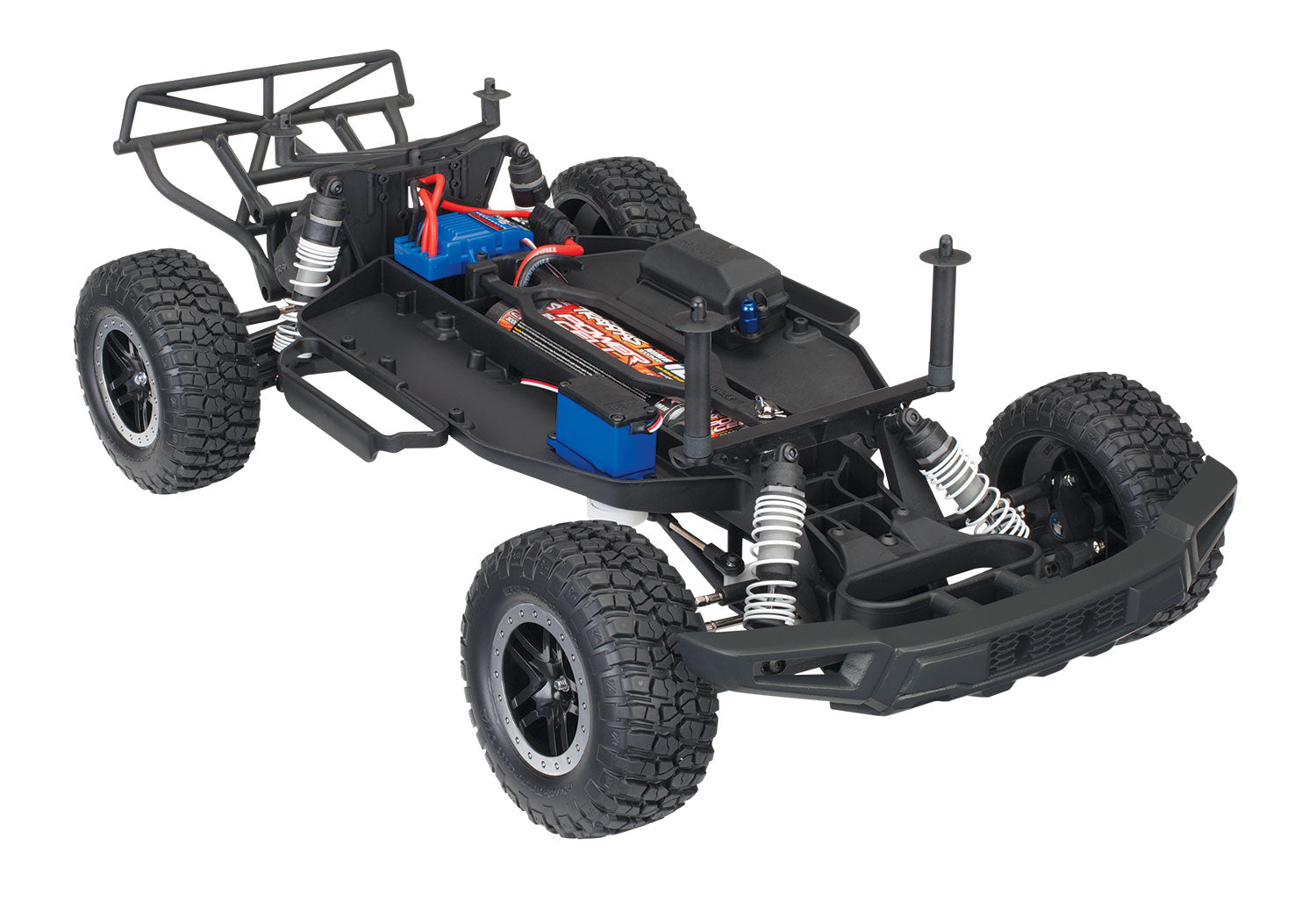

Tough Fiber-Composite Monocoque Chassis
- Long 13.2″ wheelbase for increased stability
- Over 3.5″ of ground clearance
- All electronics securely fastened to chassis
-

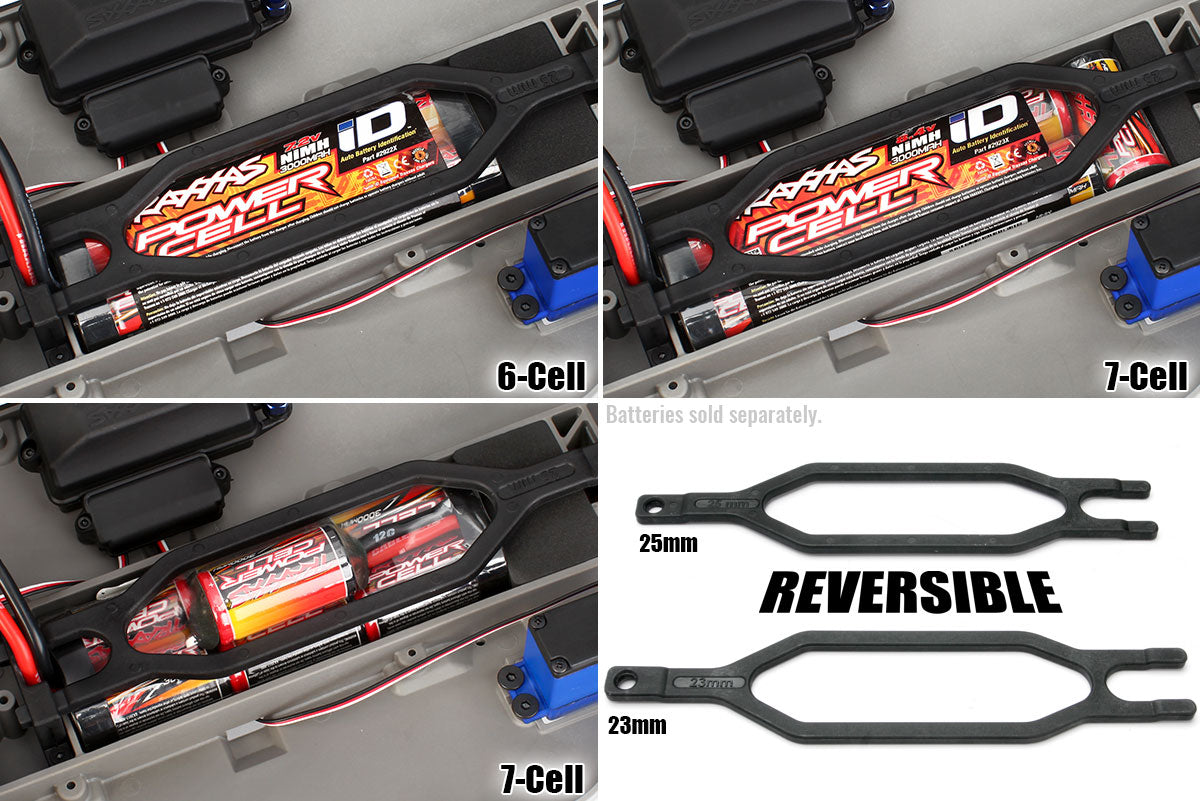

Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2s LiPo battery configurations
-

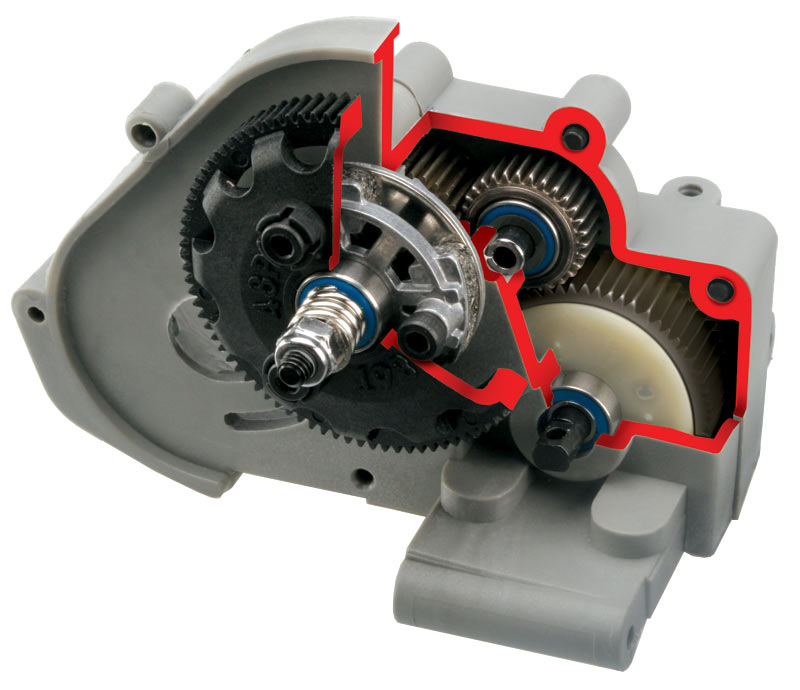

Transmission and Driveline
- Brushless-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
- Heavy-duty telescoping U-joint driveshafts and yokes
-
Steering
- Digital High-torque waterproof Traxxas 2075 steering servo
- High-performance bellcrank system minimizes bump steer
-
Suspension
- Adjustable steel turnbuckles
- Captured rod ends won't pop off
-
Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Race-tuned progressive rate white powder-coated springs
-
Wheels and Tires
- Pre-glued scale all-terrain tires with performance foam inserts
- 2″ outer diameter, 3″ inner diameter dual-profile black split-spoke wheels

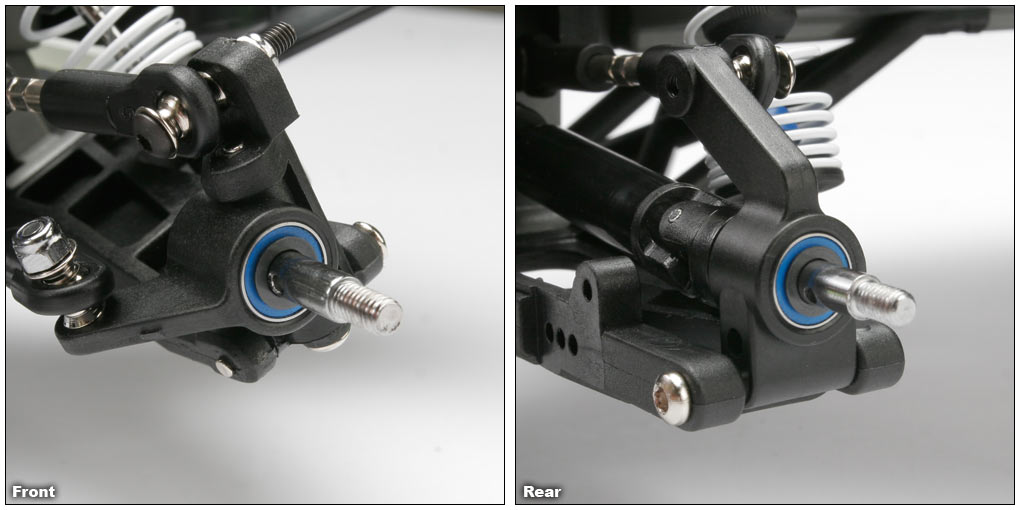

- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Backed by Unparalleled Traxxas Support and Parts Availability
Model Specs
| Model Name: | Ford Raptor XL-5 2WD with USB-C |
|---|---|
| Model Type: | Short Course Trucks |
| Model Speed: | 30+ mph with 7-cell battery and included optional 23-tooth pinion gear |
| Model Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 4.76 pounds (2.16 kg) |
| Length: | 22.36 inches (568 mm) |
| Width: | 11.65 inches (296 mm) |
| Front Track: | 11.65 inches (296 mm) |
| Rear Track: | 11.65 inches (296 mm) |
| Height: | 8.43 inches (214 mm) |
Motor Specs
| Motor Name: | Titan® 12T 550 |
|---|---|
| Motor Type: | High-speed brushed motor |
| Motor Weight: | 8.47 ounces (240 g) |
| Motor Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Motor Diameter: | 1.41 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Bullet |
ESC Specs
| ESC Name: | Waterproof XL-5™ ESC with low-voltage detection |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| ESC Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 14 gauge |
MODEL 58094-1: Fully assembled, Ready-To-Race®, with TQ™ 2.4GHz radio, 4-amp DC Peak Detecting Fast Charger, Waterproof Electronics with XL-5 Electronic Speed Control and ProGraphix® painted body.
