Firma 130 Amp Brushless Smart ESC 2S-4S

Spektrum SKU: 2990000101181
Regular price $152.99 Sale price $139.99 Save $13
/
  • Secure payments
  • Low stock - 1 left
  • Inventory on the way
Shipping calculated at checkout.

MPN: SPMXSE1130 UPC: EAN:


Overview

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming:

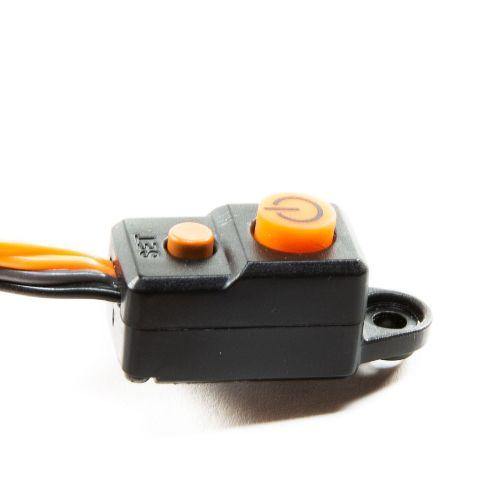

    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete
  • Spektrum™ Surface Receiver
  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter
What's in the Box?
  • (1) Spektrum™ Firma™ Smart ESC
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual

Specifications

Auto Cutoff
Yes

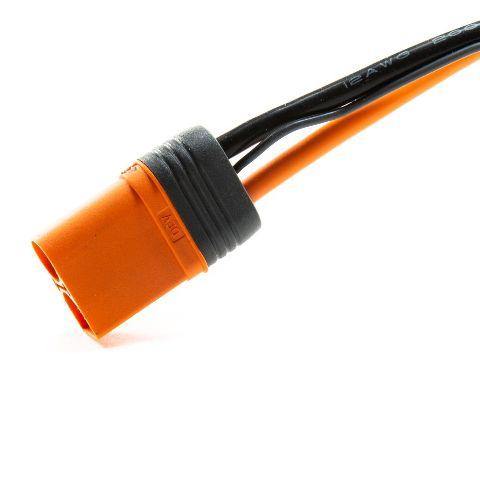

Battery Connector
IC5
Battery Input Lead
6.3" (160mm) 12AWG
BEC
Yes
BEC Continous Current
4A
BEC Type
Linear
BEC Voltage
6V
Brakes
Yes
Forward
Yes
Height
1.5" (38mm)
Input Voltage
2S - 4S LiPo
Length
2.2" (57mm)
Low-Voltage Cutoff Programmable
Yes
Maximum Burst Current
760A
Maximum Continuous Current
130A

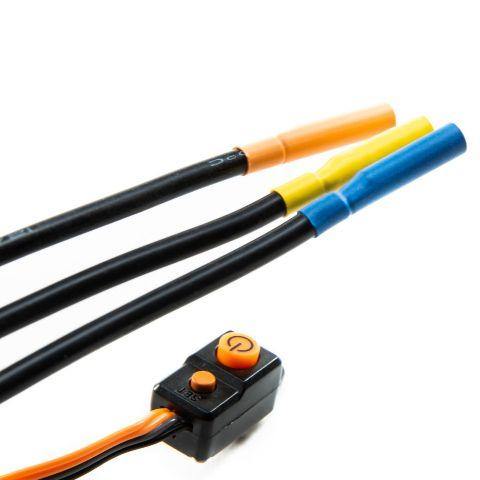

Motor Connector
4mm Female Bullet
Motor Output Lead
5.9" (150mm) 12AWG
Overload Protection
Yes (Thermal protection as well)
Reverse
Yes
Type
Surface
Weight
4.4oz (126g)
Width
1.4" (37mm)
