When we set out to release a new product, our goal has always been to offer our customers the very best products possible and it’s no exception with our new FR-10 2.0 Pro ESC. We live, breath, eat and sleep R/C racing, and we love our customers to have an edge over their competition. From our highly sought after brushless racing motors and batteries to our proprietary motor tuning tools, since 1980, racers have counted on us for the highest performance products in R/C!
To continue our tradition of excellence, countless hours have gone into R&D, to bring you a professional racing ESC, second to none in performance and value! The heart of the FR-10 2.0 PRO is the high-performance 32-bit CPU and proprietary firmware, providing you with buttery smooth throttle response, unmatched power delivery, and all the adjustable parameters you’ve come to expect from a pro racing ESC!
WHAT’S NEW WITH THE FR-10 2.0 PRO:
- NEW – Bluetooth programmable allows customizing the parameter settings and firmware upgrades via our free Apple or Android App, HERE!
- NEW – Supports real time programming. No need restart the ESC after adjusting any parameter.
- NEW – Plenty of updated and new adjustable parameters, for fine-tuning, for every type of racing.
- NEW – 32-bit microprocessor supports more powerful processing capability and more accurate motor output.
- NEW – Enhanced throttle response, braking, acceleration, linearity, and drive ability.
- NEW – Multiple protection features: Low voltage cut-off protection, over-heat protection, and throttle signal loss protection.
- NEW – Removable ON/OFF button harness (included) + on-board ON/OFF button.
- NEW – 25mm Fan and Aluminum Fan Cover sold separately, so that you don’t have to pay for them unless you want them.
- All R&D Done in the USA
- 1:10 Scale / 2-3 Cell / 160 Amp
- Specifically designed for the highest level of spec and mod 1:10 racing
- 2,303 Strand, 11awg, Ultra Low Resistance Wire
- CNC Machined Aluminum Case w/ Integrated Heat Sink
- Ultra-Low Resistance FET Board

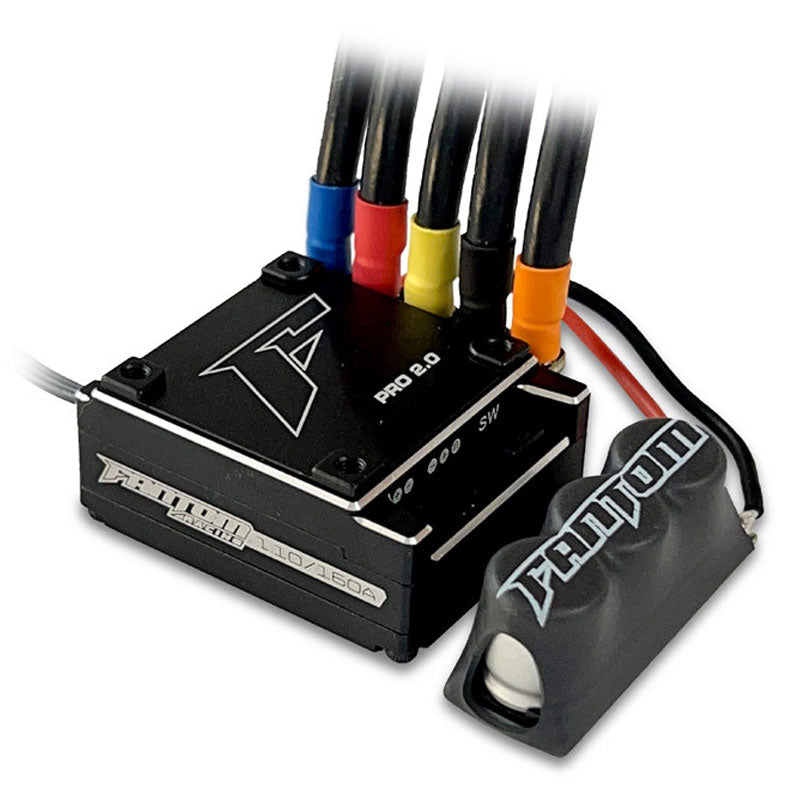

- 3 Max Power Capacitors
- Heavy-Duty Solder Posts
- Precision Throttle & Brake Frequency Adjustment
- 25mm Fan sold separately
- Aluminum Fan Cover sold separatel
- Ultra Precision Throttle, Brake, and Punch Control
- Bluetooth programmable allows customizing the parameter settings and firmware upgrades via our free Apple or Android App, HERE!
- ROAR Approval Pending
- Continuous Current: 160 Amps
- Burst Current: 760 Amps
- 32-bit high-performance CPU
- Battery Input: 2-3 cell LiPo
- BEC Output: 6.0V, 7.4V / 6A (Switch BEC)
- Dimensions: (L) 37mm x (W) 38.2mm x (H) 31.5mm
- Weight without wiring and fan: 96 grams
- Programmable with our free Apple or Android App
- Sensored: Yes
- Sensorless: Compatible but not optimal
- Motor Limit: 2S LiPo / 4.5T 540 or 3S LiPo / 6.5T 540

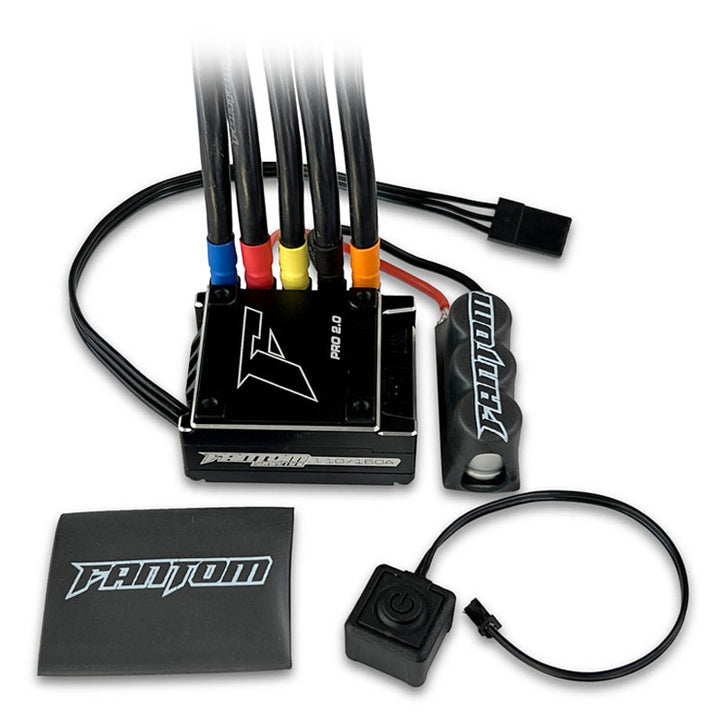

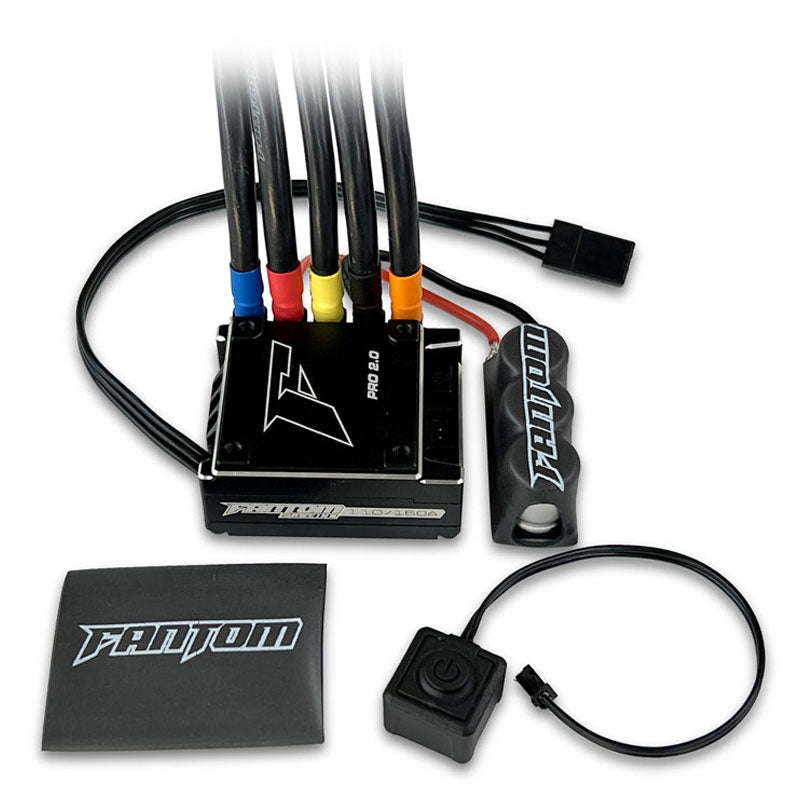

INCLUDED IN BOX:
- FR-10 2.0 PRO ESC
- 2 x 165mm Input Wires – 11awg / 2,303 strand super-flex high performance wire (pre-soldered on ESC)
- 3 x 165mm Output Wires – 11awg / 2,303 strand super-flex high performance wire (pre-soldered on ESC)
- 3 Integrated Max Power Capacitors
- Shrink Tube w/ Fantom logo
- All 2-cell and 3-cell, spec and modified motor racing applications (see motor limits above).
PROGRAMMABLE PARAMETERS: UPDATED PARAMETER INFO COMING SOON
- RUNNING MODE – Forward/Brake, Forward/Brake/Reverse, Forward/Reverse
- LOW VOLTAGE CUTOFF – Disable, Auto, custom 3.0v to 11.1v (0.1v increments)
- ESC OVER-HEAT PROTECTION – Disable, 3 steps
- MOTOR ROTATION – Normal, Reverse
- DEADBAND – 12 steps
- BEC OUTPUT – 6v, 7.4v
- INITIAL POWER LIMITER – 30 steps
- THROTTLE RATE – 30 steps
- DRIVE FREQUENCY – 1K, 2K, 4K, 8K, 16K
- RPM LOCK – 1% to 100% (1% increments)
- THROTTLE CURVE – Linear, Custom
- INITIAL BRAKE – 1% to 20% (1% increments)
- DRAG BRAKE – 0% to 100% (1% increments)
- BRAKE FORCE – 0% to 100% (12.5% increments)
- INITIAL BRAKE RESPONSE – 20 steps
- BRAKE RATE – 20 steps
- BRAKE FREQUENCY – 1K, 2K, 4K, 8K, 16K
- BRAKE CURVE – Linear, Custom
- BOOST TIMING – 0° to 64° (1° increment)
- BOOST TRIGGER LEVEL – 50 steps
- BOOST TRIGGER RATE – 10 steps
- TURBO TIMING – 0° to 64° (1° increment)
- START RPM – 8,000 RPM to 50,000 RPM (1000 RPM increments)
- TURBO DELAY – Instant, 0.05 seconds to 1 second (.05 second increments)
- ACTIVATION METHOD – Full Throttle, RPM, Full Throttle + RPM
- TURBO ON RATE – 10 steps
- TURBO OFF RATE – Instant, 10 steps
- MINIMUM BATTERY VOLTAGE
- MAX ESC TEMP
- MAX MOTOR RPM
