EZRUN Mini28 ESC & 1626 SD Motor Combo

Hobbywing SKU: 2990000184580
EZRUN Mini28 ESC & 1626 SD Motor Combo
EZRUN Mini28 ESC & 1626 SD Motor Combo
EZRUN Mini28 ESC & 1626 SD Motor Combo
EZRUN Mini28 ESC & 1626 SD Motor Combo
EZRUN Mini28 ESC & 1626 SD Motor Combo
EZRUN Mini28 ESC & 1626 SD Motor Combo

EZRUN Mini28 ESC & 1626 SD Motor Combo

Hobbywing SKU: 2990000184580
Title
Regular price $184.00 Sale price $129.99 Save $54.01
/
  • Secure payments
  • Low stock - 1 left
  • Inventory on the way
Shipping calculated at checkout.

MPN: 38020367 UPC: EAN:


Features:

  • Improved top speed / Precision response / High efficiency with the cool operation
  • When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
  • Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and driveability
  • Modular detachable structure, convenient for daily cleaning and maintenance.

ESC Specifications:

  • Part number: 30101300
  • Technology: Brushless Sensored
  • Waterproof: No
  • Cont./Peak Current: 30A/80A
  • Input Voltage: 2S Lipo
  • BEC Output: 6V/7.4V @Max 3.5A
  • Wires & Connectors: Input Wires: 20AWG-55mm *
  • Output Wires: 22AWG-80mm *
  • Size & Weight: 22.7x14.2x11.8mm | 5g (without wires)
  • Applications: Motor: 1626 Size Motors; Vehicle: 1/28th and 1/27th
  • ESC Programming: LCD G2 Program Box, OTA Programmer, Throttle Wire
  • Firmware Upgrade: Supported

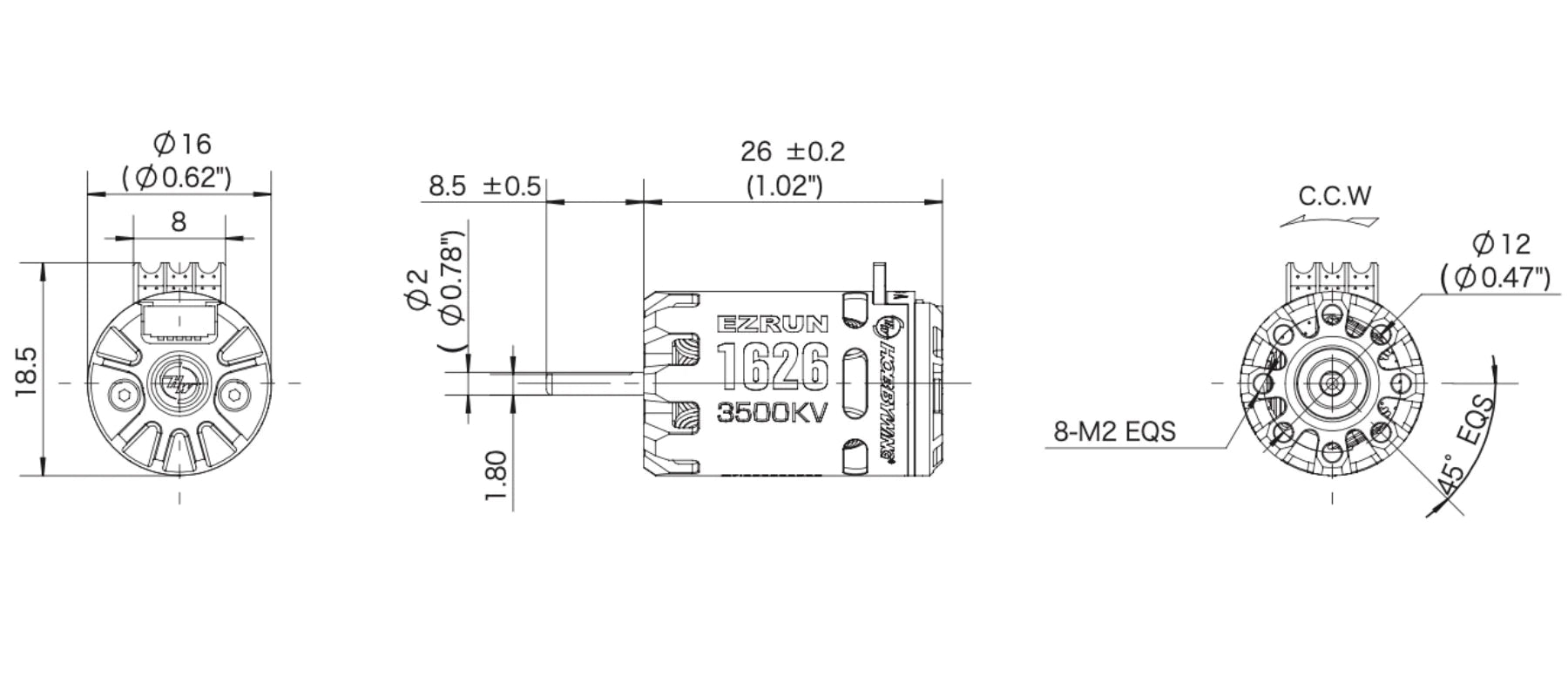

Motor Specifications:

  • Model: Ezrun 1626-3500KV (30402653) or Ezrun 1626-6500KV (30402655)
  • Pole: 2
  • KV: 3500KV, 6500KV
  • No-load Current(A): 0.4A
  • Input Voltage: 2S
  • Diameter/ Length(mm): 16
  • Shaft Diameter/ Length (mm): 26
  • Applications: 1/28th Mini
  • Weight: 18g



EZRUN Mini28 ESC & 1626 SD Motor Comb ESC Manual

ESC Manual



EZRUN Mini28 ESC & 1626 SD Motor Combo Motor Manual

Motor Manual
