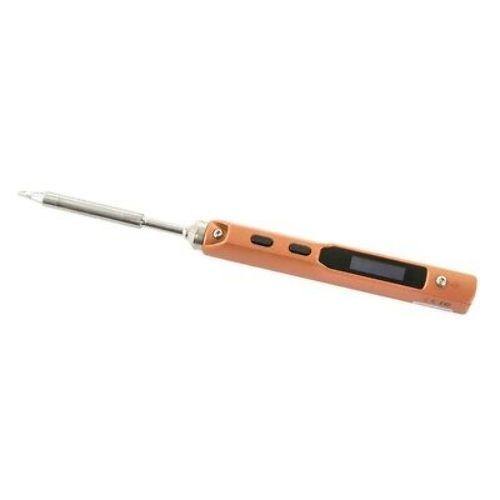

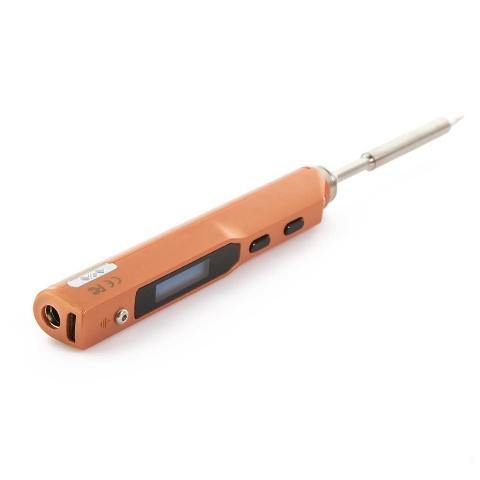

ExcelRC Miniware TS100(Golden) Soldering Iron

TS100 employs 304 stainless steel nested shell of Polycarbonate plastic. It is designed with safety circuit and anti-static structure, integrated with DC5525 12-24V port, dual-temperature sensors and accelerated sensors with STM32 chip. Under these functionalities, temperature can be controlled accurately, stably and easily adjusted from 100°C to 400°C, and the TS100 also has sleep mode and automatic over-heating warning.

Soldering tip heating end: built-in heating core, pocket-size making it more convenient. Four replaceable tip types meet your different needs.

External power supply: DC5525 power port is compatible with DC 12-24V Laptop AC Adapter/Power Bank/Car Power. Micro USB port interface: Set up config files to design your own temperature rising curves and custom functions. Additional function: Open-source application layer.

Main parameters: Power 65W Temperature stability ±2% Soldering tip resistance to ground <2? Temperature Range 100? - 400?(max) Max operation ambient temperature 40°C

Product Includes:

TS100 Soldering Controler

TS-S15 Ground Lead

M Stand

Hex Wrench with Screws

Safety Instructions.

This does not include a soldering tip, these are sold separately.
