MPN: EX-1410-95-V2
UPC:
EAN:

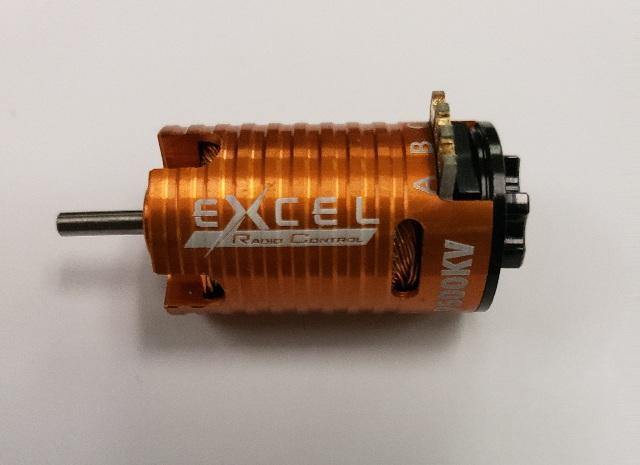

ExcelRC Brushless Mini 1410 Motor
For Kyosho Mr03 Pro Atomic DRZ 1/24 1/28 1/32 RC Mini-Z Drift Car
Features:
- 2 Pole 3 Slot Hi-torque Motor Design
- High Purity Copper Windings Maximizes Efficiency
- High RPM ABEC5 Oversized Bearings
- Universal Fit, all 1/24,1/28 Scale Brushless Cars with M2 Mounting Screws
- Precision Balanced Rotor for Smooth Reliability and Maximum RPM
- CNC Machined 6061-T6 Billet Aluminum Heatsink Can
Specifications:
Motor Size: 1410
Height: 15mm
Length: 25mm
Weight: 12.5g
|
KVÂ RMP/Volt |
Watts |
Max Voltage |
Max Amps |
Rotor Poles |
IO | Resistance | Max RPM |
Weight (g) |
Length of Shaft |
Color |
| 3500 | 80 | <8.4V | 9A | 2 | .25A | 1.00 | 60000 | 12.5 | 2mm | Red |
| 5500 | 80 | <8.4V | 10A | 2 | .50A | 0.25 | 60000 | 12.5 | 2mm | Green |
| 7500 | 80 | <8.4V | 11A | 2 | .60A | 0.14 | 60000 | 12.5 | 2mm | Silver |
| 9500 | 80 | <6.0V | 12A | 2 | .80A | 0.10 | 60000 | 12.5 | 2mm | Orange |
