Description:

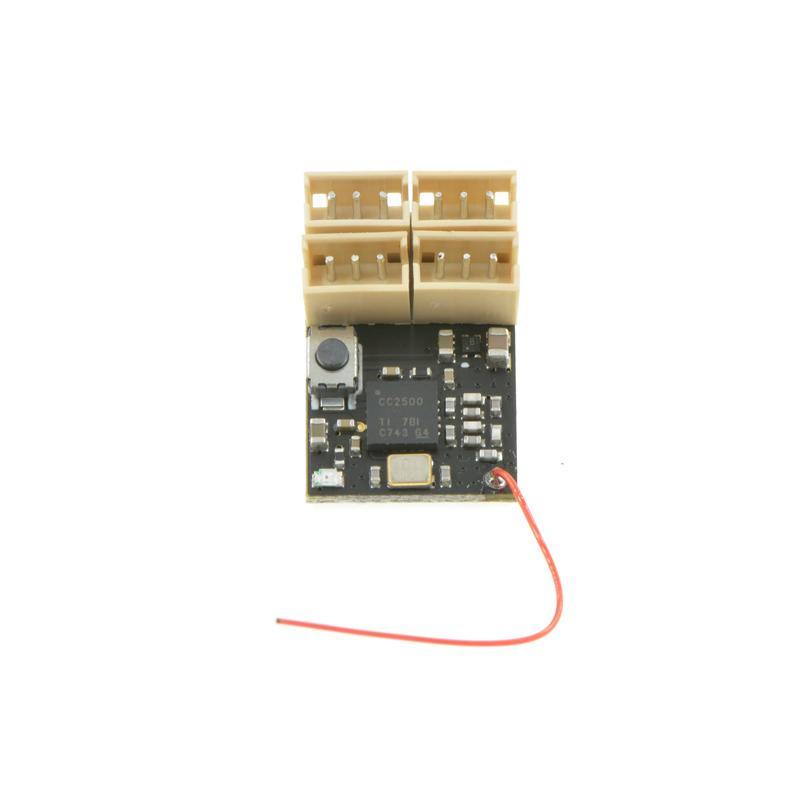

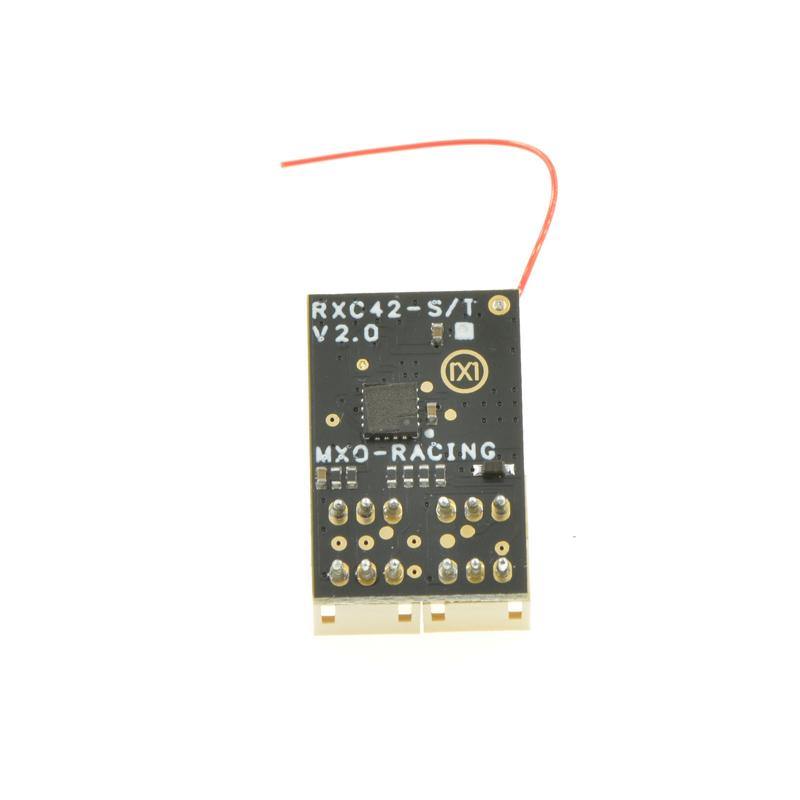

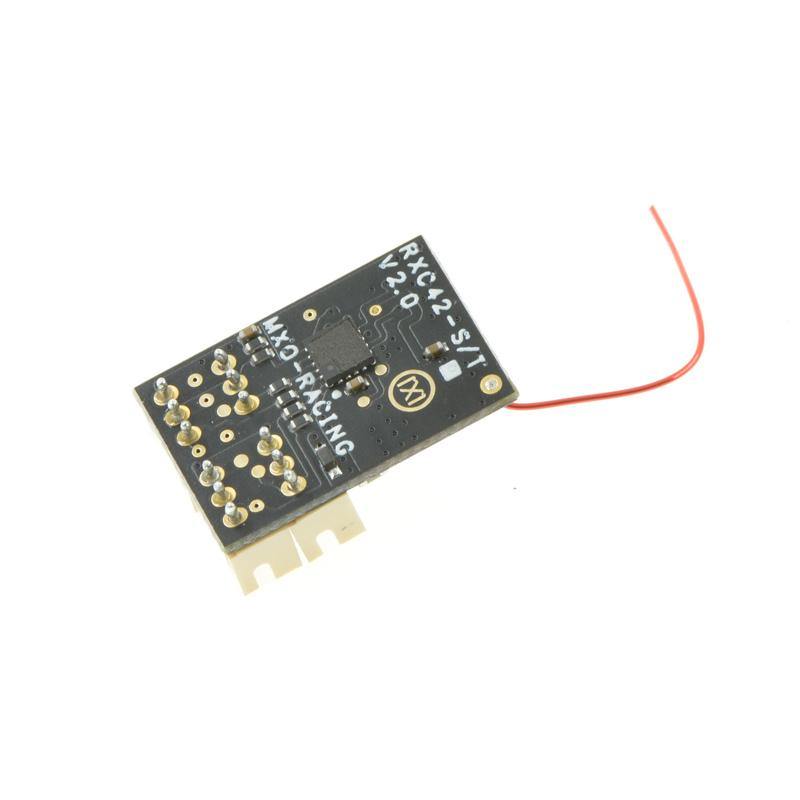

This RC receiver unit is Futaba S-FHSS compatible. It offers full 4-channel support in ultra-light weight and micro size. It is ideal for micro racing cars.

Features:

1. Futaba 2.4GHz S-FHSS compatible
2. High performance CPU enhance precision control feeling
3. 4 channel support
4. Micro size (19mmx12mm)
5. Ideal for any micro rc racing chassis
6. Added failsafe function
7. Operating Voltage 3.7V - 8.4V:
8. Weight: 2g

Compatible Transmitters:

Futaba 7PX, 4PX, 4PV, 3PV......

Package Includes:

1 x Receiver
2 x 1.5mm 3P JST plug with cable

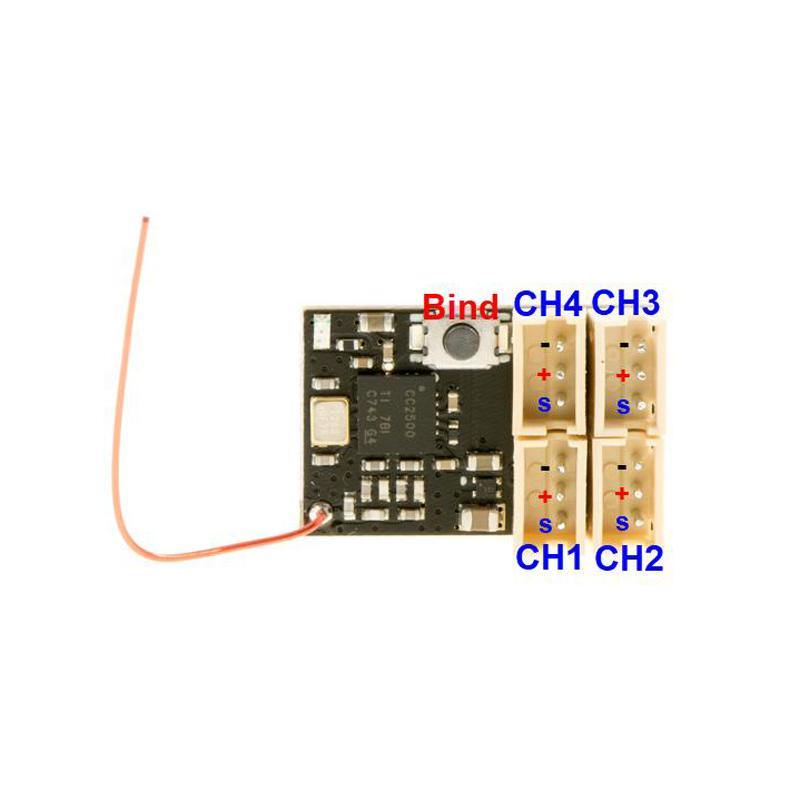

Bind and Failsafe:

Power on your transmitter and receiver. Adjust transmitter each channel to the exact position you want to have in failsafe mode.  Transmitter set to pair mode. Receiver led should be on. Long press the pair button.  After around 2 seconds the LED will turn to fast flashing first then turn to on status again.  Now the pairing is done and the failsafe data is saved. Power off the transmitter and receiver then power on again then the receiver will work.
