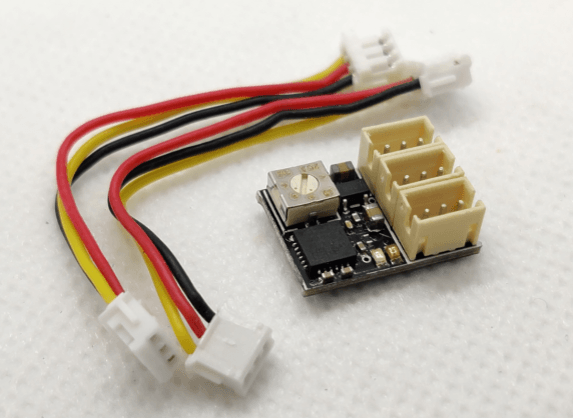

ExcelRC DasMikro DSK-145 Micro Gyro Board

This RC GYRO is designed for micro racing. It is a fast response gyro with high accuracy.



Features:

1. High performance CPU enhance precision control feeling

2. Micro size (15x12x6mm)

7. Operating Voltage 4.7V - 7.4V:

8. Weight: 2g

Instruction:

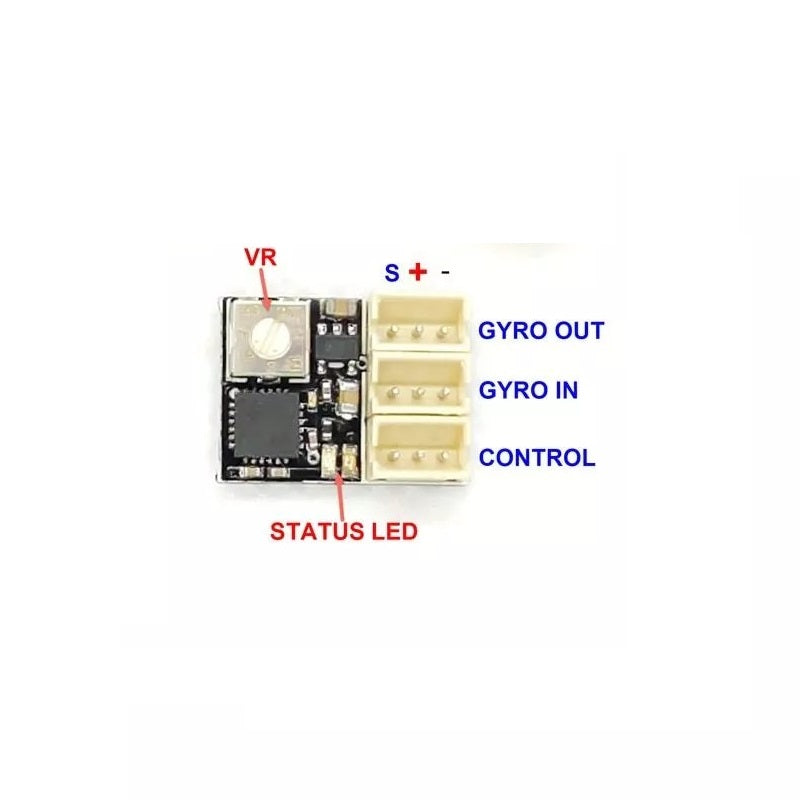

GYRO IN:  Connect steering channel  from receiver

GYRO OUT: Connect steering servo

CONTROL:  Connect CH3/CH4 from receiver or leave it not connected



When CONTROL is connected to receiver CH3/CH4, the gyro sensitivity is controlled by CH3/CH4 value which could be adjusted on the transmitter. When the VR is on the middle position, both LED are off. Turn the VR to left or right could change the servo forward or reverse status.



When CONTROL is not connected, the gyro sensitivity is controlled by the VR. When the VR is on the middle position, both LED are off. Turn the VR from middle position to left, the red LED will flash. The servo is in forward status and the gyro sensitivity is controlled by VR position. Turn the VR from middle position to right, the blue LED will flash. The servo is in reverse status and the gyro sensitivity is controlled by VR position.
