DJI Focus Remote controller
GENERAL
| Operating Frequency | 2.415-2.473 GHz |
| Max. Transmission Distance | 100 m (out and unobstructed) |
| Transmitter Power | 14 dBm |
| Operating Temperature Range | -20° to 55? |

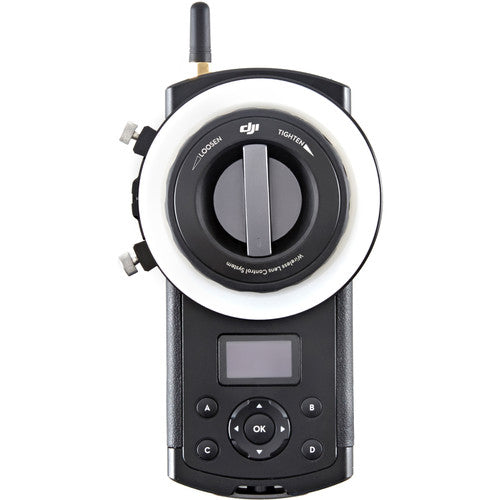

REMOTE CONTROLLER
| Weight | 745 g |
| Dimensions | 153*86*90 mm |
| Battery | - Model: FB01-554461
- Type: LiPo
- Capacity: 1700 mAh,6.29 Wh
- Voltage: 3.7 V
|

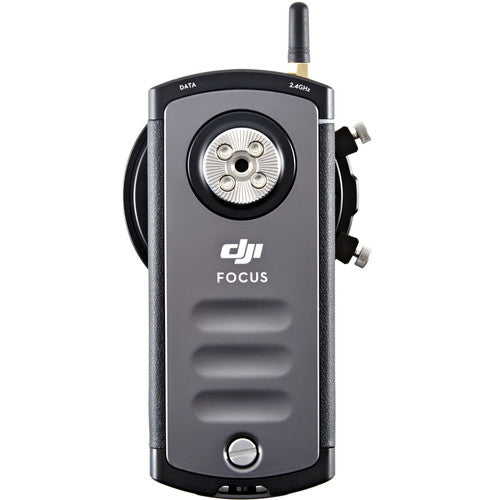

MOTOR
| Weight | 170 g |
| Dimensions | 90*50*26 mm |
| Max. Torque | 0.35 Nm |
| Max. Speed | 192 rpm |
| Working Current | - Static current: 80 mA (@12 V)
- Stall current: 2 A (@12 V)
|
| Working Voltage | 9-16 V |
| Noise | <25 dB (@96 rpm) |
| Rob Clamp Inner Diameter | 19 mm or 15 mm |
| Gear | Teeth: 40, Module: 0.8 |
LENS GEAR RING
| Teeth | 105 |
| Module | 0.8 |
| Diameter | 60 mm, 70 mm, 80 mm, 90 mm |
