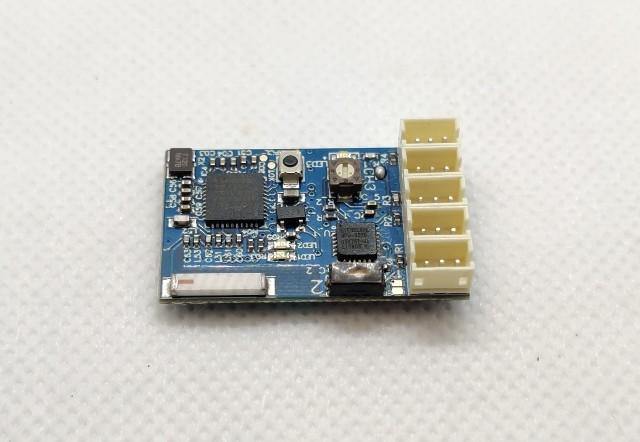

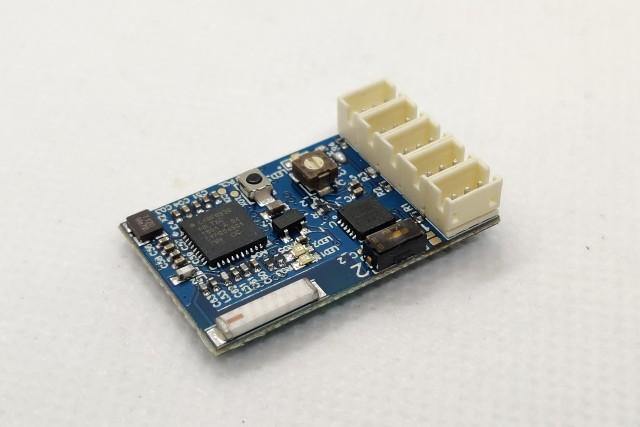

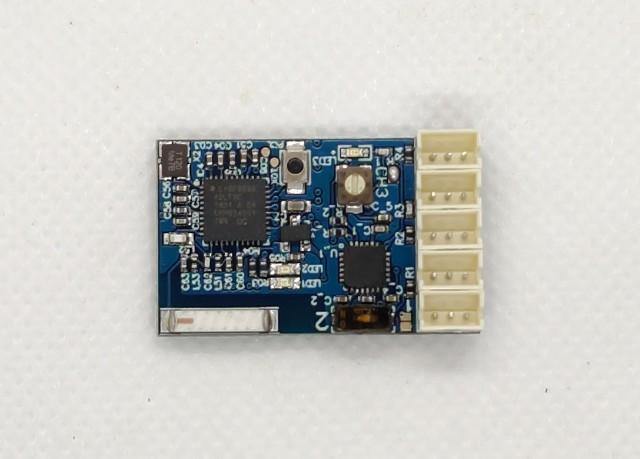

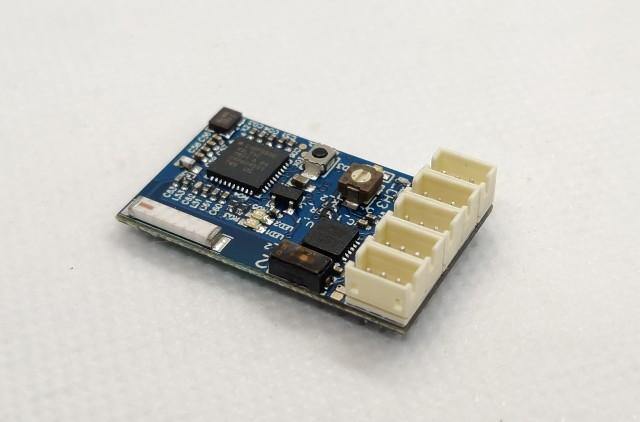

DasMikro DSK-141 Sanwa Micro 4 Channel Gyro System Receiver
Description:
This RC receiver unit is Sanwa FHSS-4 and FHSS-3 compatible. It offers full 4-channel support in ultra-light weight and micro size and it is integrated a YOKOMO GRYO system.
Features:
- Sanwa 2.4GHz FH3/FH4 Selectable Via Transmitter
- High performance CPU enhance precision control feeling
- 4 channel support
- YOKOMO GYRO system integrated
- Micro size (36x15x7mm)
- Added failsafe function
- Operating Voltage 4.2V - 7.4V:
- Weight: 3g
Compatible Transmitters:
Sanwa M17 Sanwa M12S Sanwa M12 Sanwa MT44 Sanwa MT4S Sanwa M11X Sanwa MT-S
Package Includes:
1 x Receiver
4 x 1.5mm 3P JST plug with high quality silicon cable
Instructions:

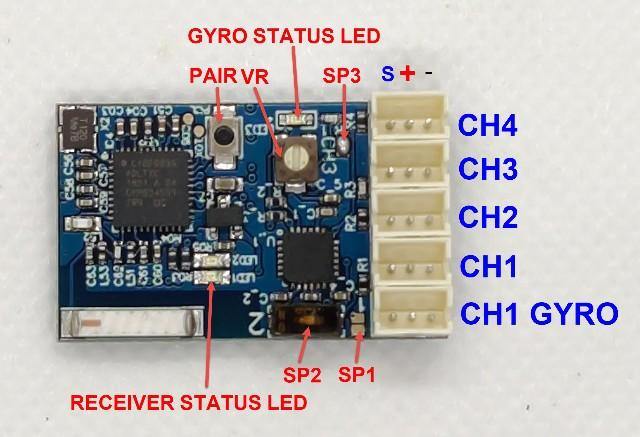

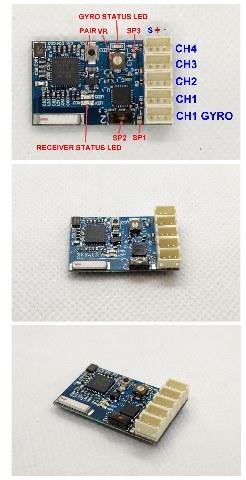

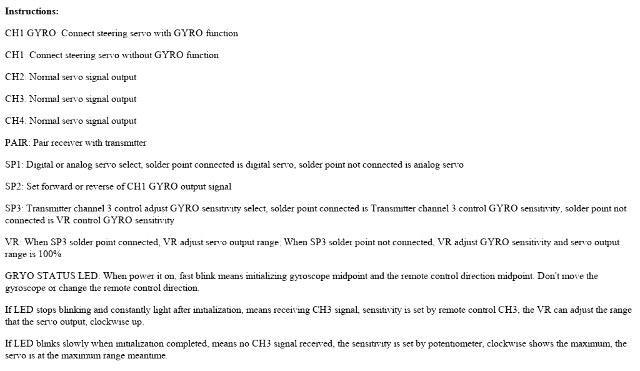

CH1 GYRO: Connect steering servo with GYRO function
CH1: Connect steering servo without GYRO function
CH2: Normal servo signal output
CH3: Normal servo signal output
CH4: Normal servo signal output
PAIR: Pair receiver with transmitter
SP1: Digital or analog servo select, solder point connected is digital servo, solder point not connected is analog servo
SP2: Set forward or reverse of CH1 GYRO output signal
SP3: Transmitter channel 3 control adjust GYRO sensitivity select, solder point connected is Transmitter channel 3 control GYRO sensitivity, solder point not connected is VR control GYRO sensitivity
VR: When SP3 solder point connected, VR adjust servo output range; When SP3 solder point not connected, VR adjust GYRO sensitivity and servo output range is 100%
GRYO STATUS LED: When power it on, fast blink means initializing gyroscope midpoint and the remote control direction midpoint. Don't move the gyroscope or change the remote control direction. If LED stops blinking and constantly light after initialization, means receiving CH3 signal, sensitivity is set by remote control CH3, the VR can adjust the range that the servo output, clockwise up. If LED blinks slowly when initialization completed, means no CH3 signal received, the sensitivity is set by potentiometer, clockwise shows the maximum, the servo is at the maximum range meantime.
