MPN: DSK-131
UPC:
EAN:
Description:

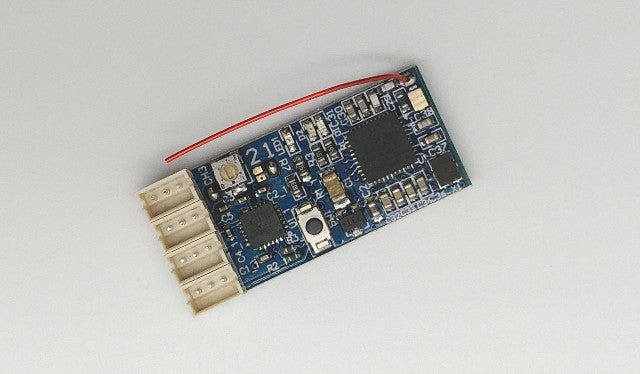

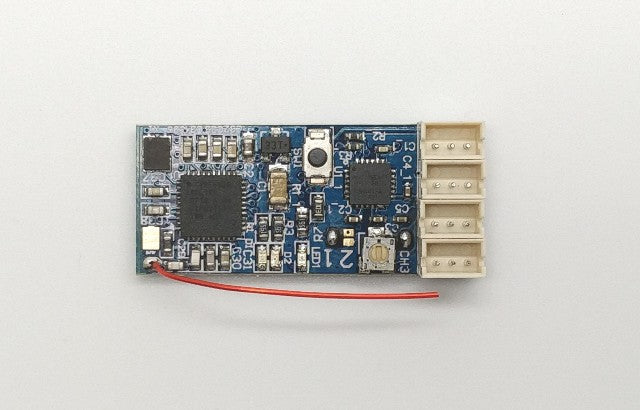

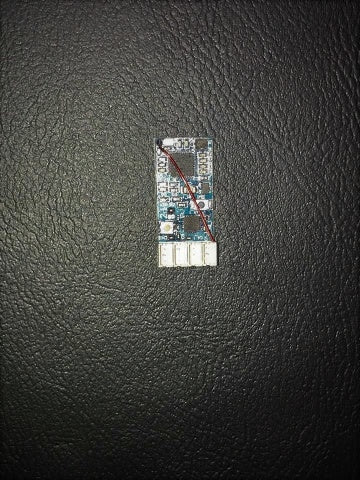

This module is designed for Mini-Z ASF 2.4Ghz (901/902SM/EX-1/EX-6/EX-6R).
It supports the Ultra Response mode of KO Propo EX-1 UR and KO Propo KIY Transmitters. It offers 3-channel support in a compact size and it is integrated a YOKOMO GRYO system.
Features:
- Dimensions: 34 x 14.5 x 7mm
- Weight: 3g
- Operating voltage: 4.2 to 7.4V
- Frequency: 2.4GHz (ASF)
- Number of channels: 3ch
- YOKOMO GYRO system integrated
Compatible Transmitters:
KYOSHO PERFEX KT-18
KO PROPO RF-901/RF-902SM
KO PROPO EX-1 ASF
KO PROPO EX-6
KO PROPO EX-6R
Package Included:

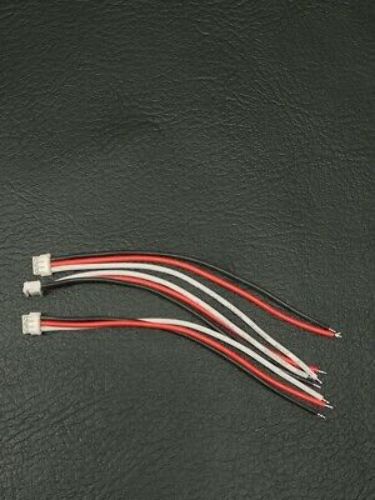

1 x Receiver
Wiring:
Instructions:

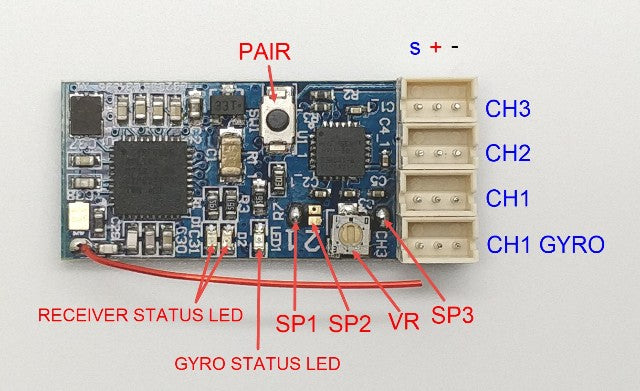

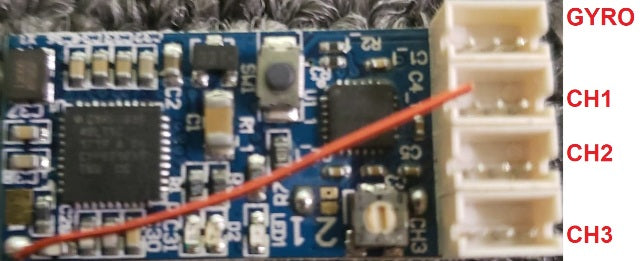

CH1 GYRO: Connect steering servo with GYRO function
CH1: Connect steering servo without GYRO function
CH2: Normal servo signal output
CH3: Normal servo signal output
PAIR: Pair receiver with transmitter
SP1: Digital or analog servo select, solder point connected is digital servo, solder point not connected is analog servo
SP2: Set forward or reverse of CH1 GYRO output signal
SP3: Transmitter channel 3 control adjust GYRO sensitivity select, solder point connected is Transmitter channel 3 control GYRO sensitivity, solder point not connected is VR control GYRO sensitivity
VR: When SP3 solder point connected, VR adjust servo output range; When SP3 solder point not connected, VR adjust GYRO sensitivity and servo output range is 100%
GRYO STATUS LED: When power it on, fast blink means initializing gyroscope midpoint and the remote control direction midpoint. Don't move the gyroscope or change the remote control direction. If LED stops blinking and constantly light after initialization, means receiving CH3 signal, sensitivity is set by remote control CH3, the VR can adjust the range that the servo output, clockwise up. If LED blinks slowly when initialization completed, means no CH3 signal received, the sensitivity is set by potentiometer, clockwise shows the maximum, the servo is at the maximum range meantime.
