MPN: DSK-124
UPC:
EAN:
DasMikro Kyosho MHS/ASF Compatible 2.4GHz Full Range RF TX Module
DasMikro KO PROPO MHS/ASF TX
Description:
This 2.4G RF TX module supports both the well-known Kyosho ASF system and Kyosho's innovative MHS (Mini-Z Hybrid Spread) system. This module is designed to convert any transmitters with PPM output to have the ability to connect Kyosho ASF/MHS micro racing cars. This is also a full range module allows you could control your ‘Mini-z’ cars in a 150M range in open space.
Features:

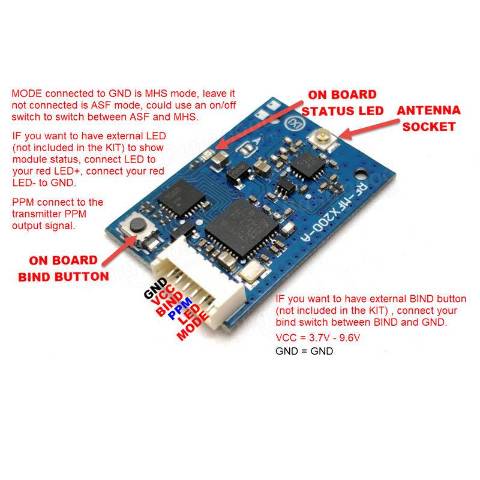

1. Kyosho 2.4GHz ASF/MHS Selectable on board
2. High-performance CPU enhance precision control feeling
3. 4 channel support
4. Micro size (30x20x5mm)
5. Ideal for converting any transmitter with PPM output
6. Operating Voltage 3.7V – 9.6V:
7. Weight: 10g

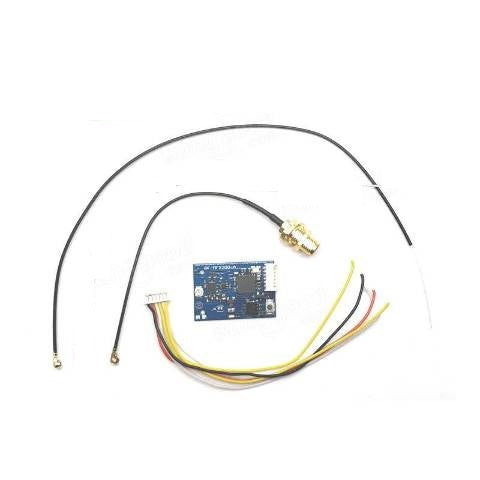

Package Includes:
1 x 2.4G ASF/MHS RF TX module
1 x 1.5mm 6P JST plug with cable
1 x 2.4G Antenna
1 x Module Antenna Adapter (For External Antenna)

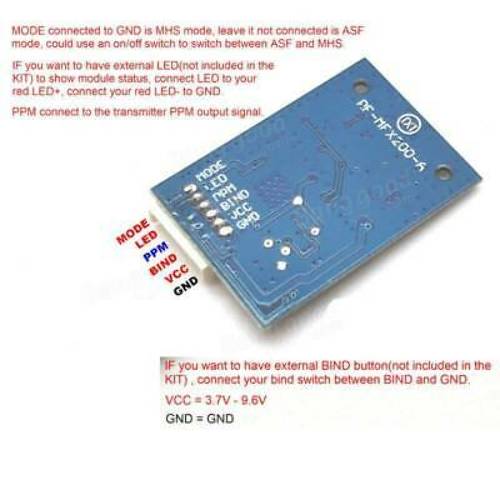

BIND:
Press the “BIND” Button and power on the RF module, it will enter BIND mode
Notice:
Make sure the antenna is connected before power on, power on without antenna connected may damage the PA unit.
Please note that there is some hand soldering on this unit. These contacts may appear different than other solder points.
