MPN: CAA11001
UPC:
EAN:

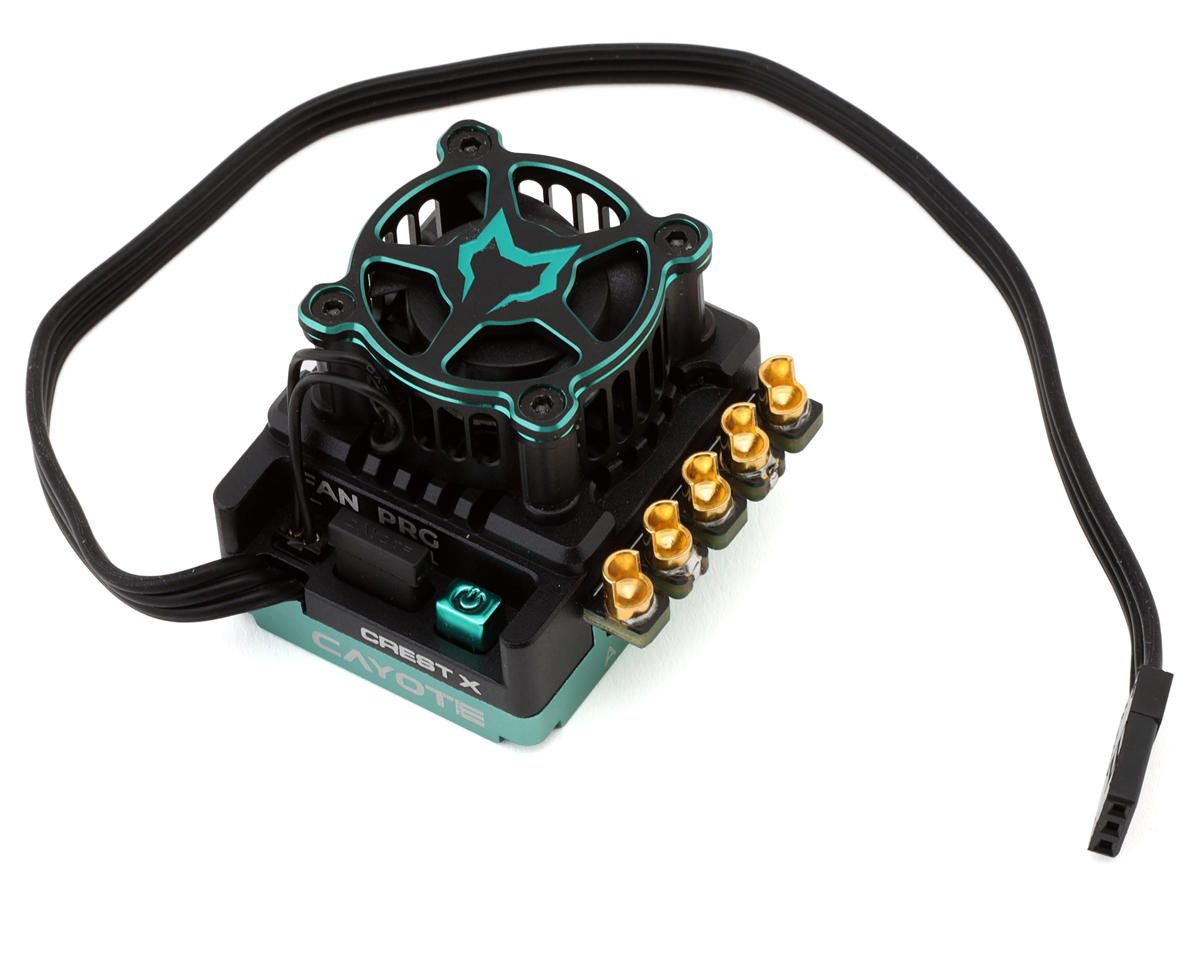

Cayote Crest X 1/10 160A Sensored Brushless Mod Competition ESC CAA11001
Advanced Boost & Turbo Timing
The Crest X ESC features a super large 48° boost and turbo timing, giving your RC vehicle increased power and improved efficiency. This feature ensures faster acceleration and top-speed potential, making it a top choice for competitive racing. The advanced timing system is optimized to provide smooth power delivery while maintaining motor longevity.
Comprehensive Data Tracking
With built-in offline data recording, users can track ESC performance and analyze key metrics to improve their driving strategy. This function allows racers to make precise adjustments based on real-time data, helping to optimize power output and battery usage. By reviewing recorded performance metrics using the Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately)*, users can fine-tune their setup for consistent and reliable results.
Customizable Power & Protection
Equipped with over thirty-three adjustable parameters, the Crest X ESC supports multiple power and drive modes to fit various racing needs. Additionally, its multiple protection functions such as low voltage protection and motor overheating safeguards help prevent damage and prolong the lifespan of your RC components. The built-in professional reversing shutdown enhances control, ensuring smooth and safe operation.
Features:
- Super large 48° boost and turbo timing
- Offline data recording for performance tracking
- Over thirty-three adjustable parameters
- Built-in super switching mode BEC
- Smooth and stable power delivery
- Professional reversing shutdown system
- Multiple protection functions
- Advanced cooling system for heat dissipation
- Lightweight and durable construction
- Optimized for competitive racing

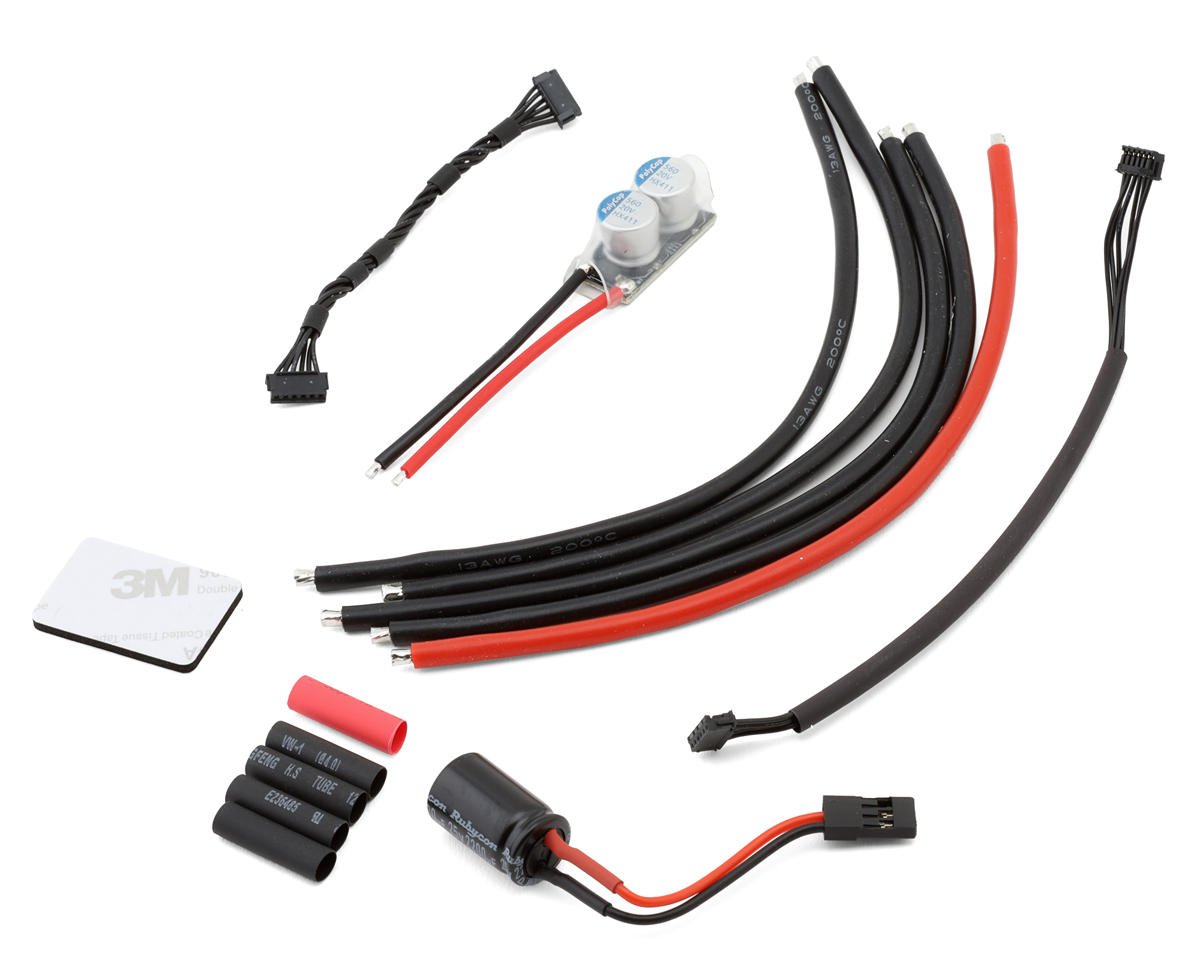

ncludes:
- (1) Crest X 1/10 160A Sensored Brushless Mod Competition ESC
- (1) Glitch Buster
- (1) Capacitor
- (2) Sensor Cables
- (4) Black 13AWG Wire Connectors
- (1) Red 13AWG Wire Connector
- (1) Heat Shrink Tube Set
- (1) Double-Sided Mounting Tape
- Instruction Manual
Specifications:
| Suggested Application | 1/10 Touring Cars & Off-Road Vehicles |
|---|---|
| Motor Type | Brushless - Sensored/Sensorless |
| Input Voltage | 2S LiPo (7.4V) |
| Continuous Current | 160A |
| Peak Current | 1100A |
| Dimensions (LxWxH) | 1.49x1.24x1.18in (37.9x31.4x30mm) |
| Weight | 1.94oz (55g) |
| Motor Limits: | |
| 1/10 Touring Car | >4.5T |
| 1/10 Off-Road | >5.5T |
| BEC Voltage | 6.0/7.4V |
| BEC Continuous Current | 5A |
| BEC Peak Current | 8A |
| Motor Connector | Solder |
| Battery Connector | Solder |
| Motor Wire | 13AWG |
| Battery Wire | 13AWG |
| Throttle Wire | - |
| Programmable | Yes, with Cayote Xlink Program Box* |
*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) is required to read the data. Optionally, you can also use the Cayote BTune 1/10 ESC Bluetooth Module (CYECBM01 - sold separately) to connect to the Cayote Team App and set the parameters and update the firmware.
