MPN: AR390139
UPC:
EAN: 5052127015035

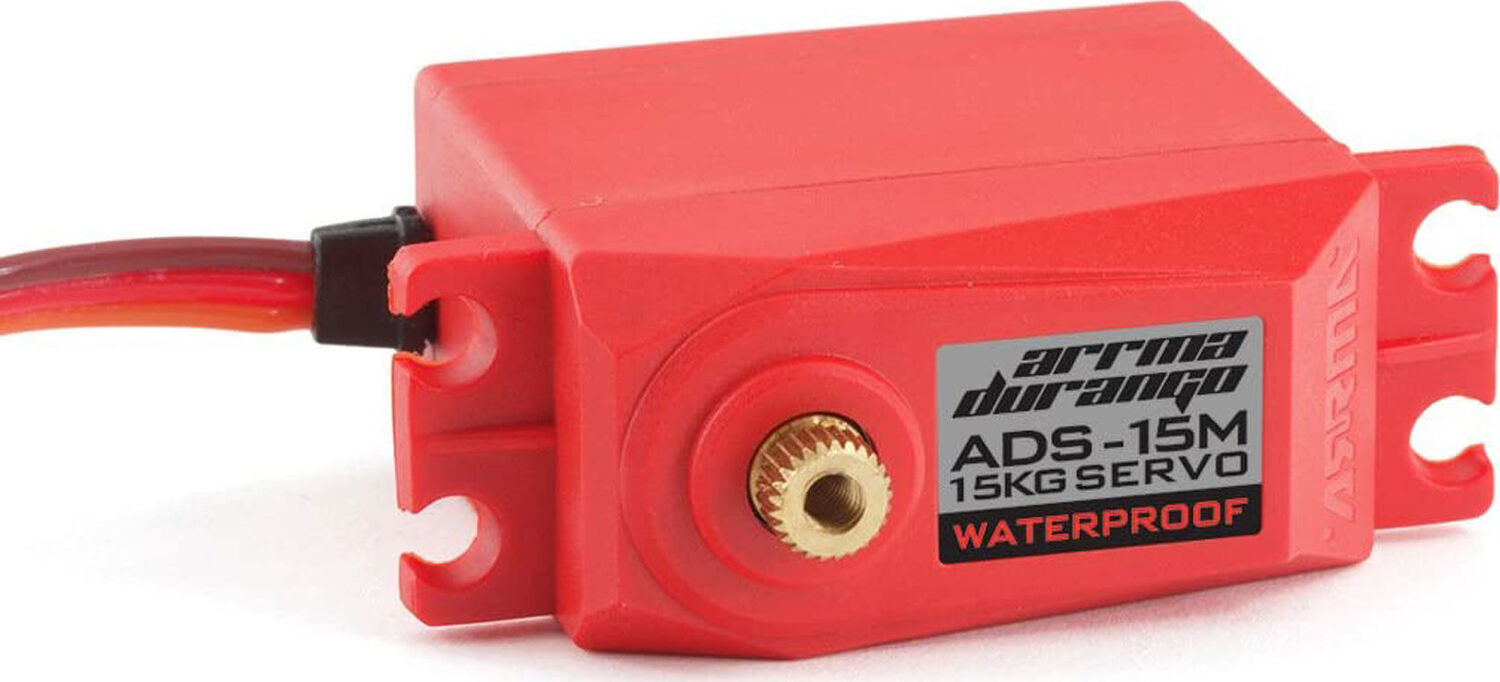

ARRMA ADS-15M V2 15kg Waterproof Servo Red
This is the Arrma ADS-15M Waterproof Metal Gear V2 Steering Servo.
FEATURES |
Dustproof and waterproof in normal usage when mounted to a vehicle
Ideal for use as a steering or throttle servo in 1/10 scale vehicles
used for backyard bashing
Dual ball bearings
Metal gears

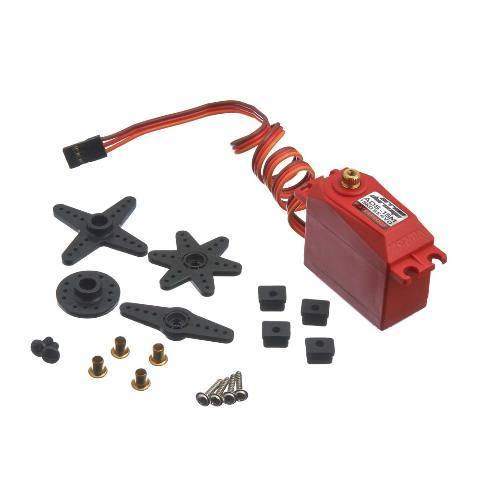

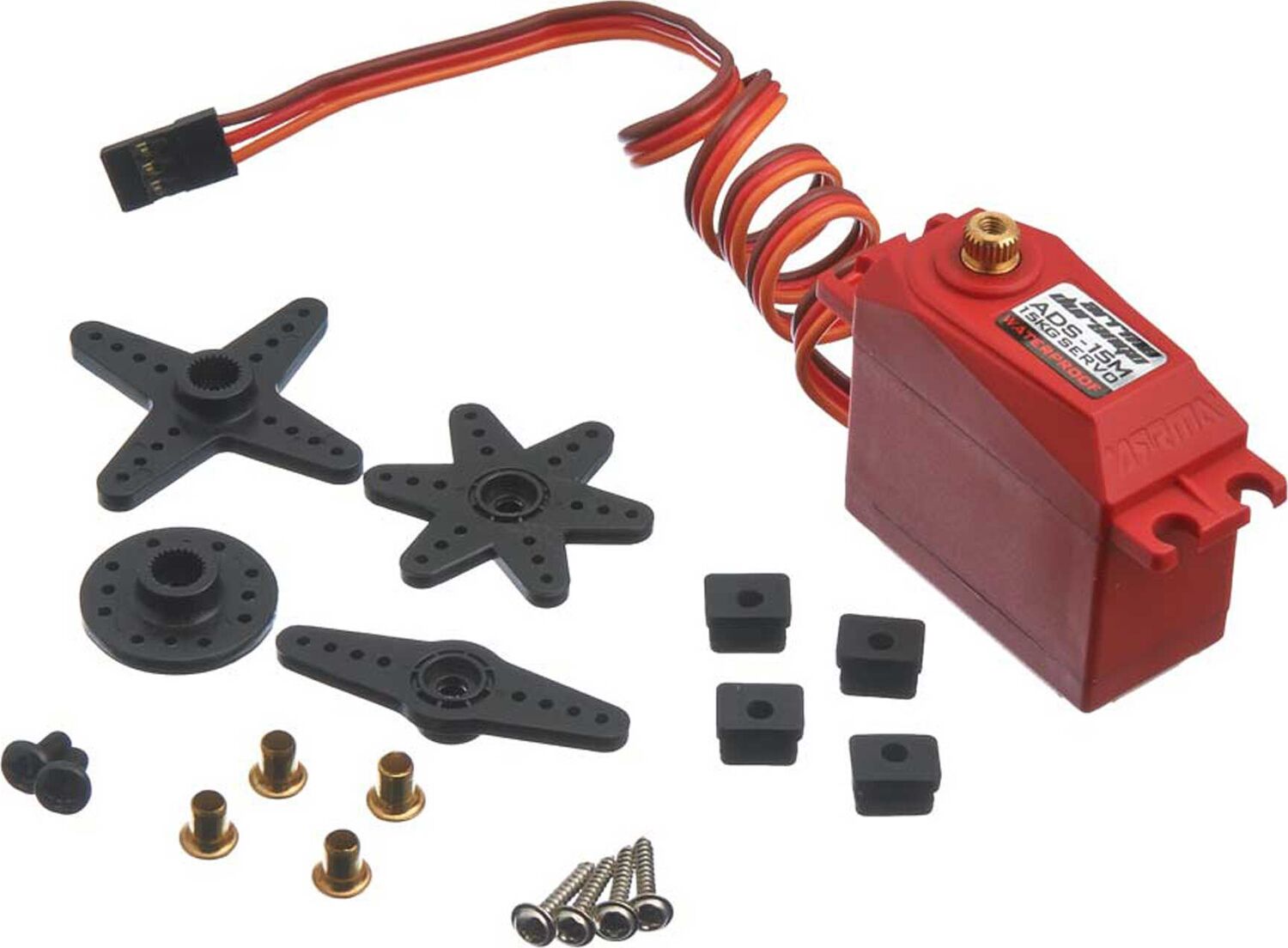

INCLUDES |
Arrma ADS-15M Servo with Futaba style Connector, 1.2" (32mm) diameter
6-Point Horn, 1.5" (39mm) diameter 4-Point Horn, 1.5" (39mm)
Double Arm Horn, 0.83" (21mm) Round Horn, four each Screws,
Grommets and Eyelets
SPECIFICATIONS |
Torque: 208 oz/in (15 kg/cm) @ 7.2V
4.8V 6V
Speed: 0.16 sec 0.14 sec
Dimensions: 1.6 x 1.5 x 0.79" (40 x 38 x 20mm)
Weight: 1.4oz (40g) without horn attached
Wire Length: 11.8" (300mm)
Signal: Analog
Spline: 25 tooth
