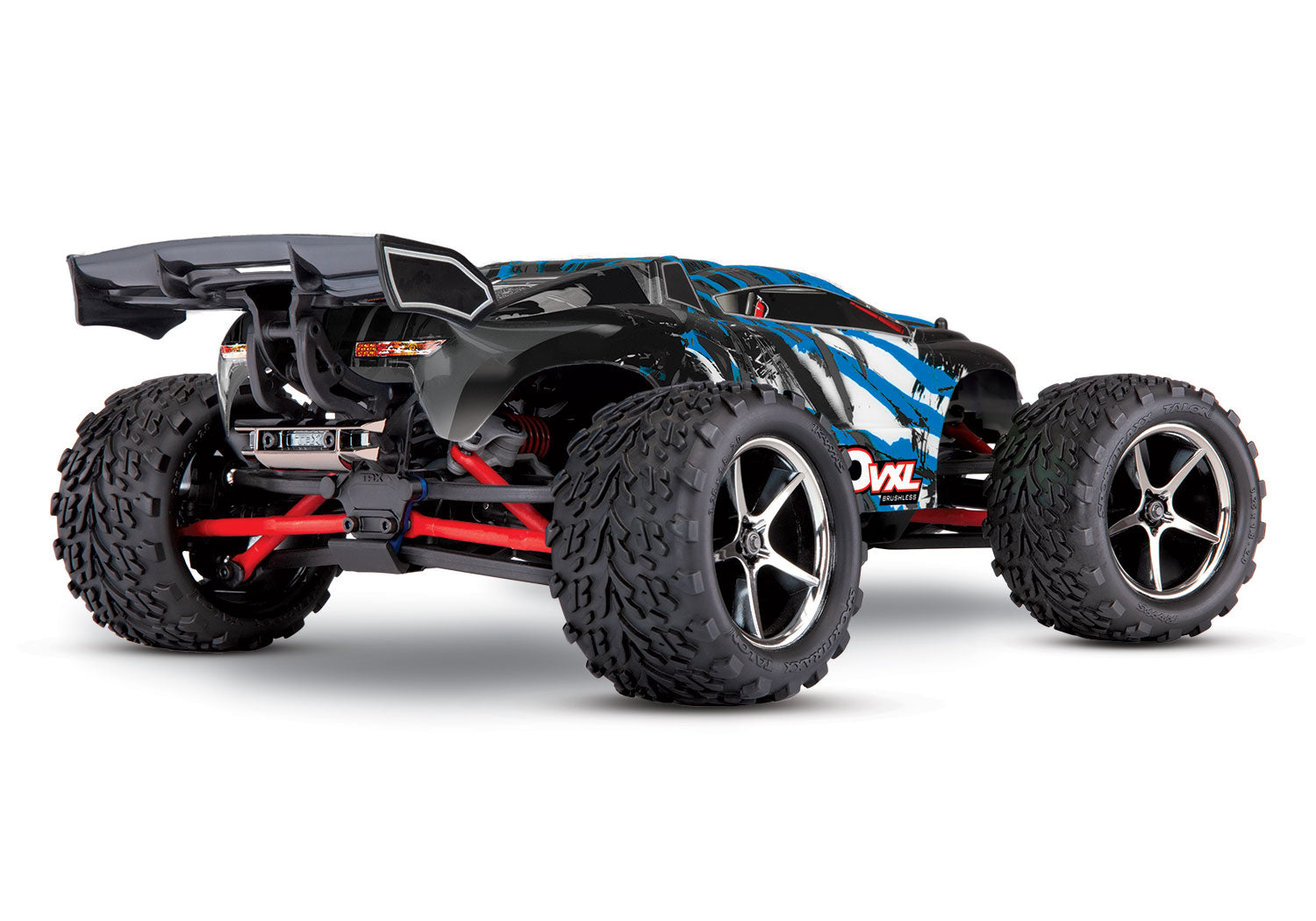

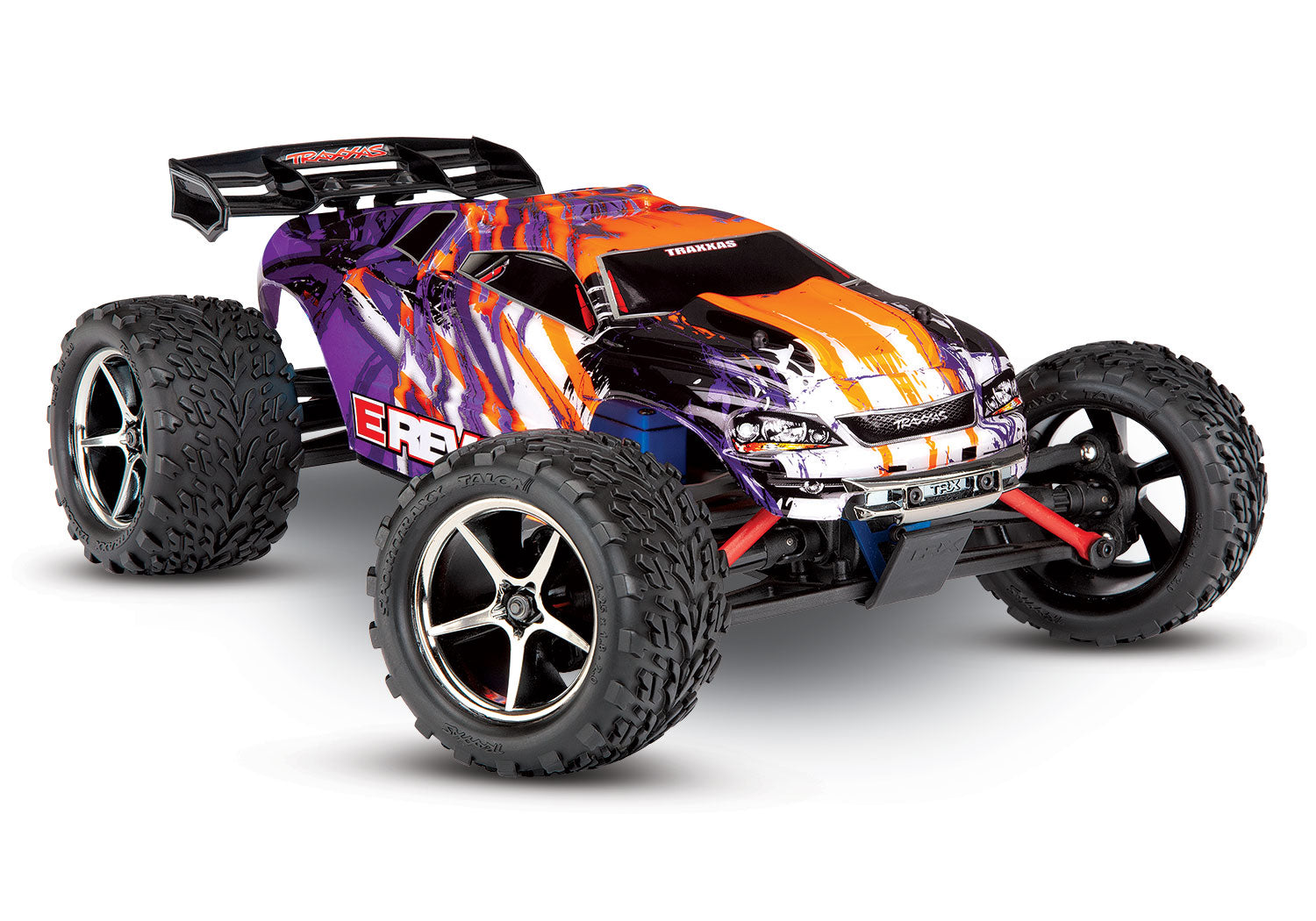

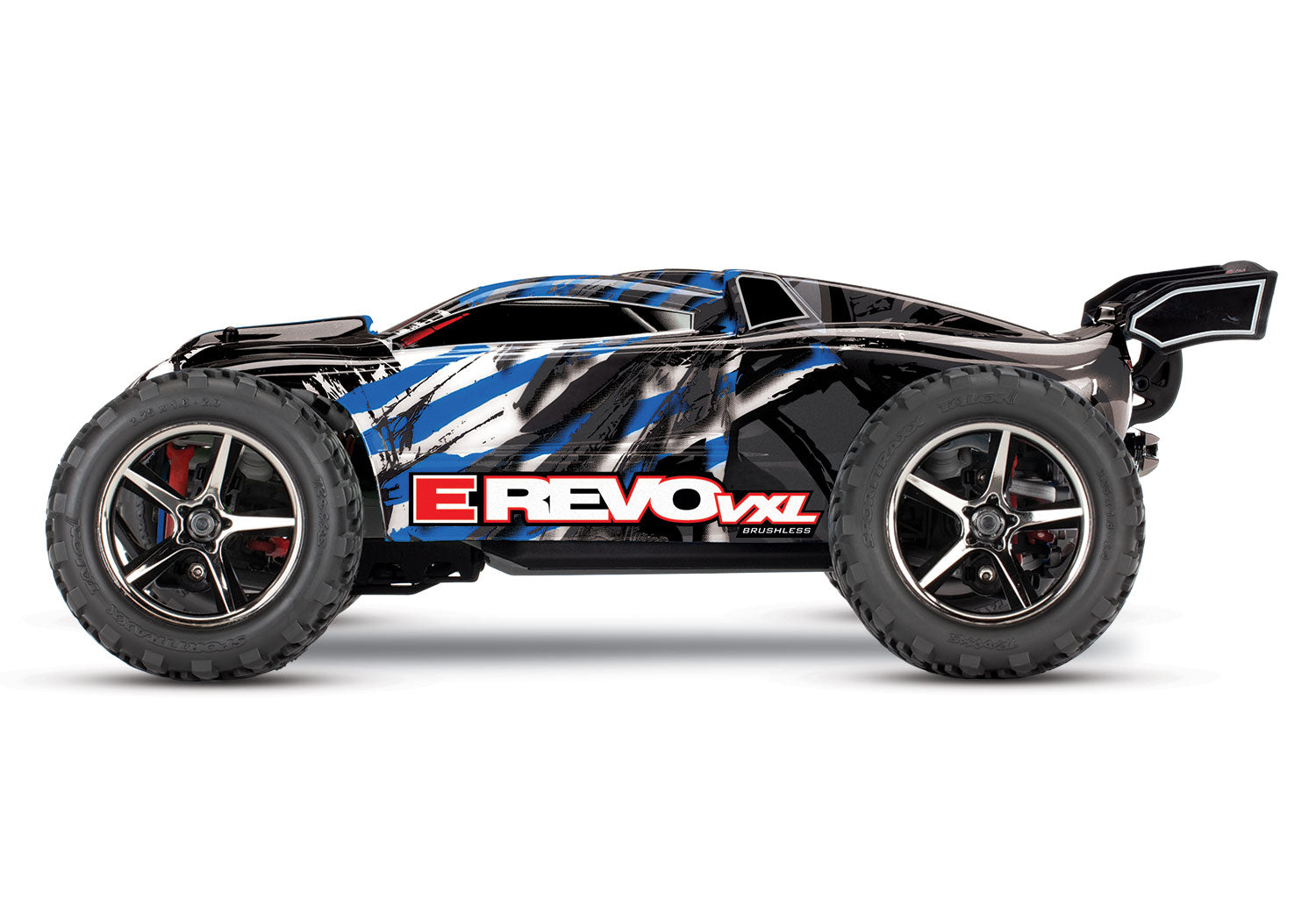

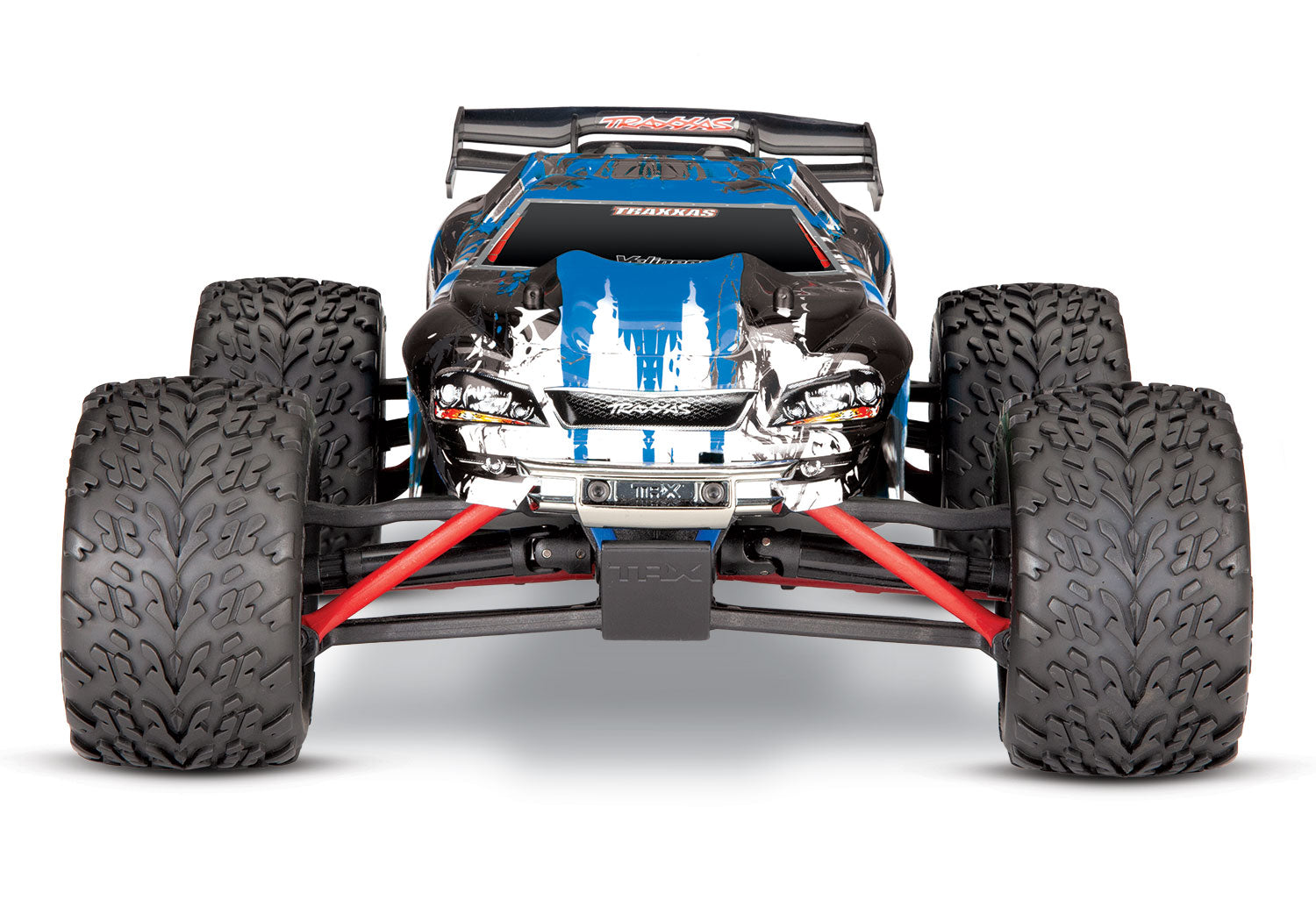

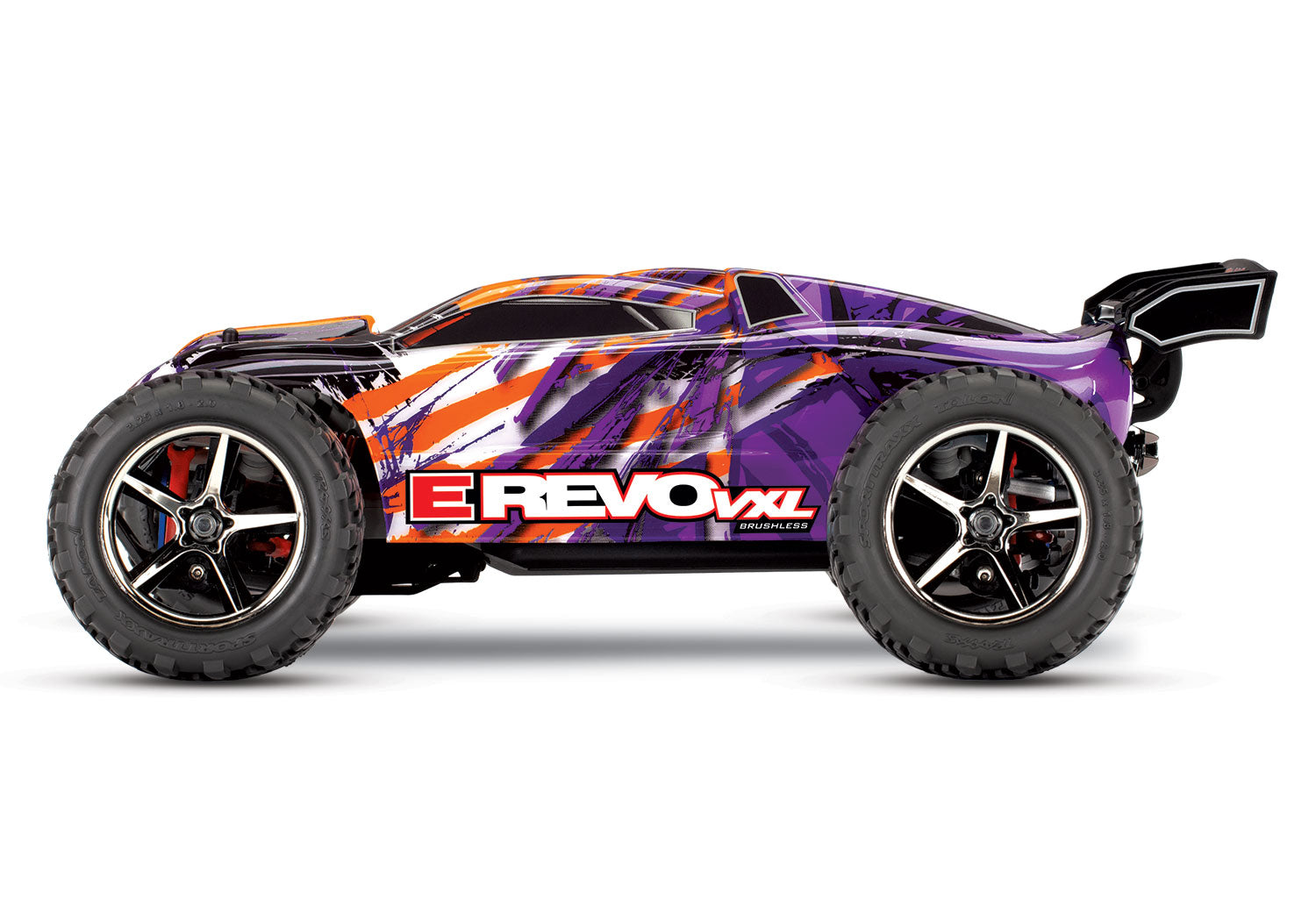

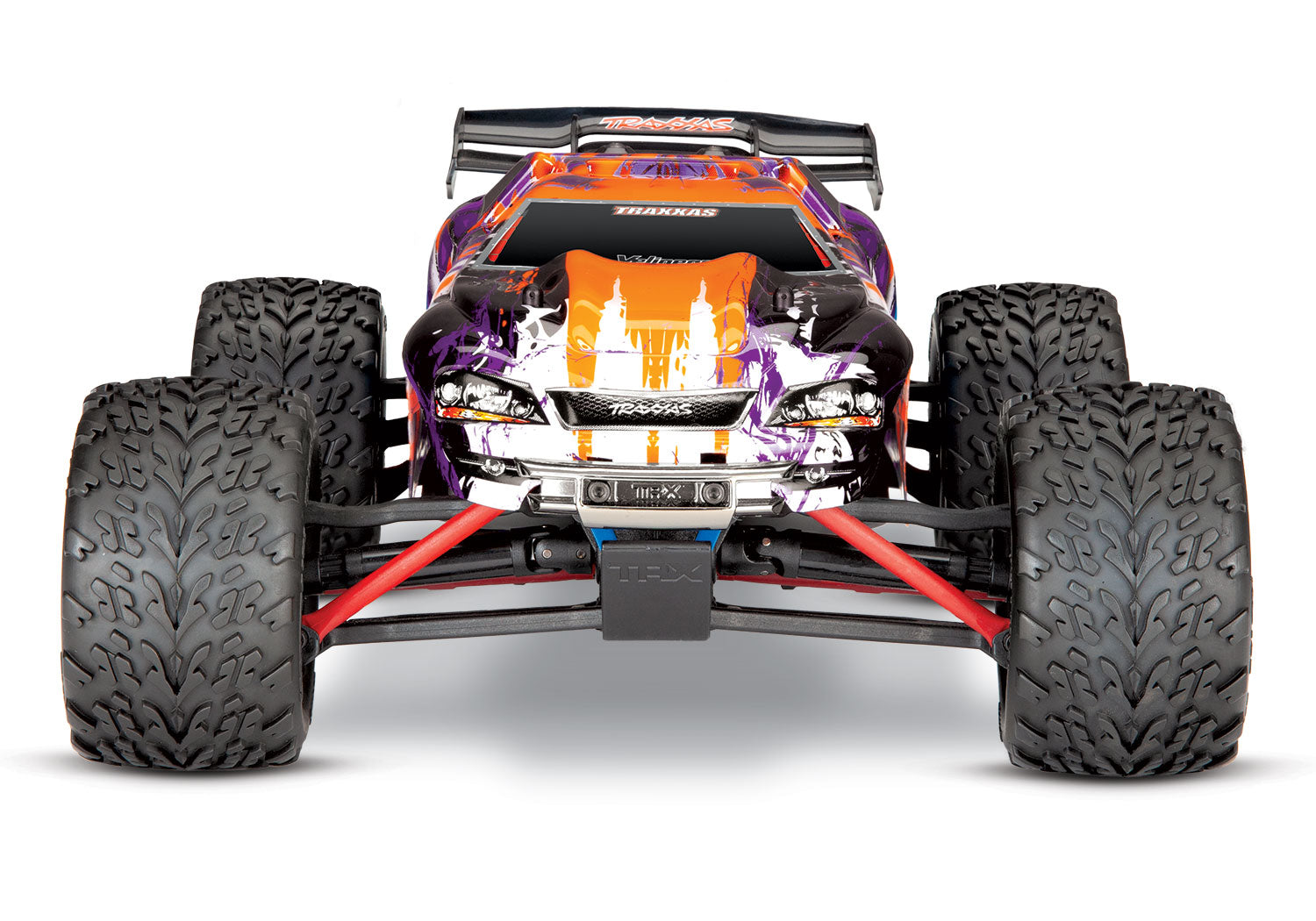

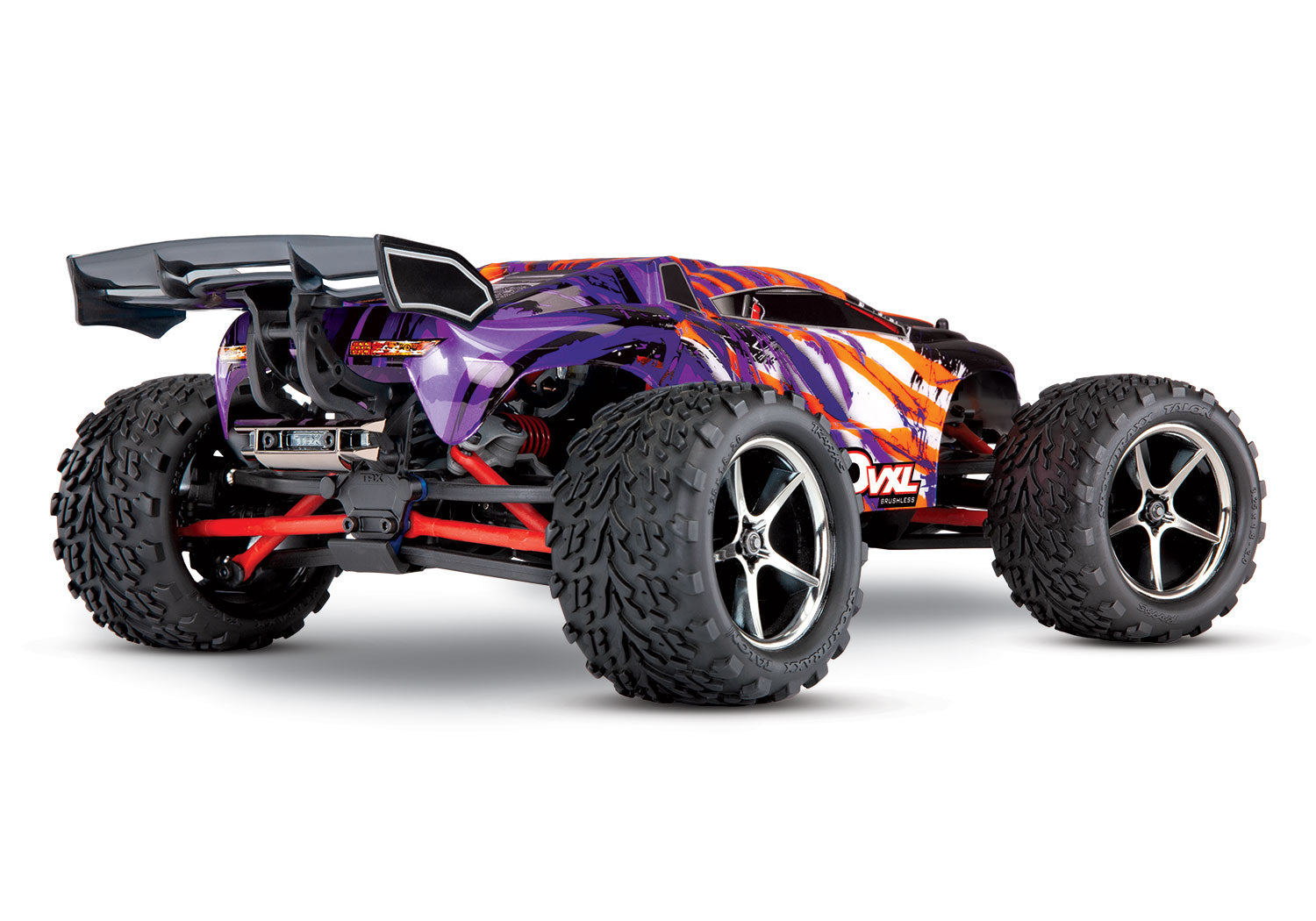

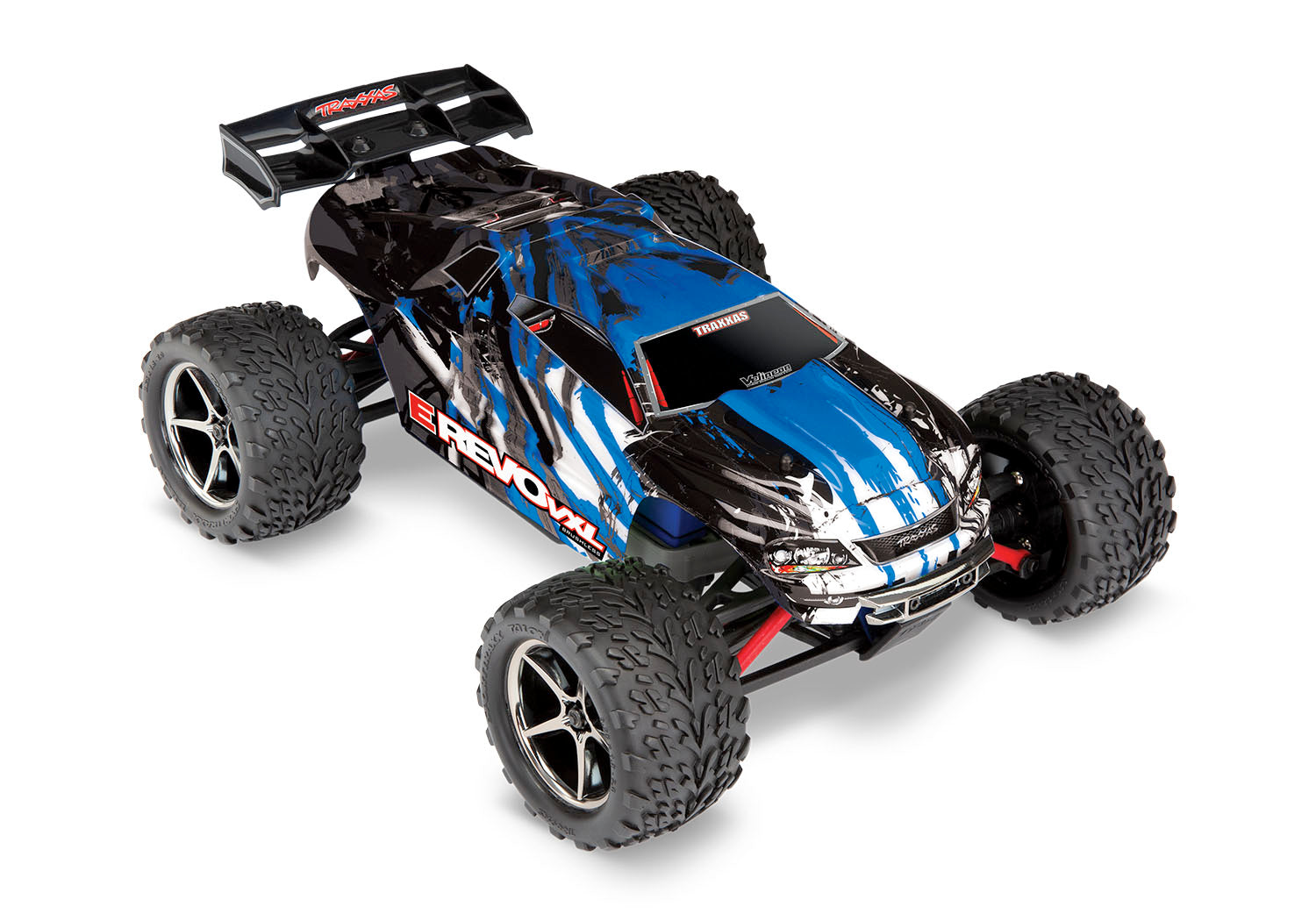

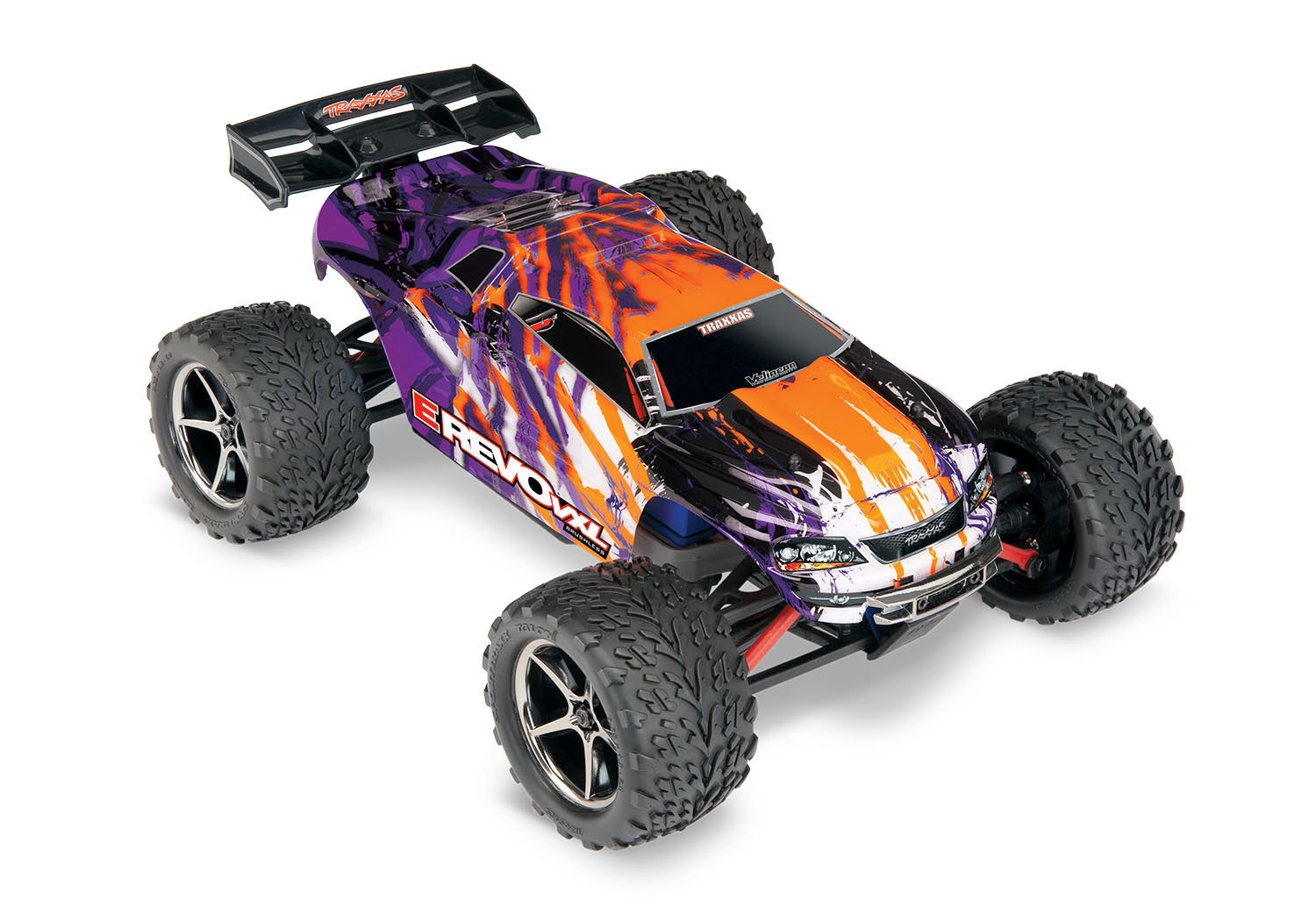

The E-Revo VXL is built on the race-winning, track-proven innovation of the Revo and E-Revo models. The Revo's rocker-actuated suspension has been expertly adapted to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. Intricately molded as a single piece, the monocoque chassis balances strength and weight to far surpass the standards of the "mini" category. In 1/16 scale, it is an even more impressive achievement of packaging and performance optimization that could only come from Traxxas, The Fastest Name In Radio Control®.
-
ProGraphix® Painted Body
- 1/16 Scale pre-painted body with applied decals
- High-downforce composite wing
-
Waterproof VXL-3m™ Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- High-capacity heat sink
- NiMH battery packs: 6-12 cells (7.2 to 14.4 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
-
Velineon® 380 Brushless Motor
- Powerful 8-turn, 4000 kV design
- Optimized for smooth sensorless power
- Ultra high-temperature sintered Neodymium motor magnets
- Gold-plated 3.5 mm bullet connectors
-
Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter
-
TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- Patented waterproof receiver box
-
Includes Battery and USB-C Charger
- 2-amp USB-C Fast Charger
- 1200 mAh Traxxas 6-cell 7.2 V NiMH battery with iD®
-
Fiber-Composite Monocoque Chassis
- Low-CG design for improved handling
- Tough skid plates for driveline protection
- All electronics securely fastened to chassis
-
Dual Integrated Battery Compartments
- Quick-release battery doors for fast pack changes
- Intake and exhaust cooling vents keep battery temperatures down
- Accepts 1/16 scale NiMH and LiPo batteries
-
Transmission and Driveline
- Full-time shaft-driven 4WD
- Sealed heavy-duty transmission
- Adjustable slipper clutch
- Sealed, silicone-filled differentials with steel gears
- Heavy-duty telescoping U-joint driveshafts
-
Steering
- Digital waterproof Traxxas 2080 steering servo
- Servo horn with integrated servo saver
-
Suspension
- Twin-arm pivot ball suspension
- Progressive rocker-arm damping for extreme travel
- Captured rod ends won't pop off
-
Springs and Shocks
- Inboard fully adjustable oil-filled GTR™ shocks
- Adjustable pre-load collars
- Red powder-coated springs
-
Wheels and Tires
- Pre-glued Talon™ tires with high-performance foam inserts
- 53 mm Gemini 5-spoke chrome wheels
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Backed by Unparalleled Traxxas Support and Parts Availability
Model Specs
| Model Name: |
1/16 E-Revo VXL w/USB-C |
| Model Type: |
Monster Truck |
| Model Speed: |
30+ mph (50+ mph with dual batteries) |
| Model Skill Level: |
2 |
| Scale: |
1/16 |
| Weight: |
2.4 pounds (1.09 kg) |
| Length: |
12.9 inches (328 mm) |
| Width: |
9.4 inches (239 mm) |
| Front Track: |
9.4 inches (239 mm) |
| Rear Track: |
9.4 inches (239 mm) |
| Height: |
4.6 inches (117 mm) |
| Wheelbase: |
7.9 inches (202 mm) |
| Drivetrain: |
Shaft-driven 4WD |
| Transmission: |
Heavy-duty single speed |
| Differential Type: |
Hardened steel bevel, sealed |
| Gear Ratio (Internal): |
5.04:1 |
| Gear Pitch: |
48 pitch |
| Servo(s): |
2080 digital waterproof |
| Radio System: |
TQi™ 2.4 GHz 2-Channel transmitter with TSM® receiver |
Motor Specs
| Motor Name: |
Velineon® 380 |
| Motor Type: |
Sensorless brushless |
| Motor Weight: |
4.49 ounces (140 g) |
| Motor Length: |
2.4 inches (61 mm) overall length, 1.9 inches (48 mm) can length |
| Motor Diameter: |
1.09 inches (28 mm) |
| Motor Shaft Size: |
3 mm |
| Motor Connector Type: |
3.5 mm bullet |
MODEL 71076-3: Fully assembled, Ready-To-Race® with Traxxas Stability Management®, TQi 2.4GHz radio system, Velineon® 380 motor, VXL-3m electronic speed control, 7.2 volt NiMH battery, 2-amp peak detecting fast charger, and ProGraphix® painted body.
