MPN: RS6AX4-V2-BEC
UPC:
EAN:
Features:
-BB2, 48MHZ Chip
-Blheli_S Firmware,
-4 in 1 ESC, Super small size (27*27mm) and light weight, easy to install and use
-With 5V 0.5A BEC
-Support 1-2S Lipo Battery
-Support Oneshot42, Oneshot125, Multishot and 16.42 D-shot
-All codes use damped light mode.Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.

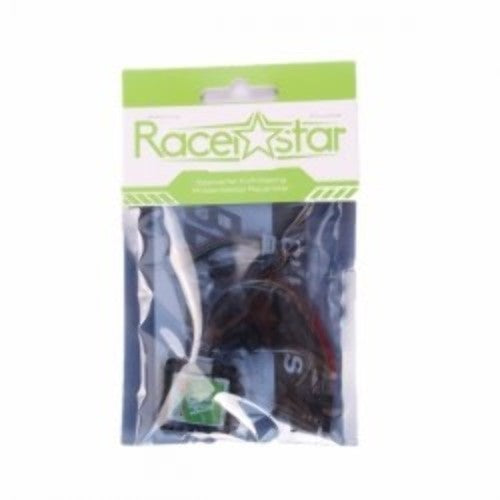

Package Includes:
1x RS6Ax4 6A 4 in 1 ESC
1x Cable
1x Manual

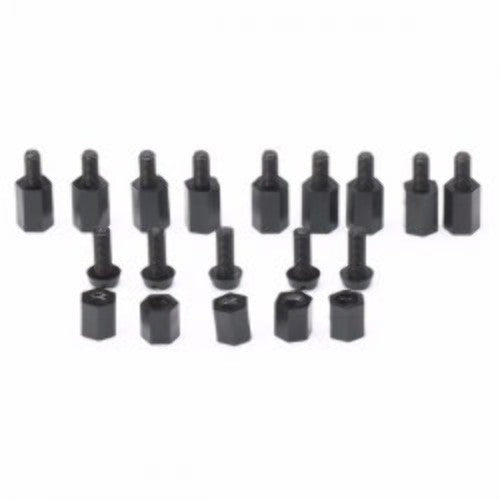

1x bag of screws
Specifications:
Brand Name: Racerstar

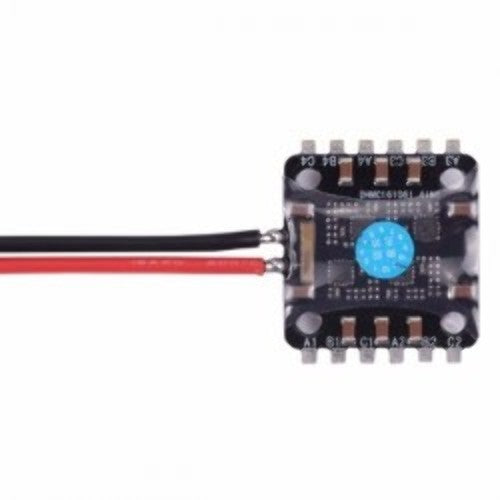

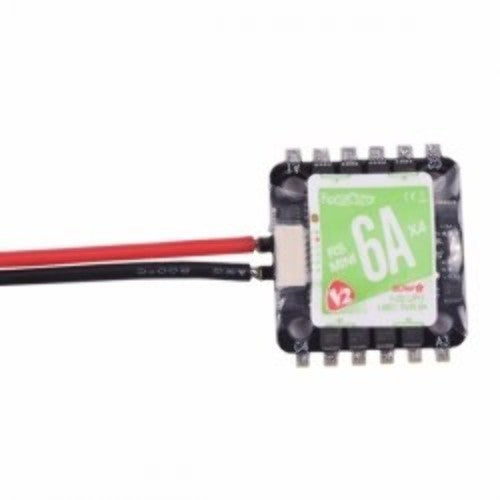

Item Name: 6A Blheli_S BB2 4 in 1 Brushless ESC
Model: MIni RS6Ax4
Lipo Battery: 1-2S
Con. Current: 6A
Peak Current: 10A (10S)
BEC: 5V @0.5A
Programming: YES
Size(PCB): 27x27mm
Weight: 4.5g (Not including the wire and screws)
M3 Installing Hole Distance: 20x20mm
