MPN: HT-1980
UPC:
EAN:
This is the

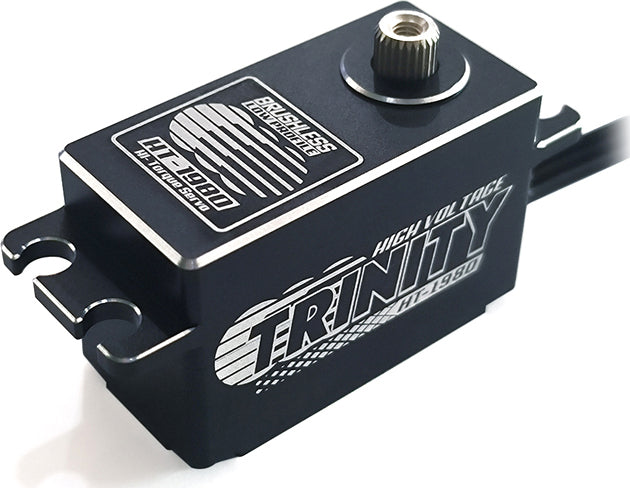

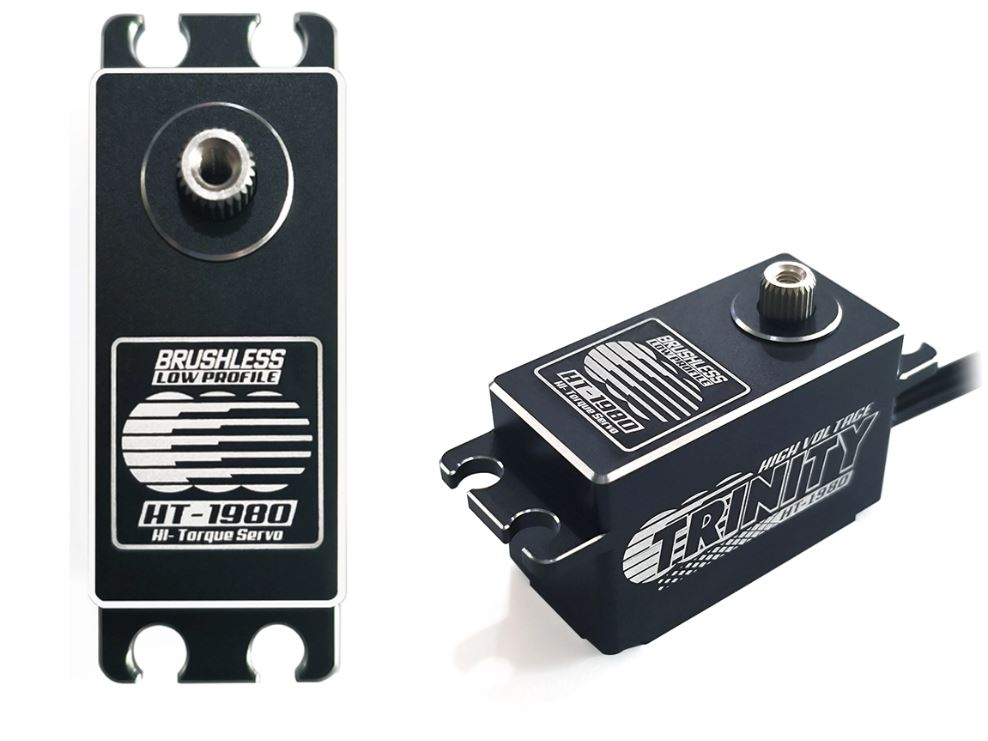

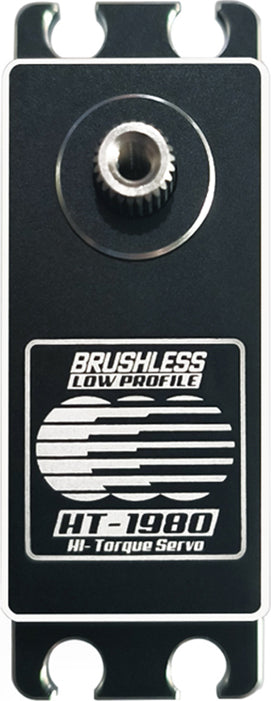

Team Trinity Low Profile All Aluminum Case High Torque Servo HT-1980
Team Trinity's Monster Horsepower has led the RC industry for over 40 years. We are proud to bring a brand new Brushless Digital High-Torque, Low Profile, servo to our ever expanding electronics line. This HT-1980 servo has been engineered from the ground up to provide the smoothest, fastest, and highest torque possible in a sleek aluminum case. Not only is the servo in a sleek aluminum case, it also comes out of the box with a shortened 100mm servo wire to ensure clean and tidy install in all 1/10 vehicles. Some of the competitors may look good on the shelf but we go steps further. Not only will the sleek aluminum case look good in your vehicle on the pit table, it will feel ultra smooth and fast on track, and it will look even better on the top step of the podium.
Servo Model | HT-1980 |
Operating Voltage | 6.0-7.4v |
Operating Temperature | 5°F-150°F |
Bearing Type | Dual Ball Bearing |
Size | 40.8x20.2x26.5mm |
Weight | 62g |
Wire | 100mm/22AWG |
Torque @ 6.0v | 222 oz-in |
Torque @7.4v | 250 oz-in |
Torque @ 8.4v | 264 oz-in |
Speed @ 6.0v | .095/60° sec |
Speed @7.4v | .083/60° sec |
Speed @ 8.4v | .073/60° sec |
Spline | 25T |
Gear Type |
Titanium/Steel |
