New Features

Increased arm thickness to 5mm and slightly reduced their width for modern esc’s.

Arms are slightly longer to allow for 5.1” props, as well as to increase clearance between props and battery straps/standoffs.

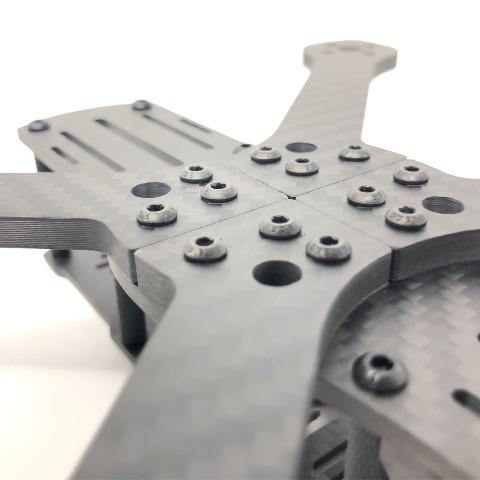

Press-nuts have replaced the 3d printed locknut mount for ease of assembly.

The arms now have a through hole for the flight controller stack to allow for arm changes without having to loosen the stack mounting.

Cutouts were added to the camera sideplates to allow 3d print designers more space between the standoffs for accessory mounting.

A redesigned, slimmer top plate will allow you to access your FC stack screws without removing the top plate, as well as help preserve your battery straps.

All v1 fusion components are compatible with the new fusion so you can upgrade your setup at your own pace.

Description

SPECIFICATIONS:
Material: 3K twill matte carbon fiber with Limited Lifetime Warranty*
Prop Support: 5”/6″
Dry Weight: 138g
Standoff Height: 25mm
FPV Cam Support: Mini or micro only

INCLUDED IN THE KIT
Hardware: All metal bolts and nuts with aluminum standoffs

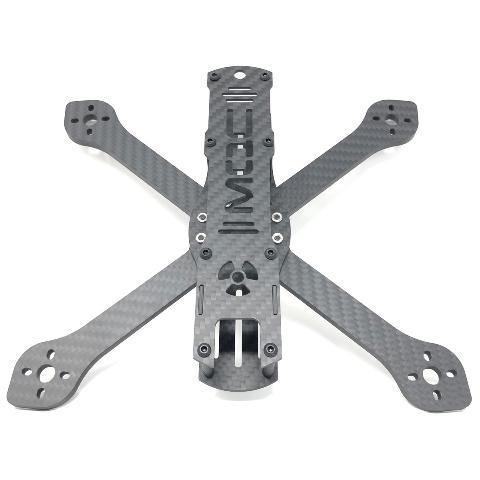

Body: Top plate, Bottom Plate, 4 arms, 2 FPV cam plates
Accessories: MQC Lipo straps / MQC Decal / MQC Lipo Pad
