Specifications:

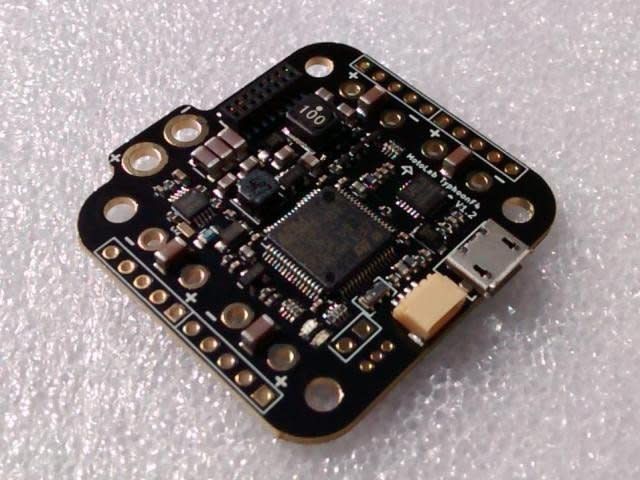

Typhoon F4 Flight Controller
- 168MHz STM32F4 version of Tempest

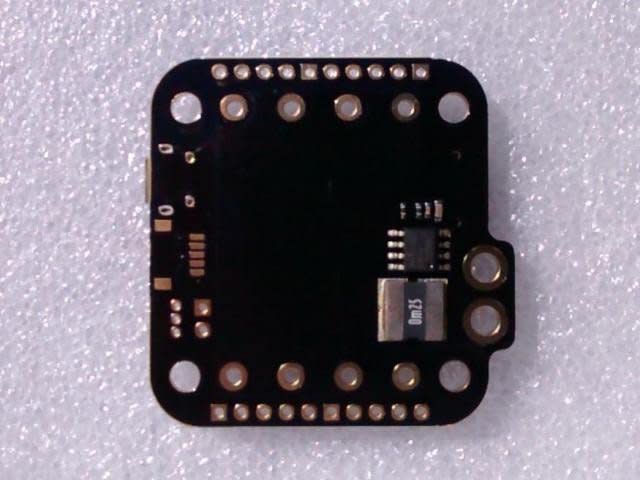

- 100+A PDB with motor current sensor
- MPU6000 gyro/acc on SPI bus

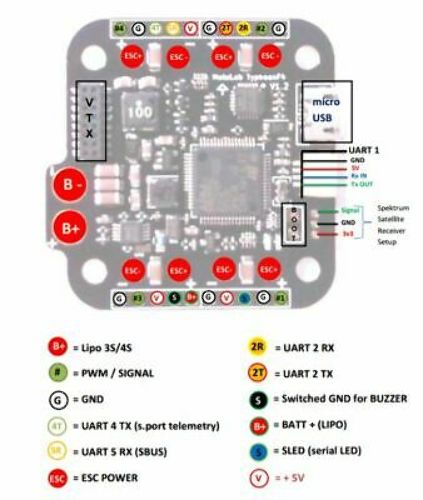

- Up to 4 serial ports plus USB
- Up to 6 Dshot motor outputs
- Serial inverters for SBUS and S.PORT
- 1.5A 5V regulator with LC filtered 5V for VTX and camera
- Plug-in connection to VTX board
- 38x40mm board size with 30.5mm mounting hole spacing
The Typhoon F4 is compatible with Betaflight using the new MOTOLABF4 board target.
The F4 board mates directly with the VTX board with no external wiring between the two.

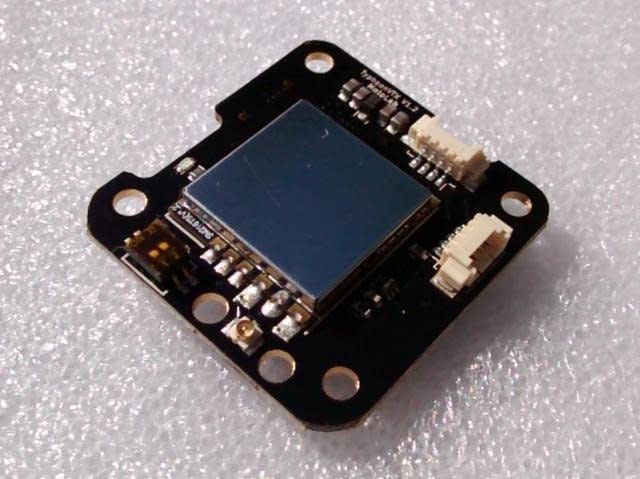

Typhoon Video Transmitter
- 25/200/500mW switchable, 40-ch video transmitter
- Betaflight OSD
- MicroSD slot for Blackbox
- Direct plug-in connection to camera and antenna with available custom cables
- Pass-through connector for camera joystick
- 38x38mm board with 30.5mm mounting hole spacing
- U.FL Antenna connector
The Typhoon VTX is a self-contained video system, operating on filtered 5V provided by the Typhoon F4. The video is isolated from the PDB motor current noise and delivers cleaner video.

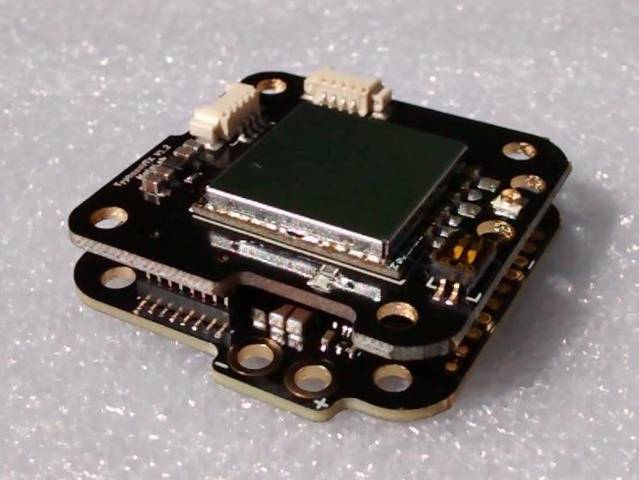

The VTX board mates directly with the F4 controller board with no external wiring between the two.
Note: The VTX board is not powered from the USB input. The board should NOT be powered from lipo without an antenna connected.
Includes:
1x MotoLab Typhoon F4 Flight Controller
1x MotoLab Typhoon VTX
Latest MotoLab Typhoon info here
