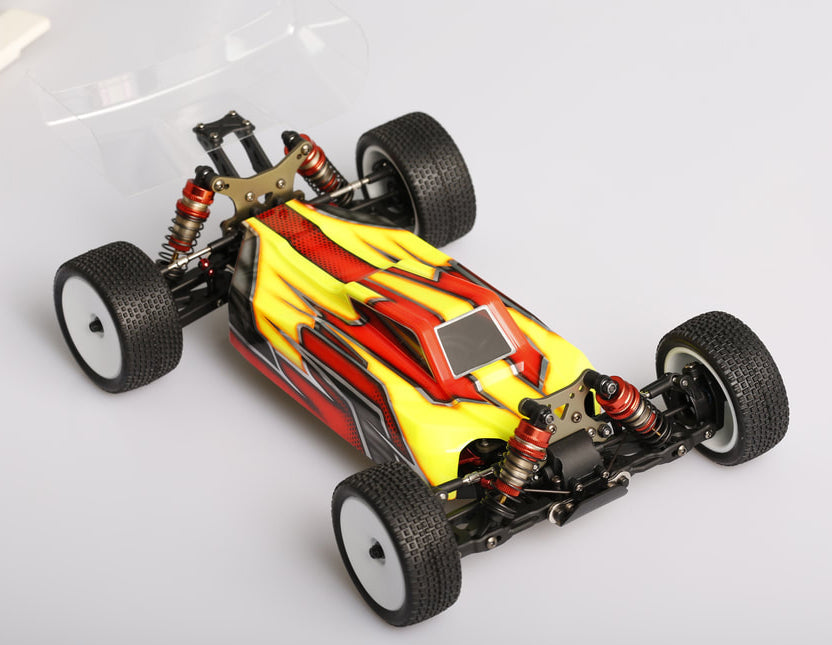

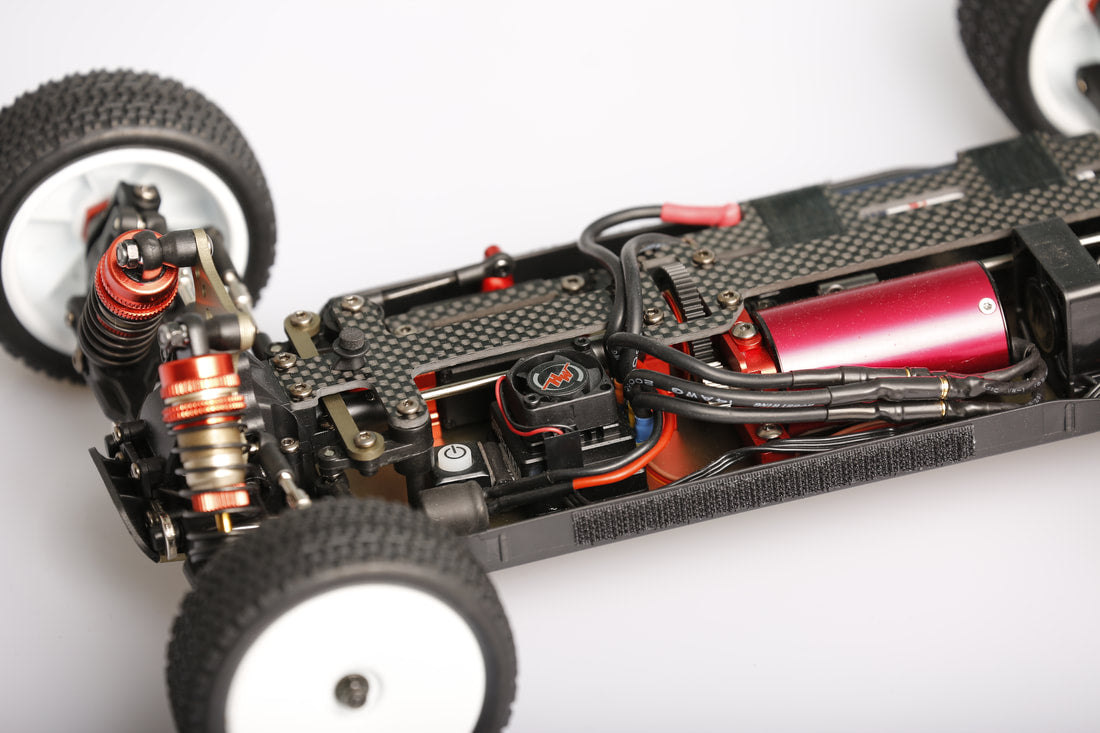

LC Racing LC12B1 1/12 4WD Competition Buggy Kit

This is the

LC Racing LC12B1 1/12 4WD Competition Buggy Kit

Features:

• New competition mid motor layout
• Central slipper clutch, improved cornering speed, new designed aluminum central bulkhead.

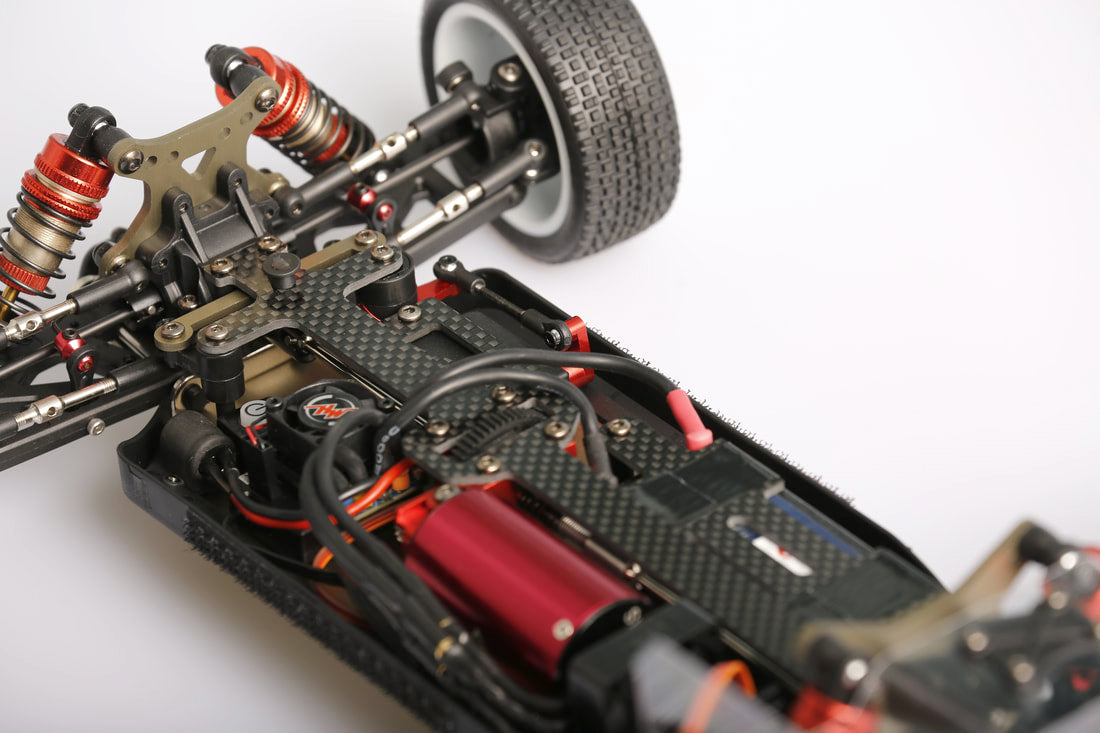

• One piece 2.0mm carbon fiber upper deck
• Independent (floating) battery mount, allows battery to be mounted to the chassis without touching it.
• 2.0mm 6061 T6 Aluminum chassis.

Differential and Drivetrain

•  Front and rear bevel and drive gear oil filled differentials
• Adjustable center slipper clutch with 60T spur gear.
• 2 pad slipper clutch
• Front and rear CVD for maximum performance
• Full set of 24 high speed sealed ball bearings

Suspension

• High quality spring steel suspension mount front and rear.
• Front and rear anti roll bars.
• Aluminum shock with 3mm shock shaft.

Body (unpainted)

• All new high downforce low profile lexan body.

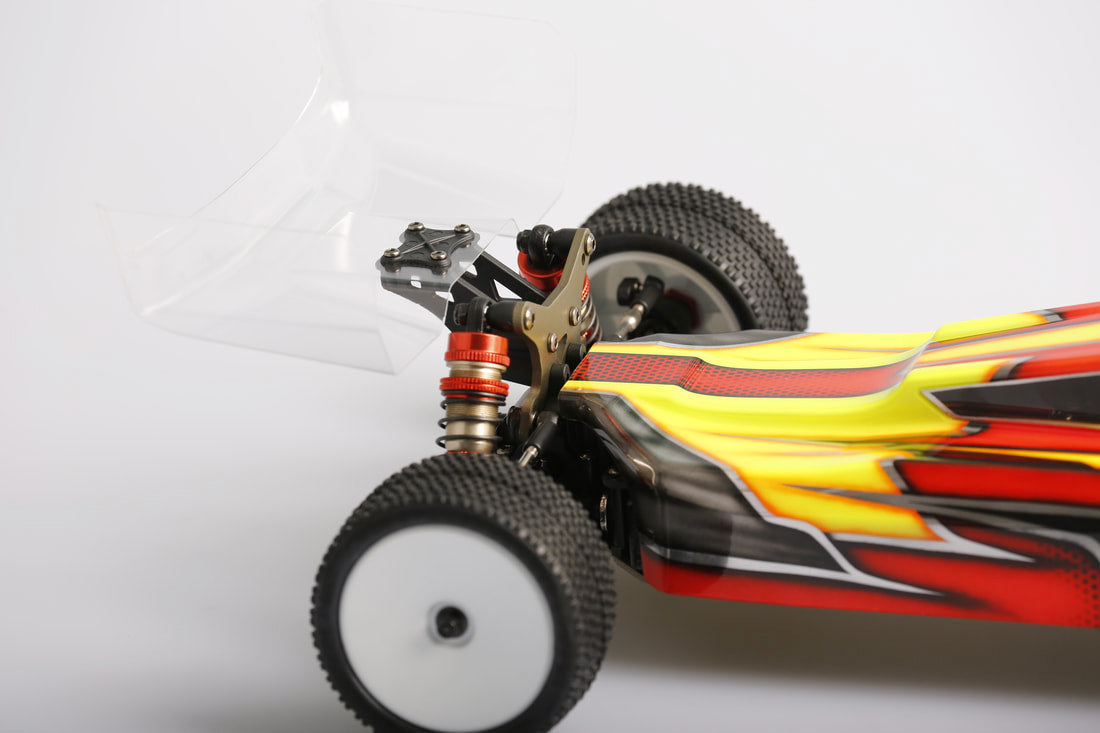

• All new lexan wing.

Specifications

• Class: 1/12th scale 4WD competition buggy
• Width: 205mm
• Length: 352mm
• Wheelbase: 233mm
• Reduction ratio: 2.46
• Differential pinion: 15T front and rear
• Differential bevel: 37T front and rear
• Weight:1.05kg(race ready)

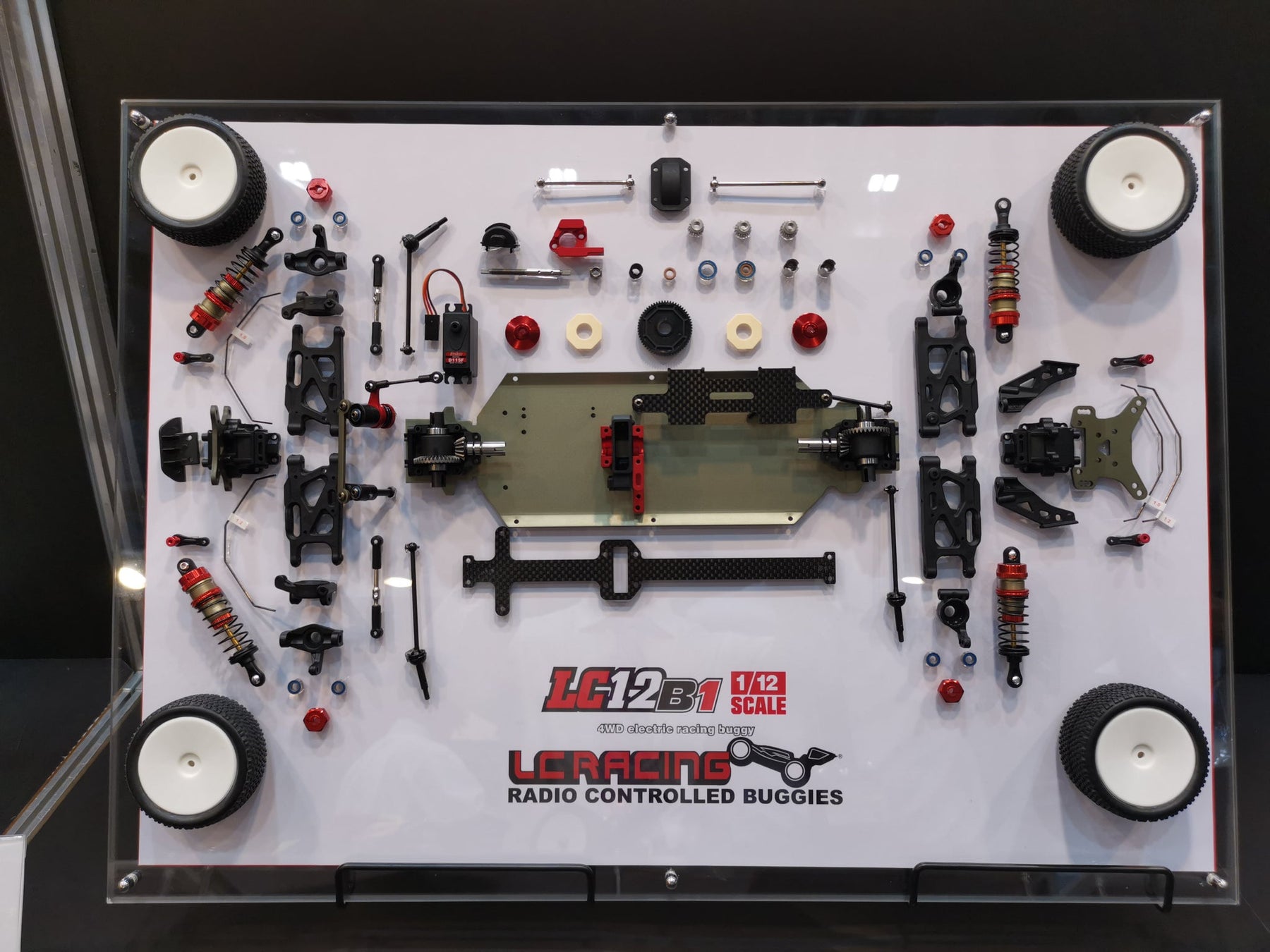

Kit Includes

• 1/12 LC12B1 4WD Competition Buggy (Assembly required)
• Pre-mounted off road wheels and tires
• Front and rear anti roll bars 1.0mm, 1.2mm and 1.5mm.

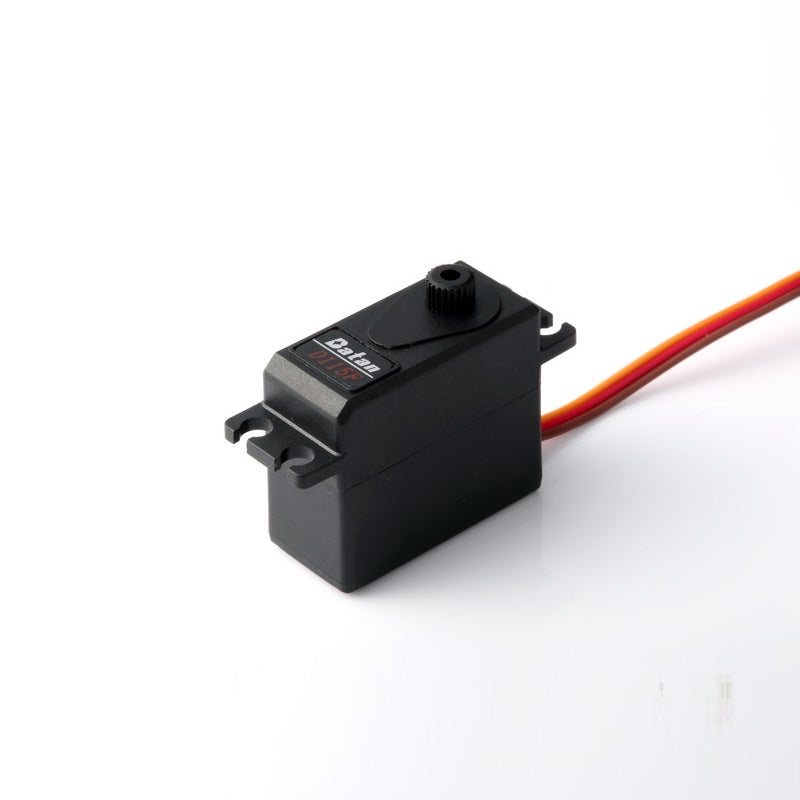

• Batan D115F Digital servo
• 60T Spur Gear and 17,18.19T pinon gears

You will need:

• Transmitter and Receiver
• Battery (NiMH 6 cell 2/3c or 95x30mm Lipo) and Charger
• 380 size motor
• ESC
• Gear Differential Oil
• Shock Oil
• Assembly tools
• Paint for lexan body
