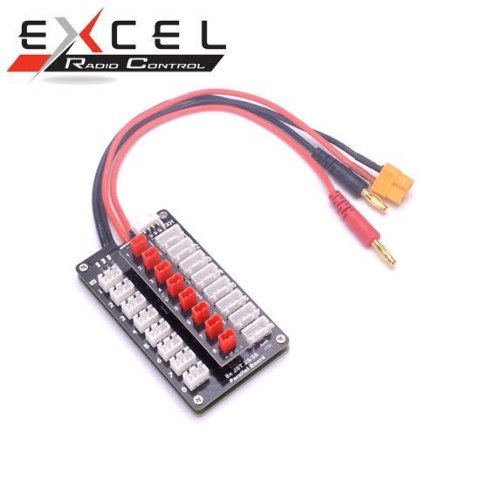

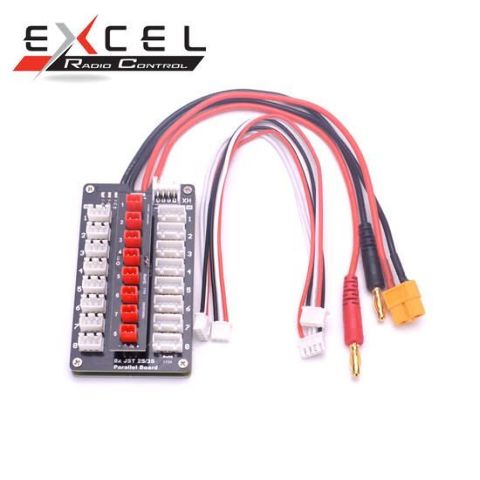

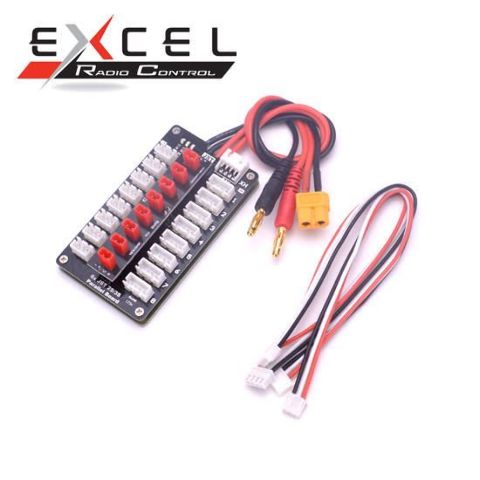

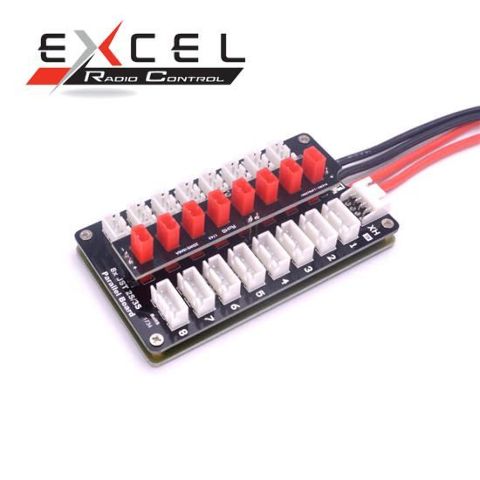

ExcelRC Para Board Parallel Charging Board XT60 and 4mm Banana Connector JST Plug 2S 3S
ExcelRC Para Board Parallel Charging Board XT60 and 4mm Banana Connector JST Plug 2S 3S
ExcelRC Para Board Parallel Charging Board XT60 and 4mm Banana Connector JST Plug 2S 3S
ExcelRC Para Board Parallel Charging Board XT60 and 4mm Banana Connector JST Plug 2S 3S
ExcelRC Para Board Parallel Charging Board XT60 and 4mm Banana Connector JST Plug 2S 3S

ExcelRC Para Board Parallel Charging Board XT60 and 4mm Banana Connector JST Plug 2S 3S

Price
Regular price $19.99
Regular price $19.99 Sale price $19.99
Save $0
/
  • Secure payments
  • Low stock - 3 items left
  • Backordered, shipping soon

MPN: EX-PB3 UPC: EAN:


Description:
This product is used for connecting and simultaneously charging 2S/3S batteries in parallel (including the LiPo, LiFe and Li-ion). The charging time is significantly reduced since all batteries are balanced at the same time instead of balancing batteries one by one, significantly accelerate battery charging speed.

Features:
Reduce charging time: the parallel charging board could help to charge up to 8 batteries at the same time instead of balancing batteries one by one, significantly accelerate battery charging speed.
Support multiple Batteries: could charge 2S or 3S LiPo, LiFe and Li-ion battery.
Support JST plug battery.
Support multiple balance charge such as imax B6, B6AC and so on.
Mini Size: 93 * 53 * 28mm, easy to carry and durable use.


Specification:
Item Name: Battery Parallel Charging Board
Support Battery Cell: 2S/3S
Support Battery: LiPo, LiFe, Li-ion
Support Charger: imax B6 B6AC balance charger etc.
Support Battery Connector: JST
Current Input Connector: XT60, 4mm banana plug
Total Current: <10A
Jst Output Current for one: <3A
Total Current of Balancing Port: <3A
Total Voltage: <36V
Dimension: 93 * 53 * 28mm
Weight: 76g
Note: the parallel charging board only support charging 1-8pcs batteries with the same voltage (2s or 3s) and the same type (LiPo, LiFe or Li-ion) at the same time.

Package information:

Package size: 12 * 11 * 4cm / 4.7 * 4.3 * 1.6in
Package weight: 96g / 3.4oz
Poly bag Package
