Name: DasMikro DSK-144 AFHDS3 Micro 4CH Receiver For (FlySky Noble NB4)
Brand: DasMikro
SKU: 2990000115577
Price: 28.99 USD
Availability: OutOfStock

DasMikro DSK-144 AFHDS3 Micro 4CH Receiver for FLYSKY Noble NB4 - Excel RC

DasMikro DSK-144 AFHDS3 Micro 4CH Receiver For (FlySky Noble NB4)

Price Save $11

Secure payments

In stock, ready to ship
Inventory on the way

Shipping calculated at checkout.

[{"id":37534374428859,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"2990000115577","requires_shipping":true,"taxable":true,"featured_image":{"id":23051989942459,"product_id":6075699069115,"position":1,"created_at":"2020-12-09T17:53:54-05:00","updated_at":"2021-08-14T13:52:38-04:00","alt":"DasMikro DSK-144 AFHDS3 Micro 4CH Receiver for FLYSKY Noble NB4 - Excel RC","width":640,"height":427,"src":"\/\/excelrc.com\/cdn\/shop\/products\/2990000115577-dasmikro-dsk-144-afhds3-micro-4ch-receiver-for-flysky-noble-nb4-151612207_8b390e2e-f46a-4e5a-84ca-73a79ab87d31.jpg?v=1628963558","variant_ids":[37534374428859]},"available":false,"name":"DasMikro DSK-144 AFHDS3 Micro 4CH Receiver For (FlySky Noble NB4)","public_title":null,"options":["Default Title"],"price":2899,"weight":5,"compare_at_price":3999,"inventory_management":"shopify","barcode":"092685006194","featured_media":{"alt":"DasMikro DSK-144 AFHDS3 Micro 4CH Receiver for FLYSKY Noble NB4 - Excel RC","id":15222526935227,"position":1,"preview_image":{"aspect_ratio":1.499,"height":427,"width":640,"src":"\/\/excelrc.com\/cdn\/shop\/products\/2990000115577-dasmikro-dsk-144-afhds3-micro-4ch-receiver-for-flysky-noble-nb4-151612207_8b390e2e-f46a-4e5a-84ca-73a79ab87d31.jpg?v=1628963558"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

MPN: DSK-144 UPC: EAN:

Features:

FLYSKY AFHDS3 protocol compatible
High performance CPU enhance precision control feeling

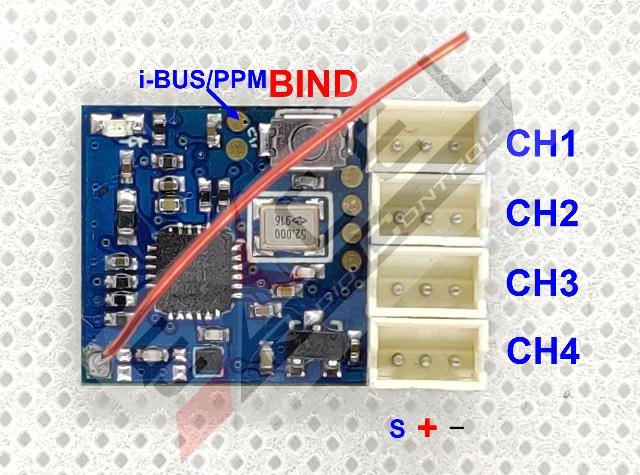

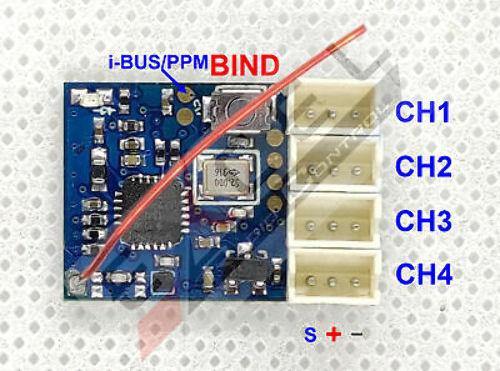

4 channel servo signal, i-BUS and PPM signal support
Micro size (21mm x 15mm)
Added failsafe function
Operating Voltage 3.5V - 12V:
Weight: 3g

Binding:

Press the BIND button and power on the receiver, the receiver’s led will flash quickly.
Put the transmitter into bind mode. The receiver’s led will flash slowly when the binding is successful.
Disconnect receiver’s power and reconnect the power cable to the receiver. Now is should working normally.

Compatible Transmitters:

FLYSKY Noble NB4

Package Includes:

1 x Receiver

4 x 1.5mm 3P JST plug with high quality silicon cable

Manual Download DSK-144

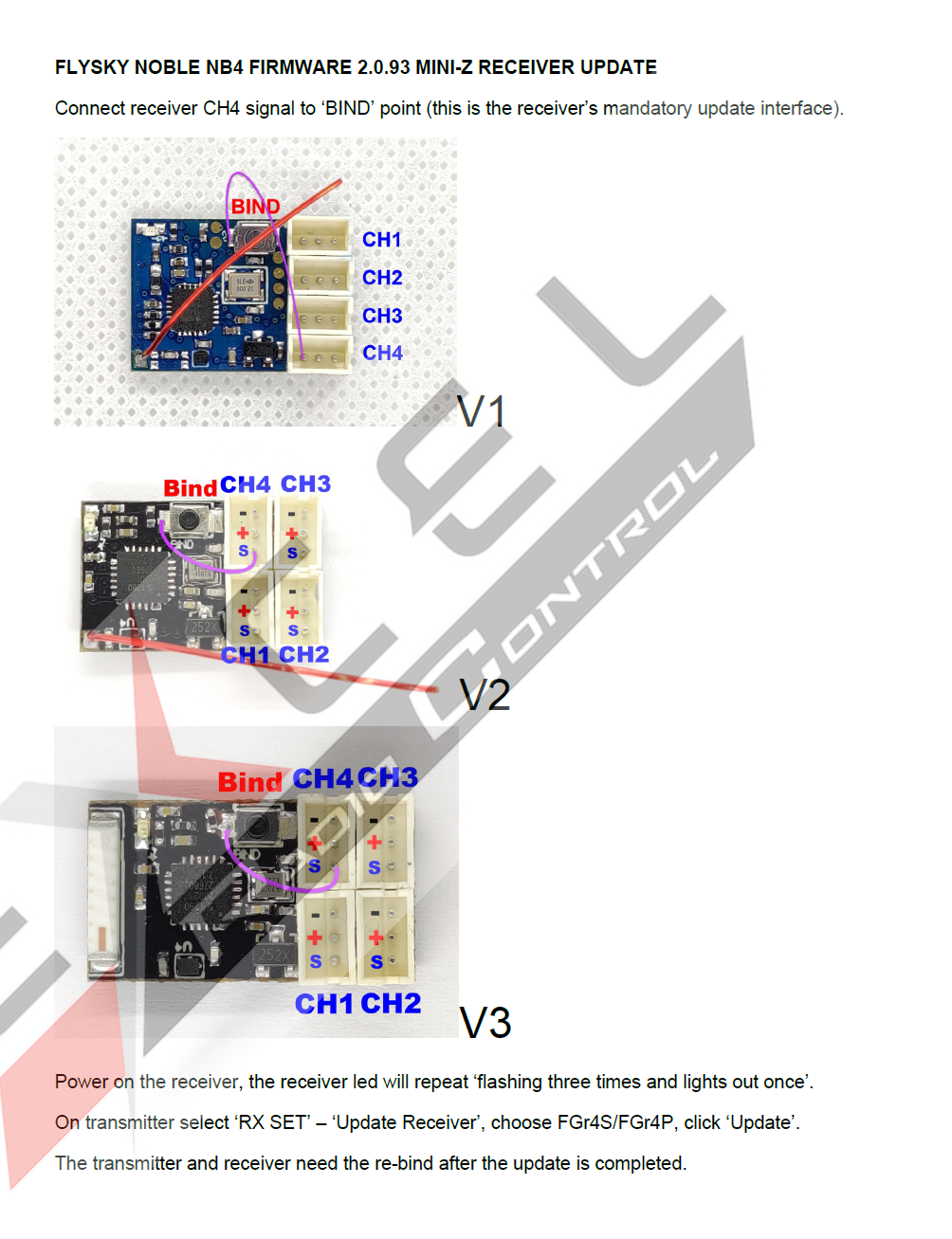

FLYSKY NOBLE NB4 FIRWARE 2.0.93 MINI-Z RECEIVER UPDATE INSTRUCTIONS
