MPN: ARA110002T1
UPC:
EAN:
Features
- Laser-etched aluminum anodized chassis plate
- Strong composite chassis side pods
- Triangular structured center brace system for maximum durability
- Oil-filled adjustable shocks with massive 20mm bore
- Ultra-thick composite front and rear shock towers
- Easy-access 3-bolt sliding motor mount for quick motor removal
- Aluminum motor mount and hubs
- Heavy-duty drivetrain
- Durable steel driveshafts throughout
- Easy-access front and rear diff module design
- All-metal diff outdrives and gearbox internals
- Easy-access waterproof electronics module
- Heavy-duty dual spring servo saver
- Multi-split spoke wheels
- Durable wheel hubs for increased strength
- Multi-terrain dBoots® COPPERHEAD™ 2 SB tires
- Ultra-tough truck body and decals
- High downforce wing
- Integrated internal body protection tower
- Spektrum™ DX3 3-channel 2.4GHz Radio with SR6100AT AVC® Receiver
- Spektrum™ Firma™ 160A Smart ESC
- Spektrum™ Firma™ 1250Kv Brushless Motor
- Spektrum™ S905 Metal-Geared Digital Servo
- 2-year limited warranty
Overview

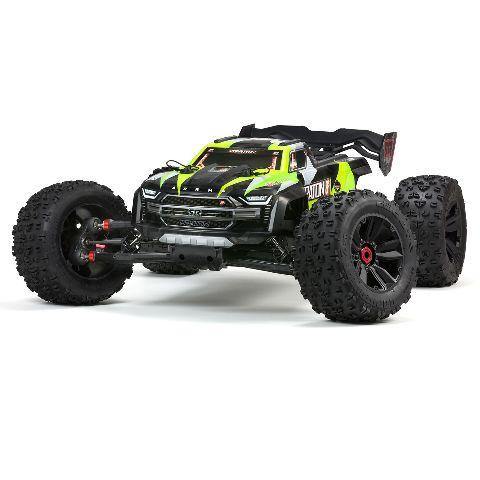

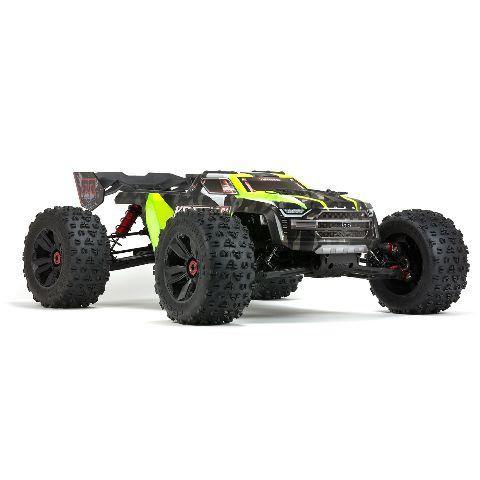

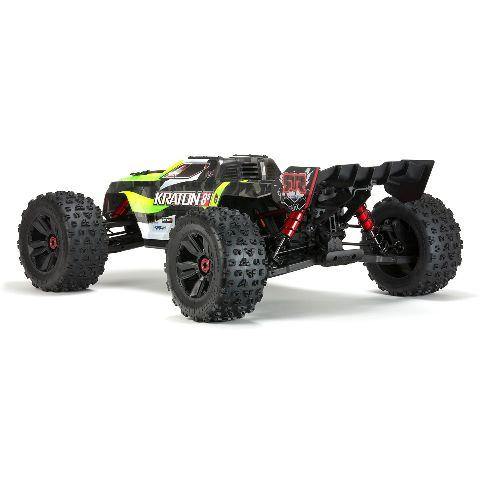

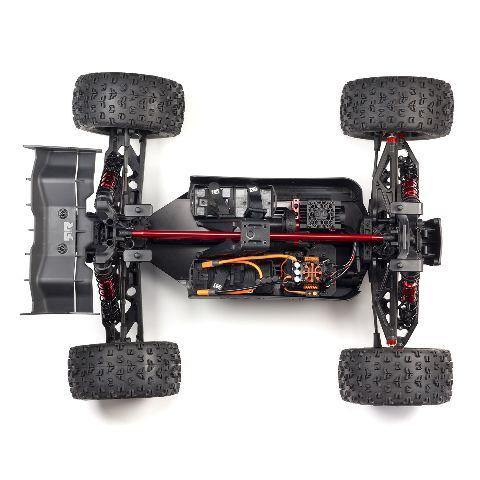

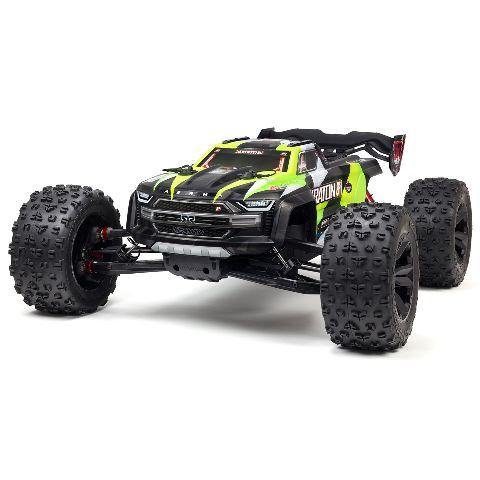

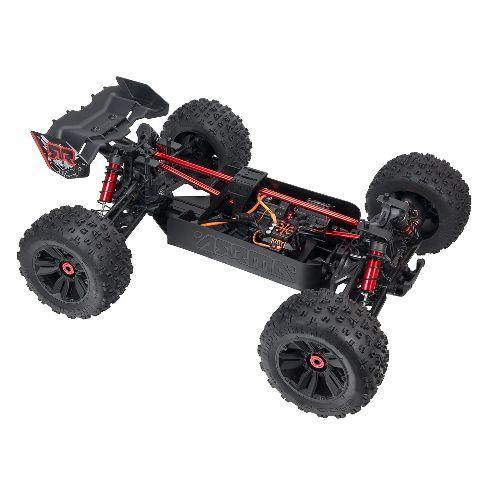

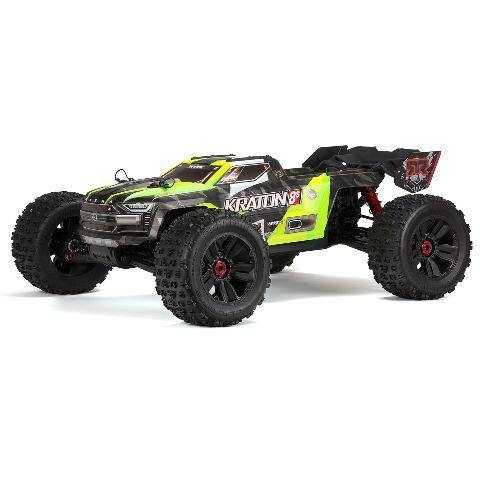

Bigger than big and engineered for brute power and toughness, the ARRMA® 1/5 scale KRATON™ 8S BLX 4WD Speed Monster Truck takes your bashing ability to the next level. Its metal-reinforced design lets you blast up, over, and through bruising obstacles without worry. Metal shafts, turnbuckles and outdrives, plus all-metal internal gears, give the drivetrain and suspension system unstoppable strength. The anodized aluminum chassis plate features composite side pods and a triangular center brace for maximum durability. Ultra-thick composite front and rear shock towers hold massive 20mm bore, oil-filled adjustable shocks that soak-up bumps and jolts.
The power that sends the KRATON™ 8S BLX 4WD Speed Monster Truck charging easily over challenging terrain comes from its 1250Kv Spektrum™ Firma™ brushless motor. The torque and acceleration is incredible. For quick access, the motor is mounted with three bolts onto a sliding aluminum mount.
The waterproof electronics module — also designed for easy access — houses and protects more innovative Spektrum™ equipment. ARRMA® has equipped the KRATON™ 8S BLX 4WD Speed Monster Truck with a state-of-the-art Firma™ Smart 160A ESC and SR6100AT AVC® (Active Vehicle Control®) receiver. Innovative connectivity enables all the Smart electronics to send valuable telemetry data to the included Spektrum™DX3 3-channel transmitter without requiring multiple wires, sensors, modules and links. Just download the free Spektrum™ Dashboard App to your mobile device, which connects wirelessly via Bluetooth to the DX2E transmitter. Then you can view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time.
The ultra-tough KRATON™ truck body with high-downforce wing is available factory trimmed, painted and decaled in two striking color schemes. A center protection tower on the chassis interfaces with the roll cage for increased body durability. It all rides on multi-split spoke wheels with strong, durable aluminum wheel hubs, and multi-terrain dBoots® COPPERHEAD™ 2 SB tires with a tread pattern designed for extreme, all-terrain action.
- (2) 4S LiPo Batteries (SPMX50004S50H5 Spektrum™ Smart 14.8V 5000mAh 4S 50C LiPo Hardcase Recommended)
- Compatible Charger (SPMXC1010 Spektrum™ Smart S2100 AC
- Charger 2X 100W Recommended)
- LiPo Charging Bag
- (4) AA Batteries
- (1) KRATON™ 8S BLX SPEED Monster Truck
- (1) Spektrum™ DX3 3-channel 2.4GHz Radio with SR6100AT AVC® Receiver
- (1) Spektrum™ Firma™ 160A Smart ESC
- (1) Spektrum™ Firma™ 1250Kv Brushless Motor
- (1) Spektrum™ S905 Metal-Geared Digital Servo [40kg-cm; 556 oz-in @ 7.4V]
- (1) Product Manual
SPEKTRUM™ FIRMA™ 160 AMP BRUSHLESS SMART ESC
- Waterproof and dustproof design
- 160A, 8S LiPo ready (3S*, 4S*, 6S* and 8S LiPo compatible)
- Spektrum® Smart Technology
- Fitted with reliable IC5™ connectors (EC5™ compatible)
- Integrated fan for reduced heat during extreme running
- High quality 10awg wires
- Low voltage cut off and thermal overload protection
- User programmable punch, brake, BEC, LVC sensitivity, reverse speed and motor timing settings
SPEKTRUM 2.4GHz DX3 3-CHANNEL RADIO & SR6100AT RECEIVER
- DSMR® Technology for superior range, response and interference resistance
- 3-Channel operation (Steering, Throttle, AUX1)
- Smart Technology ready with the included SR6100AT Receiver
- New styling focused on ergonomics
- Foam covered steering wheel for better control
- Convenient voltage level indicator for Smart batteries
- Supports the on-demand traction control of AVC® technology
- Servo reversing and trim dial
- 3-position throttle limiter
SPEKTRUM™ FIRMA™ 4685 1250Kv BRUSHLESS MOTOR
- Beautifully etched aluminum can
- 4-pole construction for smooth and consistent power
- 6.5mm gold bullet connectors for reliable and efficient connection
- Black anodized aluminum motor can for increased heat dissipation
- Super strong 5mm shaft
- Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
SPEKTRUM® DASHBOARD™
The DX3™ radio system can be equipped with the Spektrum Dashboard™
Smart ESC provides data on battery voltage, ESC temperature, Motor RPM, BEC Voltage and calculated speed. To view telemetry data you will need:
- Spektrum Bluetooth module*
- DX3 Smart Phone Mount*
- Smart Phone with the free Spektrum Dashboard App*
Specifications
- Approximate Assembly Time
- Less than 1 Hour
- Ball Bearings
- Full set
- Batteries
- Sold separately, Two Spektrum 4S 5000mAh50C Smart LiPos w/IC5 connector recommended
- Body
- Painted decaled and trimmed
- Brakes
- Integral with ESC
- Bushing Material
- Metal
- Charger
- Sold separately
- Chassis
- 6061-T6 aluminum 0.16" (4mm) thick
- Completion Level
- Ready-To-Run
- Differential
- Bevel gear
- Drivetrain
- 4WD
- Final Drive Ratio
- 25.06:1
- Gear Pitch
- 1.0 Module
- Height
- 10.47" (266mm)
- Internal Gear Ratio
- 9.06
- Length
- 29.92" (760mm)
- Max Battery Dimensions
- 5.47 x 1.8 x 1.4" (139 x 46 x 38mm)
- Motor Size
- 4985, 1250Kv
- Motor Type
- Brushless, Brushless
- Pinion
- 17T
- Radio
- Spektrum DX2e 2-ch, w/SR6100AT AVC 3-ch receiver
- Scale
- 1/5
- Servos
- Spektrum S905 high torque metal gear digital heavy-duty steering servo, 500 oz-in (36 kg-cm), 0.20 sec speed at 6V
- Shock Type
- Oil-filled coil-over
- Speed Control
- Spektrum Firma 160A Smart
- Spur Gear
- 47T
- Suspension
- Independent
- Tire Diameter
- 7.99" (203mm)
- Tire Tread
- dBoots Copperhead 2 SB
- Track
- Front and Rear 23.70" (602mm) distance between outer edges of wheels measured side-to-side
- Vehicle Type
- Monster Truck, Monster truck
- Water-Resistant
- Yes
- Weight
- 24.2lbs (11kg)
- Wheel Diameter
- 4.88" (124mm)
- Wheel Type
- MT, 24mm hex
- Wheel Width
- 3.54" (90mm)
- Wheelbase
- 19.33" (491mm)
- Width
- 23.70" (602mm)
