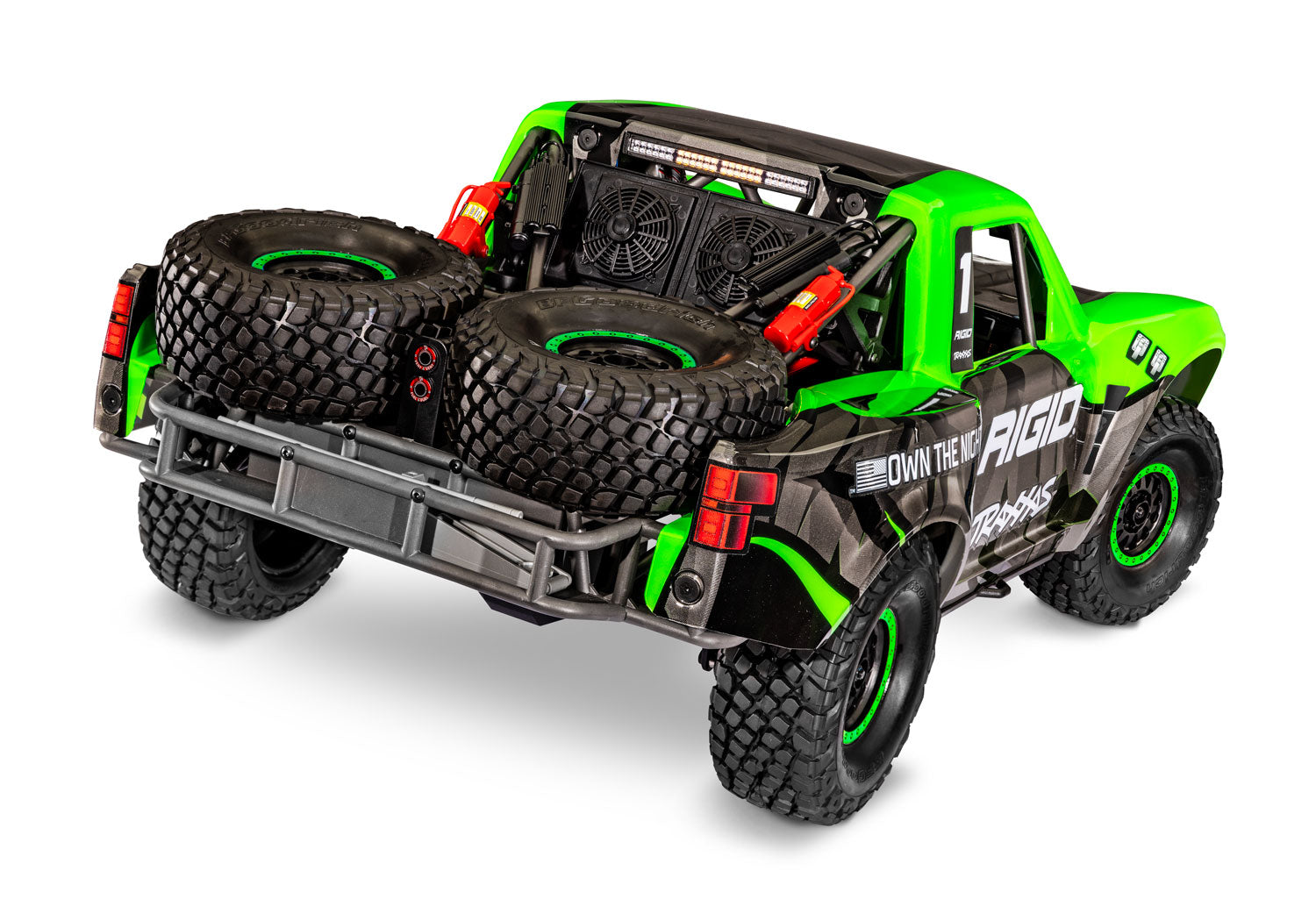

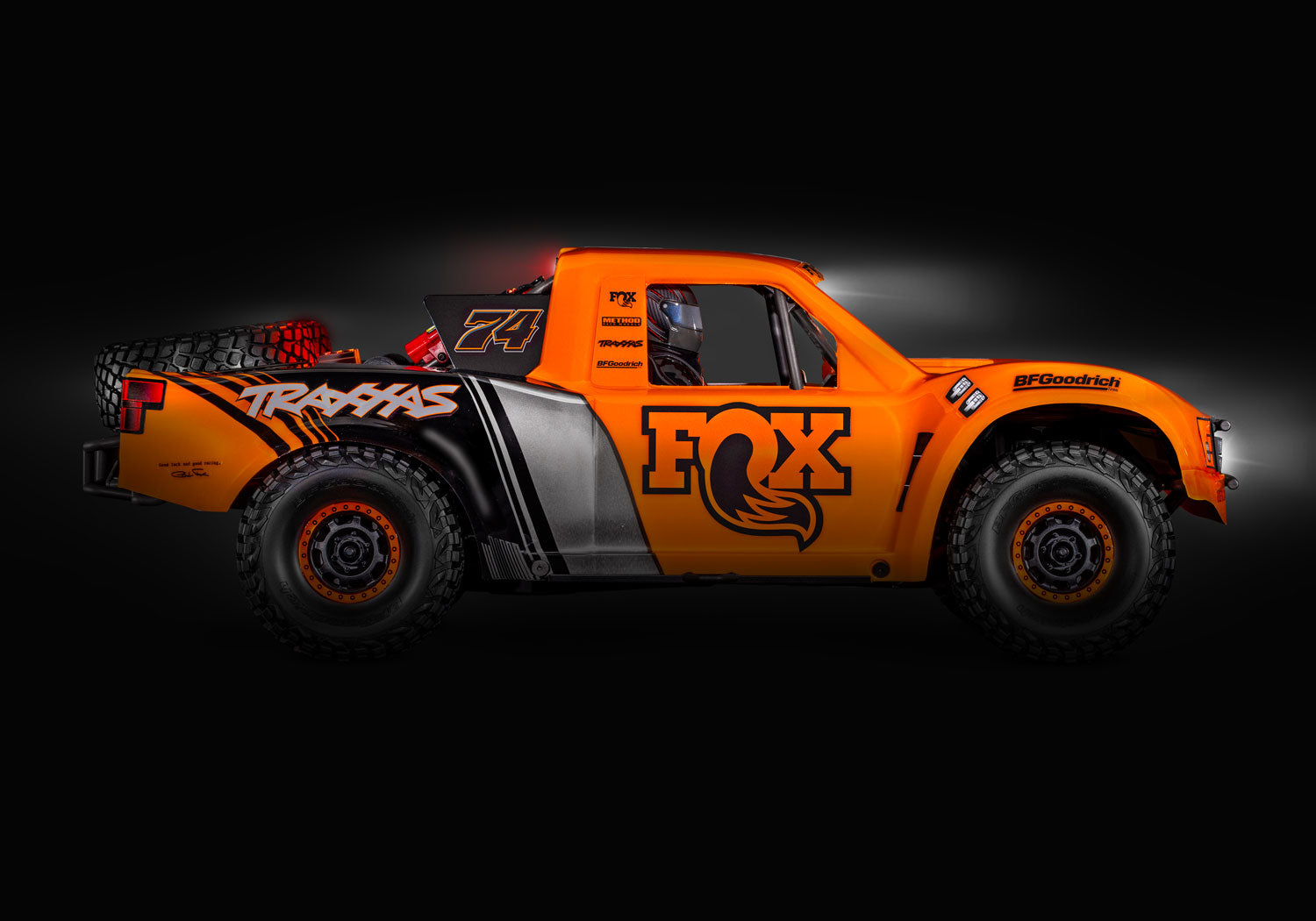

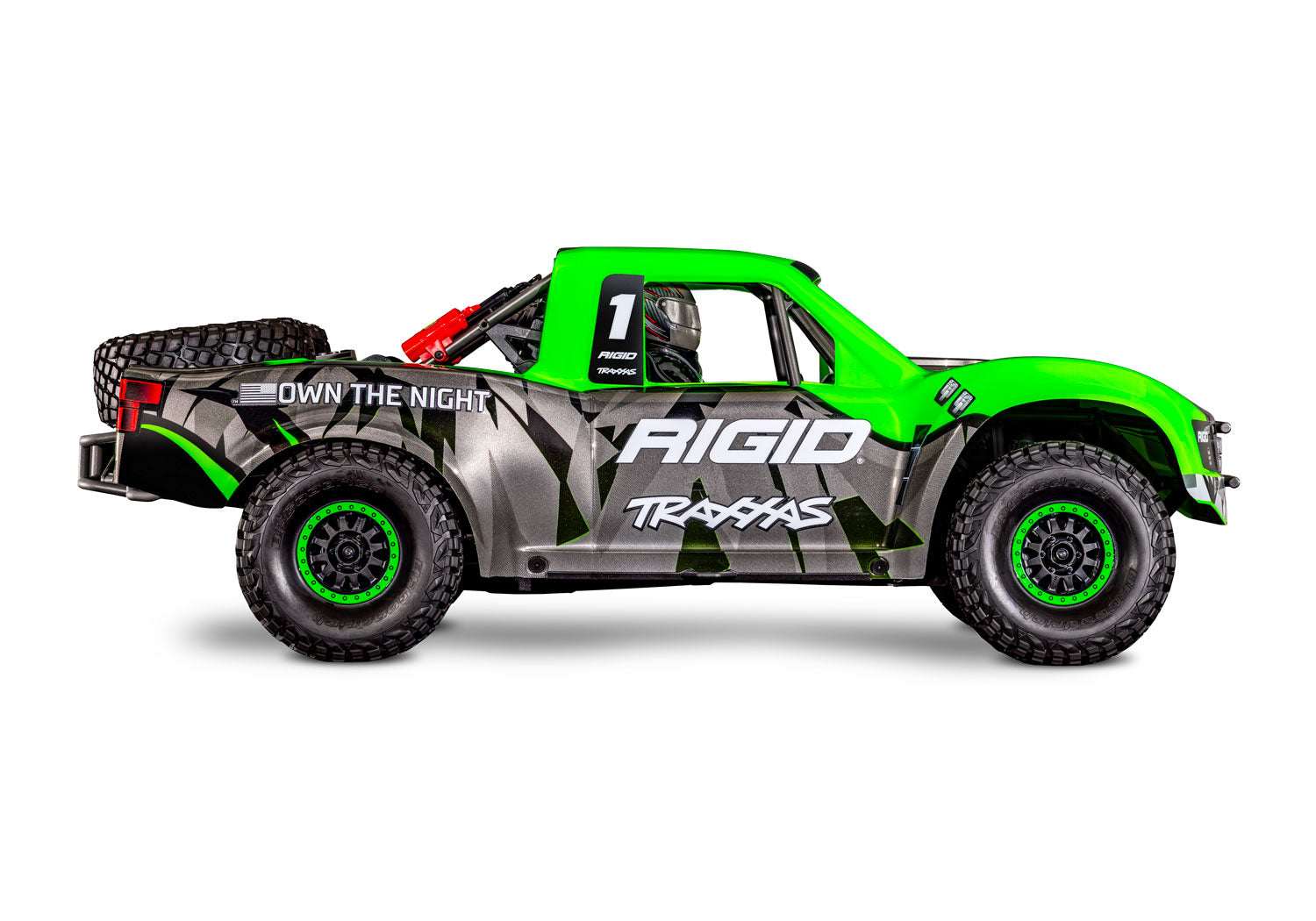

Traxxas Unlimited Desert Racer 4WD Electric Race Truck 85086-4

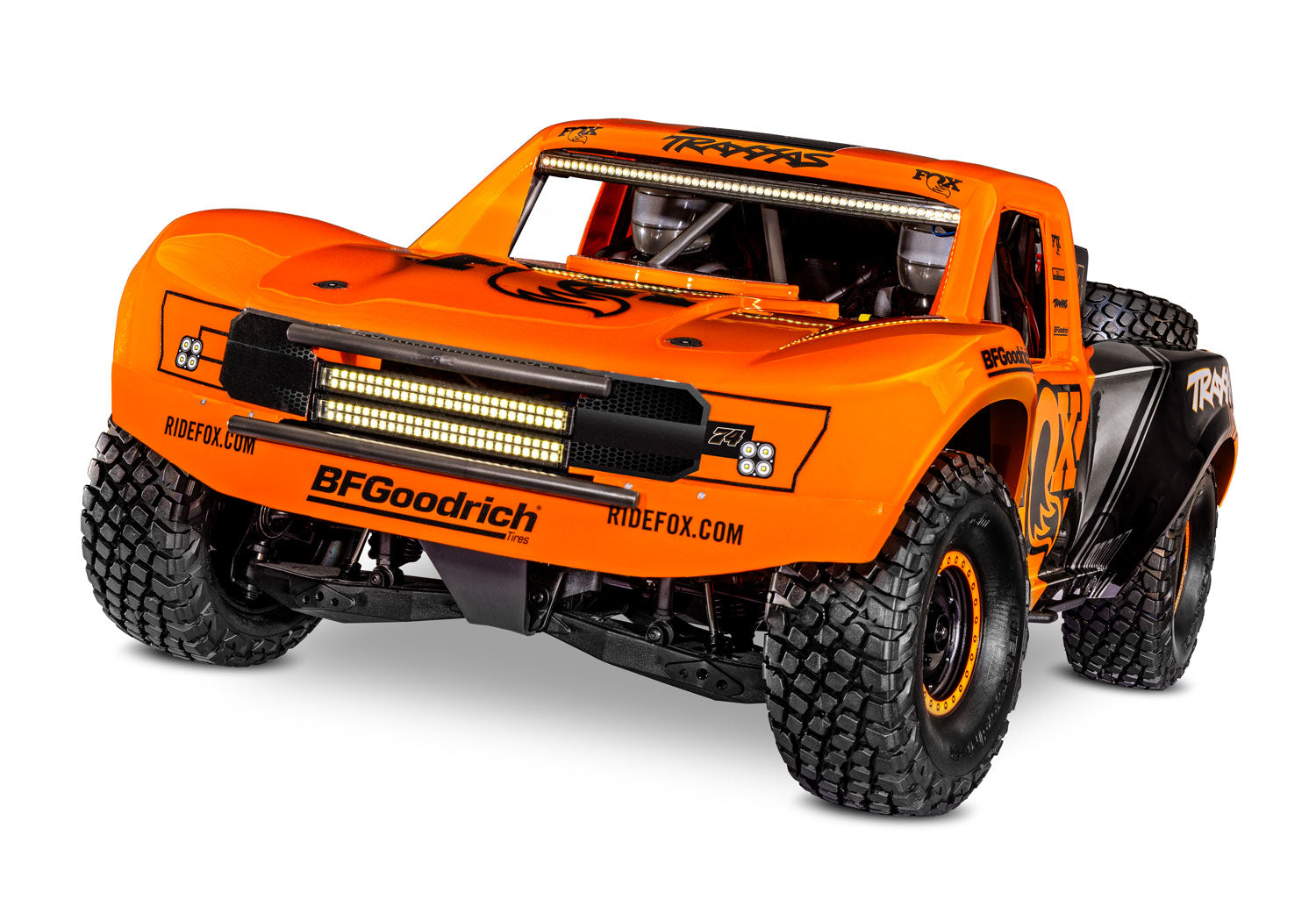

• Large Pro Scale^® Body with Highly Detailed Replica Parts
• Heavy-duty truck body mounts to chassis in multiple locations

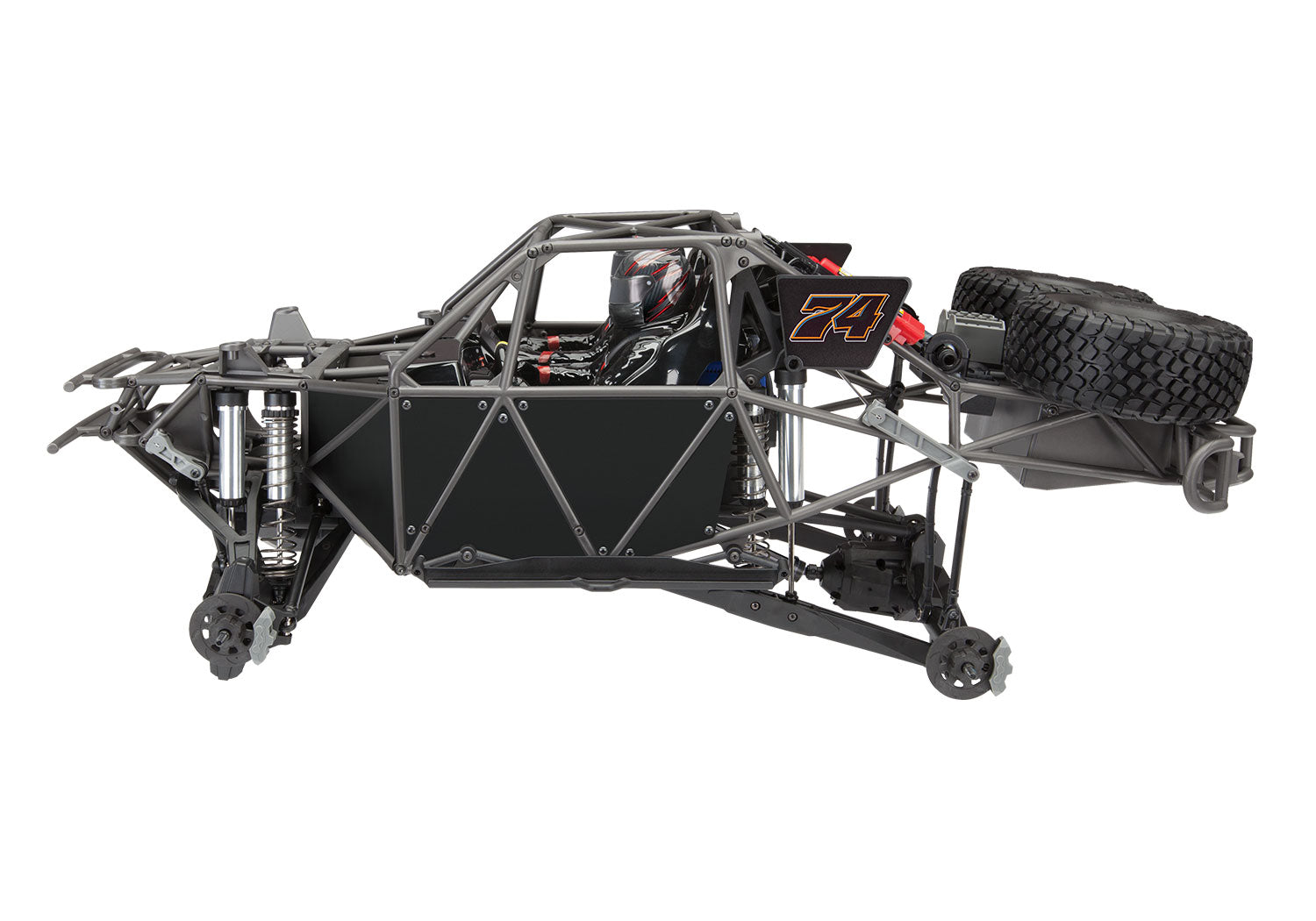

• Strong and functional tube frame mimics full-size off-road racers

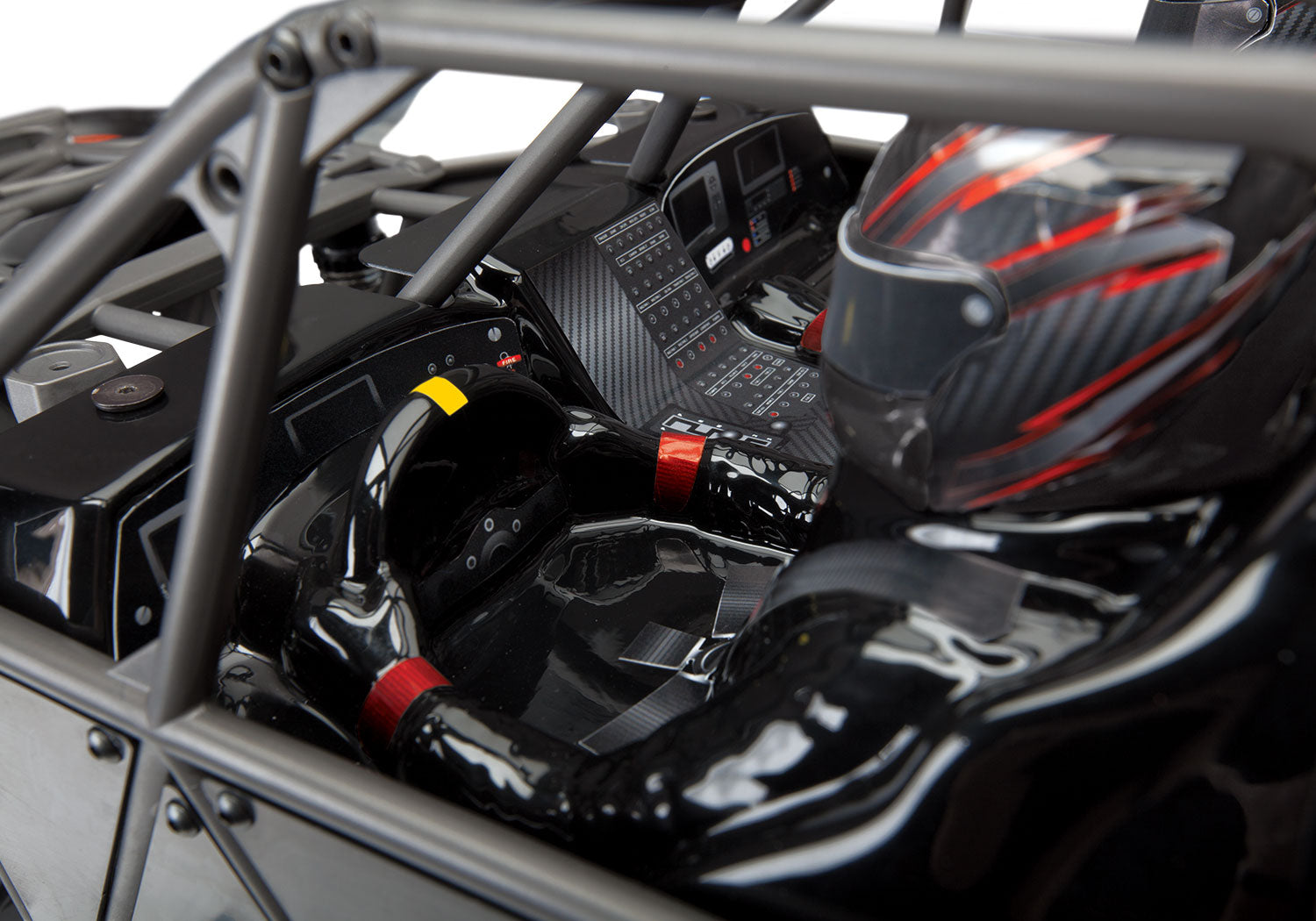

• Detailed interior cabin with driver figures
• Replica brake calipers and discs with integrated 17 mm wheel hubs

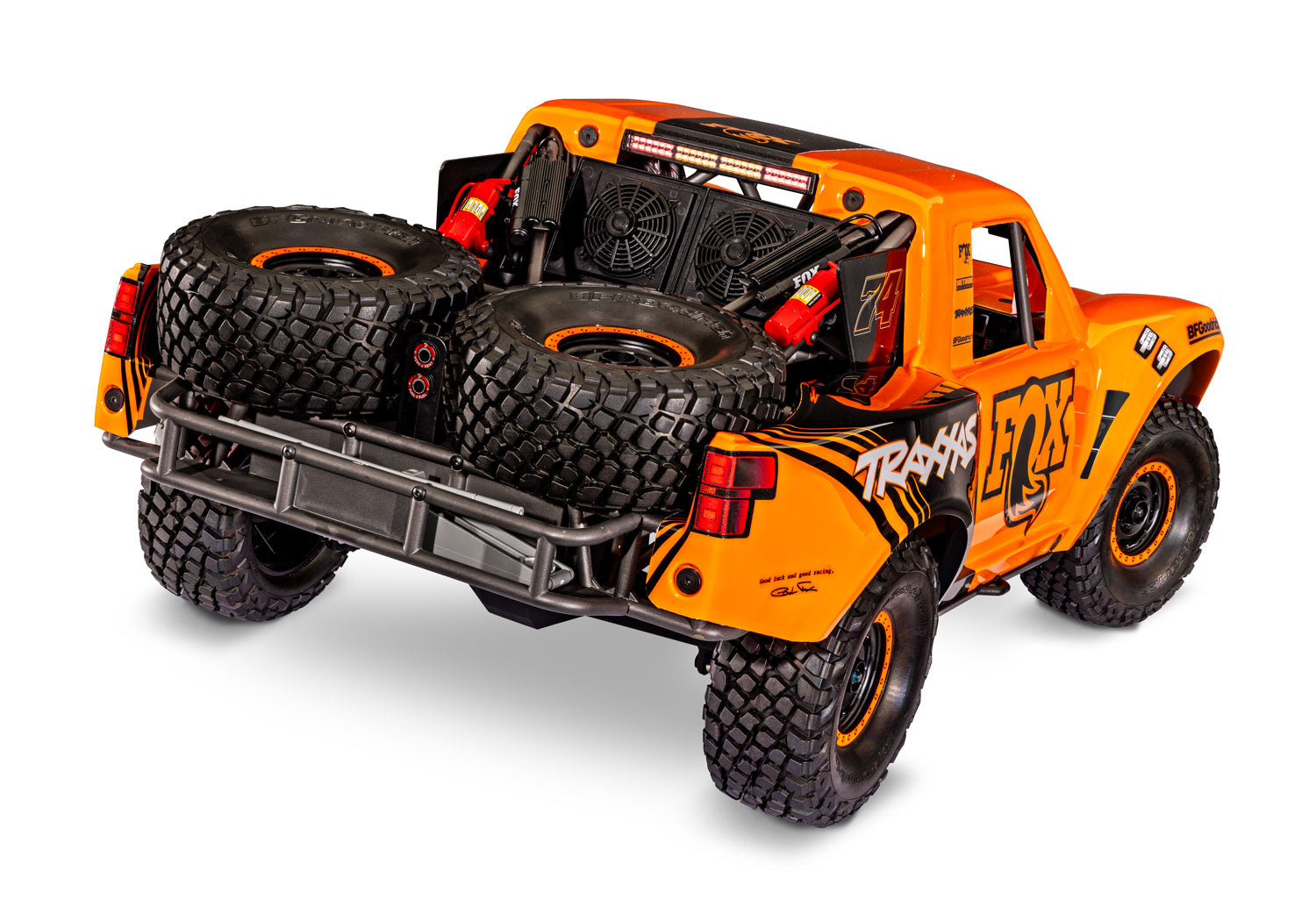

• Two fully functional spare tires and functional spare driveshaft
• Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
• Realistic side plates mount to tube frame

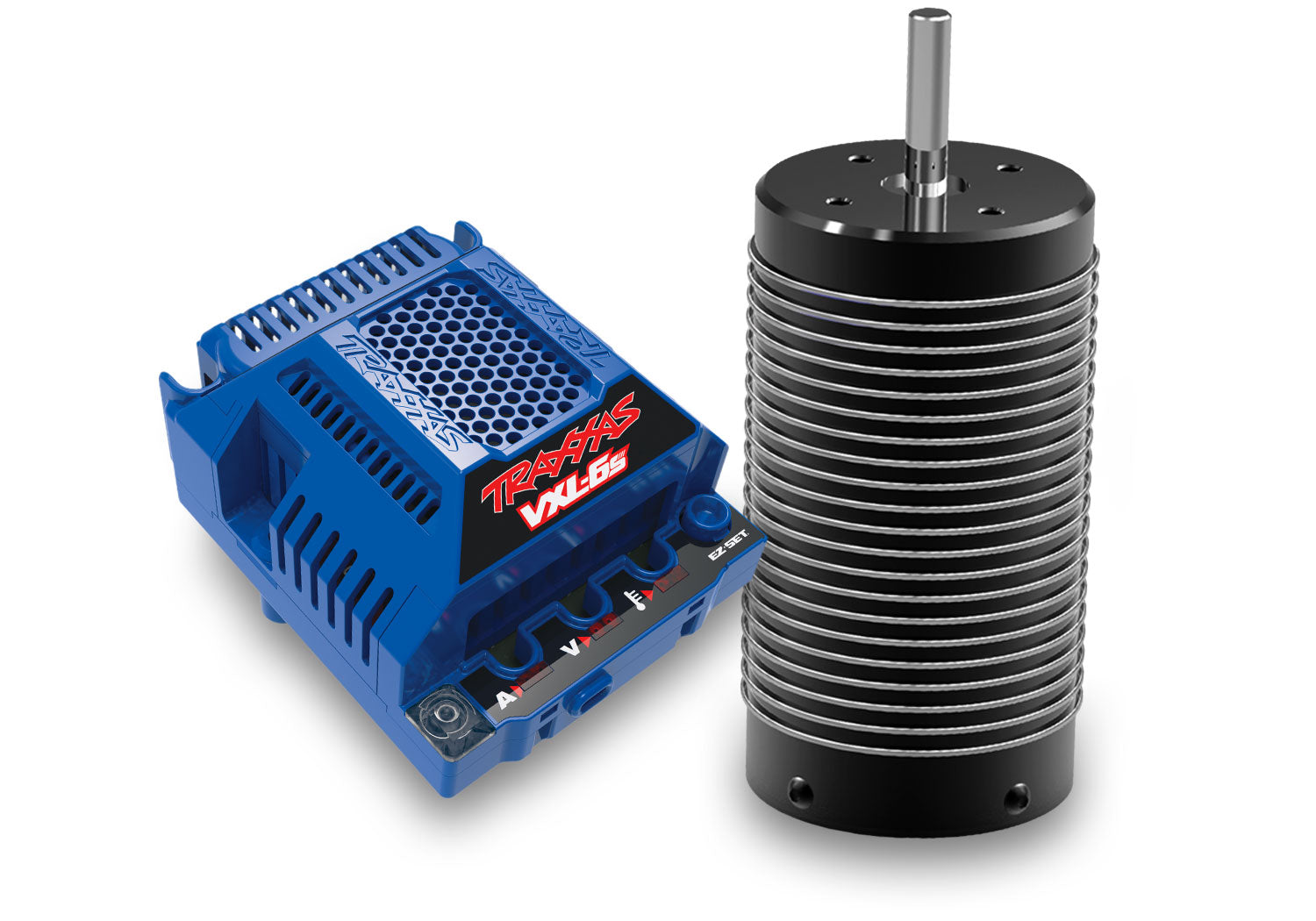

• VXL-6s™ Waterproof Electronic Speed Control
• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link™
• Machined heat sink
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire

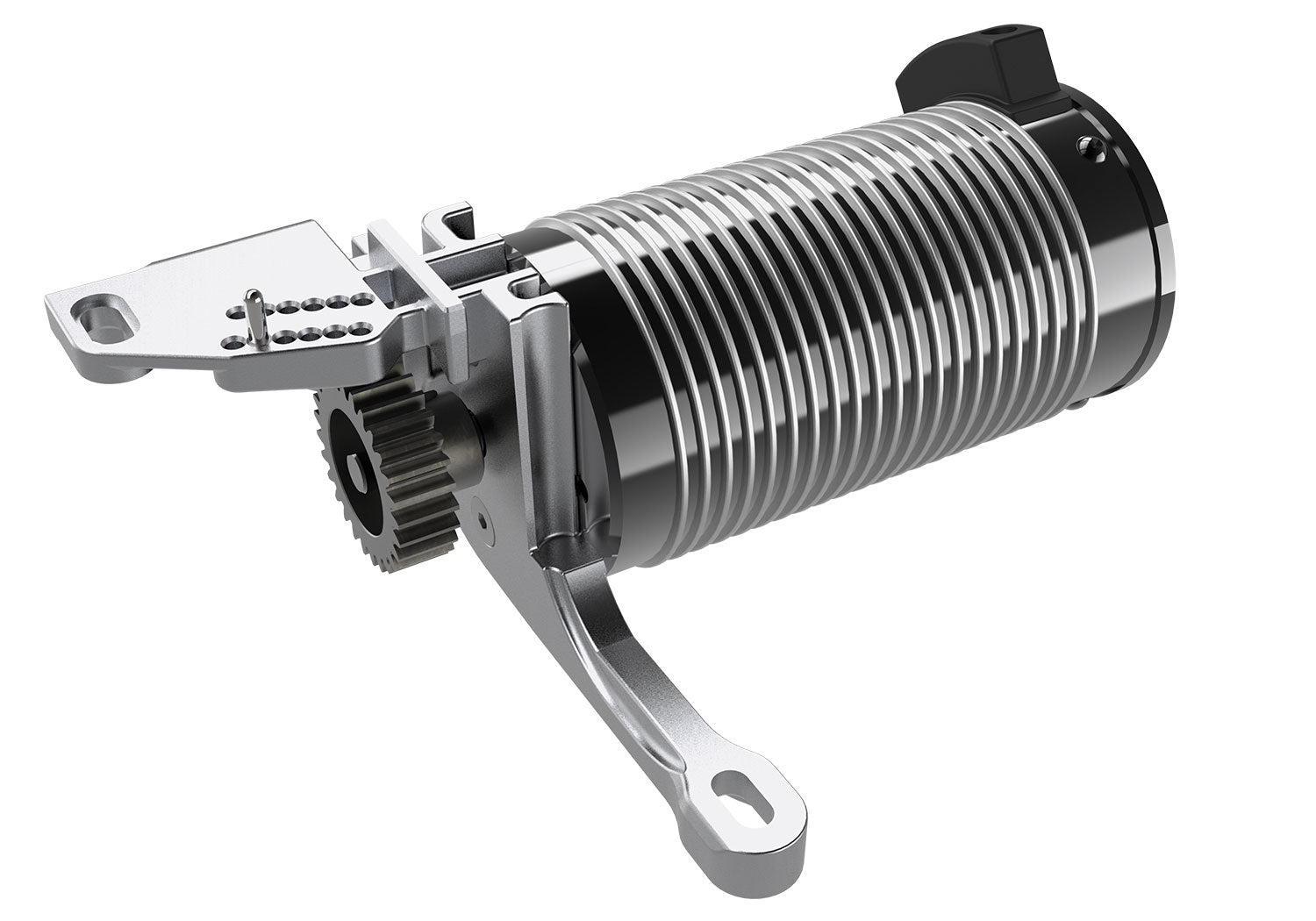

• Velineon^® Brushless Motor
• 4-pole 2200 kV brushless motor
• 5 mm output shaft
• Finned can for better heat dissipation
• Traxxas Stability Management^® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

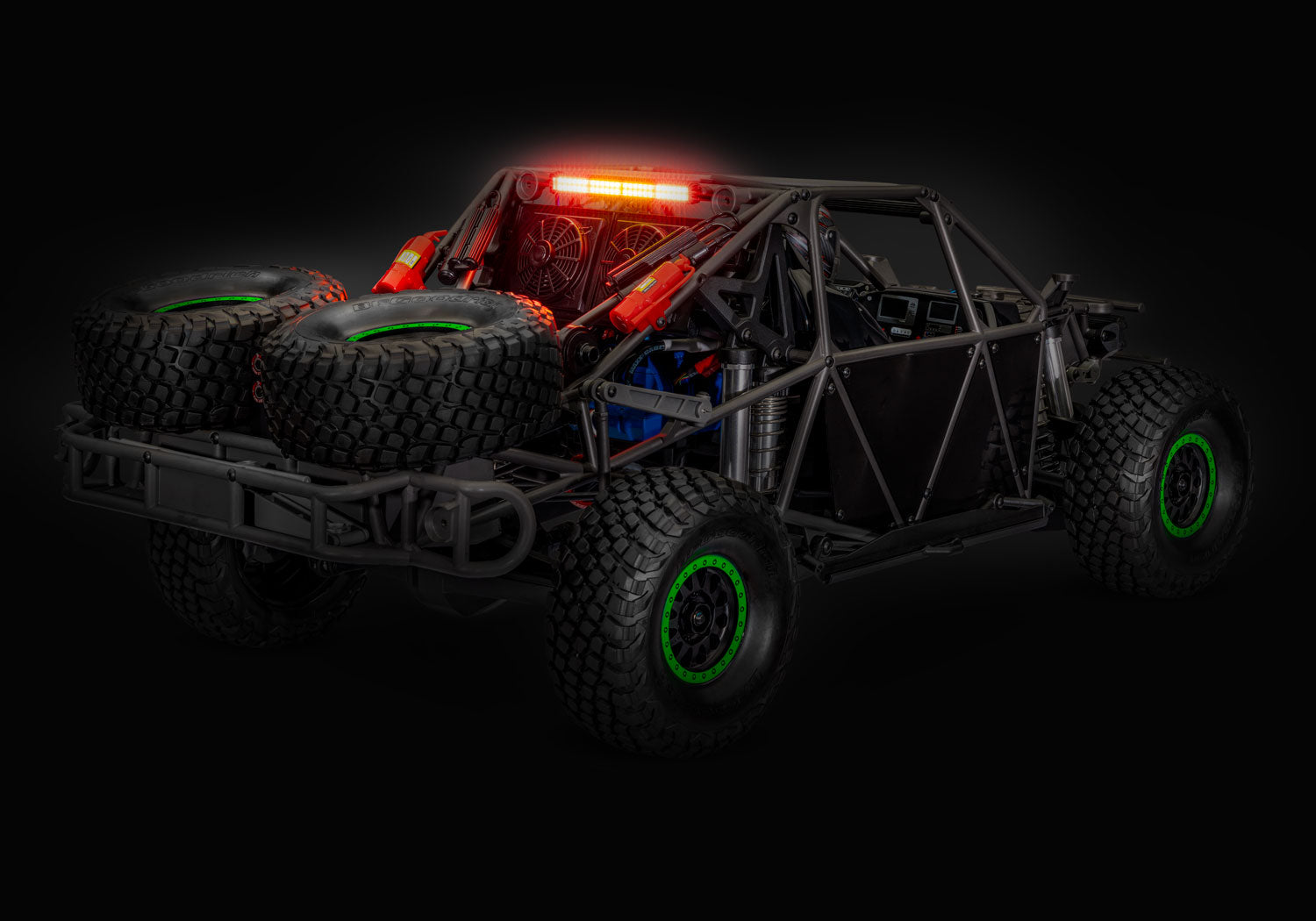

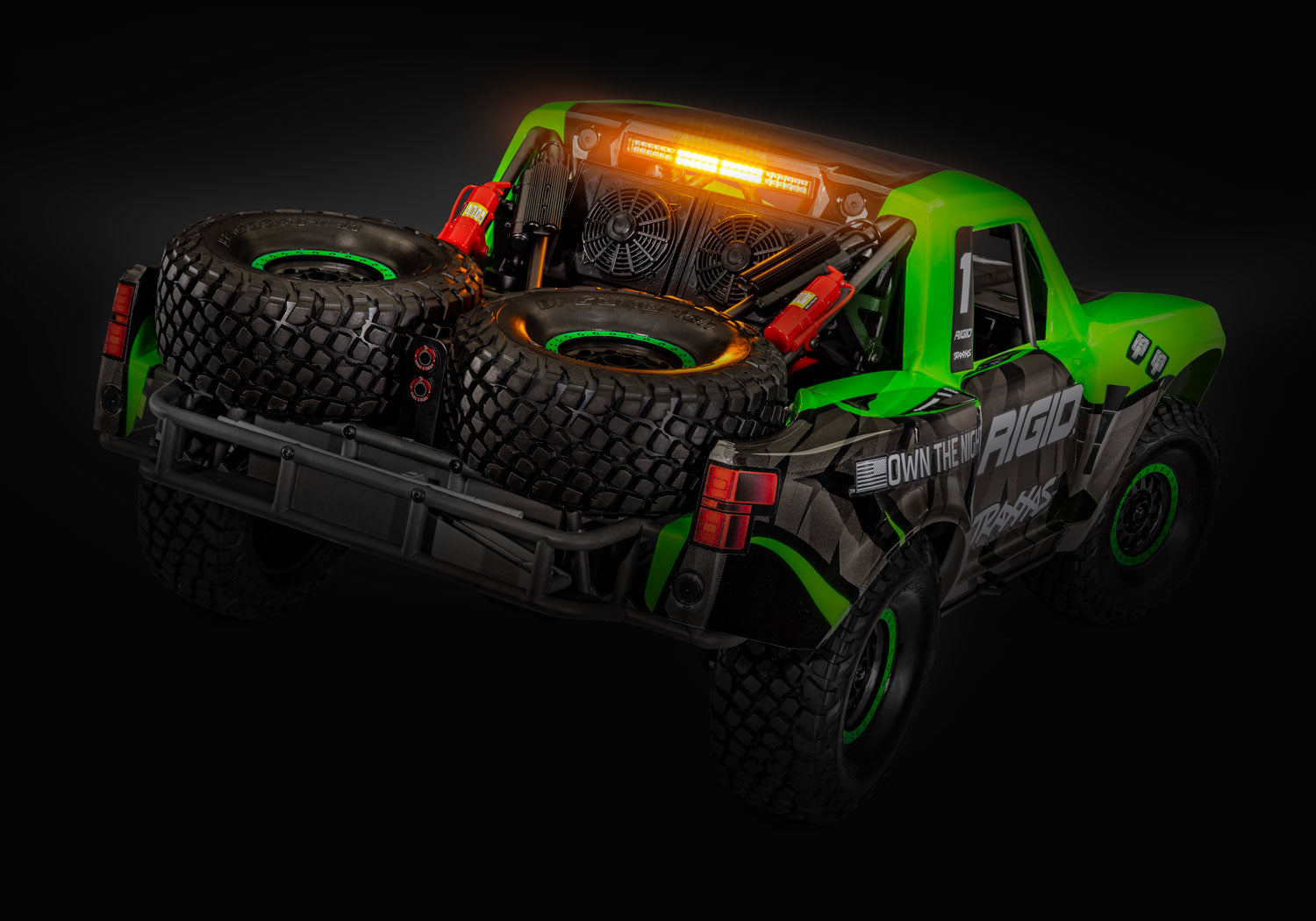

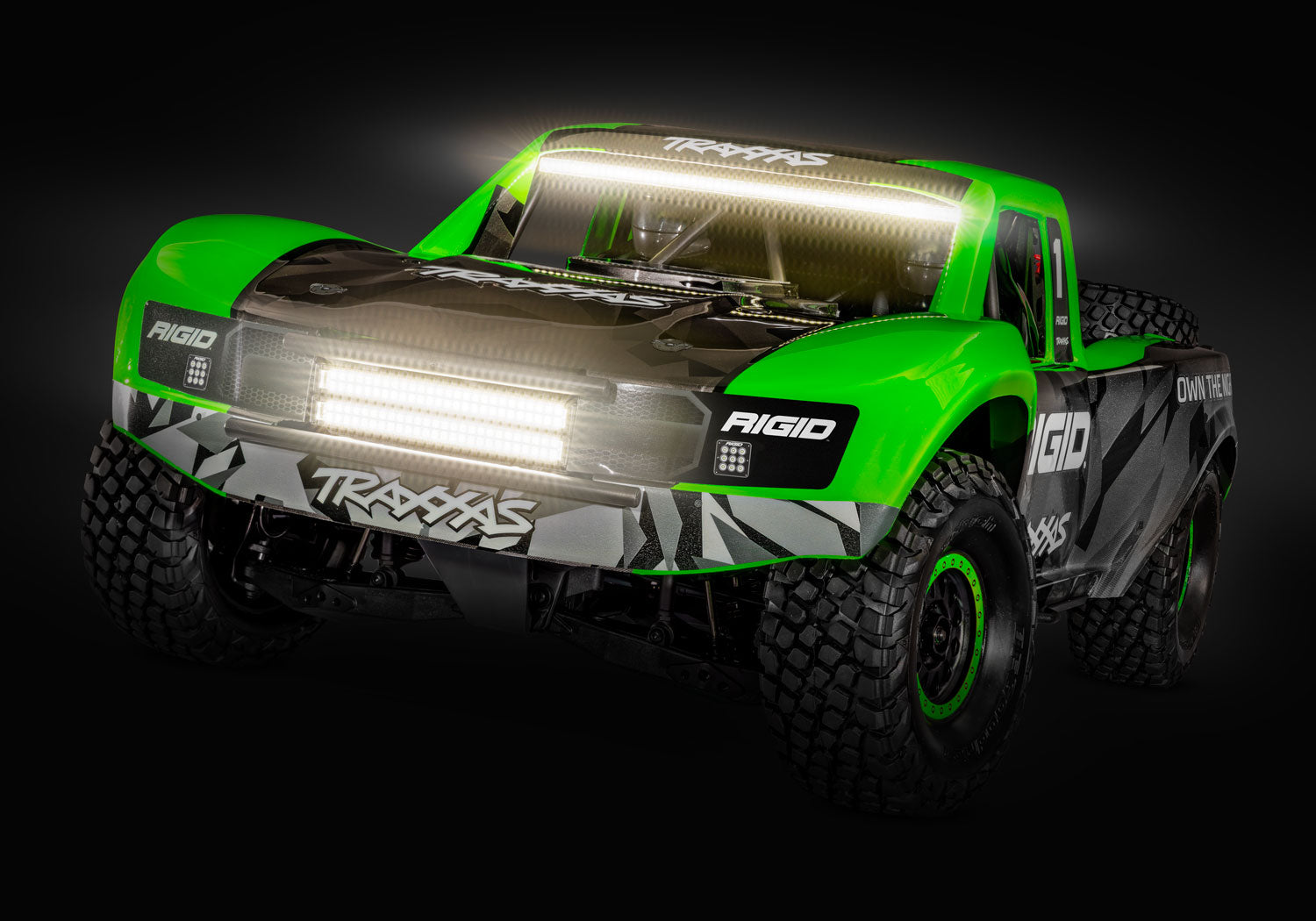

• Factory installed LED light kit

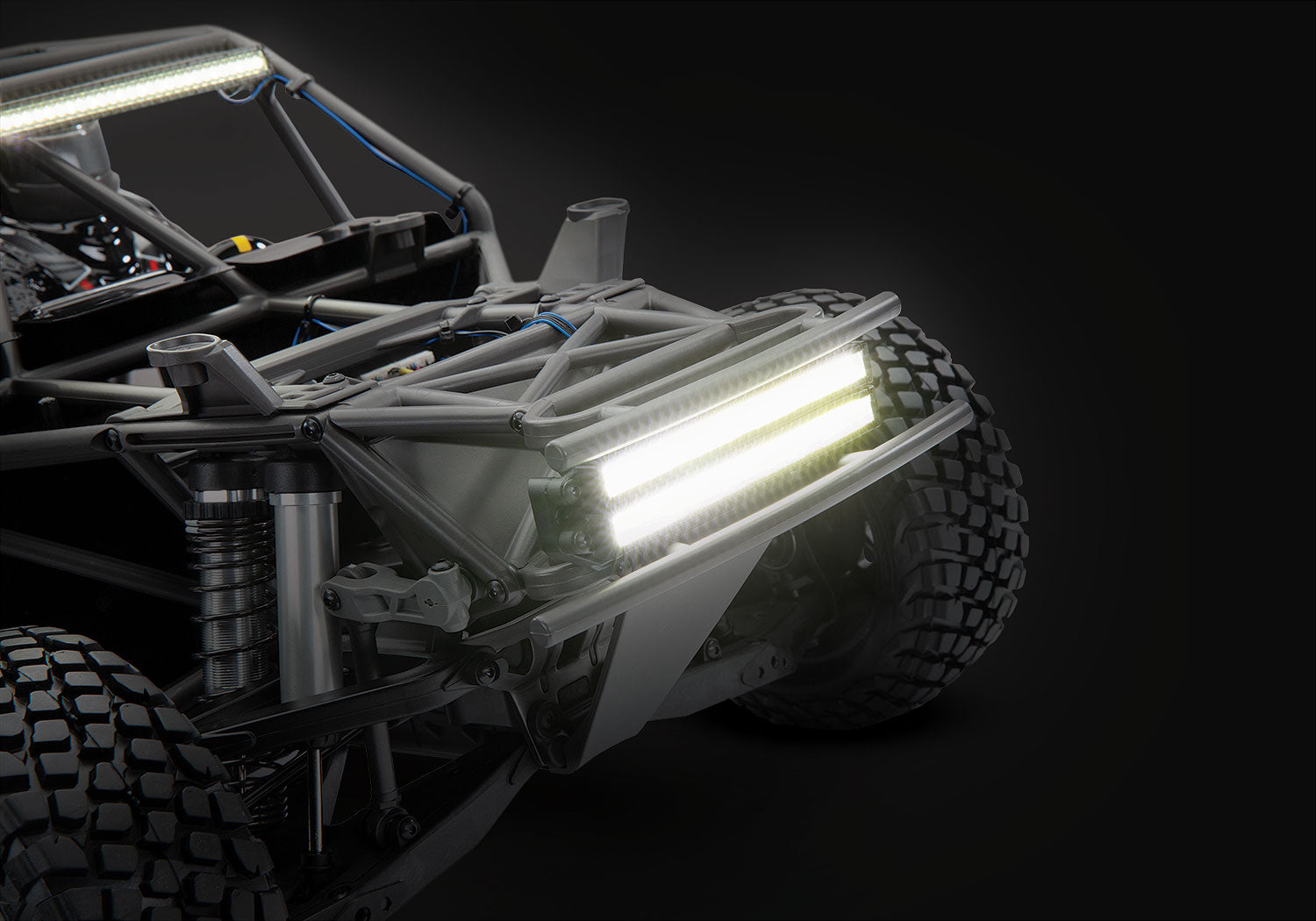

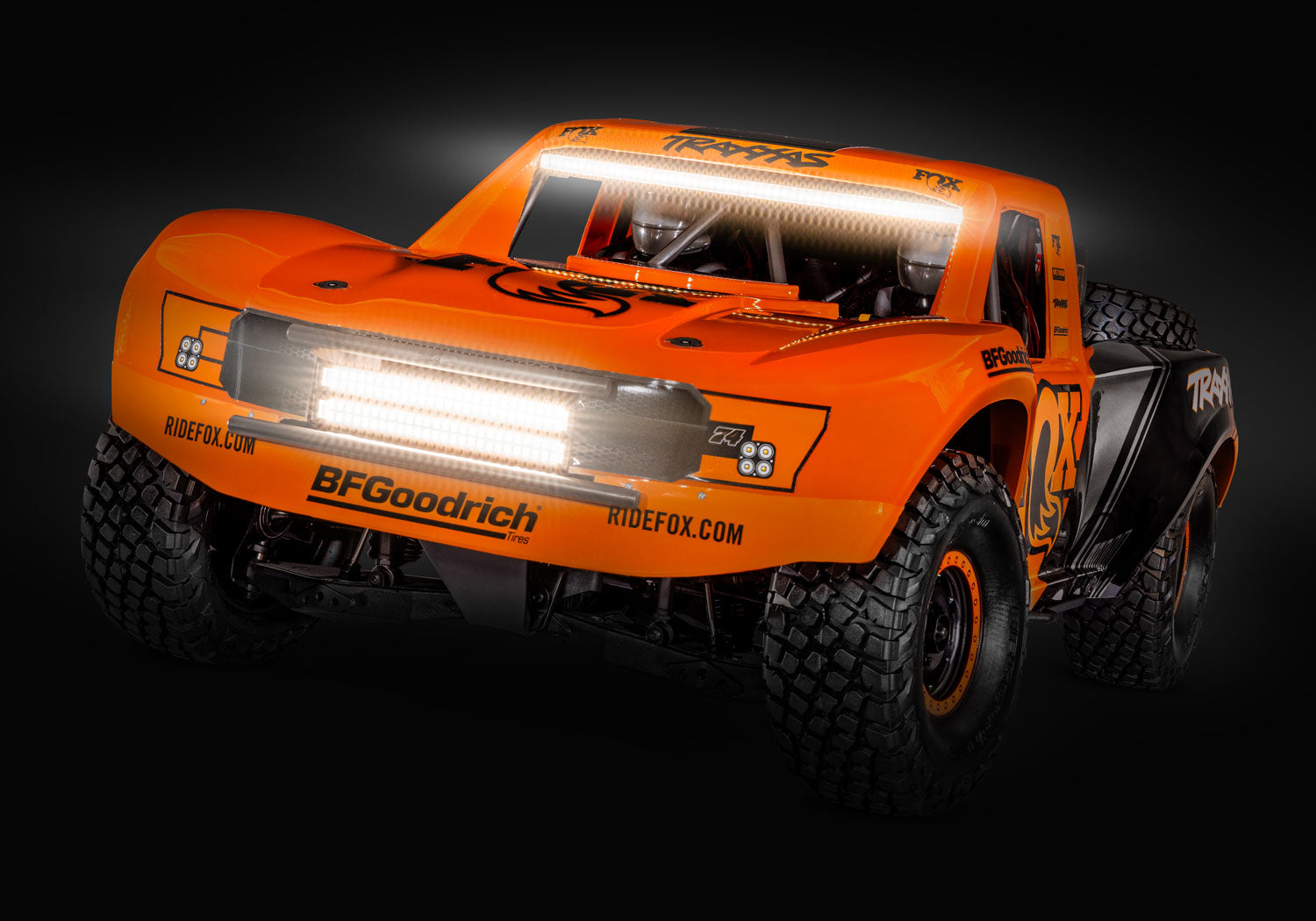

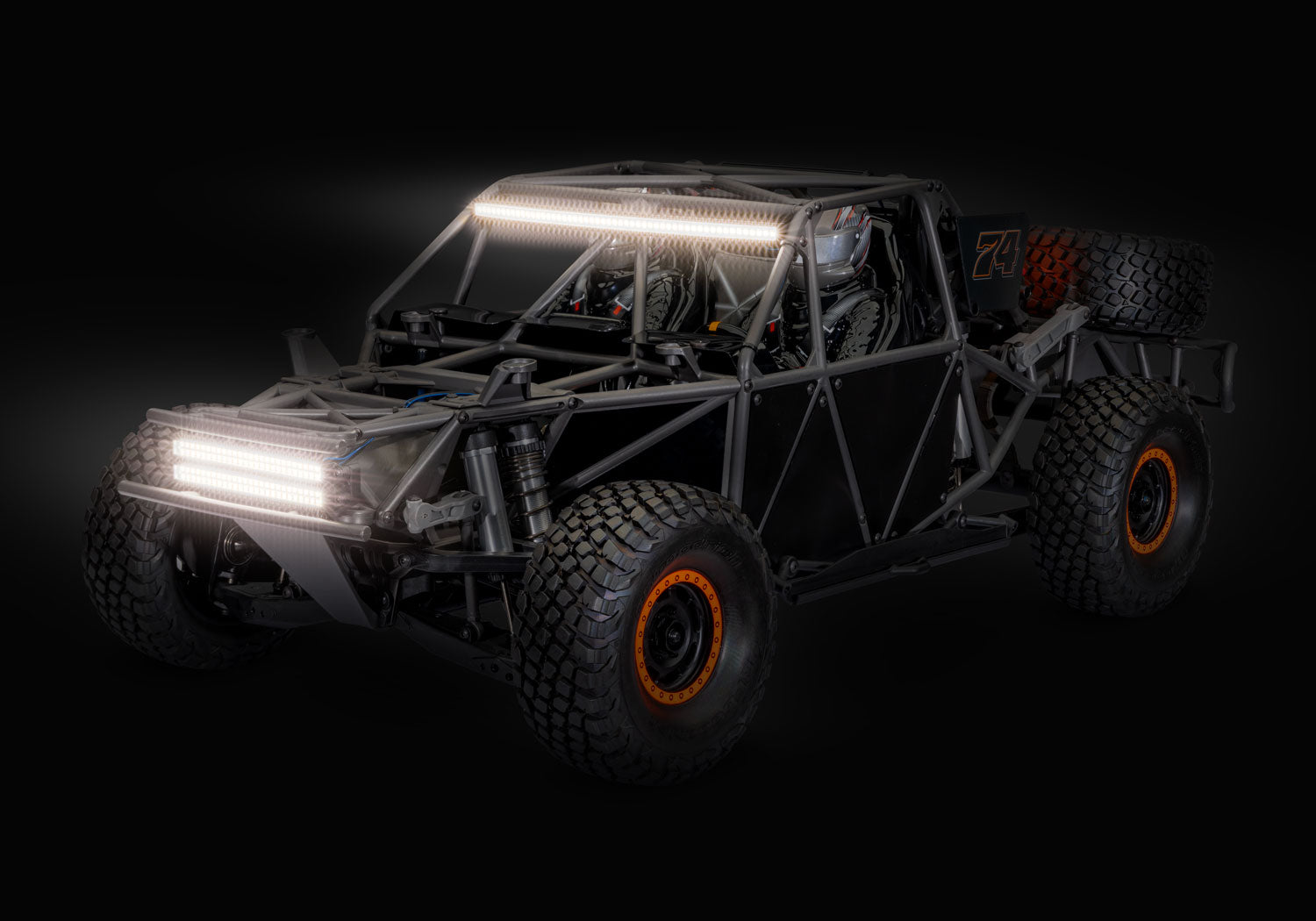

• Dual bumper-mounted light bars (52 LEDs each)
• Curved roof light bar (52 LEDs)

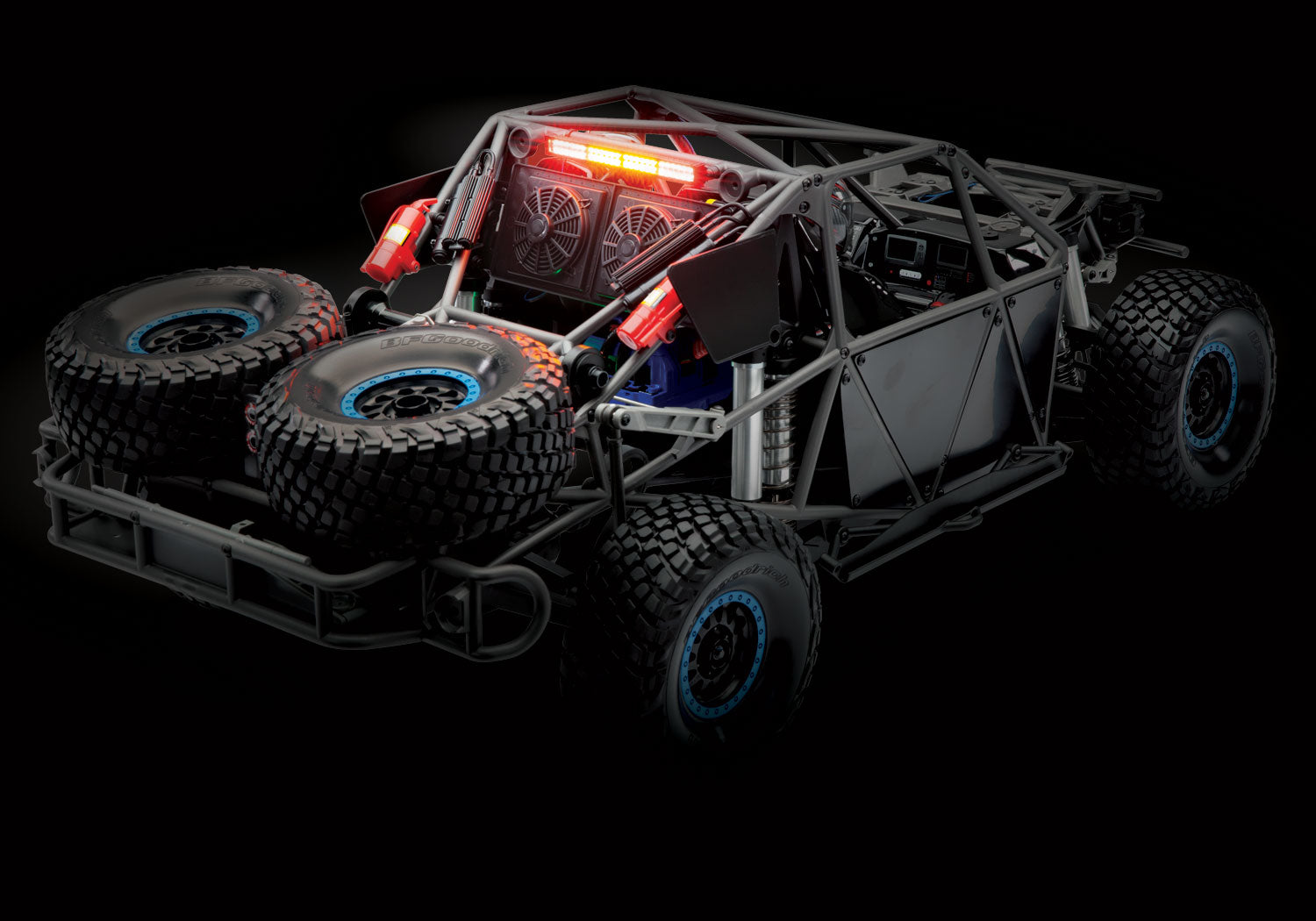

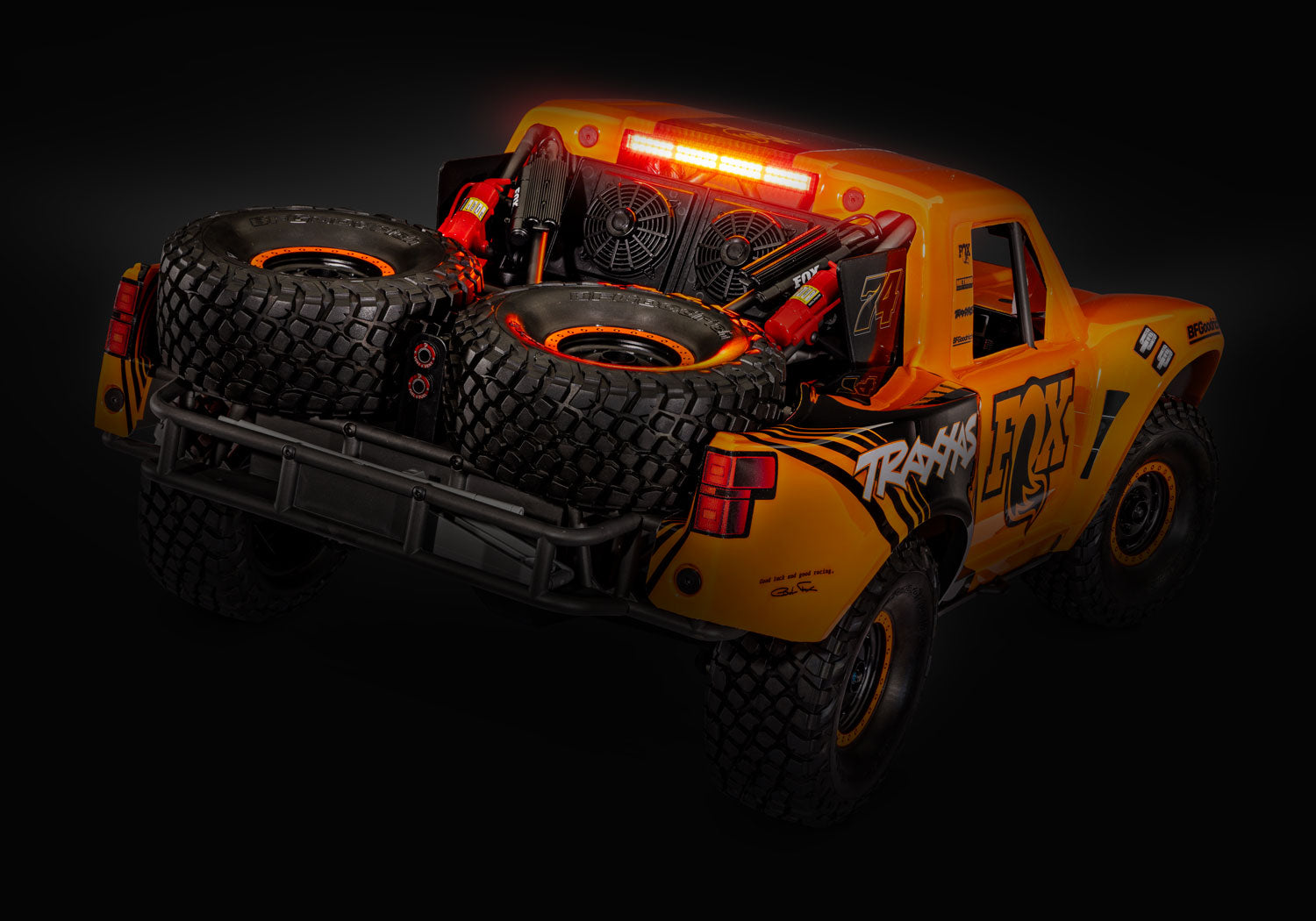

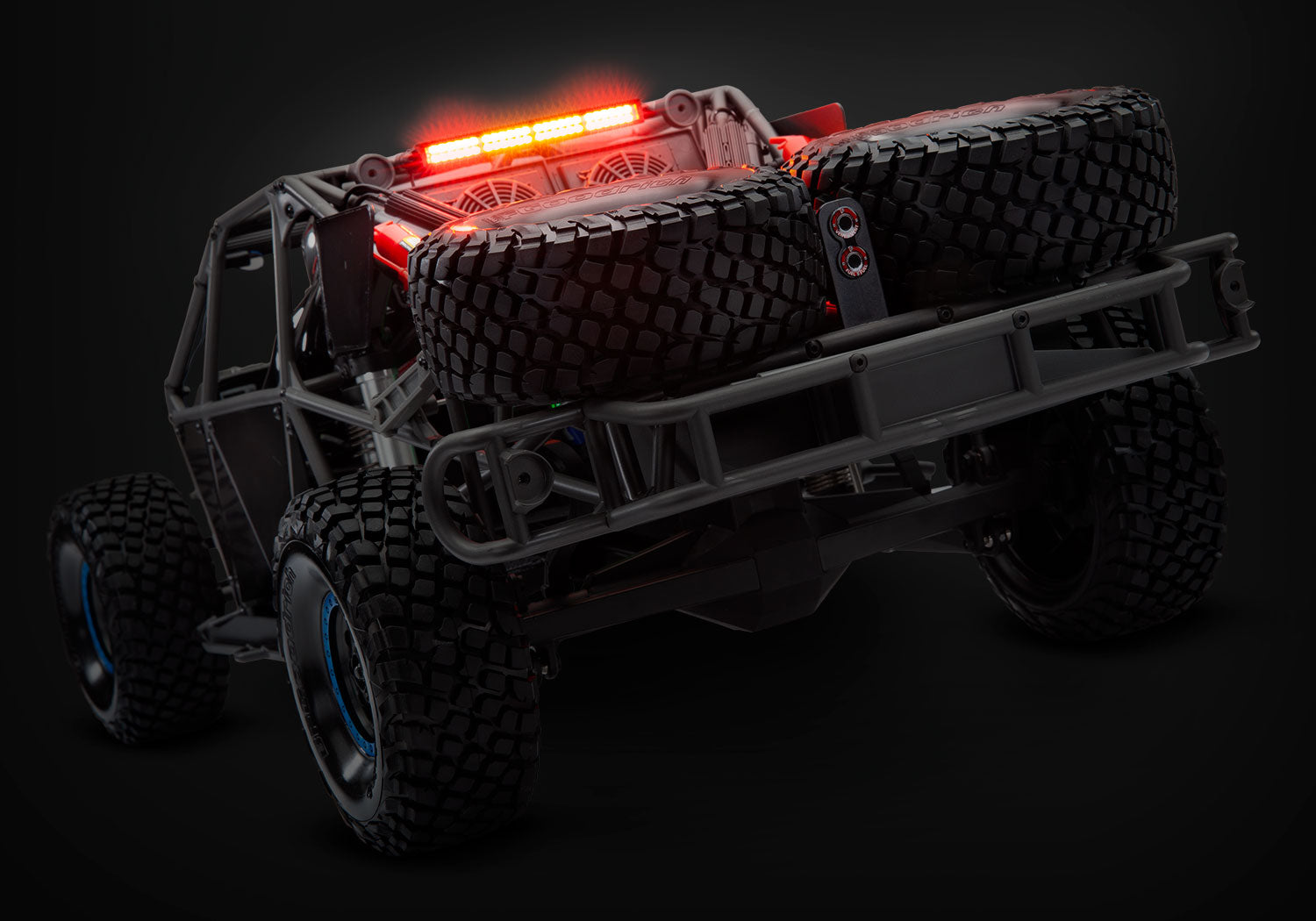

• Multifunction red and amber brake light/class light bar (24 red and 24 amber LEDs)
• High-voltage 8-channel power amplifier
• Regulated output for stable lighting performance

• TQi™ 2.4 GHz Radio System
• 2-channel transmitter
• 5-channel micro receiver (6533) with fail-safe and integrated telemetry ports
• Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints

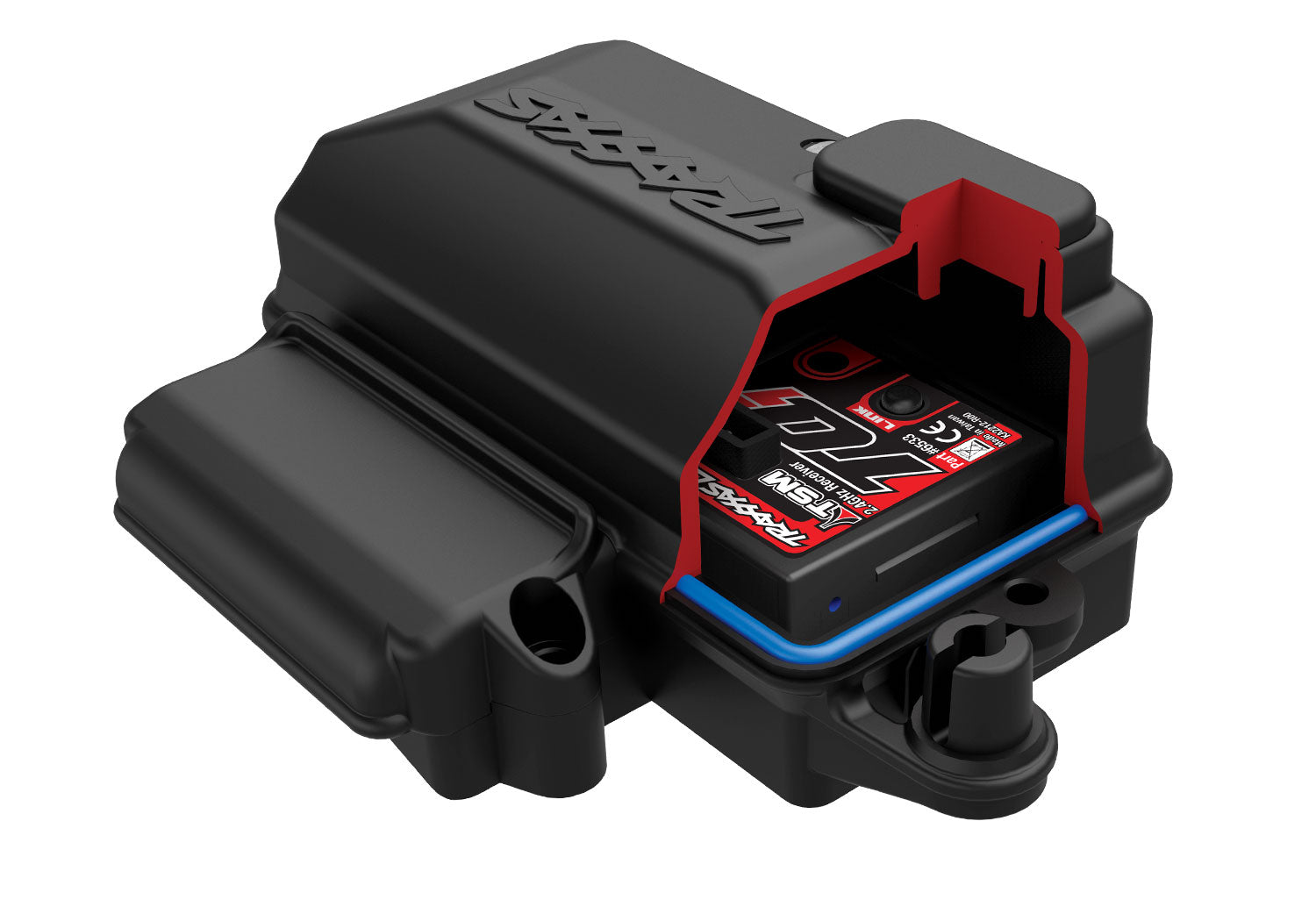

• Patented waterproof receiver box with easy-access plug

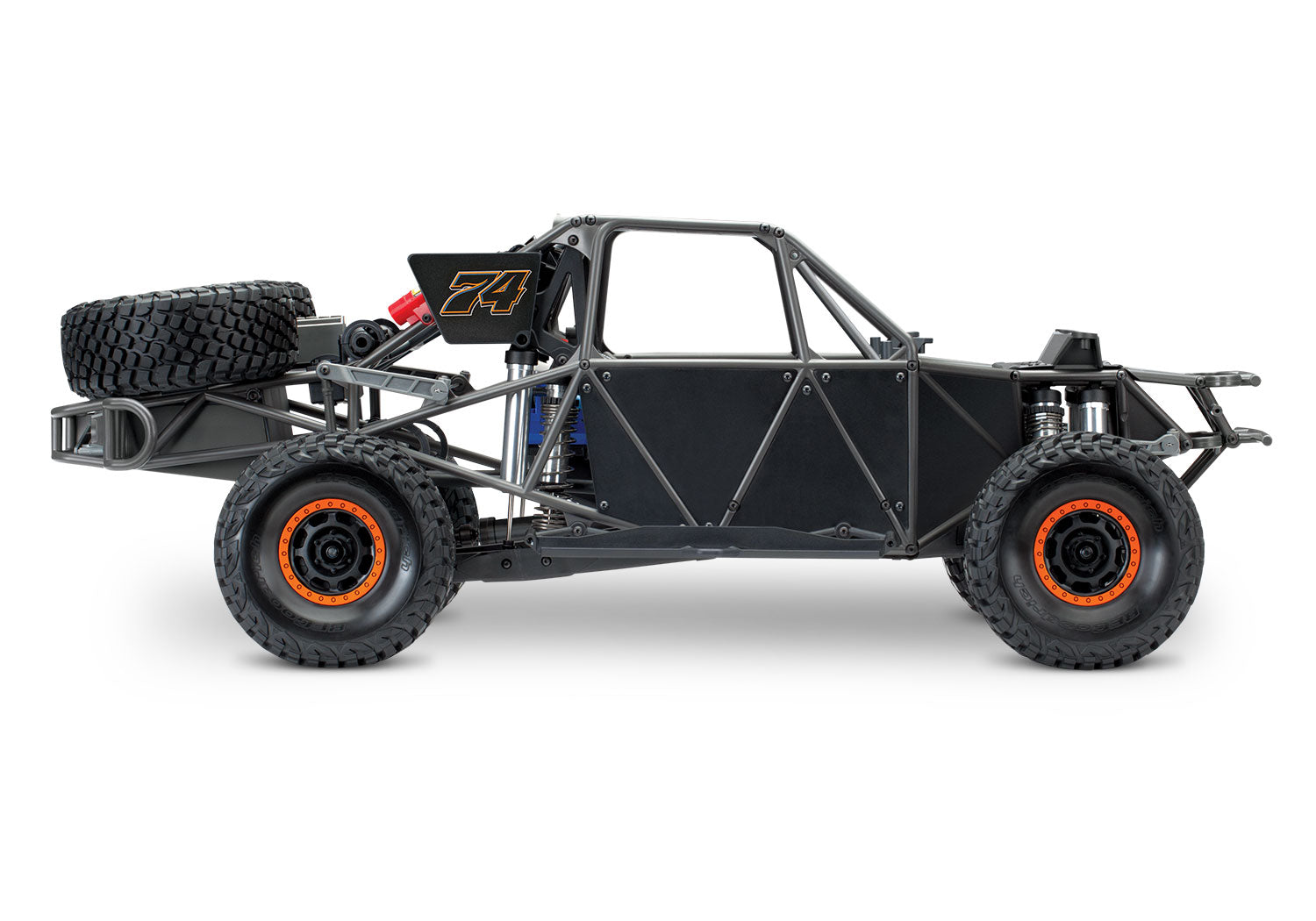

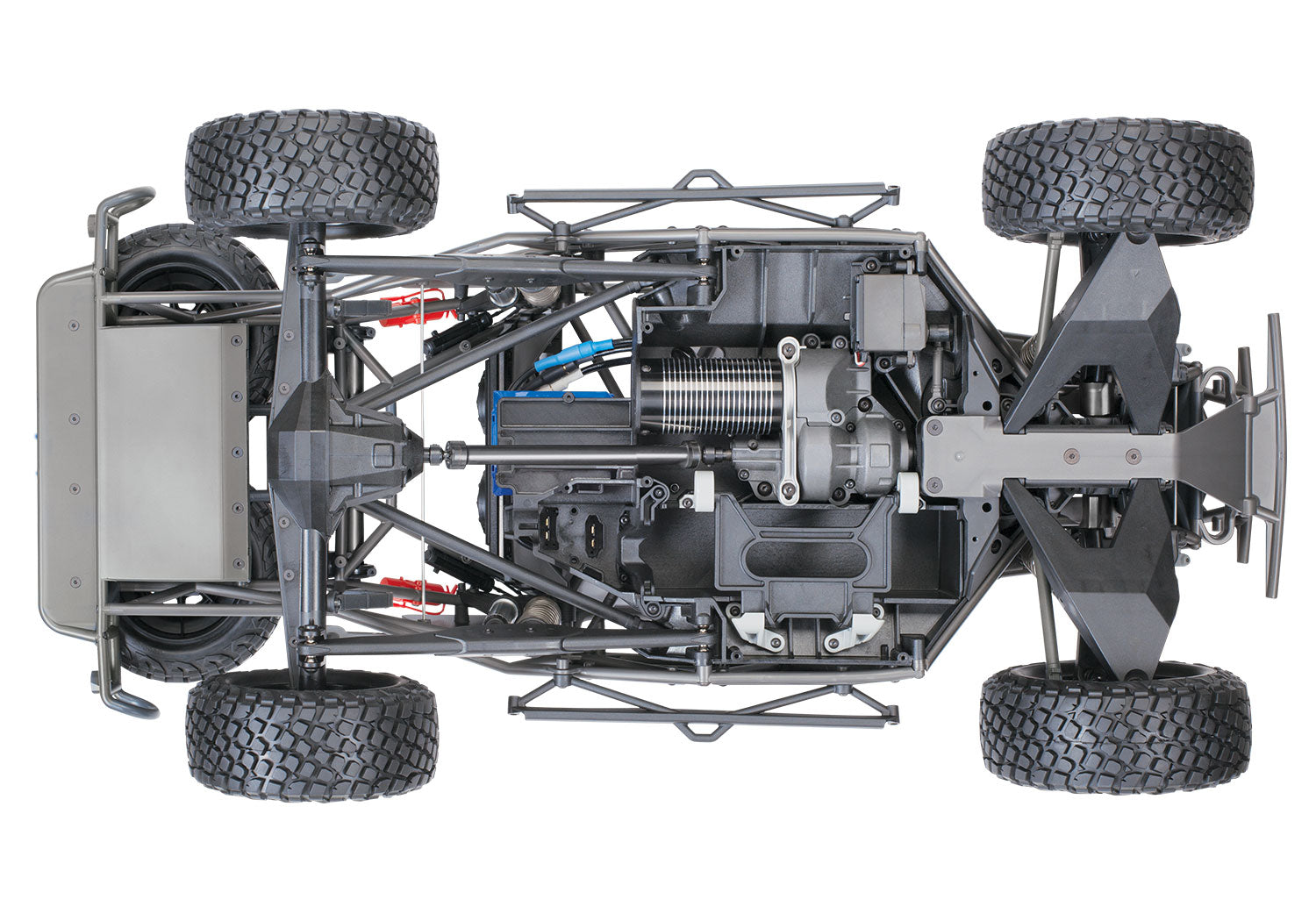

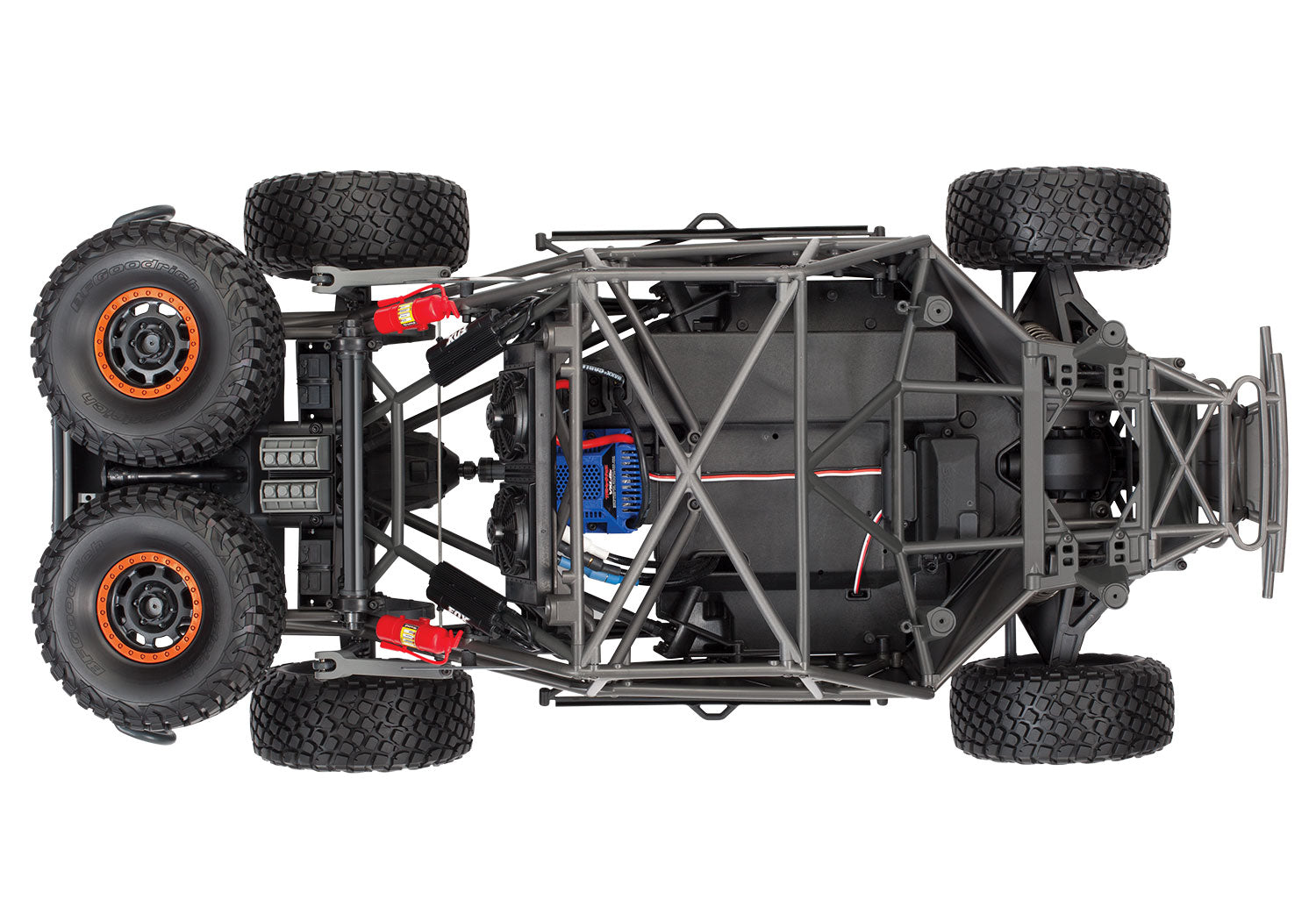

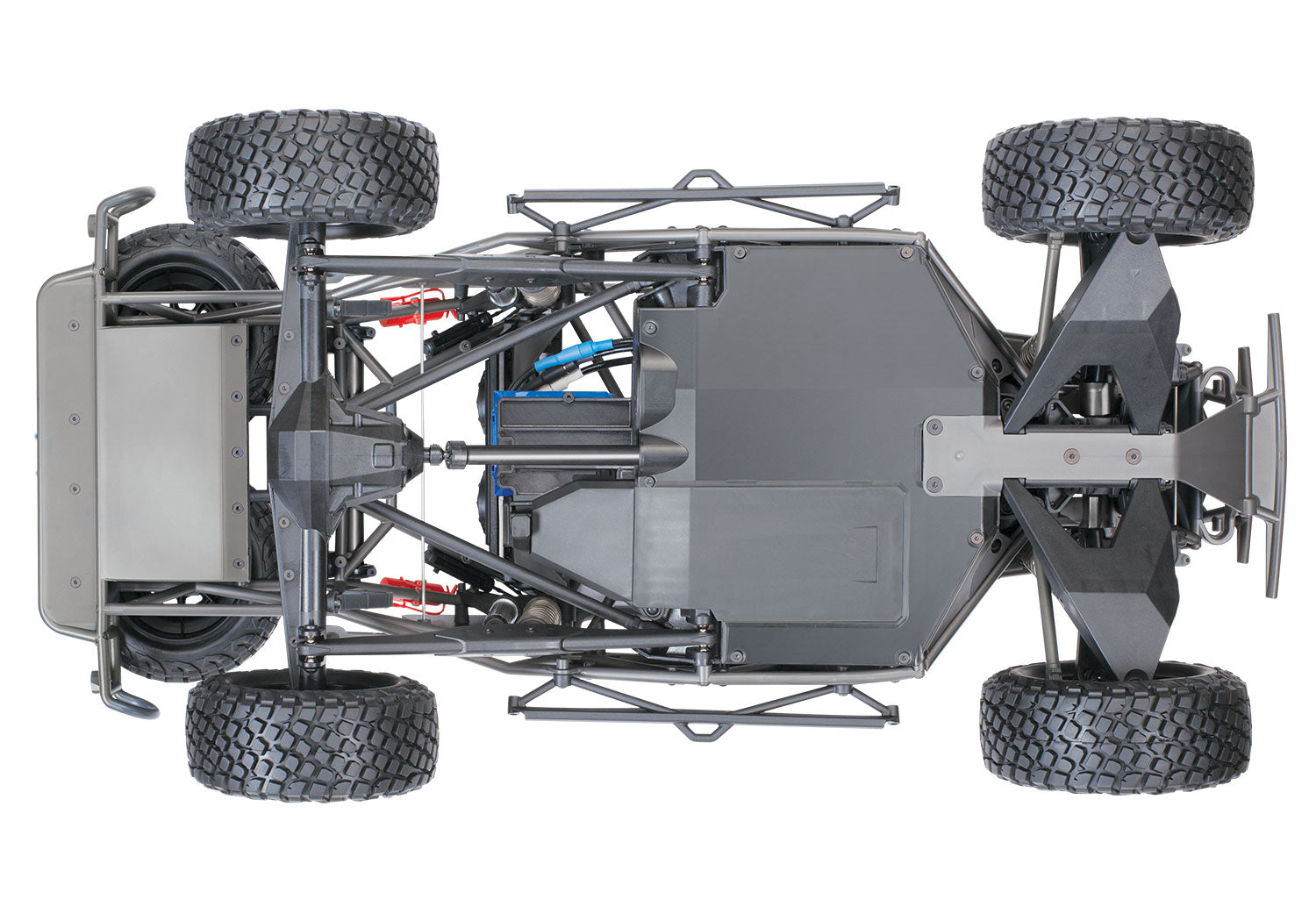

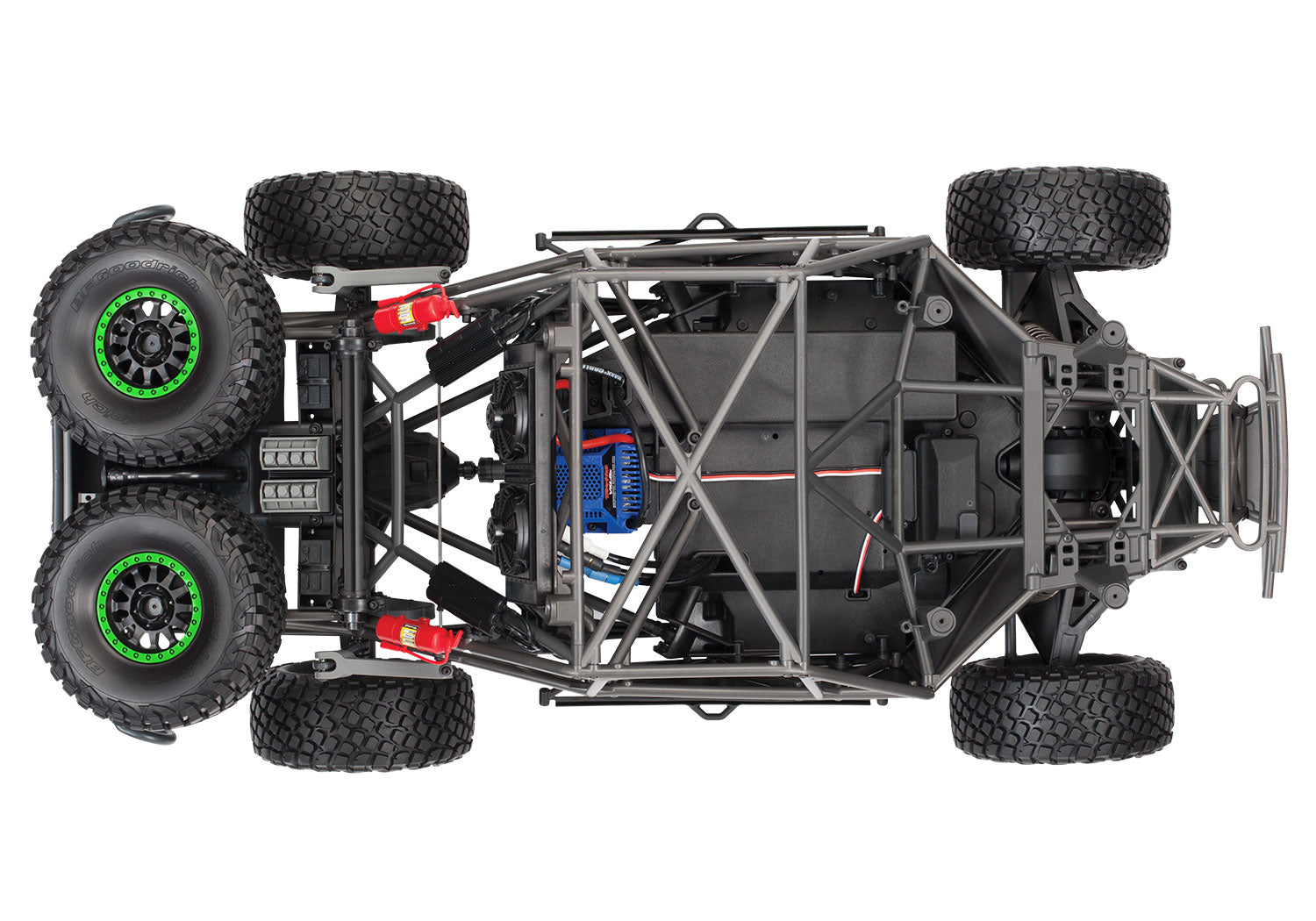

• Chassis
• Composite inverted tub design
• Makes maintenance easier
• Lowers center of gravity (CG) for improved handling
• Allows easy access to components
• Tough skid plates protect critical components

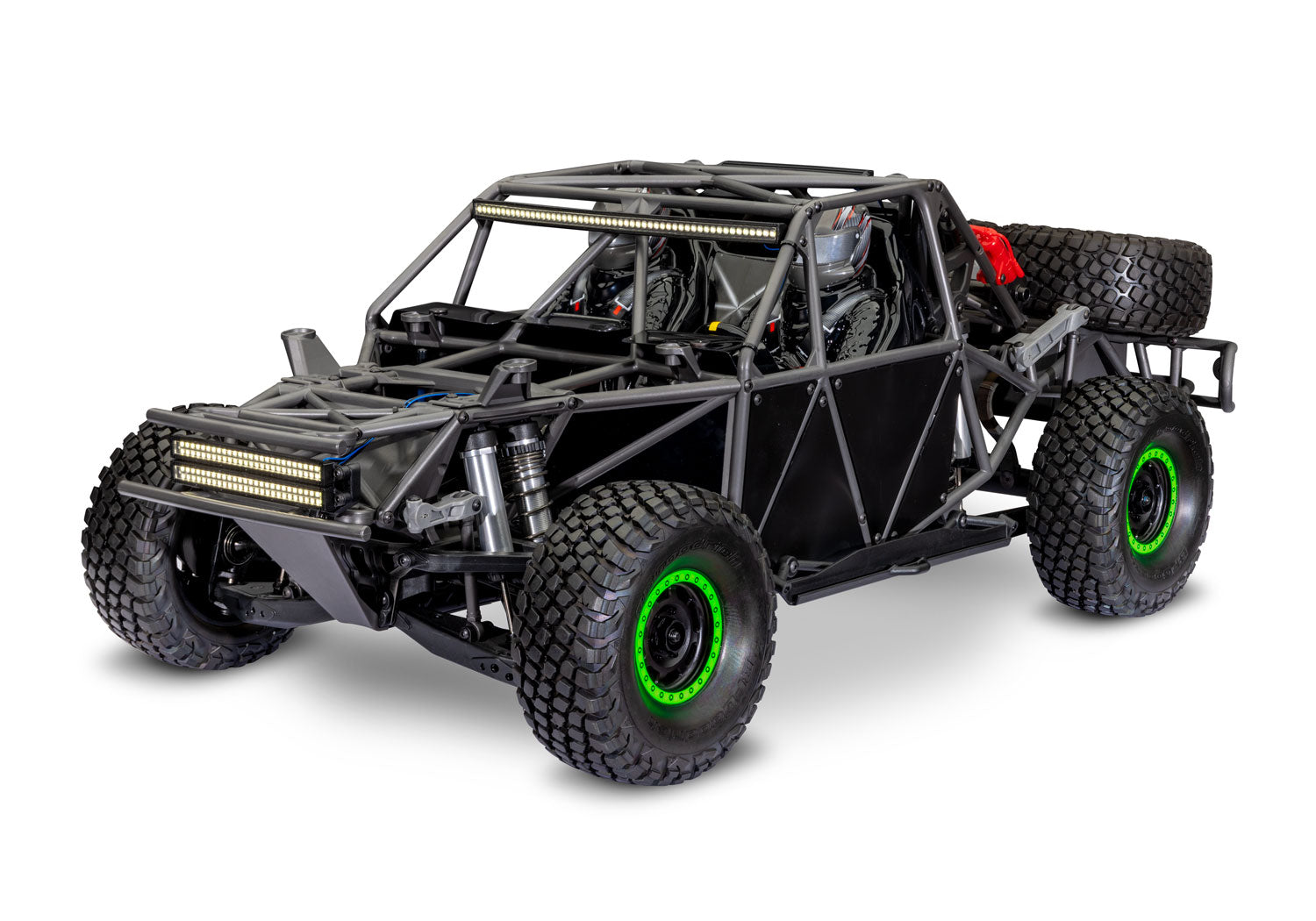

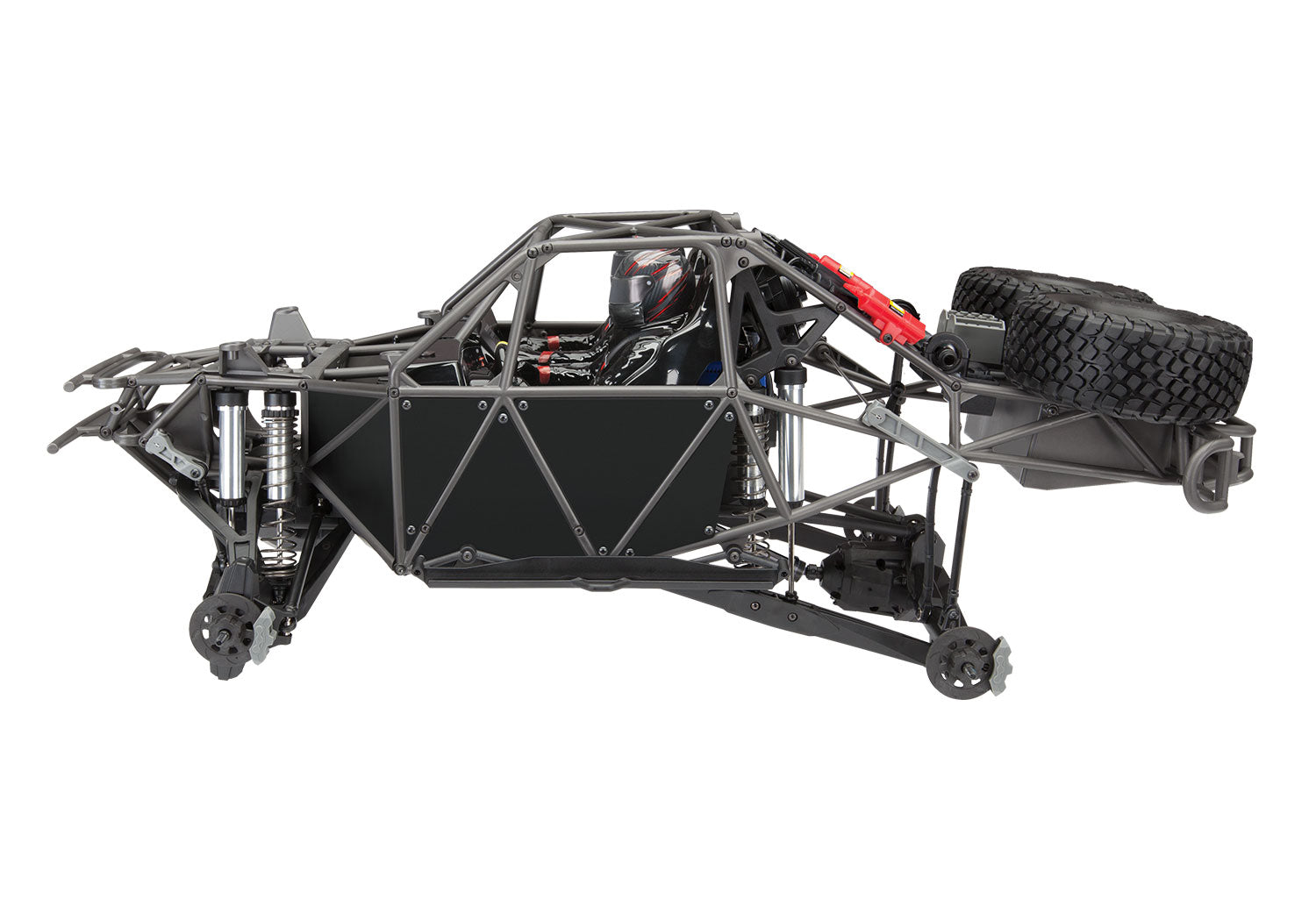

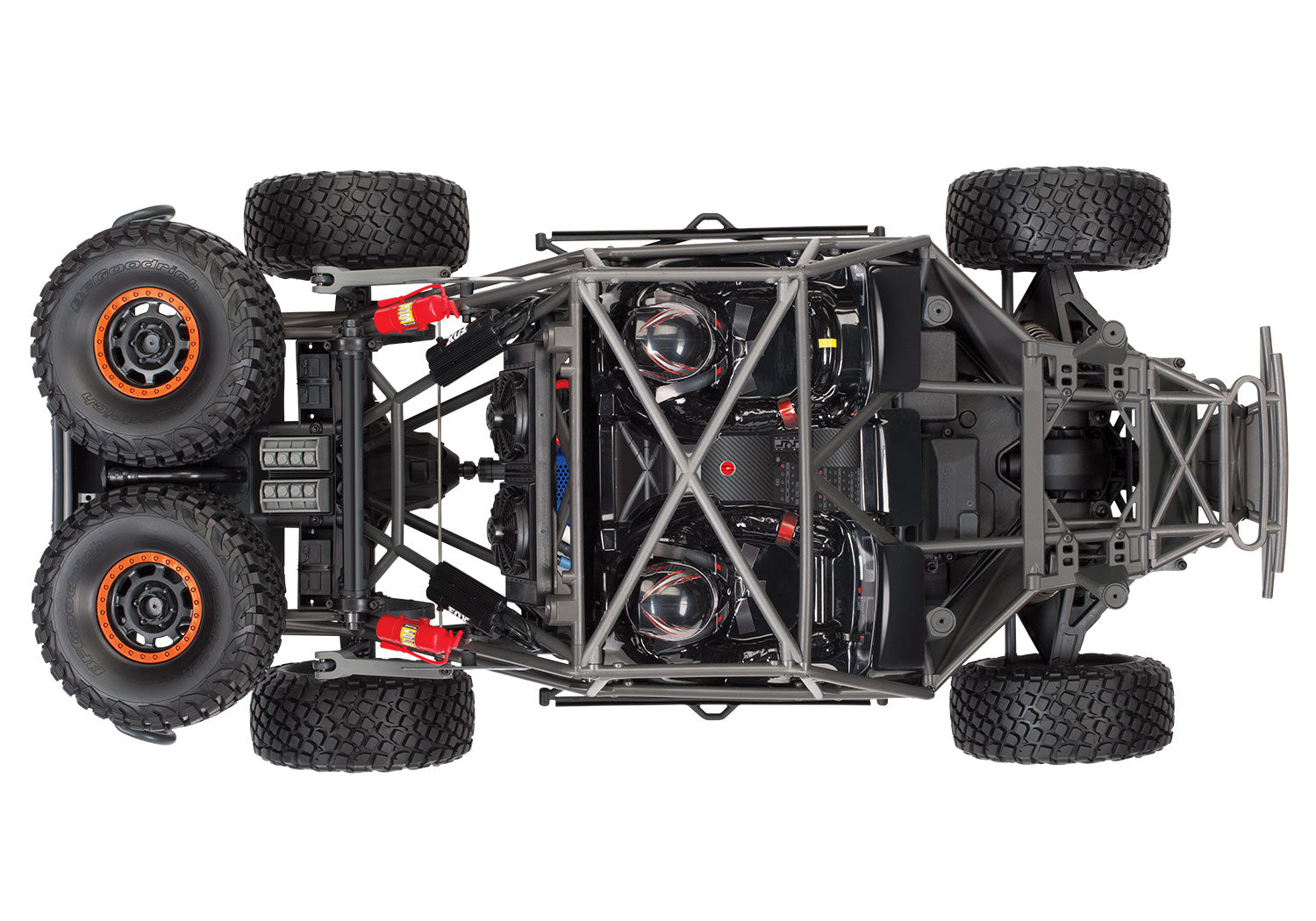

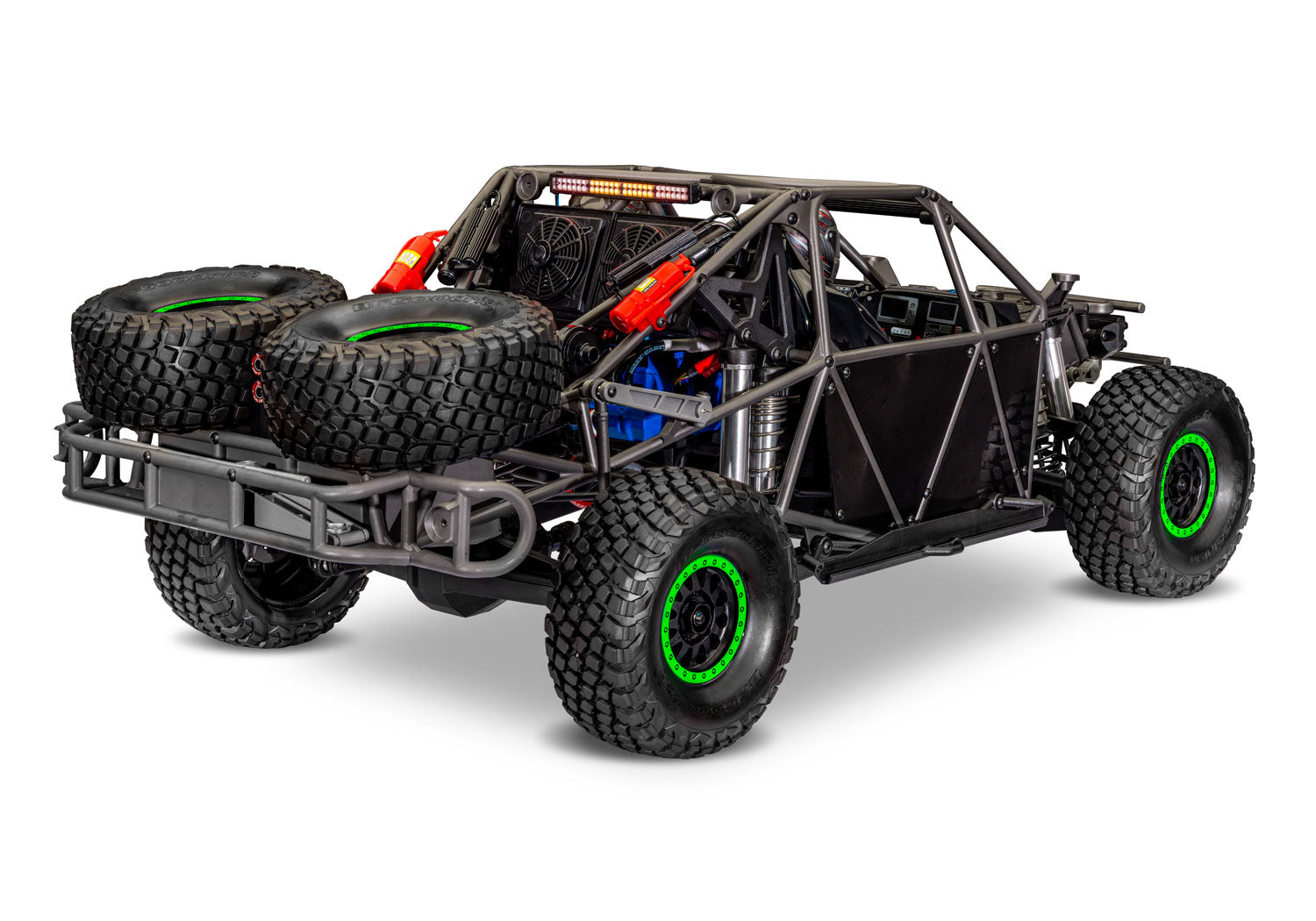

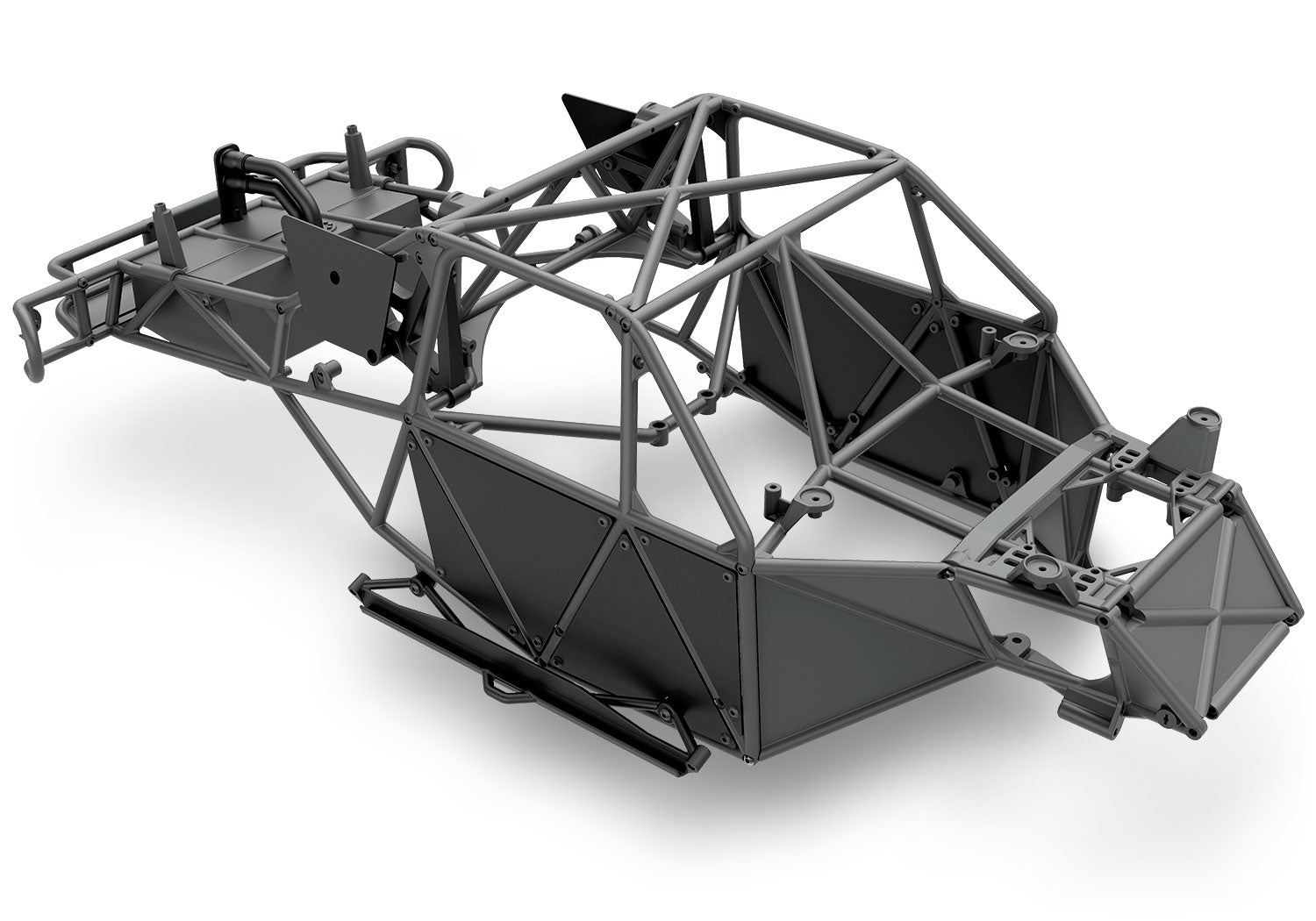

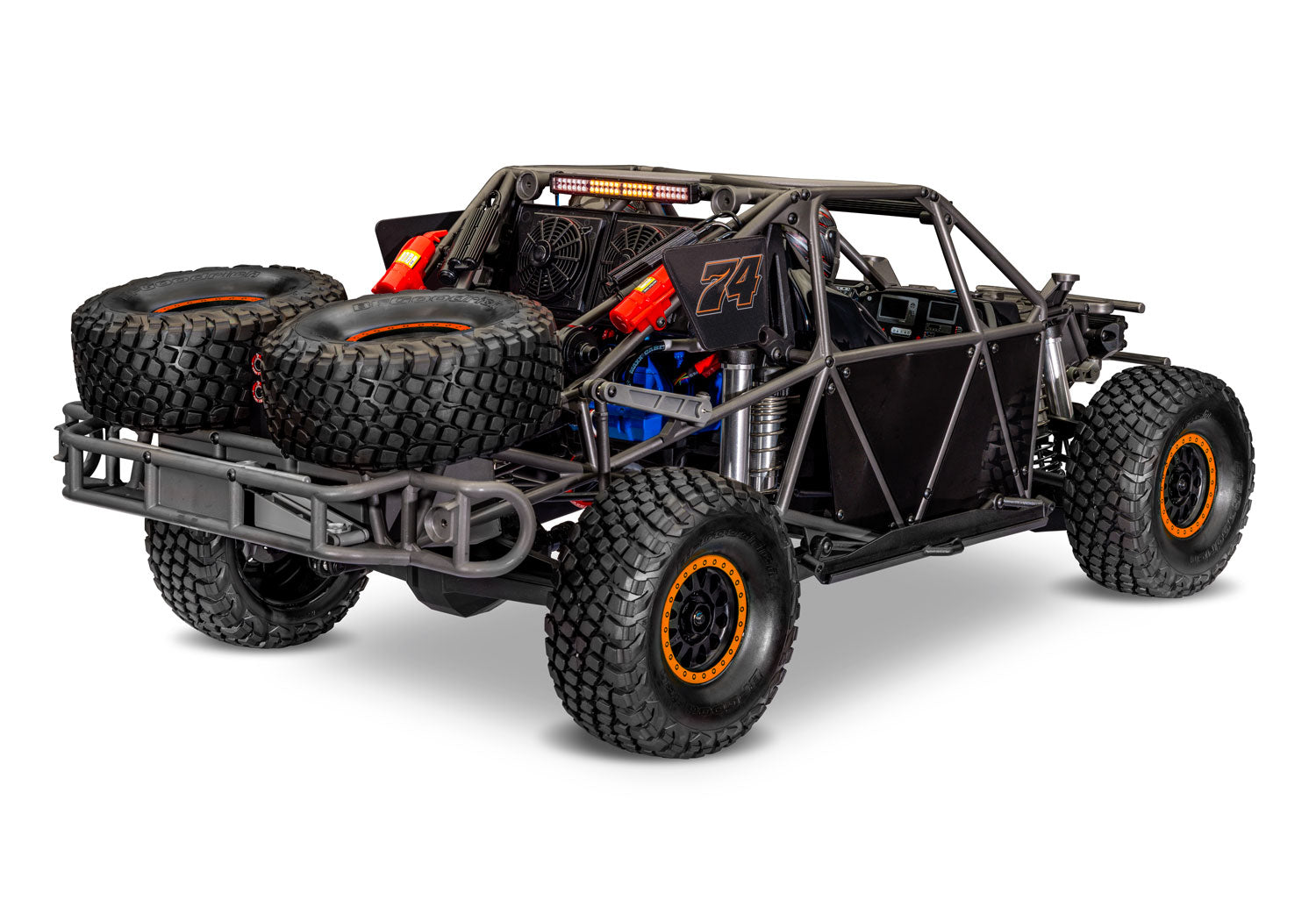

• Fully integrated tube frame for scale appearance and added rigidity
• Reinforced bumpers to absorb impacts
• ESC battery plugs hard mounted to chassis
• Innovative Battery Compartment
• Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
• Opens from underneath without removing body
• Fixed oversize battery strap locks batteries securely into place
• Separate skid plate to protect batteries
• Transmission

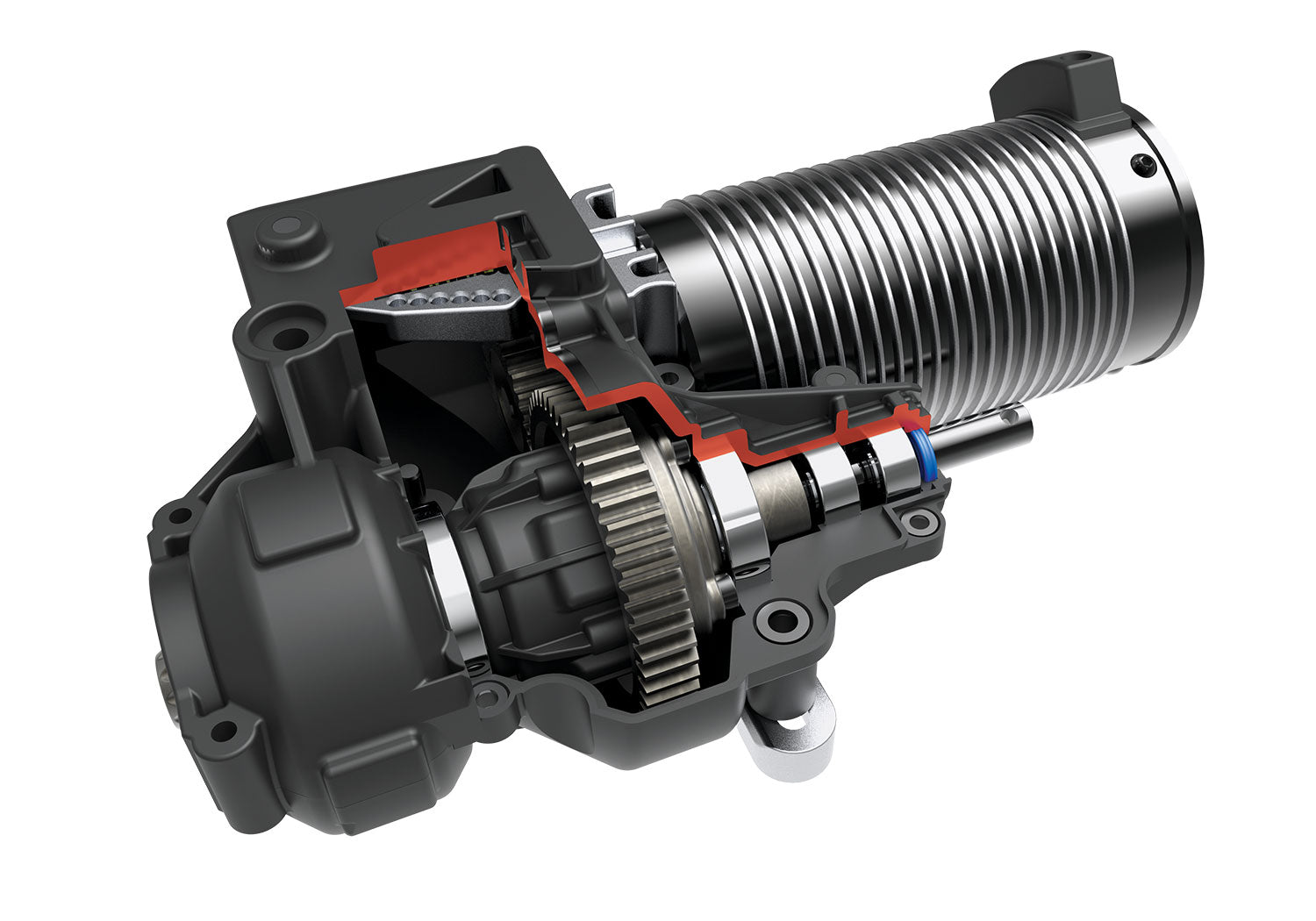

• All-steel gear direct drive transmission
• Torque-Biasing Center Drive™
• Removes as a single piece for easy maintenance
• Fixed-pin gear mesh system

• Drivetrain

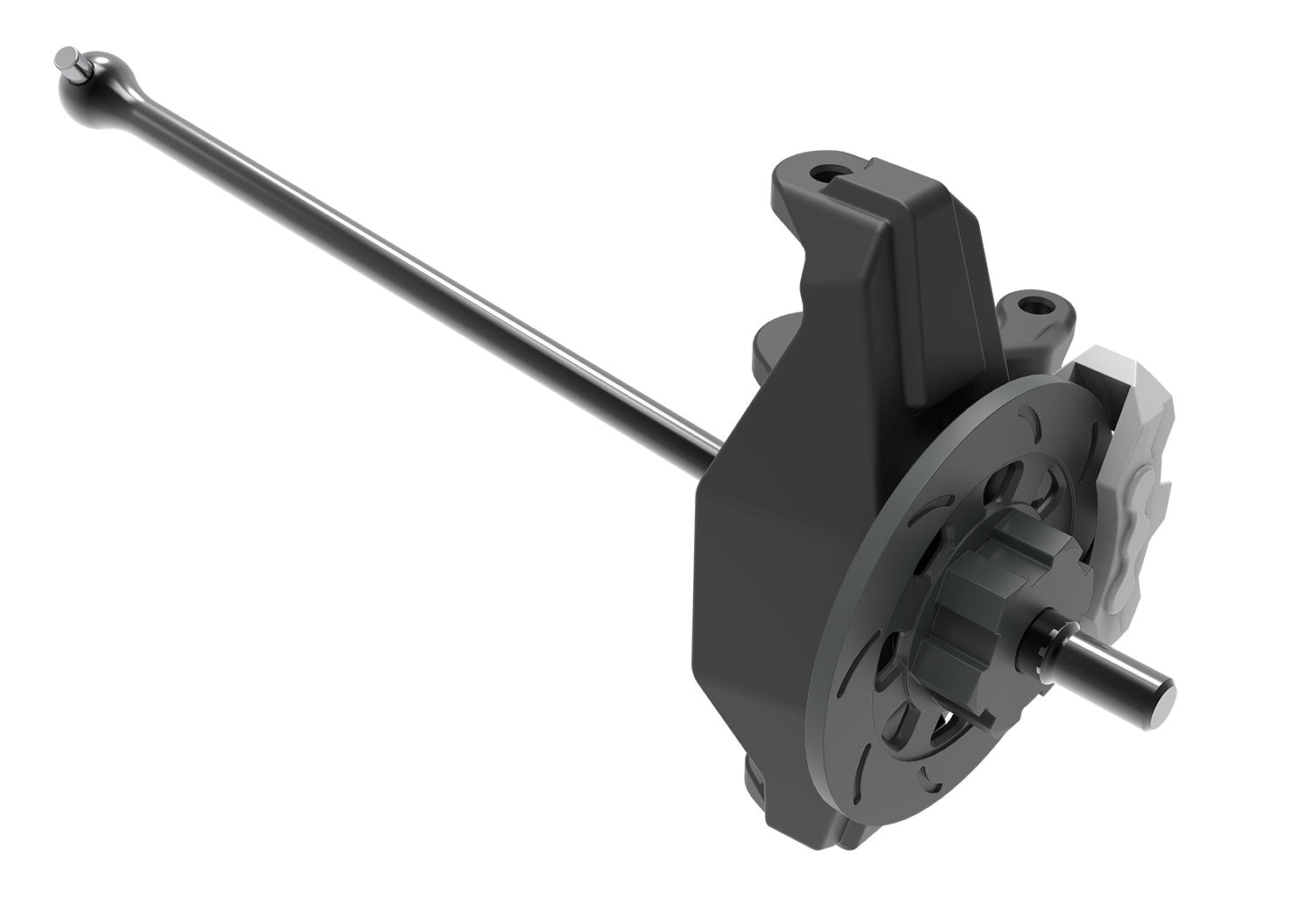

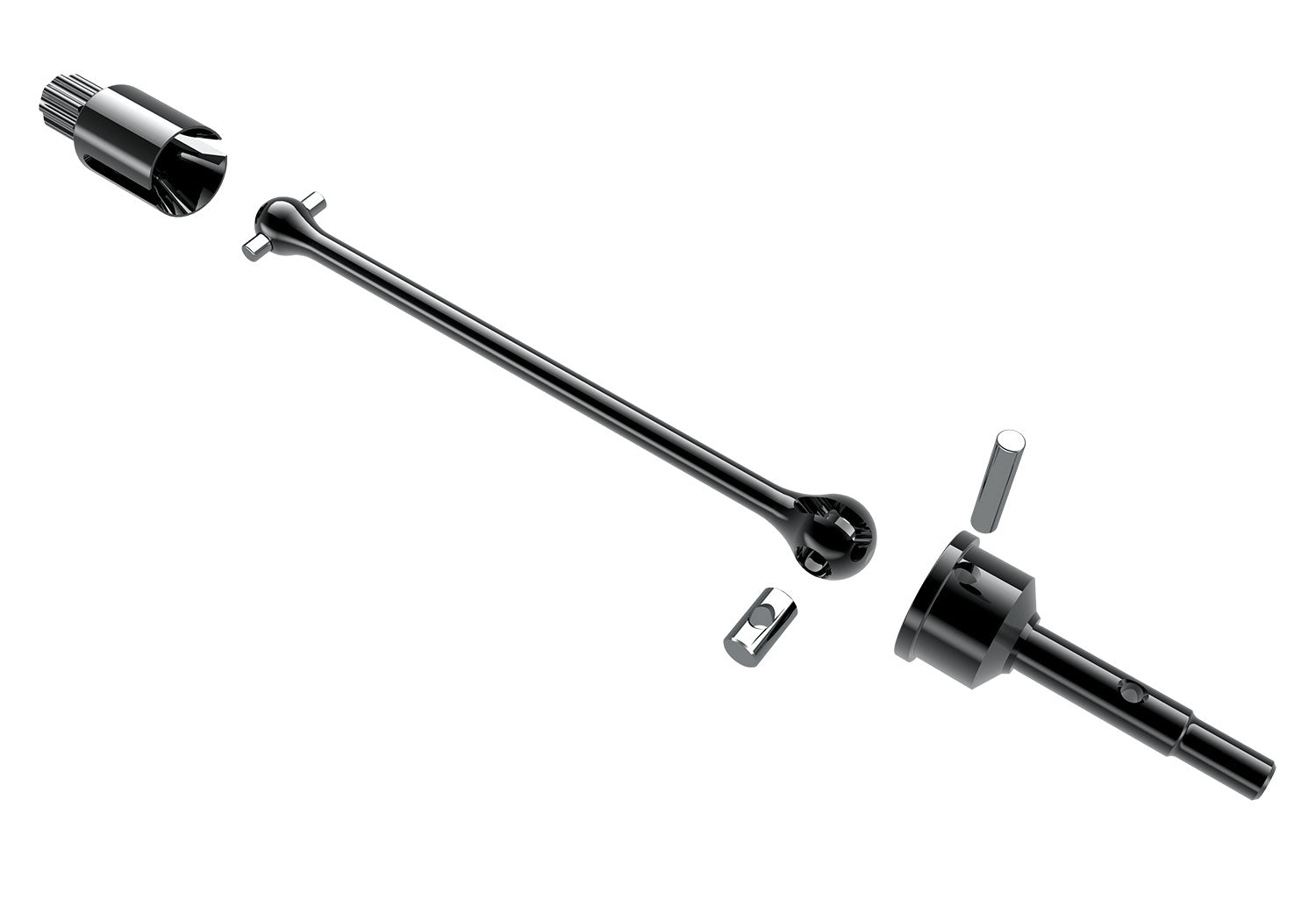

• Steel CV driveshafts (front) with 6 mm stub axles

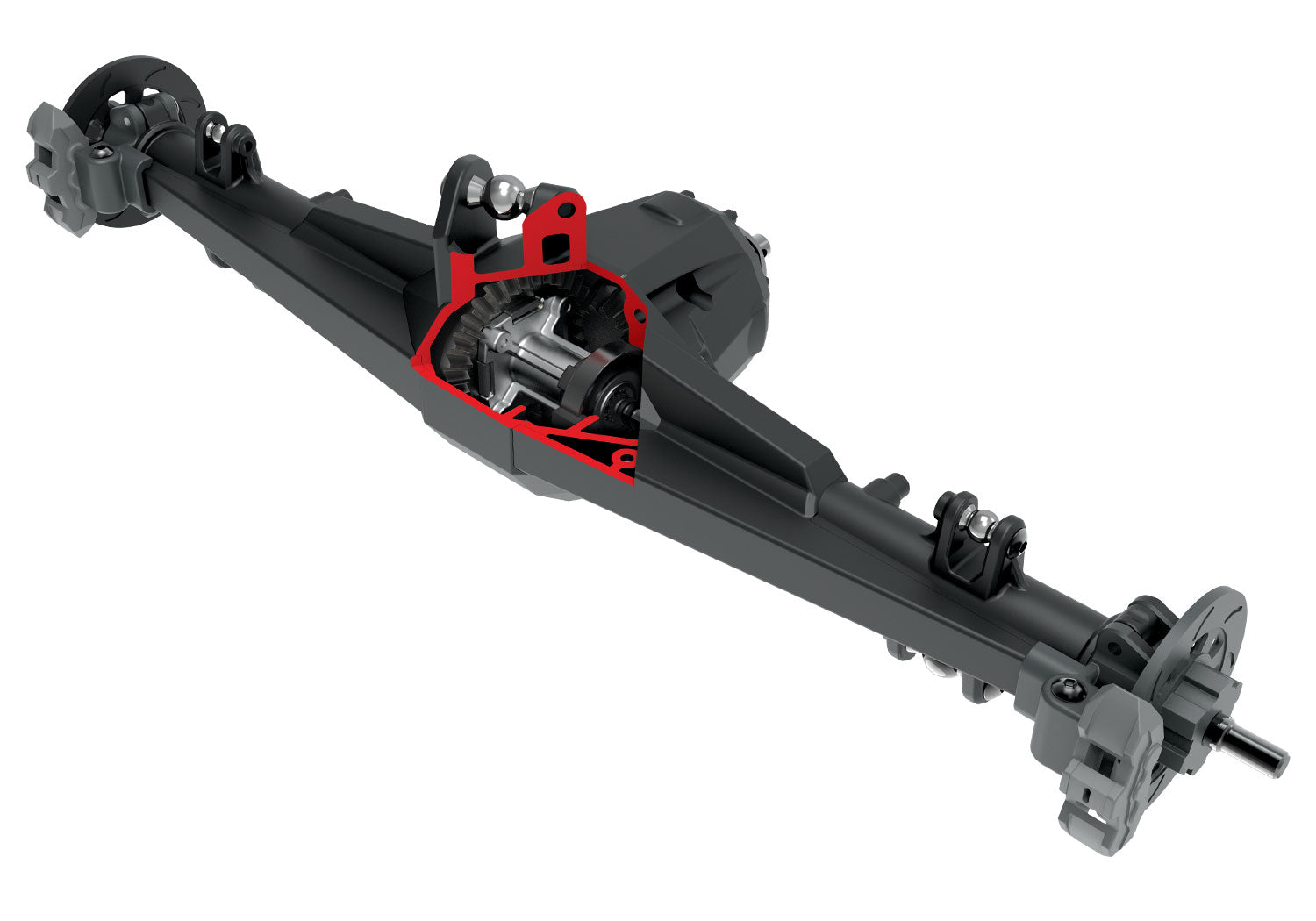

• Steel straight axle (rear)

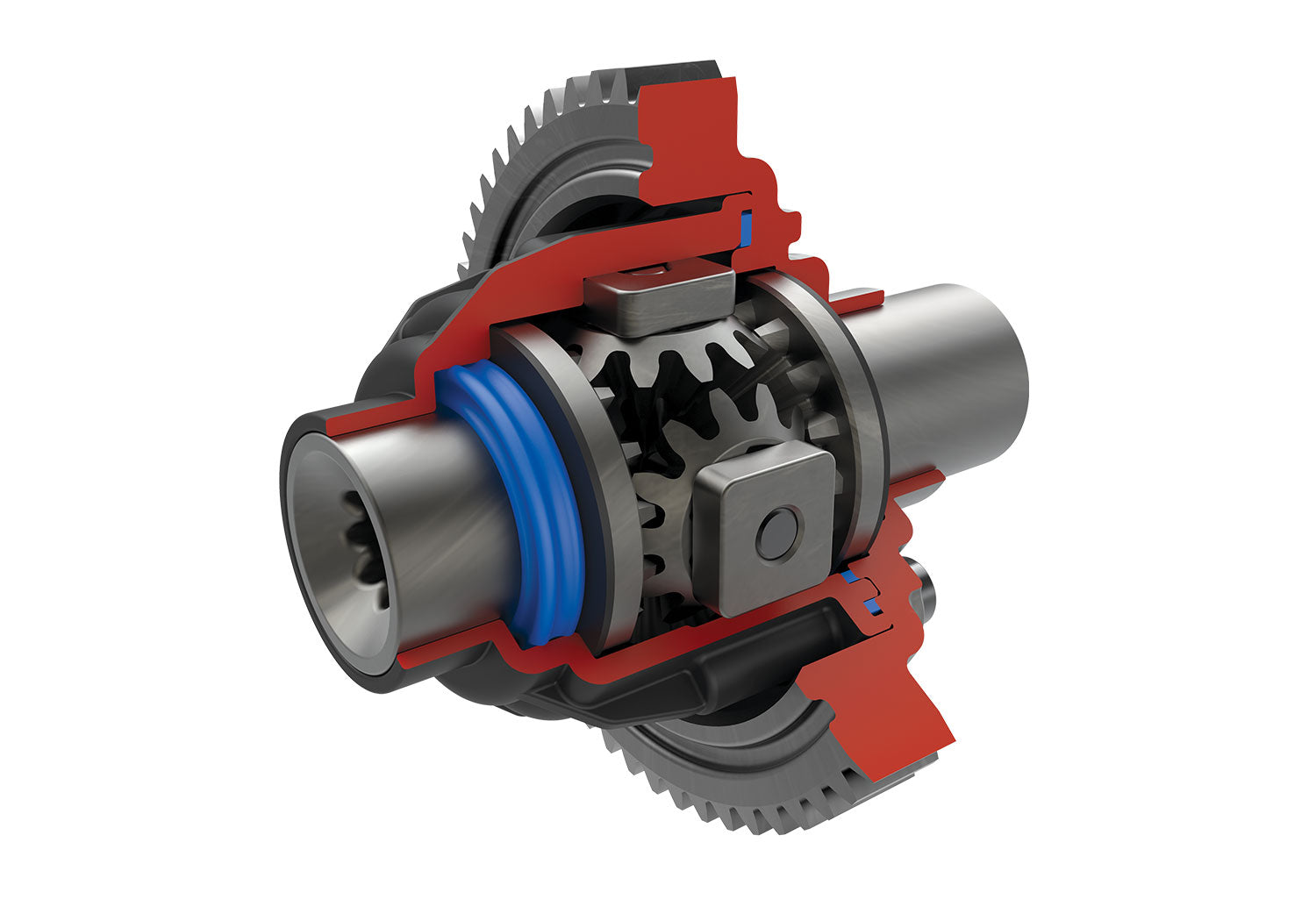

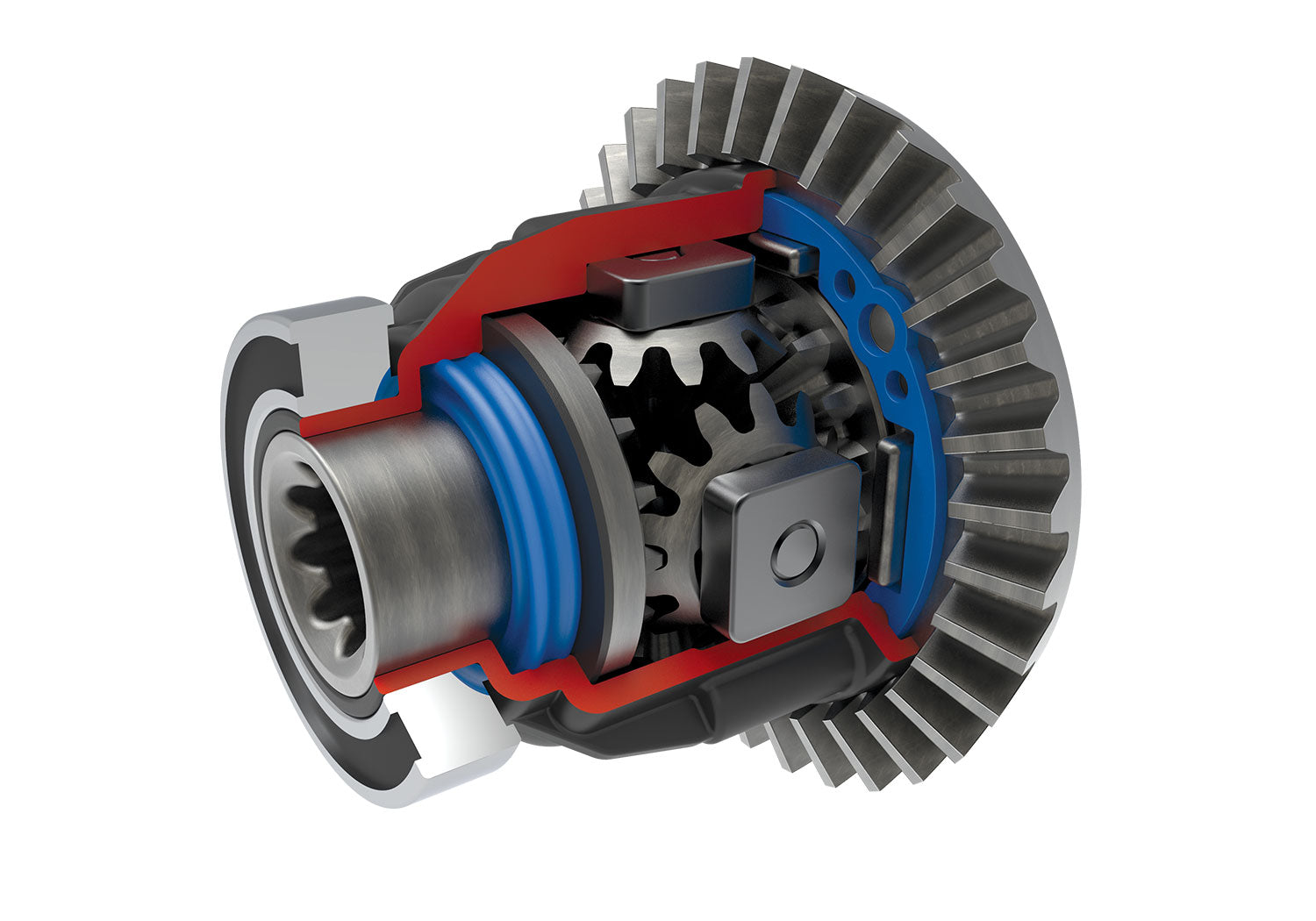

• Oil-filled limited slip front differential
• Locked steel spool (rear)

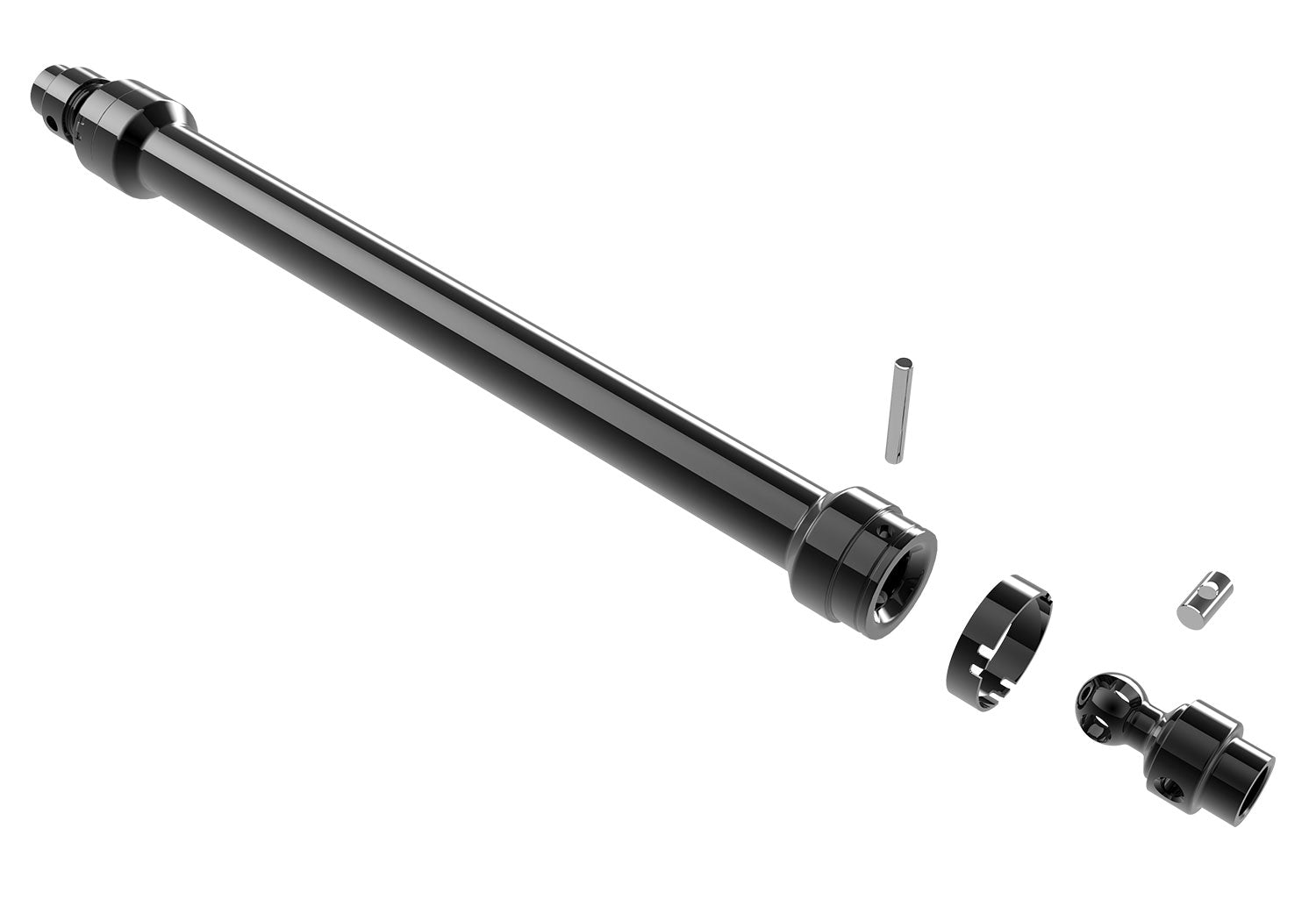

• Heavy-duty splined front driveshaft
• Fixed-length steel rear driveshaft
• Steering

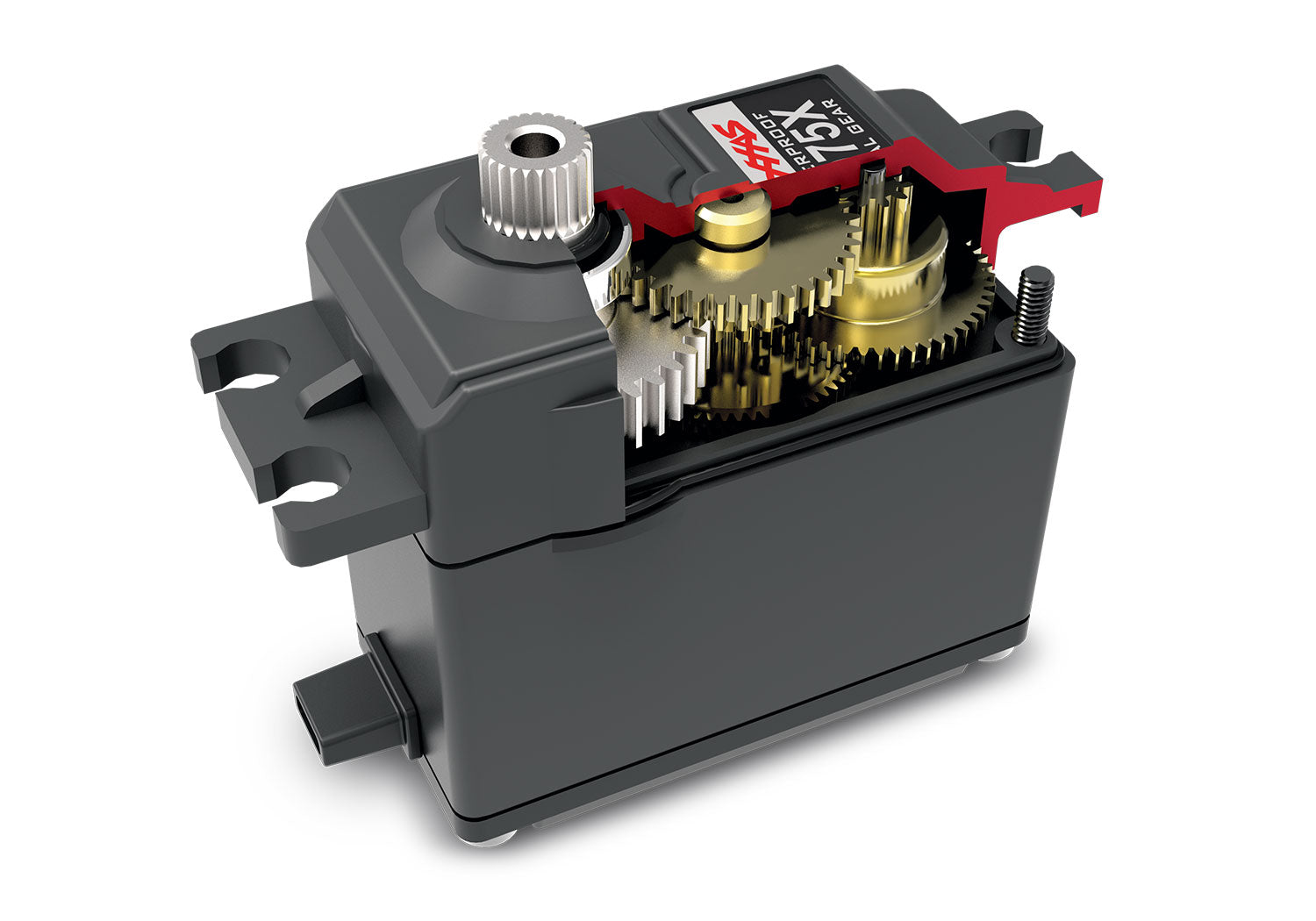

• Chassis mounted 2075R metal-gear servo

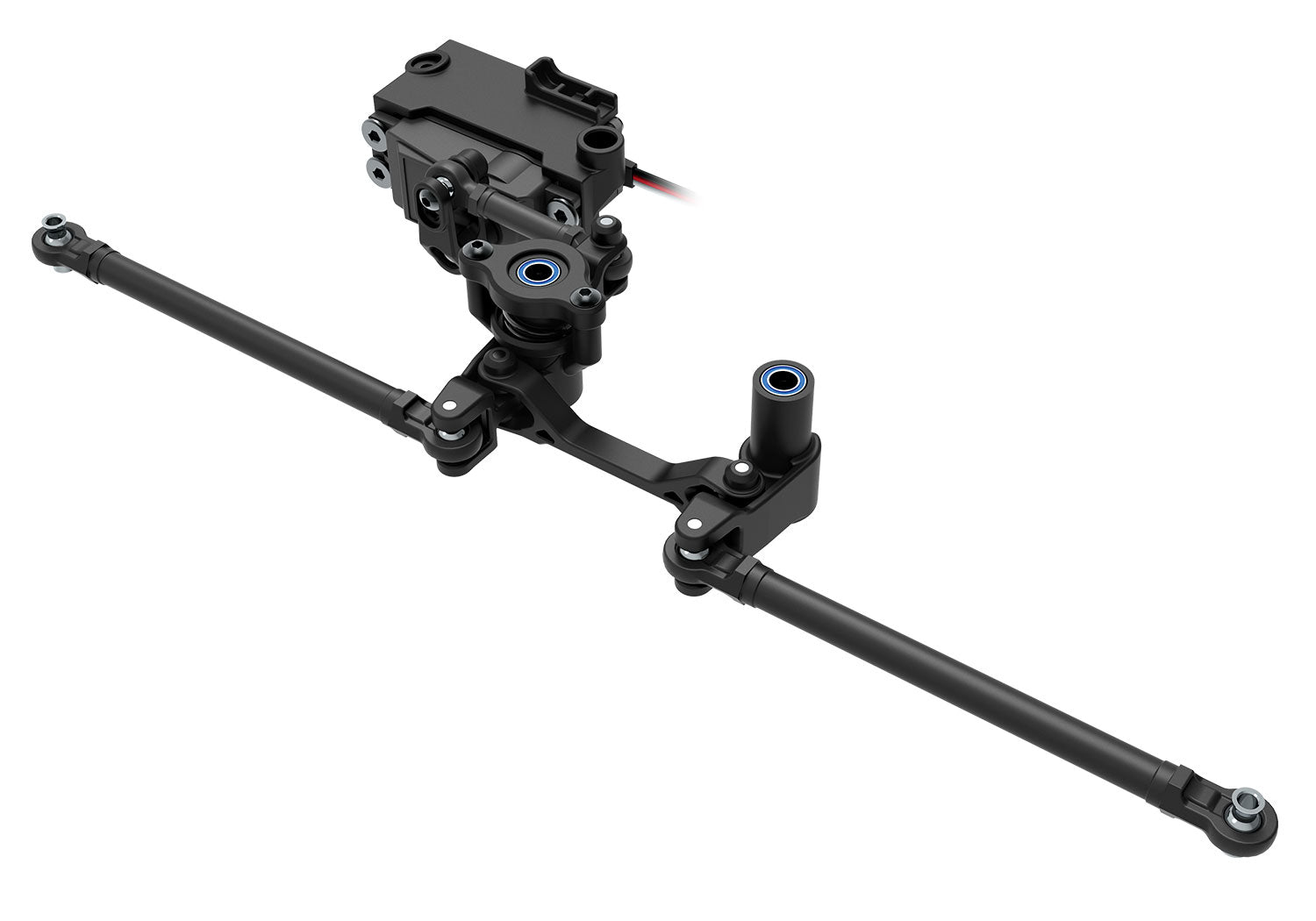

• Dual-bellcrank design with bearings and integrated servo saver
• Solid non-adjustable steering links for rugged durability
• Suspension
• Provides scale looks and authentic off-road driving dynamics

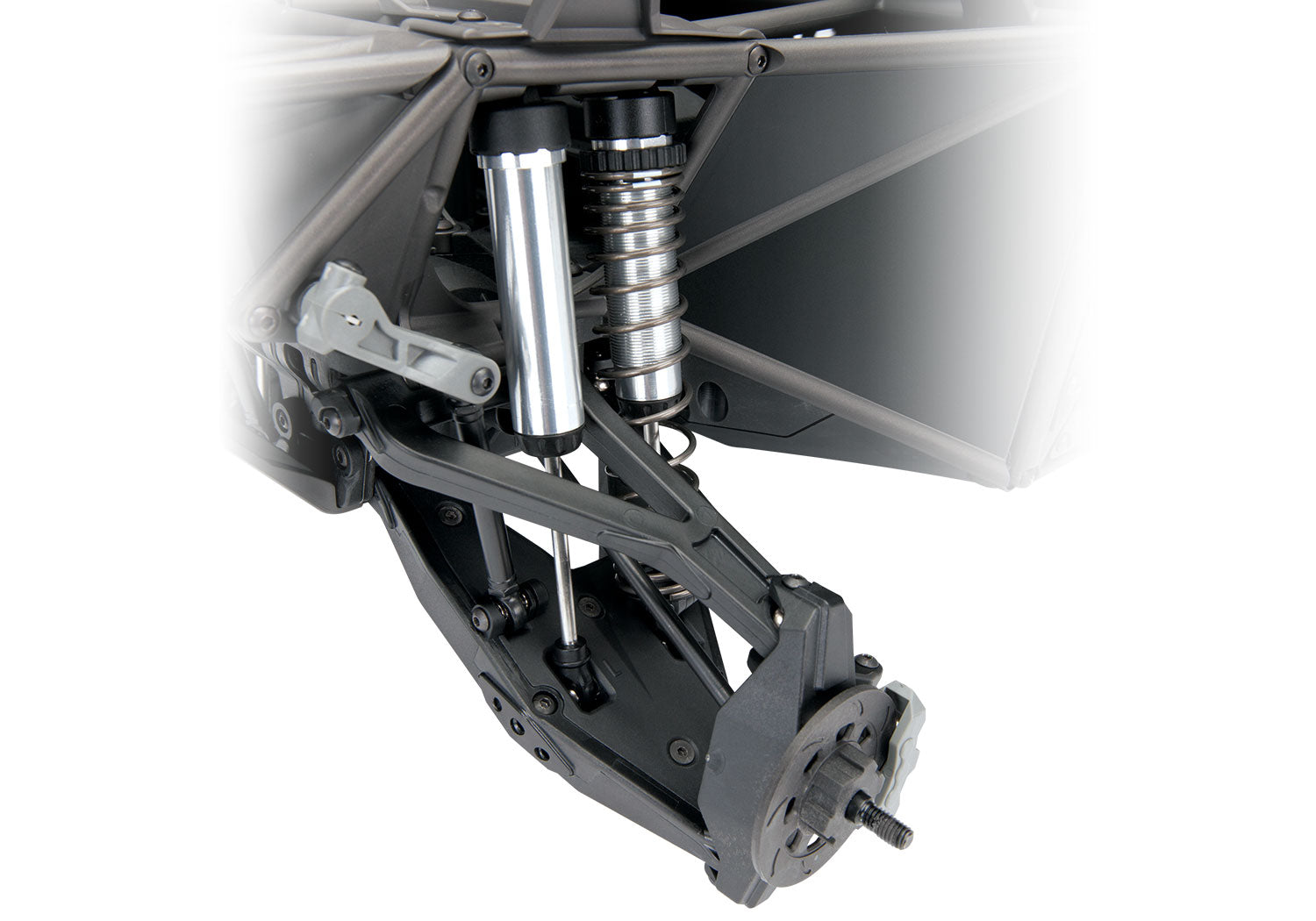

• Tough independent double-wishbone front suspension with captured rod ends

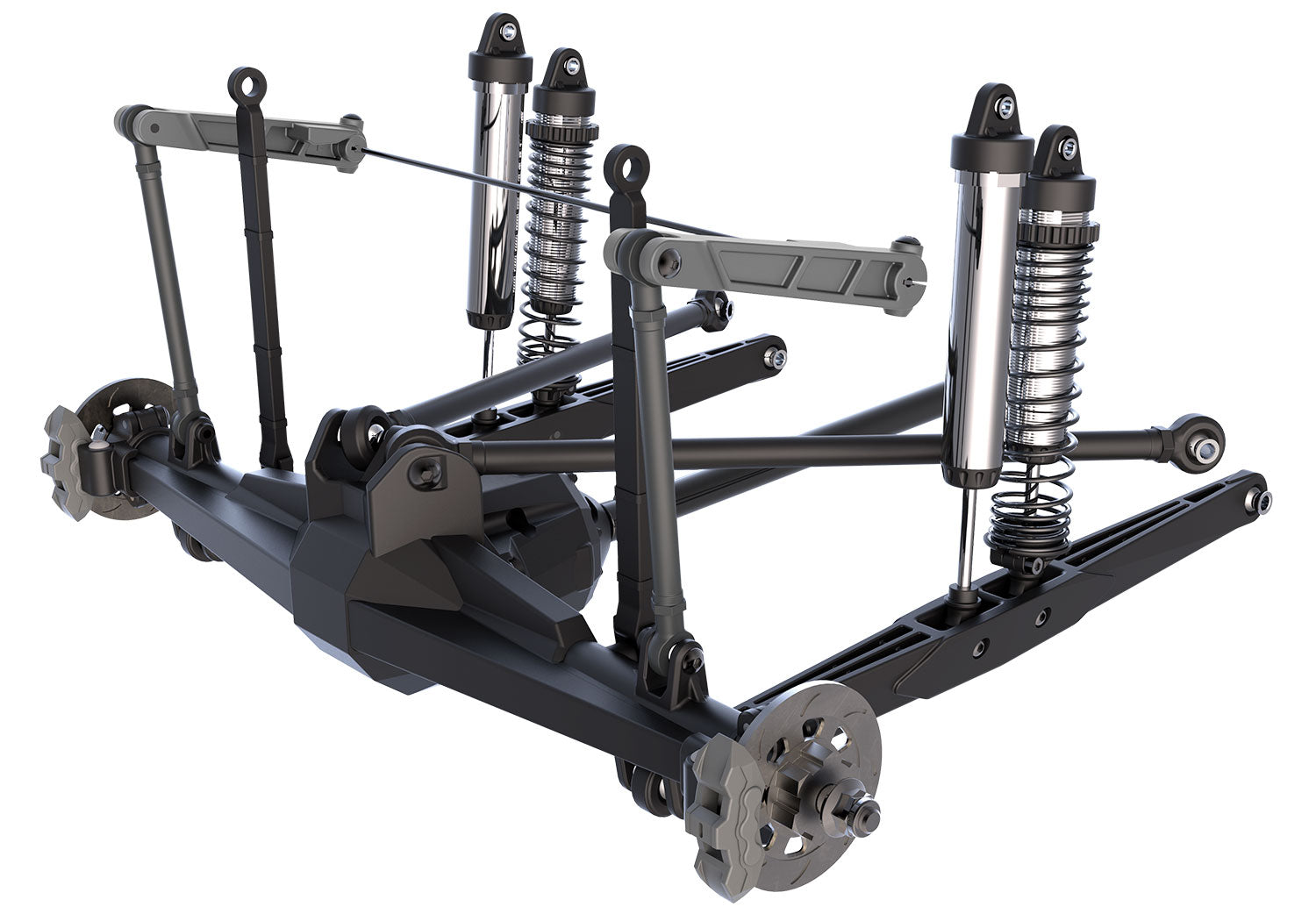

• Triangulated 4-link rear suspension with solid rear axle
• Tough composite trailing arms
• Steel upper links with 3 optional positions for suspension tuning

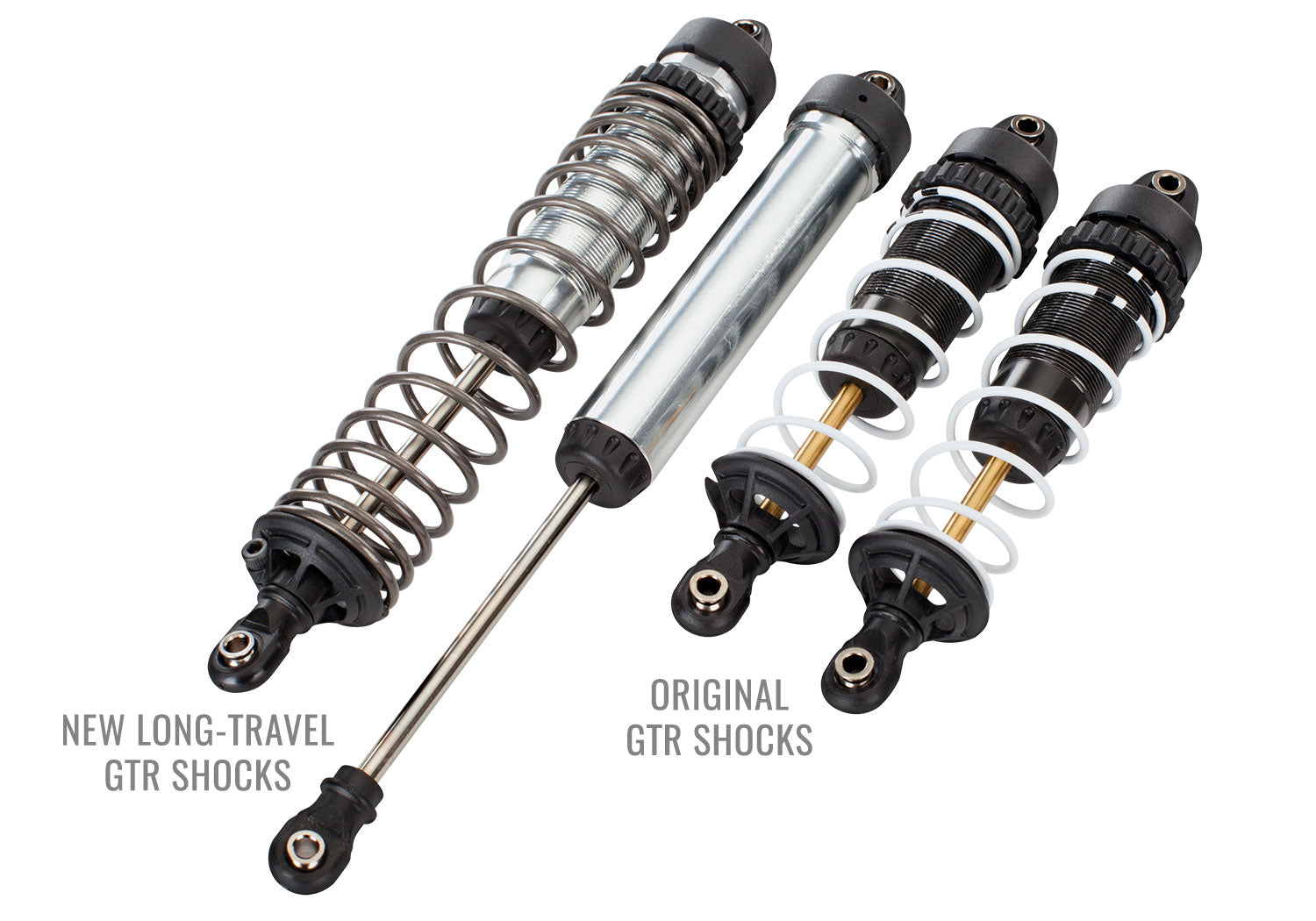

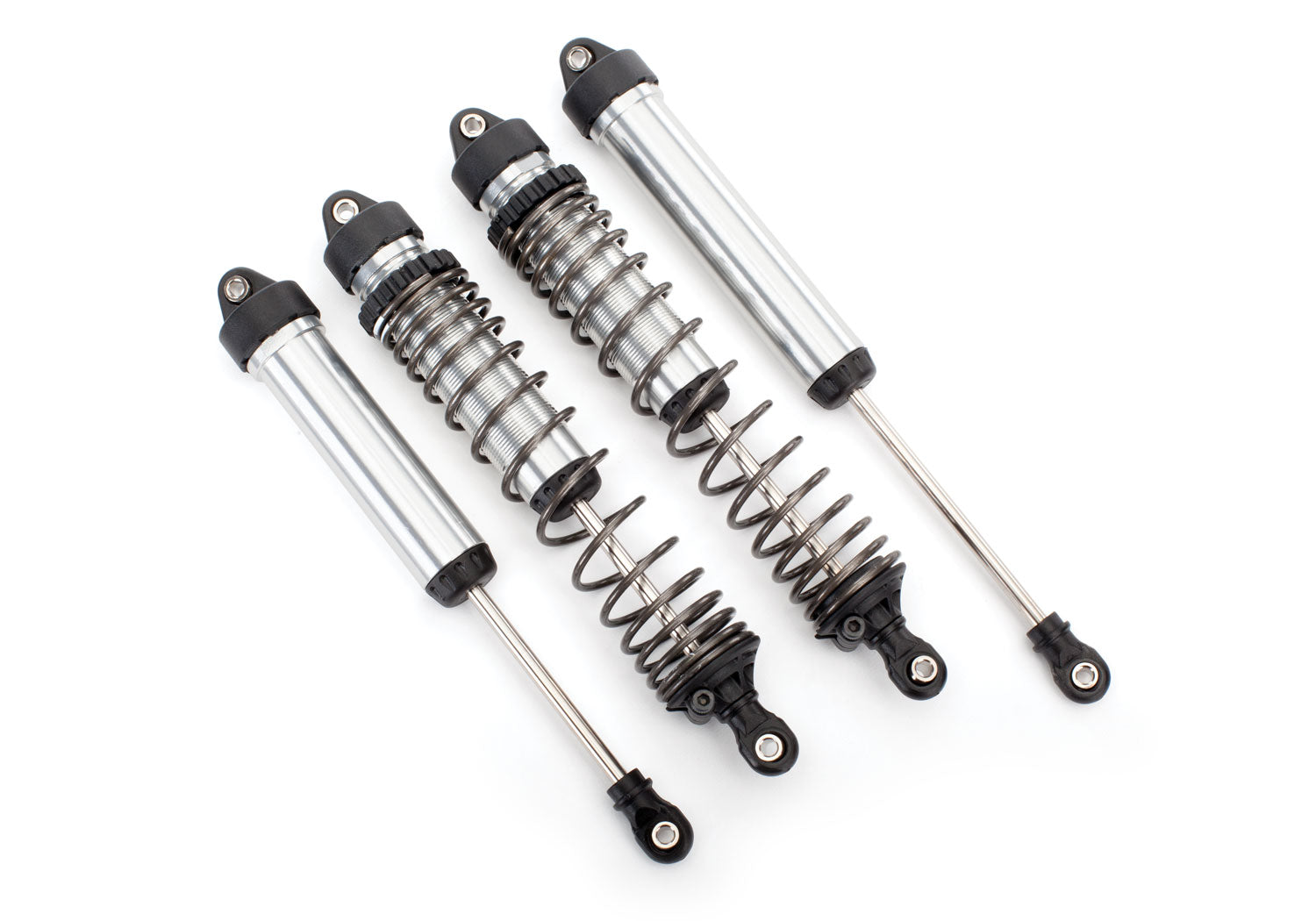

• Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars

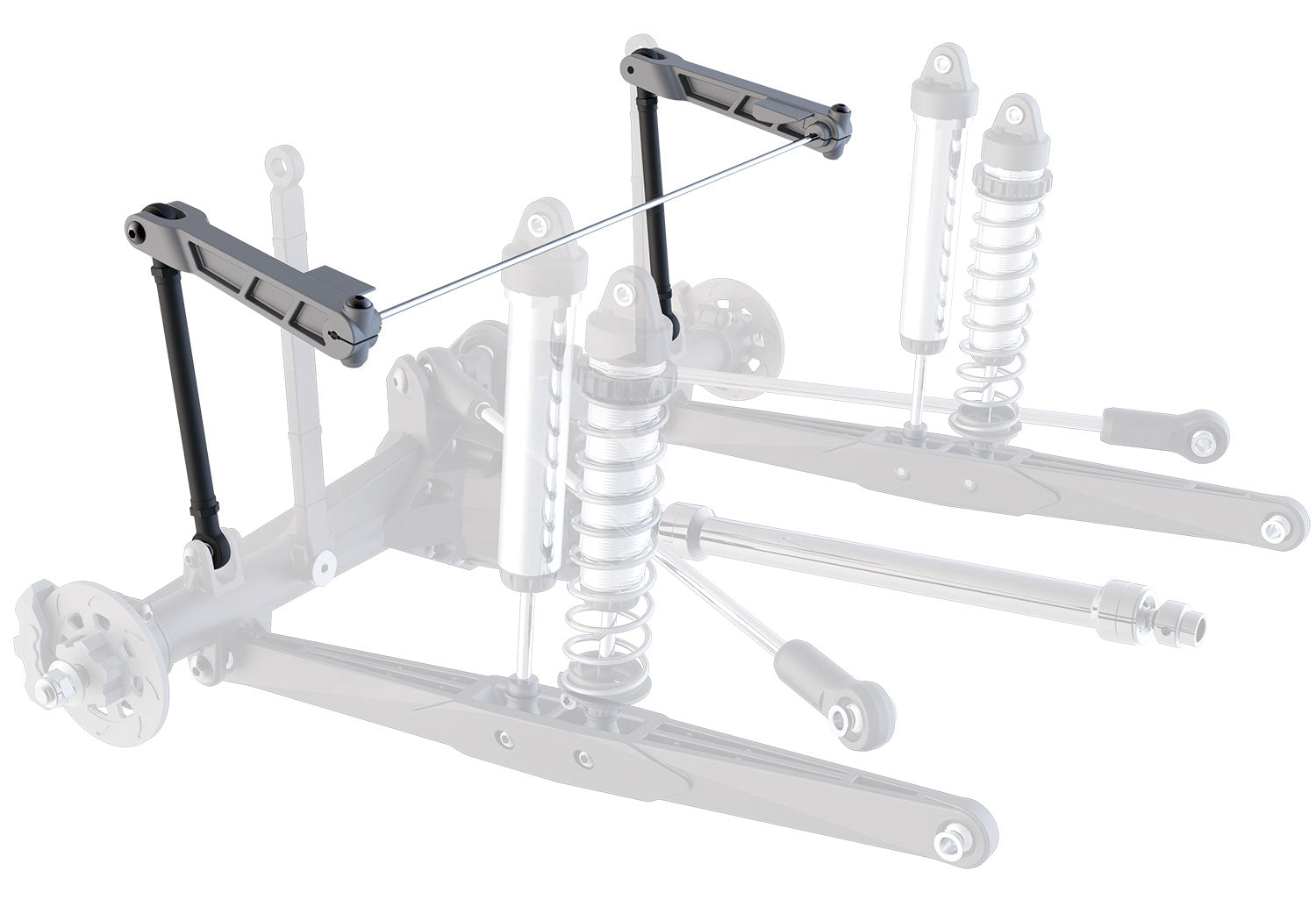

• Realistic and functional front and rear sway bars

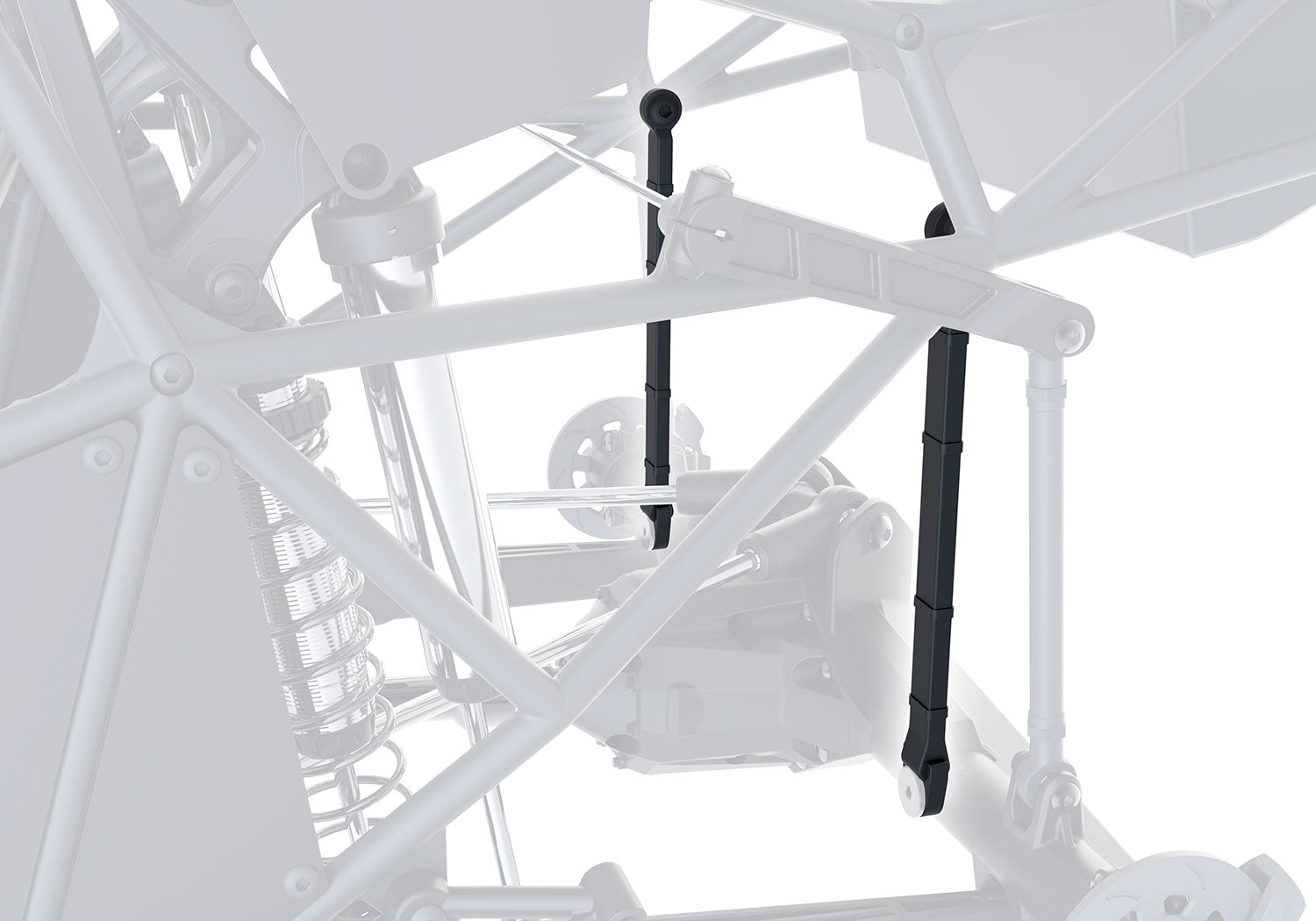

• Detailed functional limit straps on rear axle
• Wheels and Tires

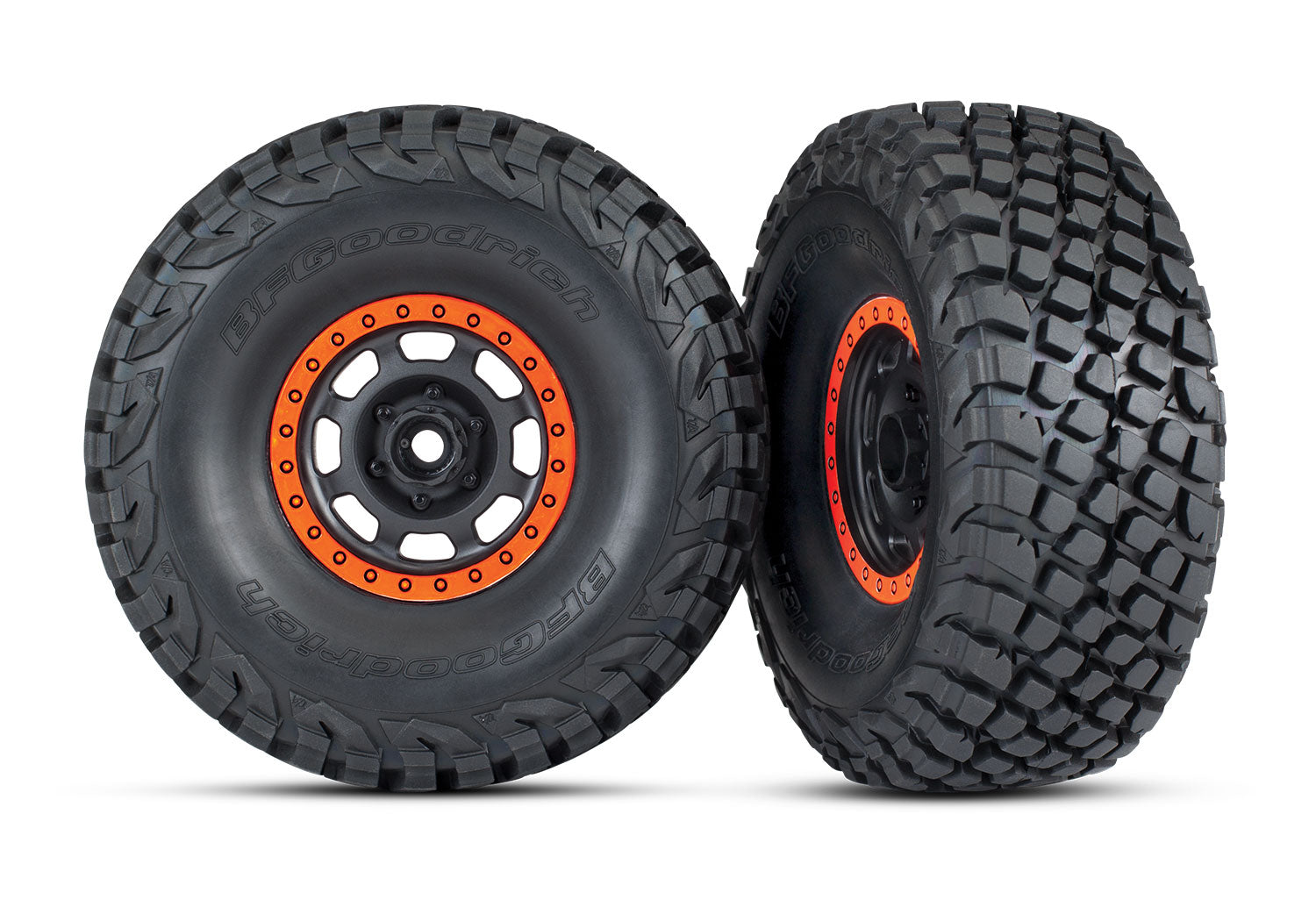

• Replica BFGoodrich^® KR3 off-road tires
• Beadlock-style 17 mm dual-diameter wheels
• Sealed Ball Bearings
• Hex Hardware with Rust-Resistant Black Oxide Coating

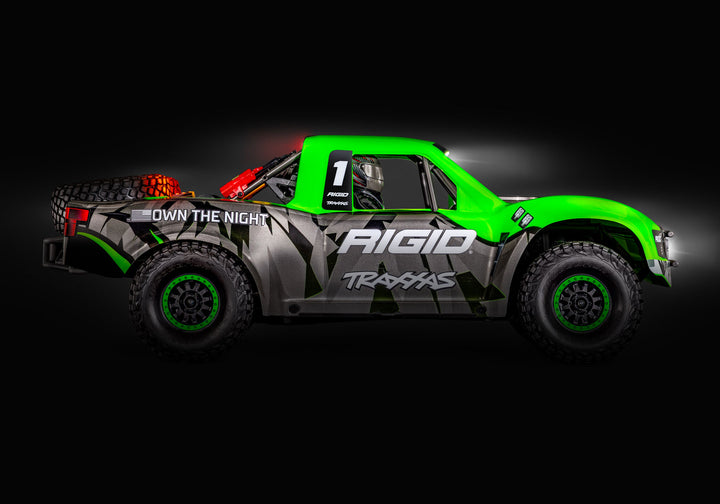

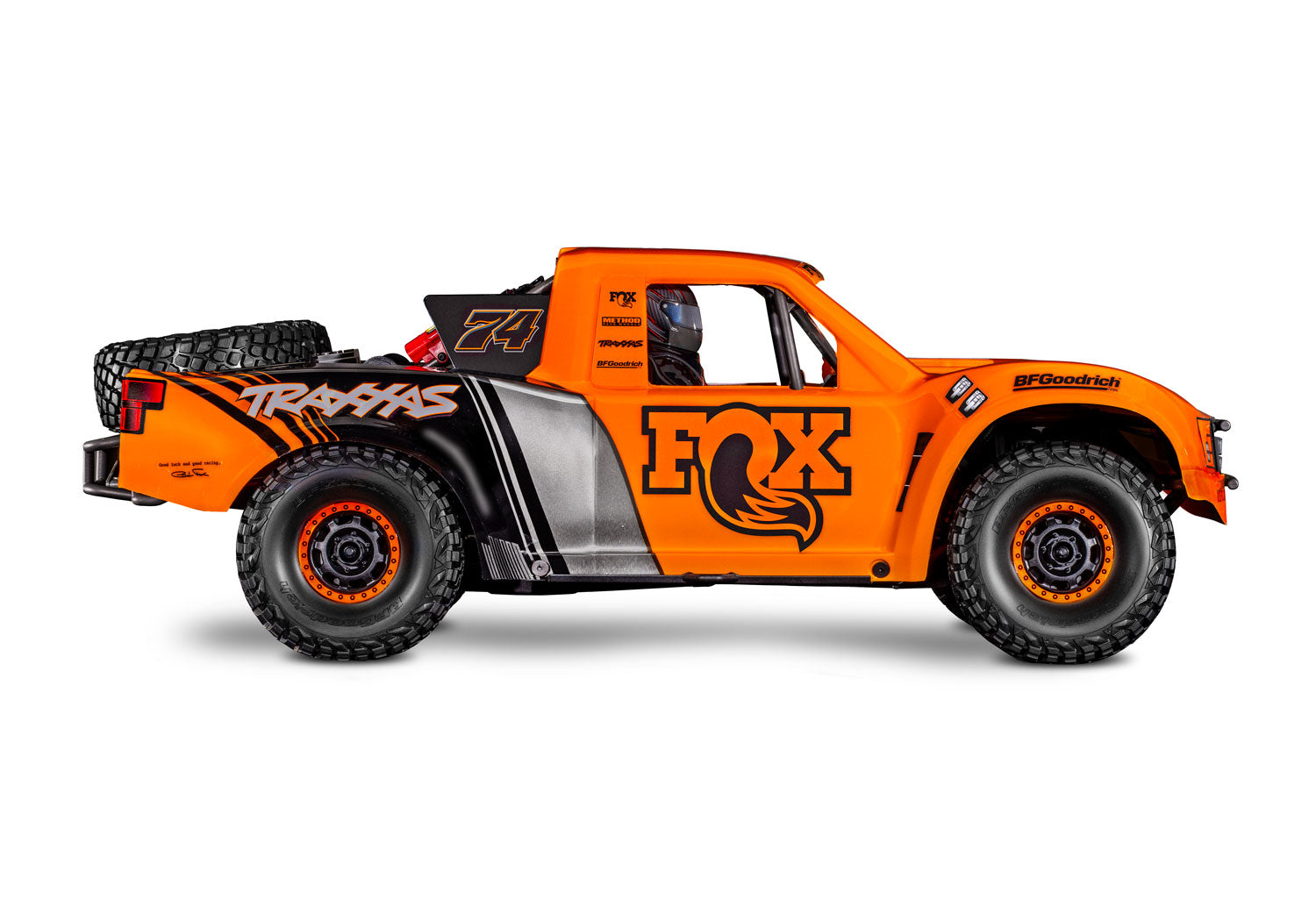

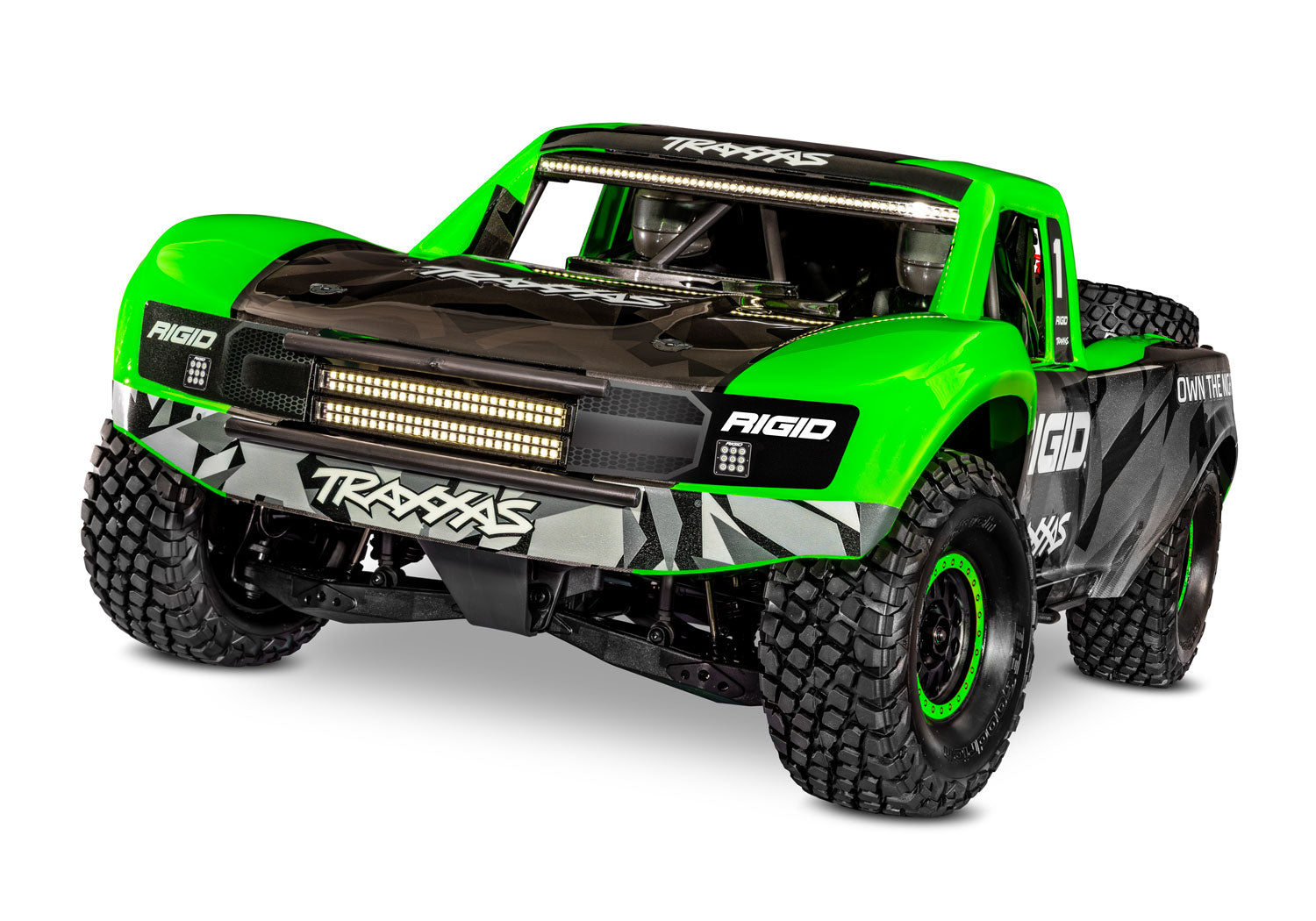

MODEL 85086-4: Unlimited Desert Racer Pro Scale^® 4WD race truck, Ready-To-Race^® with TSM^®, with TQi™ 2.4 GHz radio system, VXL-6s brushless power system, and licensed race replica painted body
