Vendor: Team BlackSheep



Add to the wishlist

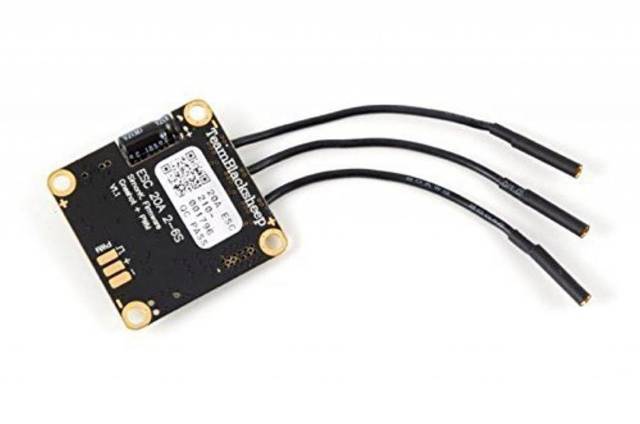

The world's most reliable, powerful and precisely switching ESC just got a major overhaul and re-design. With raceing driving the technology forward, TBS was dead set on setting a new milestone in ESC technology. Stackable to cater any kind of multi rotor configuration, with unmatched input resolution, output power, regenerative braking and ease-of use. Forget the days were you had to bother about configuring your ESCs. Stack, plug and fly! BUILT FOR RACE 960 step input resolution OneShot auto detection Fast regenerative braking Dedicated FET driver IC for fastest FET switching Latest BlHeli firmware  SAFE AND RELIABLE Mechanical crash protection (no more fires!) Optimized passive cooling Automatic Motor/ESC protective cutoff Status LED TECHNICAL DATA Continuous Current, no airflow: 20A Continuous Current, with airflow: 30A Burst Current: 50A Voltage Range: 5.5 - 26V Dimensions: 36mm x 36mm x 3mm Weight: 4.8g without wires. 7.3g incl. wires & 2mm bullet connectors Input: PWM or OneShot Connectors: 2.0mm bullet connectors, 80mm wire Firmware: BlHeli (actual V14.3) Motor start at 1020us, max at 1980us INCLUDES 1x TBS Powercube ESC 4x Brass standoffs
