RUNCAM SPLIT MINI

1080P/60fps HD recording & WDR FPV camera
Power-off protection for video files
Ultra light weight (15g)
Low latency TV-OUT
Wide voltage (5-17V)*
Anti-drop SD card

MODULAR DESIGN

REPLACEABLE LENS
MANUAL FOCUS
SUPPORTED

FPV (4:3 / 16:9 auto adaptation)HD recording (16:9) RunCam Split Mini

EASY INSTALLATION

Standard mounting bracket

Mounting Dimension:20*20mm

Light weight (15g)

SD card protector

Silicone ring

Dimensions

Compatible with a variety of flight controllers
BetaFlight/CleanFlight/iNavFlight/KISS FClearn more >

Package

1x Camera
1x Metal Cover
1x SD card protector
1x Bracket
1x TV-out and power cable
1x 3pin FPV Silicone Cable(male)
1x 3pin FPV Silicone Cable(female)
1x Set of M2 screws

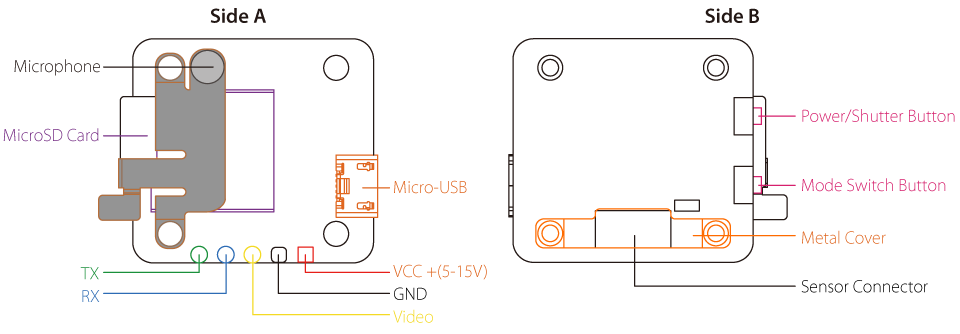

Instruction Diagram

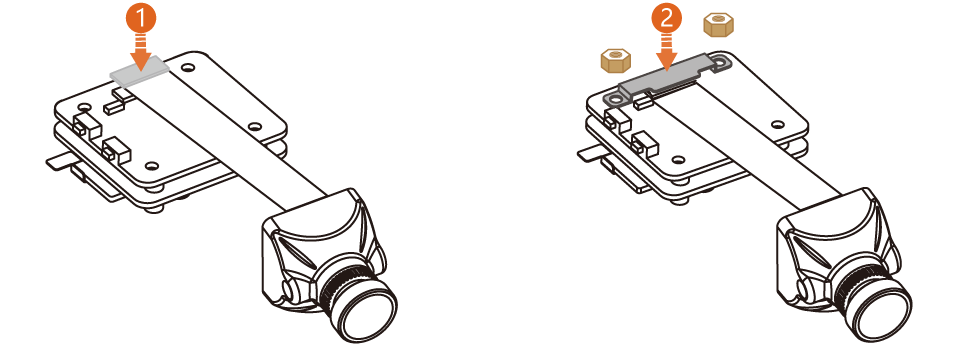

Lens Module Connection Diagram

Warning: Please press the Metal Cover(showed above) to make sure the Sensor Connector fixed steadily.

Micro SD Card

Capacity up to 64GB; Please use high speed cards(Class10/UHS-I/UHS-II)

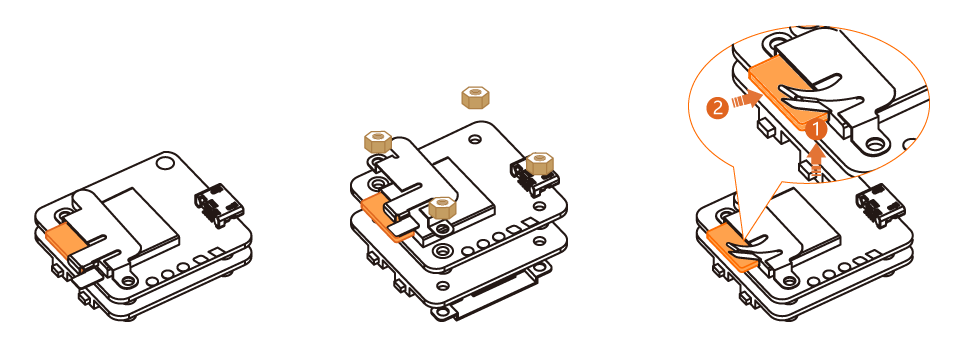

Please push the metal piece a little bit up with one hand like showed in above step 1 and then press the SD card(step 2) with another hand to let the card pop out.

Parameters

FOV Angle of Field	FPV FOV 130° / Recording FOV 165°
Video Resolution	1080@60fps / 1080@30fps / 720@60fps
Video Files	MOV
Image Resolution	2 MP
TV Output	NTSC (720480) / PAL (720576) Switchable
Interface	Micro USB / UART
Max Micro SD Card Supported	64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II)
Hole Distance of Installation	20*20mm
Dimensions	PCB 2729mm / Lens Module 1919mm
Power Input	DC 5-17V/DC 5V(USB)
Working Current	650mA @5V / 270mA @12V
Weight	15g
