Compact, versatile and powerful, the iCharger line of battery chargers are among the most popular in the RC hobby.

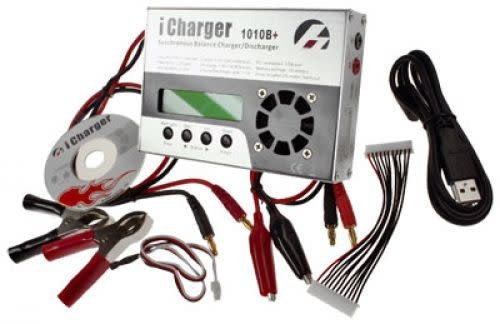

The 1010B+ charger is designed for charging 1S-8S packs up to a 20 amp charge rate, while also giving you useful tools such as measuring the internal resistance of your batteries, or safely and easily discharging packs for storage. With a JST-XH & ThunderPower balance board thrown in for free, you're ready for just about anything.
| Maximum Charge Power | 300W (at >13.5V) |
|---|---|
| Charge Current Range | 0.05-10.0A |
| Discharge Current Range | 0.05-7.0A |
| Input Voltage | 10-18V DC |
| Input Current | 24A |
| Maximum Discharge | 30W |
| Maximum Regenerative Discharge | 300W |
| Maximum External Discharge | 280W at 40V/7A |
| Current Drain For Balancing | 300mA |
| Balance Accuracy | <10mV |
| LiPo/LiIo/LiFe | 1-10 series |
| NiCd/NiMh Cell Count | 1-25 series |
| Pb Battery Cell Count | 1-18 series (2-36V) |
| Battery Setup Memories | 10 |
| Intelligent Temperature Control | Yes |
| PC Connectivity | USB port |
| Dimensions | 143x97x25mm |
| Weight | 410g |
| Warranty | 1 year |
